Elite Condition – Atlas Metal WF-4 – 52-3/4″ Commercial Frost Top Drop-In Unit – Self-Contained Refrigeration – 115V – Fully Tested & Operational!

Elite Condition – Atlas Metal WF-4 – 52-3/4″ Commercial Frost Top Drop-In Unit – Self-Contained Refrigeration – 115V – Fully Tested & Operational!

🔹 Condition

Used – Good Condition – Fully Tested & Operational

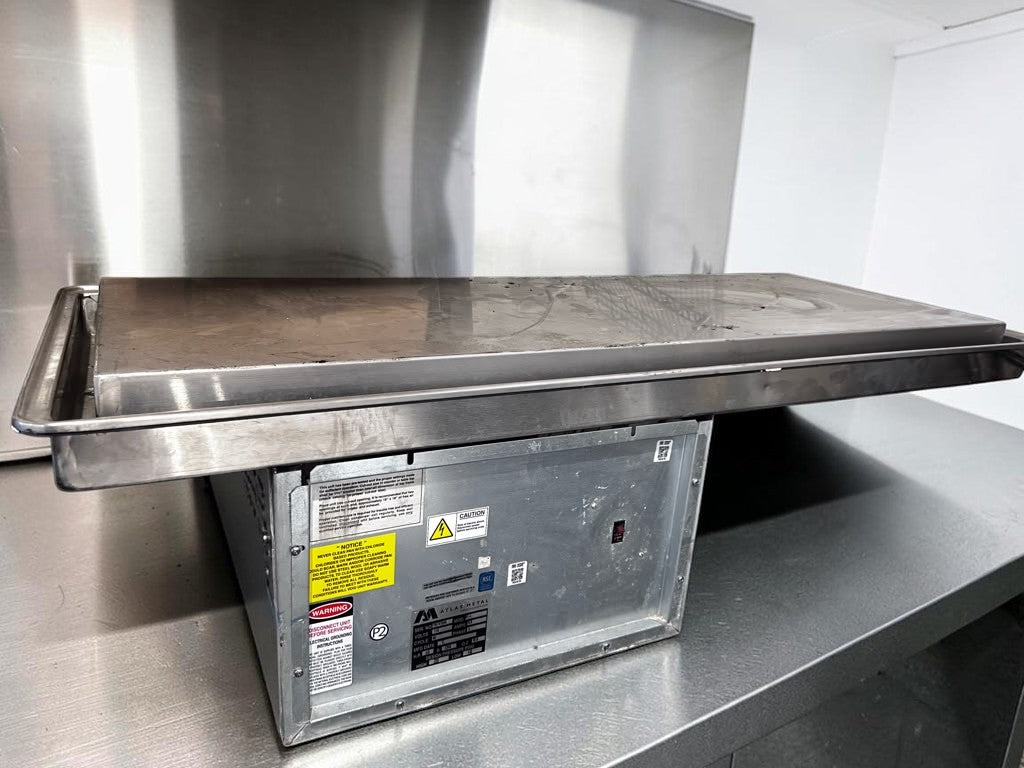

This Atlas Metal WF-4 refrigerated frost-top unit has been professionally inspected and tested to confirm proper cooling operation. The refrigeration system operates correctly and the stainless steel frost surface is ready for continued commercial service.

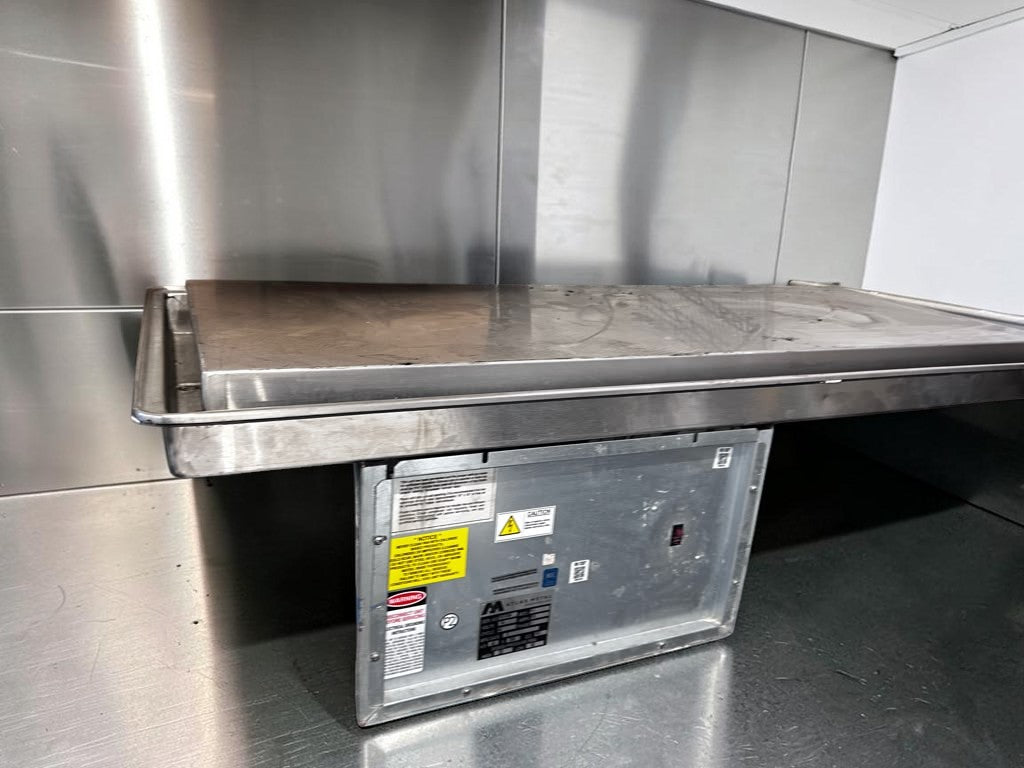

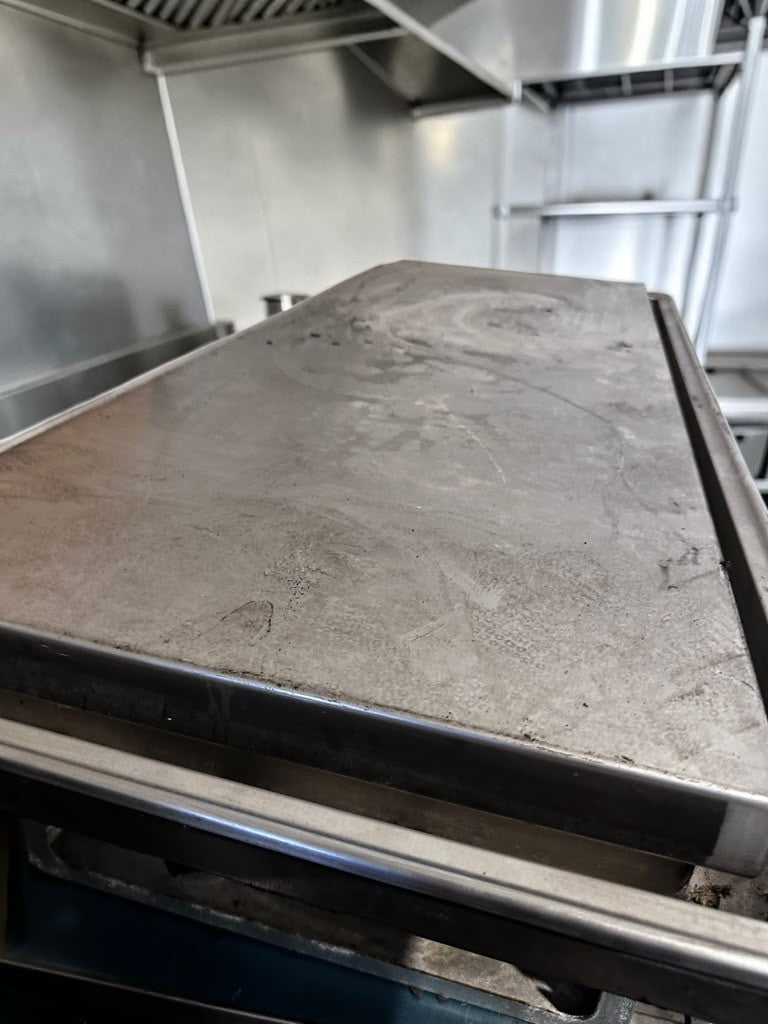

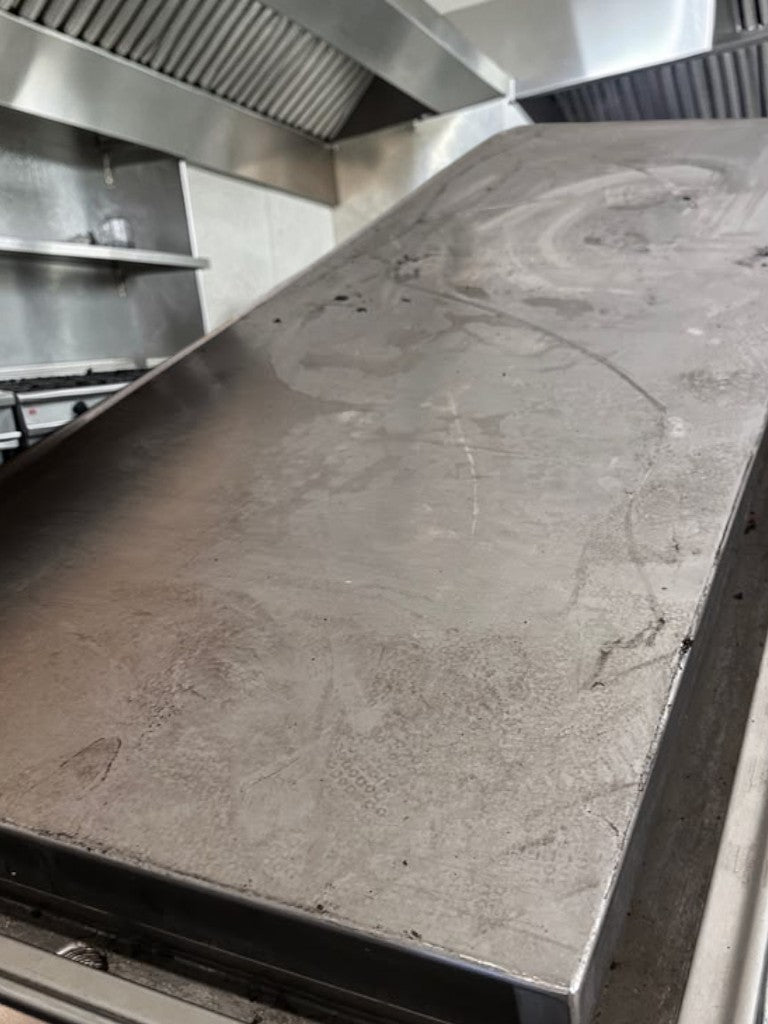

The unit shows normal cosmetic evidence of previous installation and foodservice use, including scratches, scuffs, water marks, surface discoloration, and wear on the stainless steel and galvanized housing. These cosmetic imperfections do not affect its intended cooling performance.

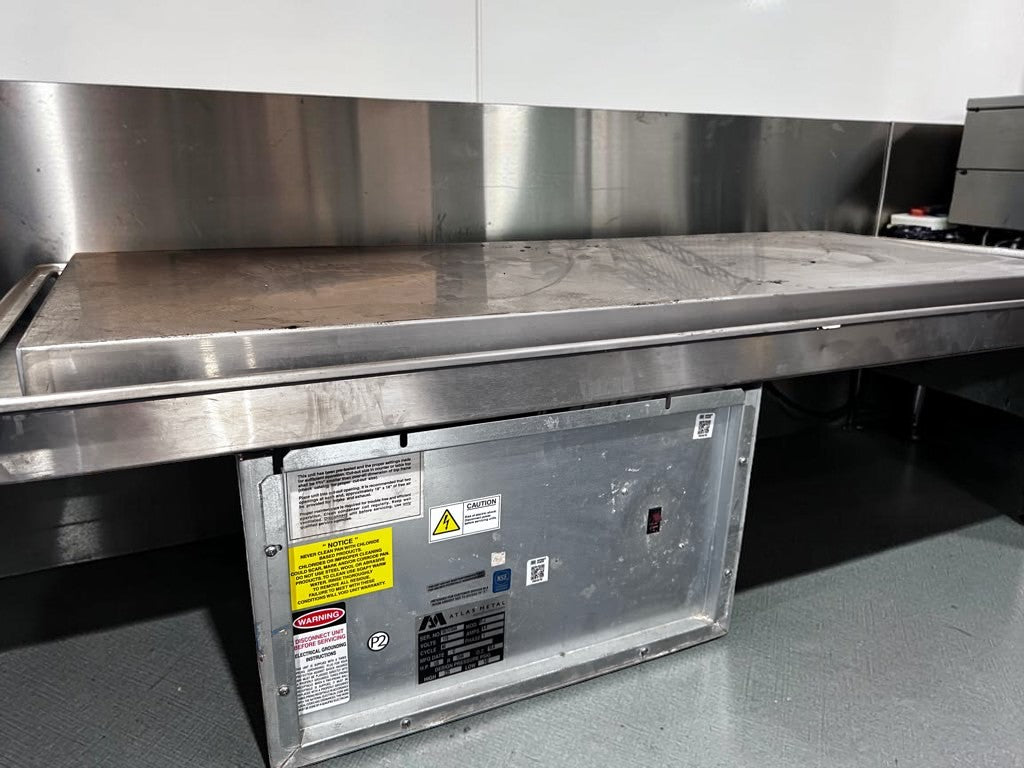

The self-contained condensing system, on/off switch, pilot light, stainless steel display surface, drain system, and exterior enclosure are present. The unit is sold exactly as shown in the supplied photographs.

🔹 Description

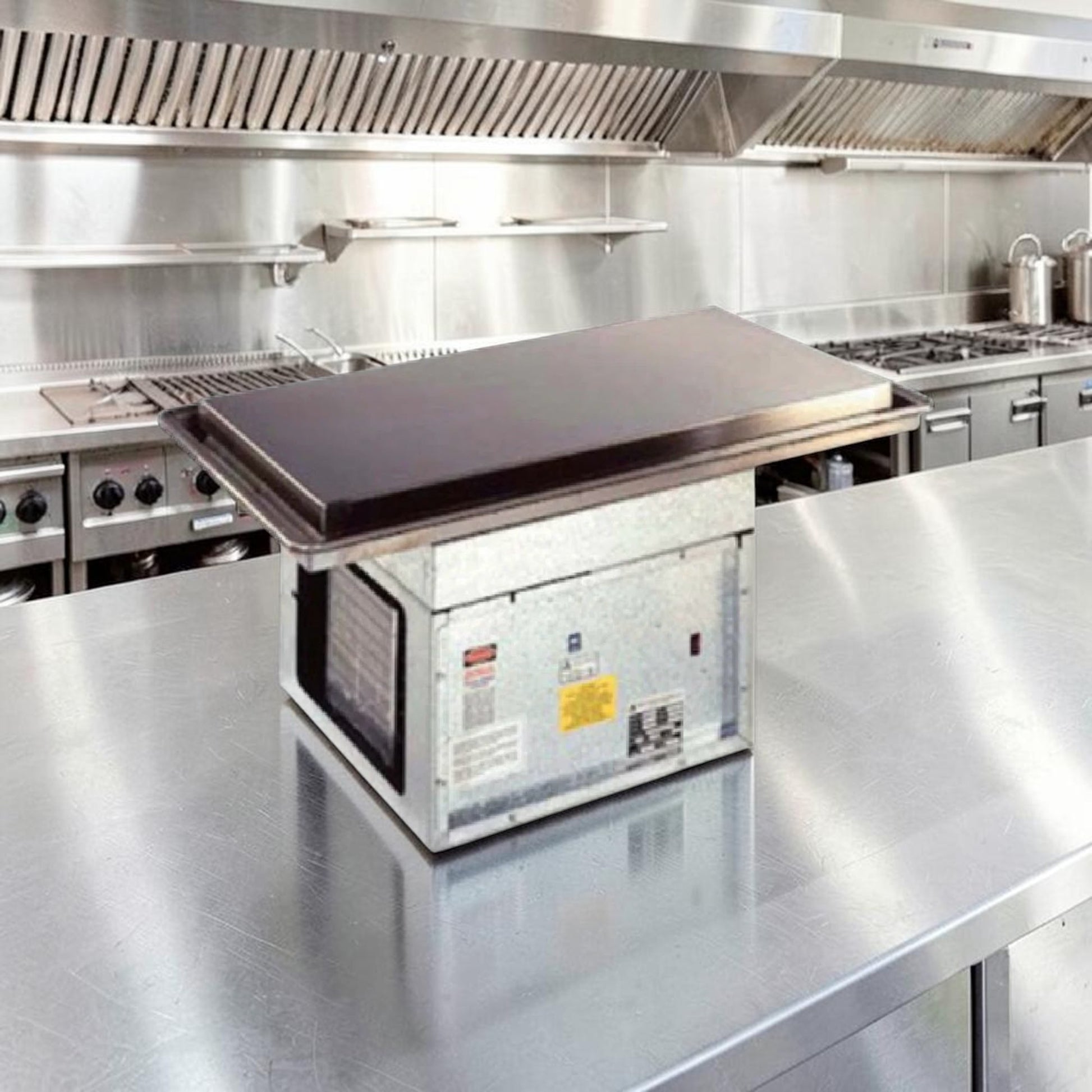

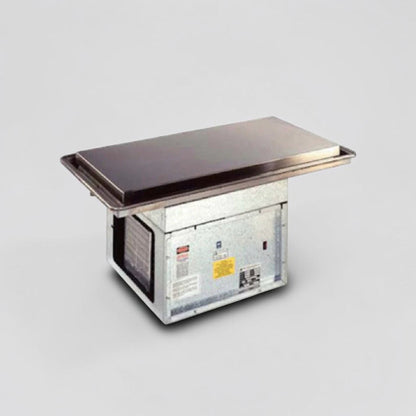

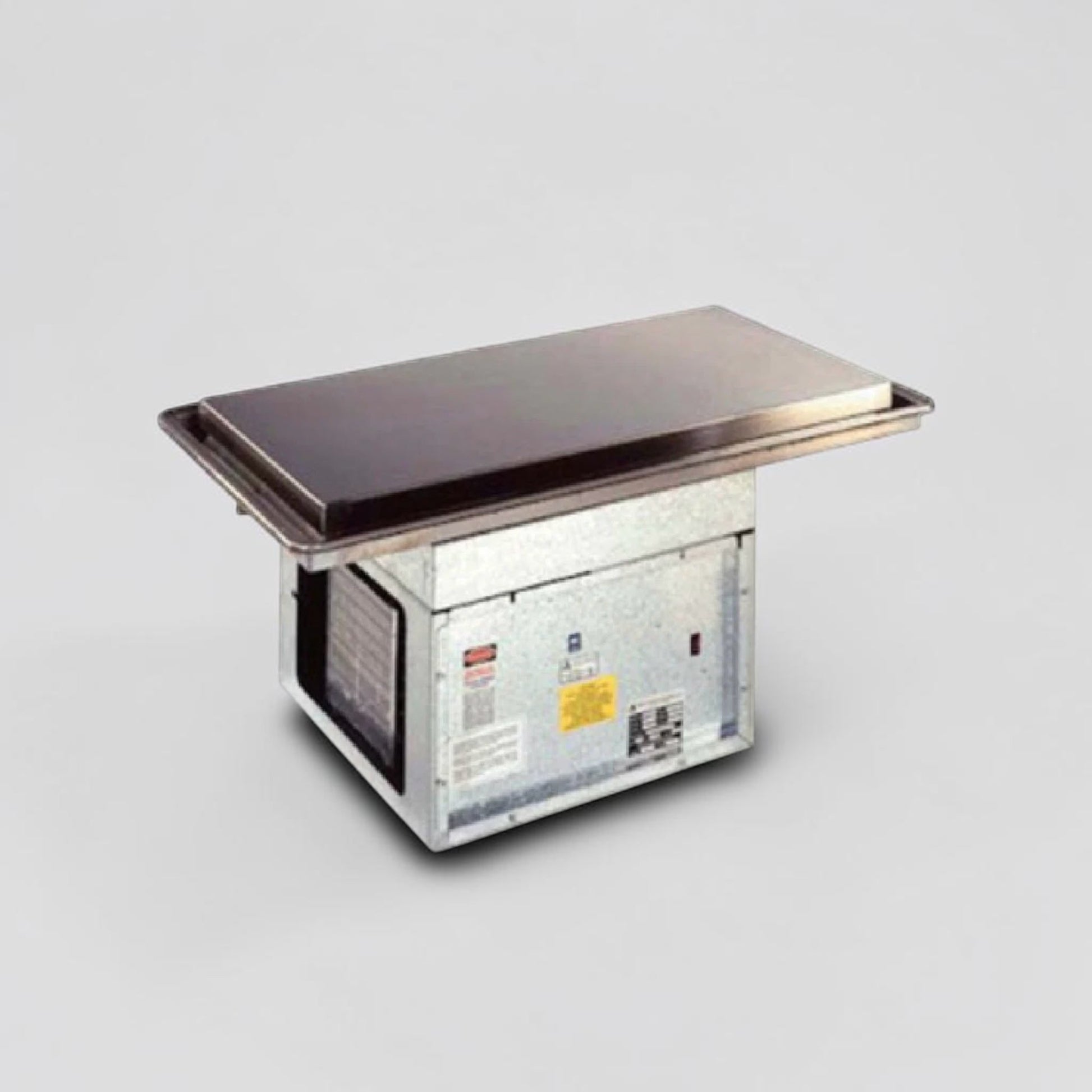

The Atlas Metal WF-4 is a commercial refrigerated frost-top drop-in unit designed to create an attractive chilled display surface for pre-plated cold foods.

Once activated, the stainless steel display surface quickly develops a layer of frost, creating a cold presentation area suitable for salads, desserts, pastries, fruit, appetizers, beverages, and other pre-chilled food products.

The WF-4 features a 52.75-inch-wide by 19.5-inch-deep frost surface and a completely self-contained refrigeration system. Because the compressor and condensing components are built into the unit, no separate remote refrigeration system is required.

The frost top is constructed from heavy-duty Type 304 stainless steel and stands approximately one inch above the surrounding counter. A full-perimeter gutter collects melting condensation when the unit is switched off and directs it toward the drain connection.

This model is intended for installation inside a compatible serving counter, buffet line, cafeteria station, hotel breakfast area, catering counter, or custom food-display fixture.

Atlas Metal specifies that the WF series is intended primarily for presenting pre-plated cold foods and should be installed in an ambient room temperature not exceeding 75°F, as also stated on the photographed unit.

🔹 Electrical Specifications

Voltage: 115V

Phase: Single Phase

Frequency: 60 Hz

Rated Amperage: 9.8 Amps

Compressor Size: 1/3 HP

Power Type: Electric

Electrical Connection: Cord and plug configuration

Typical Plug Type: NEMA 5-15P

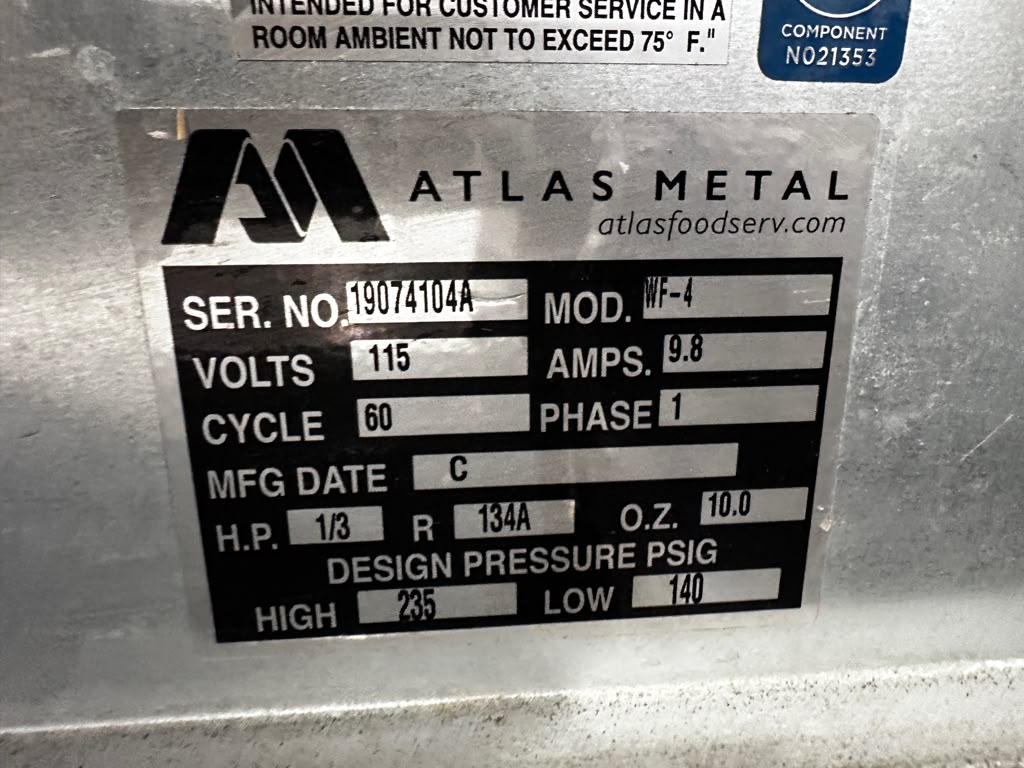

The photographed manufacturer data plate confirms 115V, 60 Hz, single-phase operation at 9.8 amps. Atlas specifications identify the WF-4 with a 1/3 HP self-contained compressor and a commercial cord-and-plug connection.

🔹 Refrigeration Specifications

Refrigeration Type: Self-Contained

Refrigerant: R134a

Refrigerant Charge: 10 oz.

Compressor: 1/3 HP

Design High-Side Pressure: 235 PSIG

Design Low-Side Pressure: 140 PSIG

Cooling Application: Commercial Frost-Top Display

Recommended Maximum Room Ambient: 75°F

Drainage: Perimeter condensation gutter with drain connection

The refrigerant type, charge, compressor horsepower, and design pressures are visible on the equipment data plate. Atlas documentation confirms that the frost surface uses copper refrigeration tubing secured beneath the stainless steel top for uniform cooling.

🔹 Dimensions

Overall Unit Dimensions

Overall Width: 57.25 in

Overall Depth: Approximately 24 in

Overall Height: Approximately 21.5 in below the counter, plus 1 in above the counter

Frost Display Surface

Frost-Top Width: 52.75 in

Frost-Top Depth: 19.5 in

Required Counter Cutout

Cutout Width: 55.5 in

Cutout Depth: 22.25 in

Additional Installation Dimensions

Raised Height Above Counter: 1 in

Approximate Condensing-Unit Clearance: 7 in configuration dimension

Shipping Weight: Approximately 236 lb

Atlas specifications list the WF-4 frost surface at 19.5 by 52.75 inches, an overall width of 57.25 inches, and a required countertop opening of 22.25 by 55.5 inches.

🔹 Construction

Heavy-duty Type 304 stainless steel top

14-gauge stainless steel frost surface

One-piece welded frost-top construction

Raised perimeter bead around the top

Factory-applied vinyl countertop gasket

Full-perimeter condensate gutter

Sloped drainage system

Galvanized steel refrigeration enclosure

High-density insulated frost pan

Copper refrigeration tubing attached beneath the frost surface

Self-contained condensing unit

Commercial-grade hermetically sealed compressor

Built-in thermostat control

On/off toggle switch

Operational pilot light

Removable service enclosure

Atlas specifies a 14-gauge Type 304 stainless steel frost surface, an 18-gauge galvanized outer enclosure, and insulated one-piece construction designed for commercial drop-in installation.

🔹 Key Features

Large 52.75-inch refrigerated frost surface

Self-contained refrigeration system

No remote compressor required

Creates an attractive frosted food-display surface

Designed for pre-plated cold-food presentation

Heavy-duty Type 304 stainless steel construction

One-piece welded frost-top surface

Full-perimeter gutter collects melting condensation

Built-in drain connection

Factory-applied countertop gasket

Thermostatically controlled refrigeration

Convenient on/off switch

Pilot light indicates operation

1/3 HP commercial compressor

R134a refrigeration system

Standard 115V electrical operation

Drop-in installation saves floor space

Suitable for buffet and serving-line integration

Durable commercial foodservice construction

Removable refrigeration enclosure supports service access

🔹 Recommended Applications

Restaurants

Buffet lines

Cafeterias

Hotels

Casino foodservice areas

Banquet facilities

Catering operations

Corporate dining facilities

Hospital cafeterias

University dining halls

School foodservice lines

Salad presentation stations

Dessert display counters

Cold appetizer stations

Fruit presentation areas

Grab-and-go cold displays

Custom serving counters

Pre-plated food displays

🔹 Recommended Product Display

Pre-plated salads

Cold desserts

Cheesecakes

Pastries

Fresh fruit

Cold appetizers

Sandwiches

Wrapped grab-and-go items

Cold hors d’oeuvres

Pre-chilled beverages

Individual parfaits

Pre-plated breakfast items

The unit is a frost display surface rather than a refrigerated storage cabinet. Food should be properly pre-chilled before being placed on the frost top.

🔹 Certifications

UL Listed

NSF Listed

The WF self-contained series is identified by Atlas as UL and NSF listed. Current retailer specifications also identify the WF-4 as UL and NSF certified.

🔹 Manufacturing Information

Manufacturer: Atlas Metal Industries, Inc.

Brand: Atlas Metal

Model: WF-4

Serial Number: 19074104A

Equipment Type: Self-Contained Commercial Refrigerated Frost-Top Drop-In Unit

Refrigeration Configuration: Self-Contained

Compressor: 1/3 HP

Refrigerant: R134a

Country of Manufacture: Confirm from manufacturer documentation or equipment label

Manufacturer Location: Miami, Florida, USA

The model, serial number, voltage, amperage, compressor size, refrigerant, and operating pressures are visible on the photographed manufacturer data plate.

🔹 Included

Atlas Metal WF-4 refrigerated frost-top unit

52.75-inch stainless steel frost surface

Self-contained condensing unit

1/3 HP compressor

Built-in thermostat control

On/off switch and pilot light

Insulated frost-pan assembly

Galvanized refrigeration enclosure

Perimeter condensate gutter

Drain connection components presently installed

Electrical cord and plug, if attached to the unit

Equipment sold exactly as shown in the supplied photographs

🔹 Important Installation Requirements

Requires a counter cutout approximately 55.5 in by 22.25 in

Unit must be installed level for proper drainage

The operator side should remain open for adequate condenser airflow

For enclosed island counters, ventilation grilles should be installed for intake and exhaust

Atlas recommends approximately two 18-inch by 18-inch ventilation openings when the condensing unit cannot remain openly ventilated

The drain connection must be properly connected before operation

The surrounding counter must support the unit’s operating weight

A properly grounded 115V electrical outlet is required

The factory gasket should remain beneath the perimeter flange

Non-toxic silicone may be used when additional countertop sealing is required

The room temperature should not exceed 75°F during intended customer-service use

Atlas installation documentation emphasizes adequate airflow around the self-contained condensing system and a level installation for drainage.

🔹 Important Notes

Used commercial refrigeration equipment

Fully tested and operational prior to listing

Normal scratches, scuffs, staining, and surface wear are visible

Clean and sanitize thoroughly before foodservice use

Designed to display pre-chilled foods rather than cool warm food rapidly

Not intended as a refrigerated storage cabinet

Proper counter ventilation is essential

Drain connection is required for melted condensation

Professional installation is strongly recommended

Do not block condenser ventilation openings

Allow the equipment to remain upright after transportation before powering it on

Verify cord, plug, drain valve, and installation hardware during final inventory inspection

Sold as-is, where-is

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
