Brand New – Wells 5P-MOD200TDM – Two-Well Top-Mount Drop-In Food Warmer – Thermostatic Controls, Drains & Manifold – 208/240V!

Condition

New – Unused – Original Distressed Box

This genuine Wells food warmer is new and unused in its original manufacturer packaging.

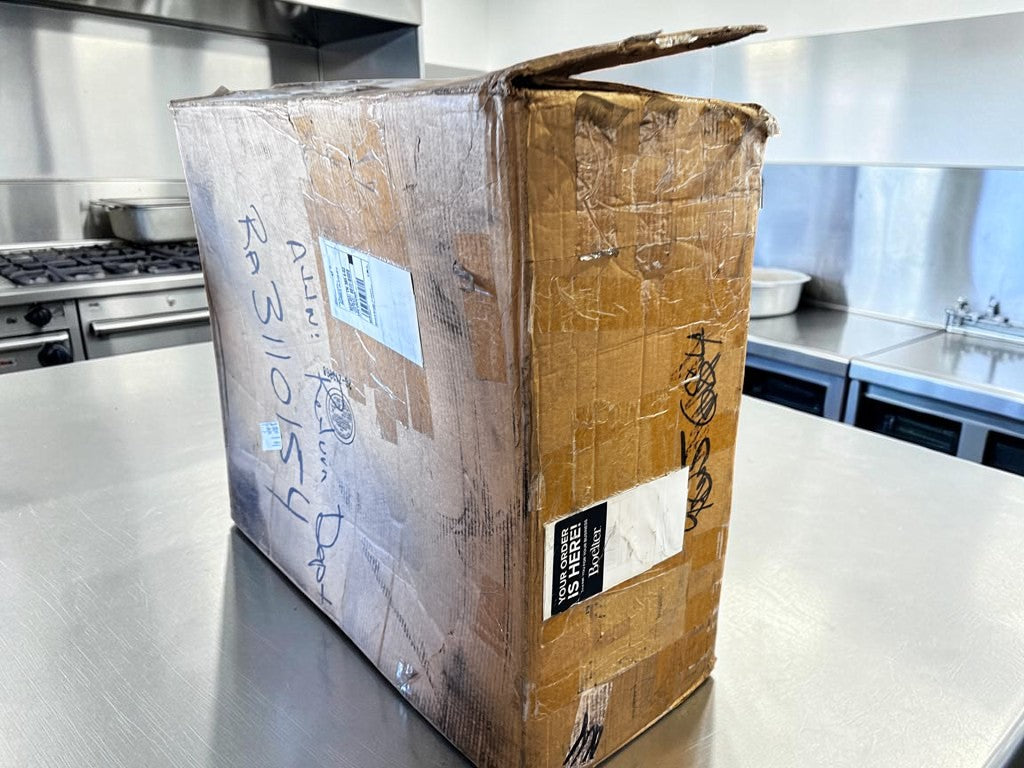

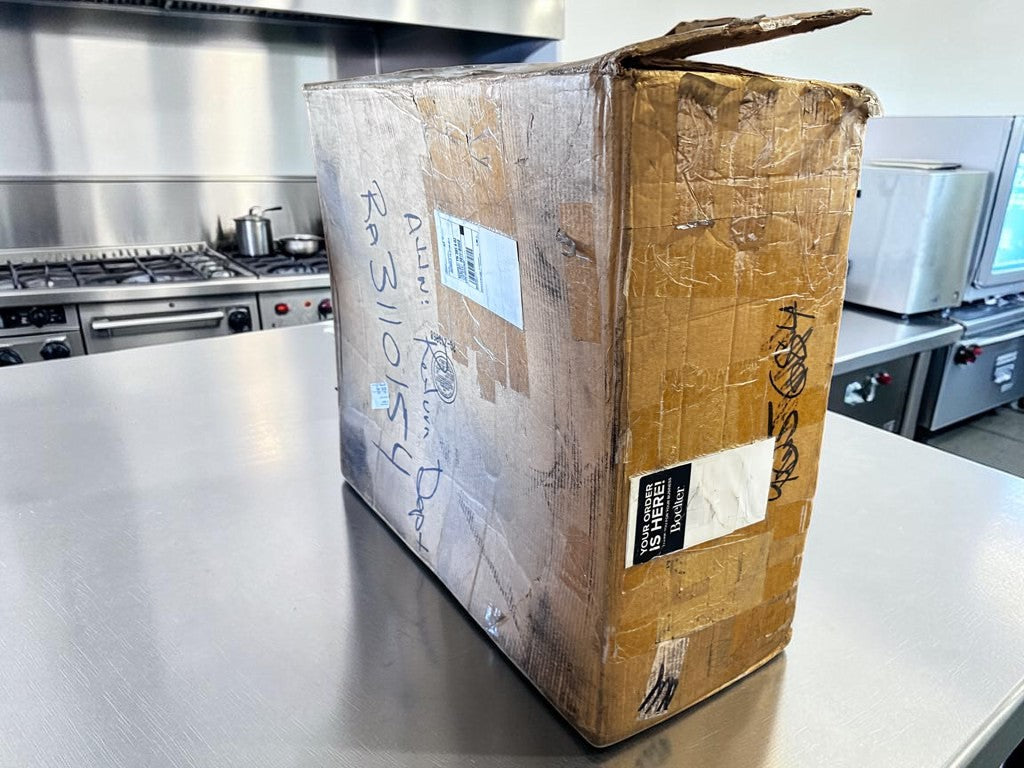

The exterior cardboard box shows substantial warehouse and shipping wear, including crushed sections, torn cardboard, open upper flaps, tape, surface dirt, abrasions, handwritten markings, label wear, and general storage damage.

The supplied photographs do not show the actual stainless steel warmer removed from the carton. The product photograph is a reference image representing the MOD200TDM configuration and should not be considered a photograph of the exact unpacked unit.

Because the internal contents are not fully visible, all loose components should be inventoried before installation. Confirm that the dual thermostatic control panel, capillary tubes, electrical wiring, drain manifold, drain valve, mounting hardware, Wellslok components, instructions, and all required fittings remain inside the package.

The distressed condition of the outer cardboard packaging does not automatically indicate damage to the equipment inside. However, the warmer must be unpacked and inspected before shipment, pickup, installation, or energizing.

Please review all supplied photographs for the exact condition of the original packaging.

Model Identification

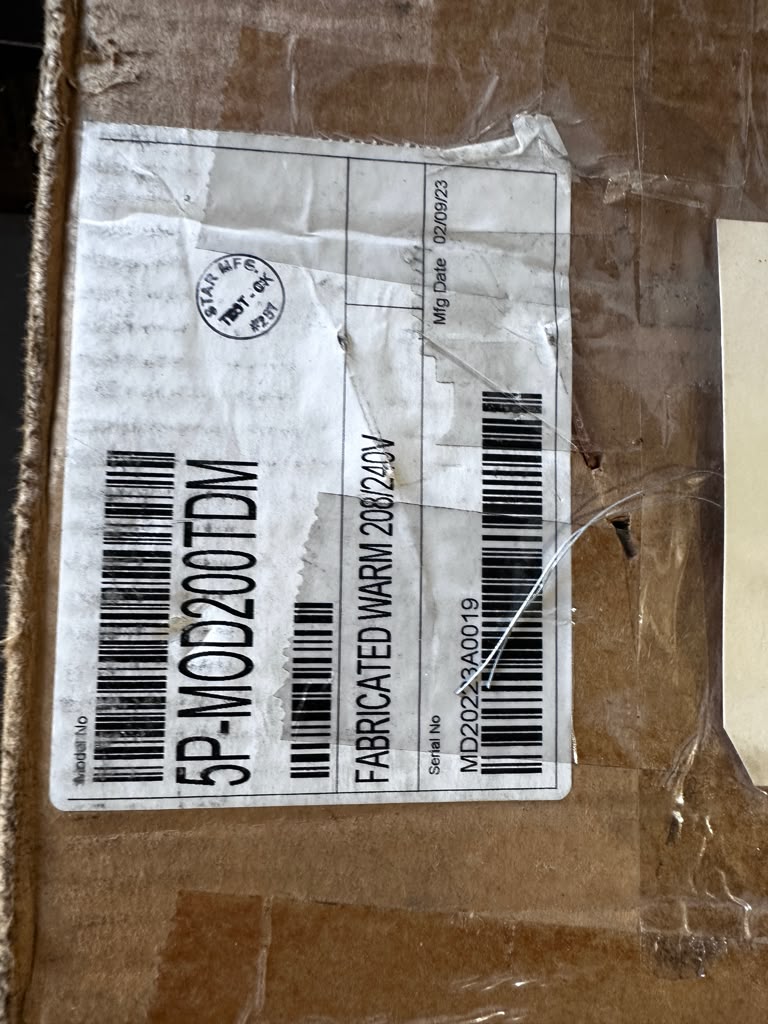

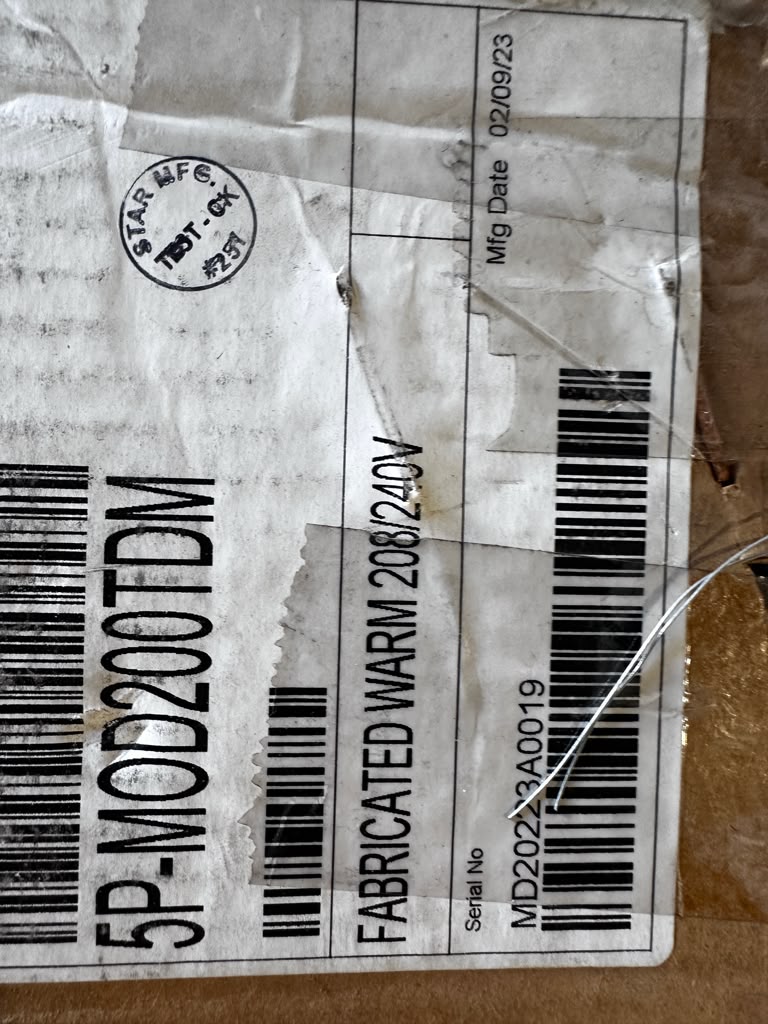

The manufacturer carton label confirms:

Brand: Wells

Manufacturer: Wells Manufacturing

Parent Company: Middleby

Manufacturer Part Number: 5P-MOD200TDM

Commercial Model: MOD200TDM

Product Description on Carton: Fabricated Warmer 208/240V

Product Type: Two-Well Top-Mount Drop-In Electric Hot Food Warmer

Control Type: Individual Thermostatic Controls

Drain Configuration: Individual Well Drains with Common Manifold

Voltage: 208/240V

Serial Number: MD220223A0019

Manufacturing Date: 02/09/2023

Manufacturing Date in Written Form: February 9, 2023

Manufacturer Quality-Control Marking: Star Manufacturing Inspection Stamp

The model suffix identifies the primary configuration:

MOD200: Two standard 12-inch x 20-inch food wells

T: Thermostatic controls

D: Drains

M: Common drain manifold

This model does not include the AF suffix. It should not be represented as an automatic water-fill model.

Parts Town identifies 5P-MOD200TDM as the genuine OEM replacement number for the former MOD200TDM commercial model.

Description

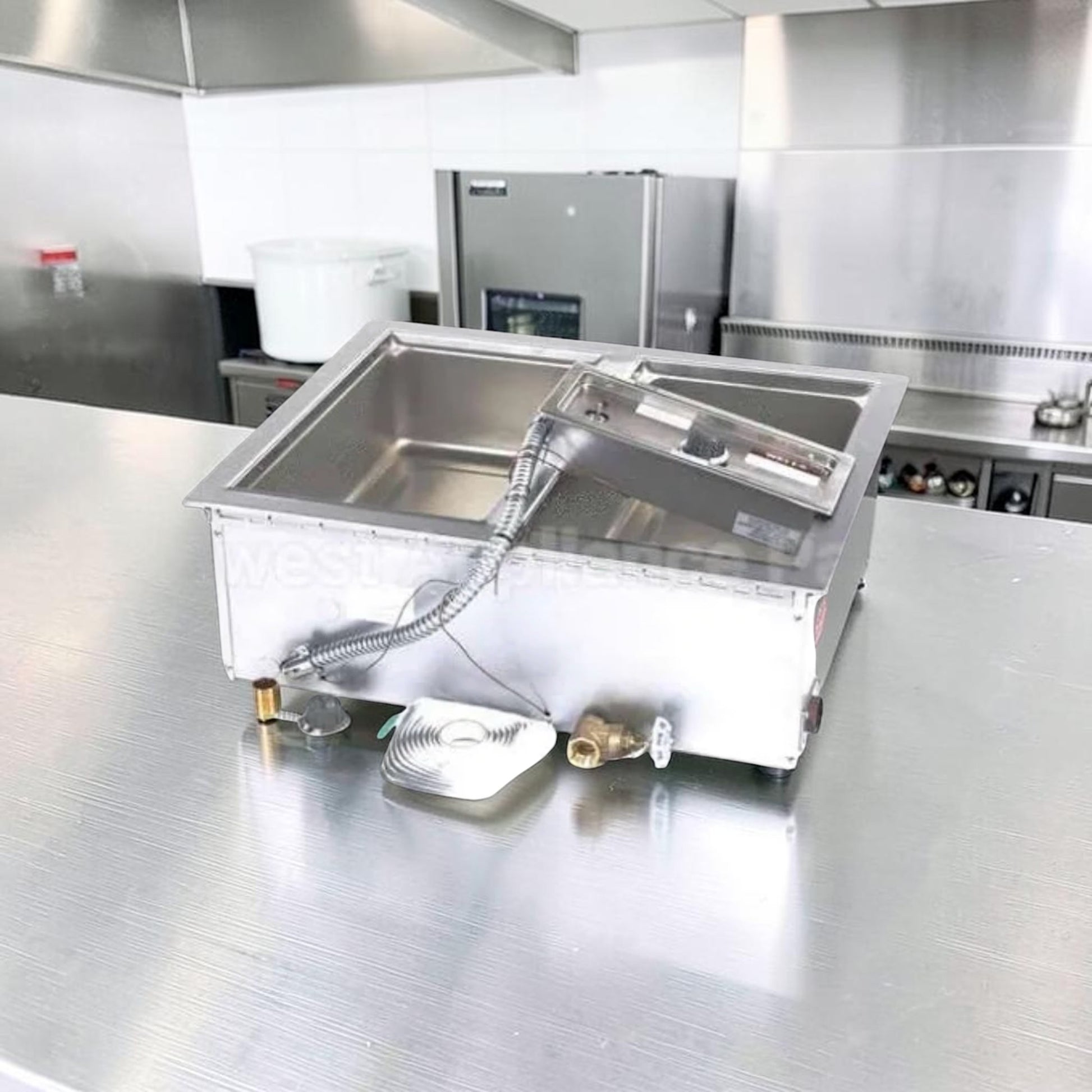

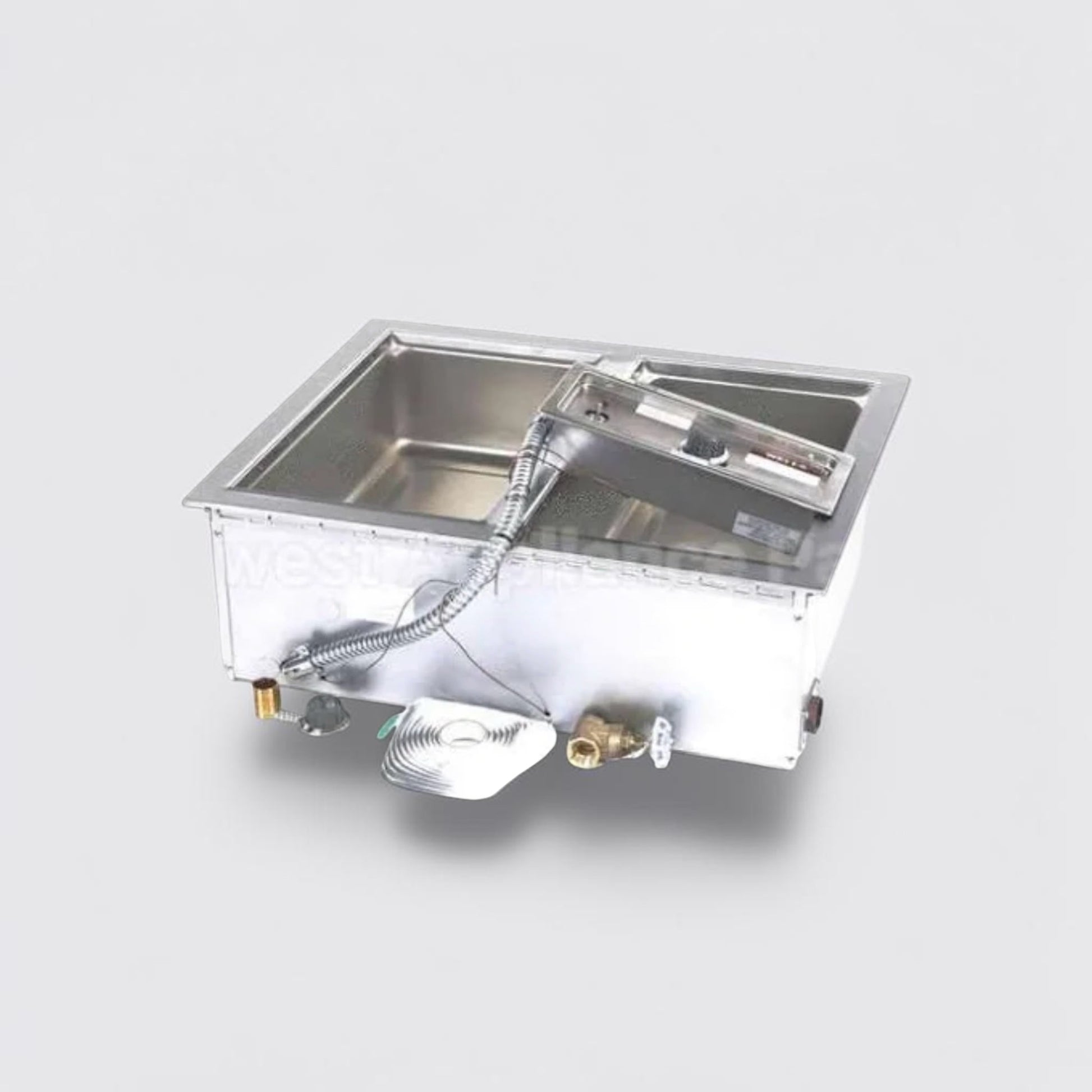

The Wells 5P-MOD200TDM is a heavy-duty commercial drop-in food warmer designed for installation in a fabricated serving counter, buffet line, cafeteria line, restaurant pass, catering counter, concession stand, or other compatible commercial foodservice fixture.

It contains two rectangular wells that accept two standard 12-inch x 20-inch full-size inset pans or compatible fractional-pan combinations.

Each well has its own remote thermostatic control, allowing two different foods to be held at different heat settings. This is especially useful when one well contains a dense entrée or sauce while the other holds vegetables, soup, gravy, pasta, rice, or another product with different holding requirements.

The unit is designed for either wet or dry operation. Wells recommends wet operation for more consistent heating and improved heat transfer. During wet operation, hot water is placed in the warming well below the inset food pan.

A drain in each well allows water to be removed after operation. Both drains connect to a common manifold so the two wells can be emptied through a shared drain-valve arrangement.

The fully insulated housing helps reduce heat loss, improve energy efficiency, support faster preheating, and protect surrounding counter components from unnecessary heat exposure.

Wells confirms that the MOD200 series accommodates two 12-inch x 20-inch pans, supports wet or dry operation, and uses individual controls, insulated construction, high-limit protection, and tubular heating elements. Official Wells MOD200 product information: https://wells-mfg.com/product/mod200/

Food-Pan Capacity

Number of Wells: 2

Full-Size Pan Capacity: Two 12 in x 20 in Food Pans

Maximum Common Pan Depth: Up to Approximately 6 Inches, Subject to Pan and Counter Configuration

Compatible configurations may include:

Two full-size 12 in x 20 in pans

Four half-size pans

Six third-size pans

Eight quarter-size pans

Other compatible fractional-pan combinations

Round inset pans when used with appropriate adapter tops

Actual capacity depends on the size, depth, flange design, and arrangement of the pans and adapters selected.

Food pans must fit correctly inside the warmer without placing excessive pressure on the stainless steel well or top flange.

Suitable Foods

Soups

Chili

Gravy

Sauces

Rice

Pasta

Mashed potatoes

Vegetables

Beans

Macaroni and cheese

Cooked meats

Cooked poultry

Prepared entrées

Casseroles

Breakfast items

Hot toppings

Curry

Stews

Hot side dishes

Other previously cooked food products suitable for commercial hot holding

This warmer is designed for holding food that has already been properly cooked and heated.

It should not be used as the primary appliance for cooking raw food, reheating refrigerated food, thawing frozen food, or rapidly bringing cold food through the food-safety temperature range.

Heating System

Two independently heated food wells

One tubular heating element beneath each well

Powerful under-pan heating arrangement

Even heat distribution across each warming pan

Individual thermostatic temperature regulation

Separate temperature-ready indicator for each well

High-limit over-temperature protection

Fully insulated sides, front, back, and bottom

Wet or dry operating capability

Wet operation recommended for the most consistent results

The tubular elements are positioned beneath the stainless steel warming pans to provide efficient heat transfer without exposing the elements directly to food or cleaning tools.

Thermostatic Controls

Control Type: Dual Remote Thermostatic Controls

Number of Controls: 2

Control Arrangement: One Control per Well

Control Location: Remotely Mounted Front Control Panel

Indicator Lights: Individual Temperature-Ready Indicators

Safety Protection: High-Limit Protection for Each Heating Circuit

The separate controls allow one well to be switched off or operated at a different setting from the other well.

The remote control assembly must be installed in the counter according to the manufacturer’s required orientation, spacing, ventilation, and capillary-tube routing instructions.

Thermostat capillary tubes must not be sharply bent, crushed, shortened, kinked, or placed against damaging heat sources.

Wet or Dry Operation

The MOD200TDM is designed for wet or dry use.

Wet Operation

Wells recommends wet operation for the most consistent food heating.

Add approximately one inch of hot tap water to each required well before energizing the warmer.

Check the water level regularly and add hot water as necessary.

Wet operation generally provides gentler and more even heat transfer around the inset food pan.

Dry Operation

The warmer may be operated without water when appropriate for the food product and pan configuration.

Dry operation may produce different heating characteristics and requires careful monitoring of food temperature.

Critical Operating Rule

Do not change a hot well directly from wet operation to dry operation or from dry operation to wet operation.

Turn the well off and allow it to cool to room temperature before changing operating methods.

Never add water to an overheated empty well. Rapid cooling can damage or deform the warming pan and may create a steam or burn hazard.

The operating precautions are confirmed in the official Wells built-in modular warmer manual: https://wells-mfg.com/wp-content/uploads/2016/08/C_M200-thru-M527_-_2M-Z16298-C-011C.pdf.

Drain and Manifold System

Two drained stainless steel wells

One drain for each well

Drain screens for compatible drain assemblies

Shared drain manifold

Single-point manifold drainage arrangement

Remote drain-valve positioning depending on counter design

The Wells sales literature describes the MOD200 series drain-equipped models as having 1/2-inch well drains. The final manifold outlet, valve, and field drain-line sizes must be confirmed from the components packed with this specific assembly before the counter or plumbing is fabricated.

The drain system is intended for removing clean warming water. It is not designed as a food-waste disposer.

Do not pour grease, solid food, utensils, cleaning pads, packaging, or other debris into the wells or drains.

Electrical Specifications

Power Type: Electric

Voltage: 208/240V

Available Configuration: Single Phase or Manufacturer-Approved Field-Converted Three Phase

Frequency: 50/60Hz – Verify Equipment Nameplate Before Installation

Heating Elements: 2

208V Ratings

Wattage per Well: 1,240W

Total Wattage: 2,480W

Single-Phase Amperage: Approximately 11.9A

Three-Phase Line Amperage: Approximately 6.0A / 6.0A / 10.3A

240V Ratings

Wattage per Well: 1,650W

Total Wattage: 3,300W

Single-Phase Amperage: Approximately 13.8A

Three-Phase Line Amperage: Approximately 6.9A / 6.9A / 11.9A

The current Wells specification sheet lists 1,240W at 208V and 1,650W at 240V per well. With two wells, the total connected load is approximately 2,480W or 3,300W.

The installer must follow the electrical diagram and rating label supplied with the physical unit. The unit-specific label and wiring diagram take precedence over generalized online information.

Electrical Connection

Commercial electrical installation required

Remote master control panel

Terminal-block connection

Grounding connection required

Field wiring required unless an optional factory cord set is confirmed

Optional NEMA 6-15P cord sets have been available for some 208/240V thermostatic configurations

No cord or plug is visible in the supplied photographs

Do not assume that a power cord or plug is included

A licensed commercial electrician must determine:

Final operating voltage

Final phase configuration

Circuit size

Conductor size

Conductor temperature rating

Disconnect requirements

Grounding requirements

Conduit type

Local electrical-code requirements

Do not connect this warmer to 120V power, an extension cord, a household adapter, an improperly sized circuit, or an ungrounded electrical supply.

Overall Dimensions

Width: 29.5 in

Depth: 23.625 in

Height: 9.75 in

Metric Width: Approximately 749 mm

Metric Depth: Approximately 600 mm

Metric Height: Approximately 248 mm

The measurements above apply to the warmer body and top flange. They do not include required service clearance, field plumbing, conduit, drain piping, control-box clearance, food pans, adapters, lids, or the damaged shipping carton.

Counter Cutout Requirements

Approximate Main Counter Cutout Width: 28.5 in

Approximate Main Counter Cutout Depth: 22.5 in

Approximate Remote Control-Panel Cutout Width: 12.875 in

Approximate Remote Control-Panel Cutout Height: 5 in

Published Control-Panel Face Width: Approximately 14 in

Published Control-Panel Face Height: Approximately 6.25 in

Do not cut the installation counter using the general dimensions alone.

The installer must verify the exact installation template and instructions supplied with this specific 5P-MOD200TDM assembly before fabrication. Auto-fill, non-auto-fill, metal-counter, wood-counter, and other configurations may require different cutouts.

Installation Type

Top-mounted

Drop-in

Built into a commercial counter

Remote front-mounted controls

Secured with Wells Wellslok mounting hardware

Counter installation must provide adequate structural support

Counter materials must be compatible with commercial food-warming equipment

The one-piece upper flange is installed from above the counter. The underside of the flange must be properly sealed, and the Wellslok tabs must be positioned according to the Wells installation instructions.

A thin bead of food-grade silicone should be applied around the installed flange where required to prevent water and food residue from entering the counter.

Construction

One-piece stainless steel top flange

Two heavy-gauge deep-drawn stainless steel warming pans

Corrosion-resistant exterior housing

Fully insulated sides

Fully insulated front and back

Fully insulated bottom

Two tubular heating elements

Two independent thermostatic controls

Remote one-piece control panel

Individual indicator lights

Individual high-limit protection

Two drain assemblies

Common drain manifold

Commercial electrical terminal connections

Wellslok mounting system

Rectangular two-well configuration

Drop-in commercial construction

Key Features

New genuine Wells OEM equipment

2023 manufacturing date

Two full-size food wells

Accepts two 12 in x 20 in pans

Compatible with fractional-pan arrangements

Individual thermostatic control for each well

Independent temperature adjustment

Separate temperature-ready indicator lights

Wet or dry operation

Wet operation recommended

Two drains

Common drain manifold

Fully insulated construction

Improved heat retention

Efficient preheating and recovery

Tubular under-pan heating elements

Even heat distribution

High-limit over-temperature protection

One-piece stainless steel top flange

Deep-drawn stainless steel wells

Remote front-mounted controls

Wellslok installation system

208/240V compatibility

Manufacturer-approved single- or three-phase configuration

Commercial drop-in design

Suitable for serving lines and fabricated counters

Suitable Applications

Restaurants

Buffets

Cafeterias

Hotels

Resorts

Catering facilities

Banquet kitchens

Commissary kitchens

School cafeterias

University dining facilities

Hospital kitchens

Healthcare foodservice

Corporate cafeterias

Convenience stores

Concession stands

Stadium concessions

Food courts

Supermarket hot-food departments

Delis

Institutional kitchens

Assisted-living foodservice

Correctional-facility kitchens

Military foodservice

Mobile serving counters when professionally installed

Final suitability depends on electrical service, counter construction, drainage, local sanitation requirements, menu, pan configuration, service volume, and installation clearances.

Certifications

The published Wells MOD200-series specifications identify applicable:

NSF Certification

UL / cULus Certification

Certification markings on the physical unit should be inspected before installation when an electrical inspector, health department, architect, or authority having jurisdiction requires confirmation of a particular listing or standard.

The official specification sheet also confirms the unit’s two-well capacity, insulated construction, controls, drains, dimensions, wattage, and published approvals. Wells MOD200-series specification sheet: https://cdn.beedash.com/Wells/b263dddd8ef135c7bbb4ad93fb7e280f115e5325.pdf

Manufacturing Information

Brand: Wells

Manufacturer: Wells Manufacturing

Manufacturer Part Number: 5P-MOD200TDM

Commercial Model: MOD200TDM

Product Family: MOD200 Series

Product Type: Commercial Two-Well Drop-In Hot Food Warmer

Serial Number: MD220223A0019

Manufacturing Date: February 9, 2023

Voltage: 208/240V

Country of Manufacture: United States According to Published Product Information – Verify Physical Equipment Label

Manufacturer Location Published in Current Literature: Smithville, Tennessee, USA

Published Weight

Published Shipping Weight: Approximately 51 lb

The exact net equipment weight is not separately confirmed on the supplied carton label.

The published weight does not include the fabricated counter, food pans, water, field plumbing, external drain lines, conduit, or packaging added for freight shipment.

Included

One Wells 5P-MOD200TDM fabricated warmer assembly

Two stainless steel food-warming wells

Two installed heating-element assemblies

One-piece stainless steel top flange

Insulated warmer housing

Two well-drain assemblies

Common drain-manifold configuration

Dual thermostatic control system

Remote control-panel assembly associated with this model

Two indicator-light circuits

High-limit protection

Electrical terminal connections

Manufacturer identification label

Original manufacturer cardboard packaging

All factory-packed components remaining inside the carton

Unit sold exactly as pictured and packaged

Because the carton contents were not fully unpacked, the exact presence of every loose control, fitting, valve, fastener, wire, and mounting component must be confirmed before sale or installation.

Not Included

Full-size food pans

Fractional food pans

Round inset pans

Adapter tops

Pan lids

Serving utensils

Ladles

Counter or serving line

Counter fabrication

Food-grade silicone

Field electrical wiring

Electrical conduit

Building disconnect

Extension cord

Voltage transformer

Phase converter

External power adapter

Optional cord set unless found inside the carton

Plumbing drain line

Floor drain

Air gap

Drain receptor

Grease interceptor

Water-fill connection

Automatic water-fill system

Water-fill solenoid

Auto-fill controls

Backflow preventer

Installation labor

Electrical installation

Plumbing installation

Counter fabrication

Freight handling equipment

Replacement cardboard box

Accessories not shown or confirmed inside the package

Installation Requirements

Installation and startup must be completed by qualified commercial-equipment installers and licensed electricians.

Unpack the unit completely and inspect it for concealed freight or warehouse damage.

Confirm that both stainless steel wells are free from dents, cracks, punctures, warped flanges, damaged drains, and damaged heating assemblies.

Inventory all loose components before discarding the damaged box.

Verify the physical electrical nameplate.

Confirm whether the warmer will operate at 208V or 240V.

Confirm the required single- or three-phase configuration.

Follow the factory wiring diagram exactly.

Provide an appropriately sized grounded electrical circuit.

Install an accessible commercial disconnect where required.

Do not energize the unit while it remains inside the cardboard box.

Do not energize the warmer before the remote controls, grounding, drain system, and counter mounting have been completed.

Fabricate the counter using the exact supplied installation template.

Provide adequate support beneath the counter.

Seal the top flange using approved food-grade material.

Secure all Wellslok mounting tabs.

Install the control panel where it remains visible, accessible, and protected from water.

Route capillary tubes without crushing or kinking them.

Connect the drain manifold to a suitable drain system.

Ensure the drain valve remains accessible.

Comply with all local electrical, plumbing, sanitation, building, and fire codes.

Cleaning & Care

Disconnect electrical power and allow the unit to cool completely before cleaning.

Remove all inset food pans.

Drain the water from both wells.

Do not leave standing water in the wells when the warmer is not in use.

Clean stainless steel surfaces with a soft cloth, mild detergent, and warm water.

Wipe in the direction of the stainless steel grain.

Rinse away detergent residue.

Dry the wells and flange after cleaning.

Keep drain screens and drain openings clear.

Inspect the manifold and drain valve for blockage or leakage.

Do not use steel wool.

Do not use wire brushes.

Do not use metal scrapers.

Do not use corrosive chemicals.

Do not use chlorinated cleaners for extended contact.

Do not pour water over the remote control panel.

Do not spray the warmer with a hose or pressure washer.

Do not submerge thermostats, controls, wiring, or electrical components.

Remove mineral scale using a product approved for commercial stainless steel food-warming equipment.

Use a qualified technician for thermostat, high-limit, element, wiring, drain, or control-panel repairs.

Important Notes

New and unused equipment

Original manufacturer packaging included

Outer packaging is heavily distressed

Cardboard box has tears, crushing, open sections, tape, dirt, and storage wear

Actual warmer is not shown unpacked

Reference product photograph is not an exact unpacked-unit photograph

Internal cosmetic and physical condition must be inspected

Exact package contents must be inventoried

Manufacturing date is February 9, 2023

Exact part number is 5P-MOD200TDM

Commercial model is MOD200TDM

Serial number is MD220223A0019

Designed for two 12 in x 20 in food pans

Food pans are not included unless found inside the carton

Thermostatic control for each well

Drained-well configuration

Common drain manifold

No automatic water-fill system

Supports wet or dry operation

Wet operation is recommended

Do not add water to an overheated dry well

Do not change between wet and dry operation until the well cools

Requires 208V or 240V electrical service

Final phase configuration must be verified

Professional electrical installation required

Final amperage depends on voltage and phase configuration

Do not assume a cord or plug is included

Counter fabrication is required

Drain installation is required

Not designed for cooking raw food

Not designed for reheating cold food

Food must be heated to the required safe temperature before placement in the warmer

Buyer is responsible for confirming local health-code requirements

Manufacturer warranty coverage is not guaranteed and must be confirmed directly using the serial number and purchase documentation

Shipping calculated at checkout

Local pickup available
