Dependable Condition – Arctic Air AST48RZ – 48″ Two-Door Refrigerated Sandwich & Salad Prep Table – 12-Pan Capacity – 115V – Fully Tested & Operational!

Condition

Used – Dependable Condition – Fully Tested & Operational

This unit has been professionally inspected and tested to confirm proper cooling and refrigeration-system operation. The stainless-steel exterior and interior show scratches, scuffs, stains, residue, debris, and cosmetic wear consistent with previous commercial kitchen use.

Description

The Arctic Air AST48RZ is a commercial refrigerated sandwich and salad preparation table designed for restaurants, delis, cafés, sandwich shops, cafeterias, food trucks, and other foodservice operations.

Its refrigerated upper rail is designed to accommodate up to twelve 1/6-size ingredient pans, while the two-door base provides approximately 12 cubic feet of refrigerated storage.

The self-contained refrigeration system circulates cold air across the ingredient-pan area and lower cabinet, helping maintain food-safe temperatures between approximately 33°F and 41°F.

The data plate identifies this exact unit as AST48RZ. The current equivalent model is marketed as AST48R.

Electrical Specifications

Voltage: 115V

Phase: Single Phase

Frequency: 60 Hz

Amperage: 3 Amps – Confirmed by This Unit’s Data Plate

Published Compressor Rating: 1/2 HP

Power Type: Electric

Power Cord: Approximately 8′

Plug Configuration: NEMA 5-15P

The current AST48R specification lists 4.3 amps, but the 3-amp rating shown on this exact AST48RZ unit’s data plate takes precedence.

Dimensions

Width: 48.25″

Depth: 30″

Height: 43.3″ – Includes Approximately 3″ for Casters

Depth with Door Open 90 Degrees: 57.875″

Published Cutting-Board Depth: 11.375″

Refrigerated Capacity: Approximately 12 Cu. Ft.

Published Crated Weight: Approximately 300 lb

These measurements and the standard configuration are confirmed by the official Arctic Air AST48R specification sheet: https://arcticairco.com/PDFs/spec-sheet/AST48R.pdf.

Refrigeration

Refrigerant: R290 Hydrocarbon

Refrigerant Charge: 3.17 oz. – Confirmed by Data Plate

Temperature Range: Approximately 33°F–41°F

High-Side Design Pressure: 320 PSIG

Low-Side Design Pressure: 150 PSIG

Refrigeration Type: Self-Contained Capillary-Tube System

Temperature Control: Electronic Thermostat

Temperature Display: External Digital LED Display

Maximum Recommended Ambient Temperature: 86°F / 30°C

Capacity

Refrigerated Storage Capacity: Approximately 12 Cu. Ft.

Sections: 2

Solid Doors: 2

Standard Pan Capacity: Twelve 1/6-Size Pans

Maximum Pan Depth: 6″

Standard Shelf Configuration: Two Adjustable Epoxy-Coated Shelves

Cutting-Board Depth: Approximately 11.375″

Ingredient pans, the cutting board, and the complete standard shelf set are included only if physically present with this used unit.

Construction

Stainless-steel front and sides

Stainless-steel worktop and pan-rail lid

Bright white impact-resistant ABS interior liner

Full stainless-steel interior floor

Coved interior floor corners for easier cleaning

Two insulated solid doors

Foamed-in-place recessed door handles

Self-closing door design

Doors remain open when positioned at approximately 90 degrees

Removable magnetic door gaskets

Adjustable epoxy-coated interior shelving

Heavy-duty full-width preparation area

Front-accessible condensing unit

Efficient condensate hot-gas evaporation loop

Installed commercial rolling casters

Key Features

Two-door refrigerated storage base

Approximately 12 cubic feet of cabinet capacity

Designed for twelve 1/6-size ingredient pans

Accommodates pans up to 6 inches deep

Maintains approximately 33°F–41°F

Electronic temperature controller

External digital temperature display

Large fan motor and blades for efficient airflow

Fast temperature recovery during commercial service

Self-closing solid doors

Tool-free removable magnetic door gaskets

Mobile caster-mounted construction

Tested for open-food storage applications

The standard features are confirmed by the official Arctic Air AST48R product page: https://arcticairco.com/product/model-ast48r/.

Certifications

ETL Listed by Intertek

Conforms to UL Standard 471

Certified to CSA Standard C22.2 No. 120

Conforms to NSF Standard 7

Approved for Commercial Open-Food Storage Applications

Intertek Certification Number: 4006619

Certification markings are visible on the unit’s data plate.

Manufacturing Information

Manufacturer: Broich Enterprises, Inc.

Brand: Arctic Air

Model on Data Plate: AST48RZ

Current Equivalent Model: AST48R

Batch Number: A2205

Serial Number: H22054212

Manufacturer Location: Eden Prairie, Minnesota, USA

Country of Manufacture: China

Included

One Arctic Air AST48RZ refrigerated sandwich and salad prep table

Two installed solid doors

Installed stainless-steel pan-rail cover

Installed self-contained refrigeration system

Installed electronic temperature controller

Installed rolling casters

Interior shelves included only if physically present

Ingredient pans included only if physically present

Cutting board included only if physically present

Unit sold exactly as shown in the provided photos

Important Notes

Sold as-is, where-is

Fully tested and operational before listing

The data plate identifies this unit as AST48RZ

Visible scratches, stains, residue, debris, and cosmetic wear

The standard white polyethylene cutting board is not visible and must be confirmed before purchase

Ingredient pans are not visible and are included only if present with the unit

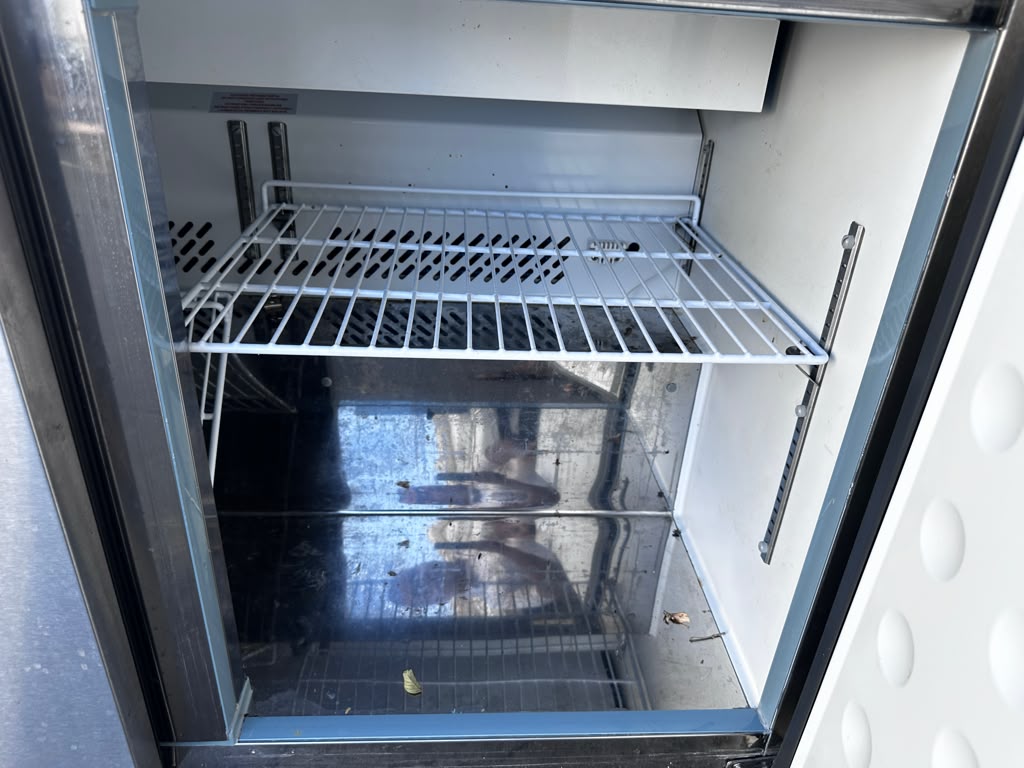

Only one interior shelf is visible in the supplied photos; total shelf quantity must be confirmed

Clean and sanitize all food-contact surfaces before operation

Maintain adequate ventilation around the condensing unit

Designed for indoor commercial use

Recommended for rooms with an ambient temperature of 86°F / 30°C or less

R290 is a flammable hydrocarbon refrigerant and must be serviced by a qualified refrigeration technician

Professional commercial installation is recommended

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
