Dependable Condition – Extron CrossPoint Plus 1616 HVA – 16×16 RGBHV & Stereo Audio Matrix Switcher – 425 MHz – Fully Tested & Operational!

Condition

Used – Dependable Condition – Fully Tested & Operational

This professional Extron matrix switcher has been inspected and tested to confirm proper operation. The front-panel controls, input/output selection functions, and chassis remain suitable for continued professional AV use.

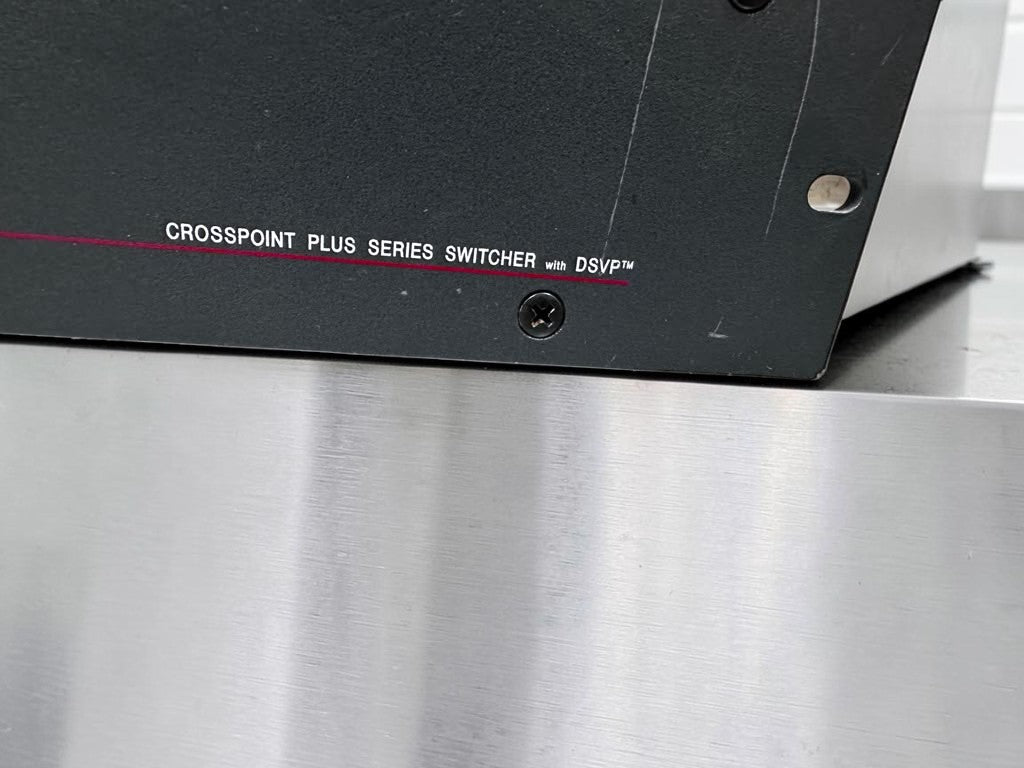

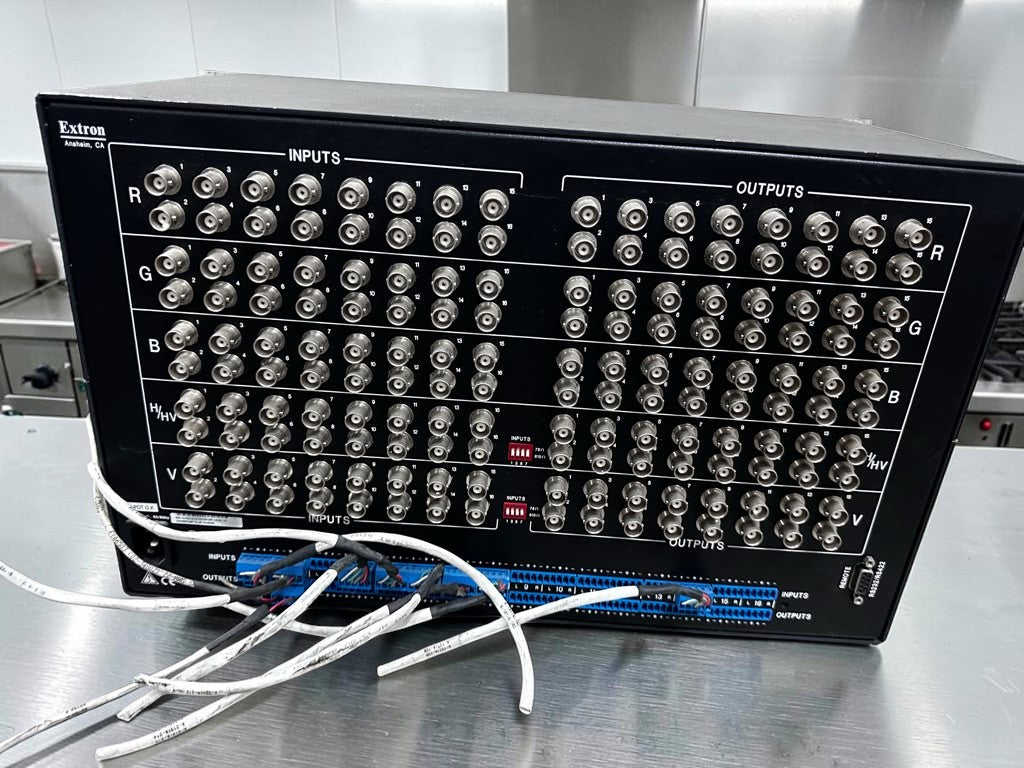

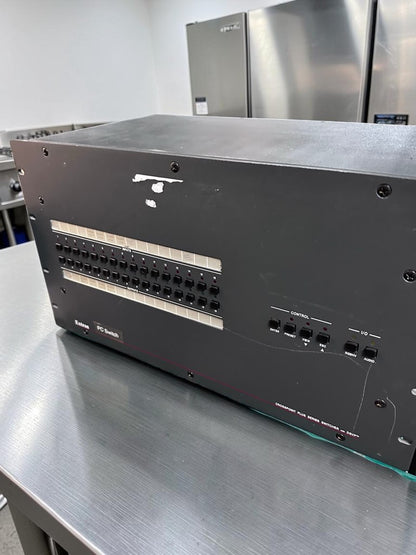

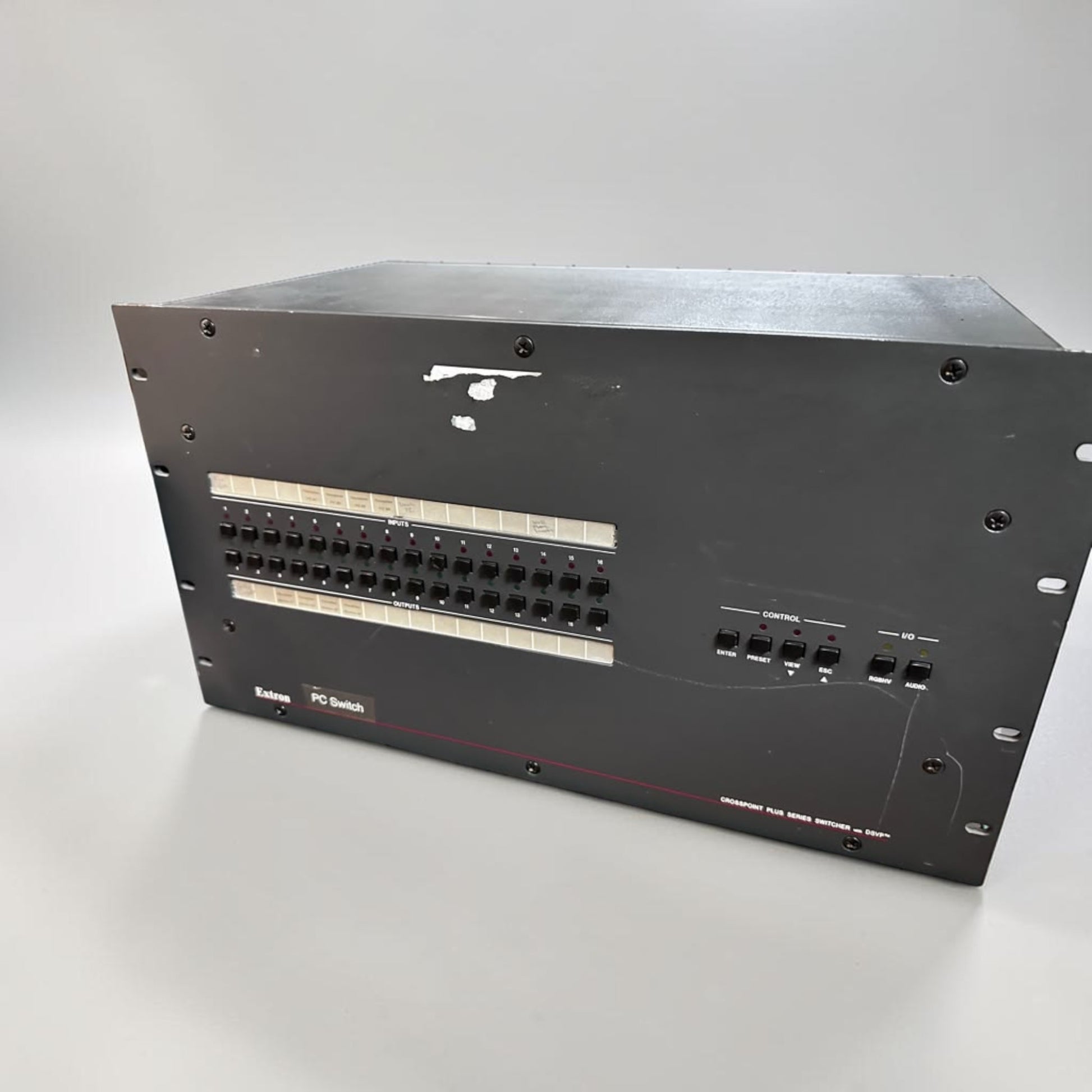

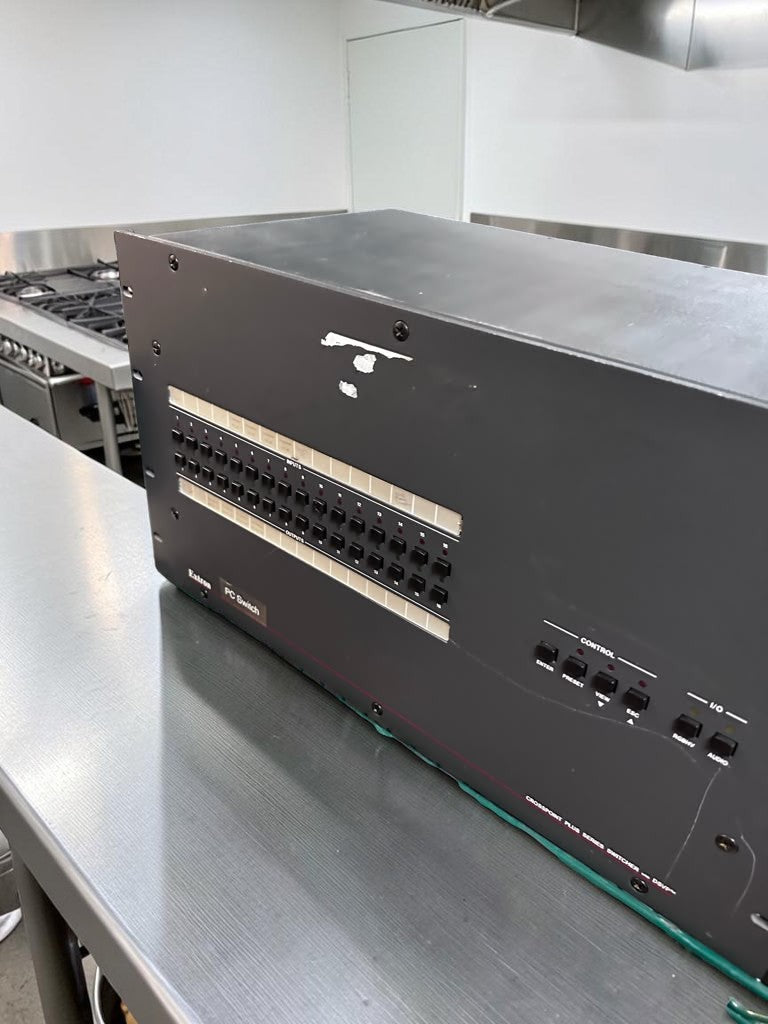

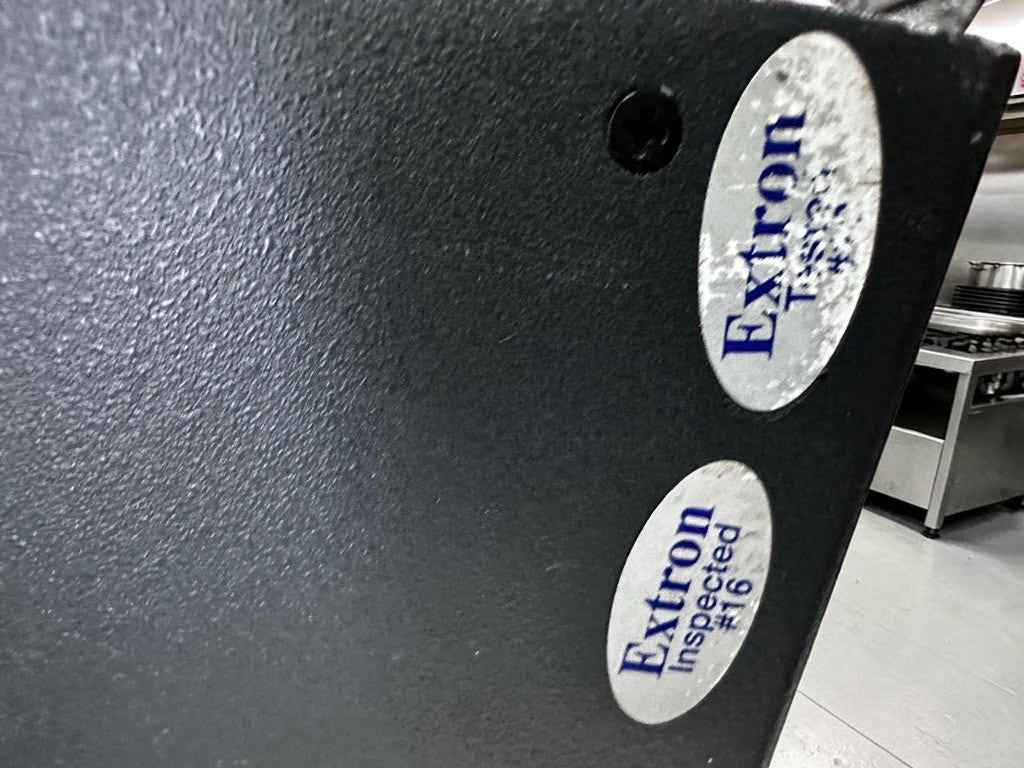

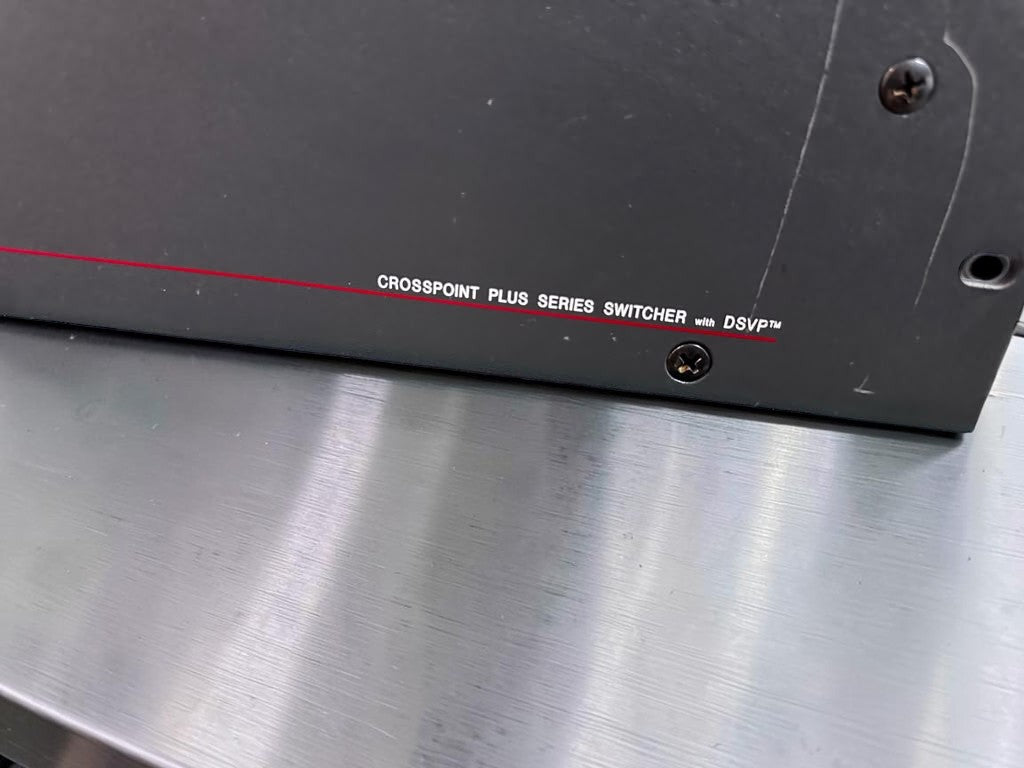

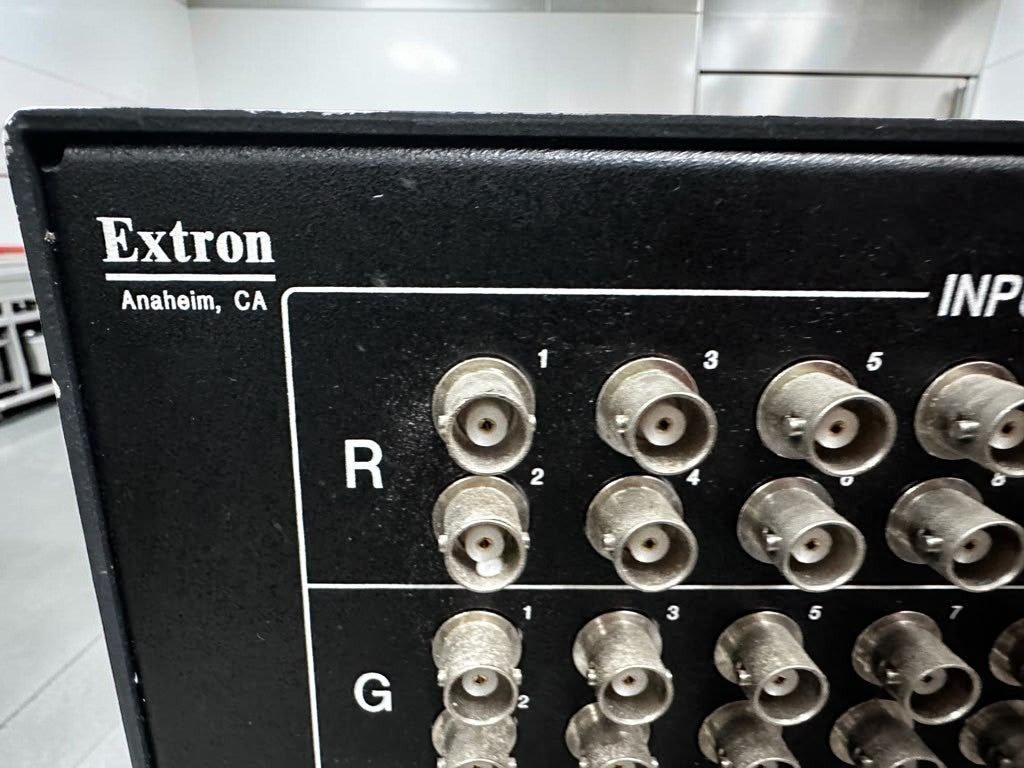

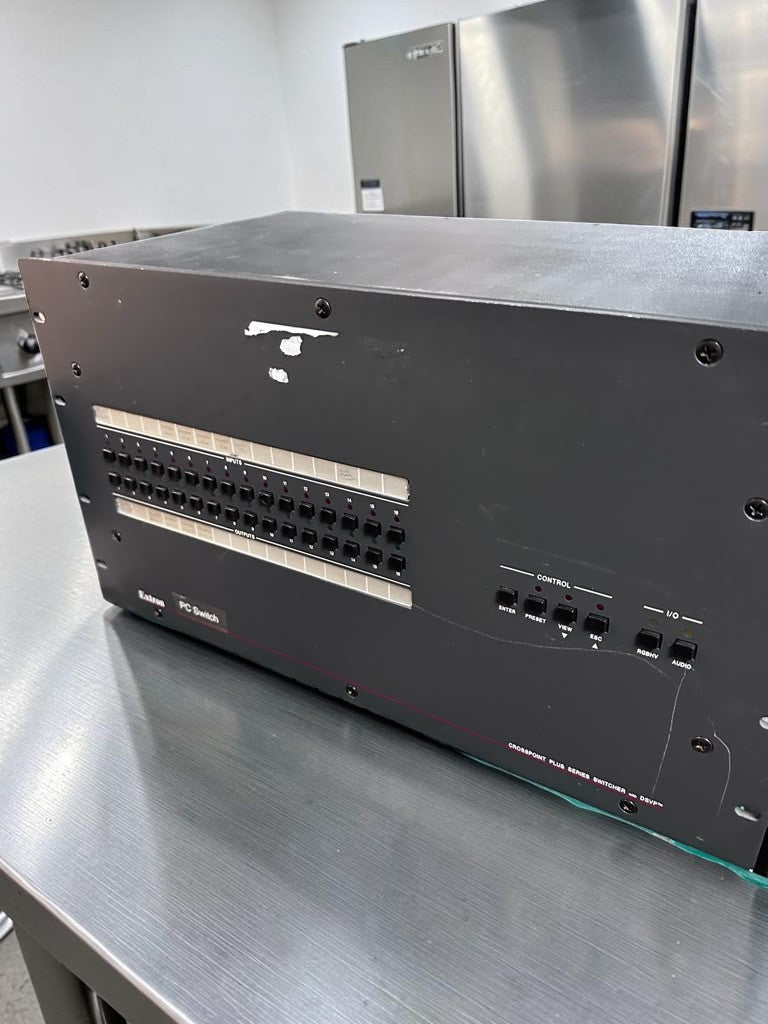

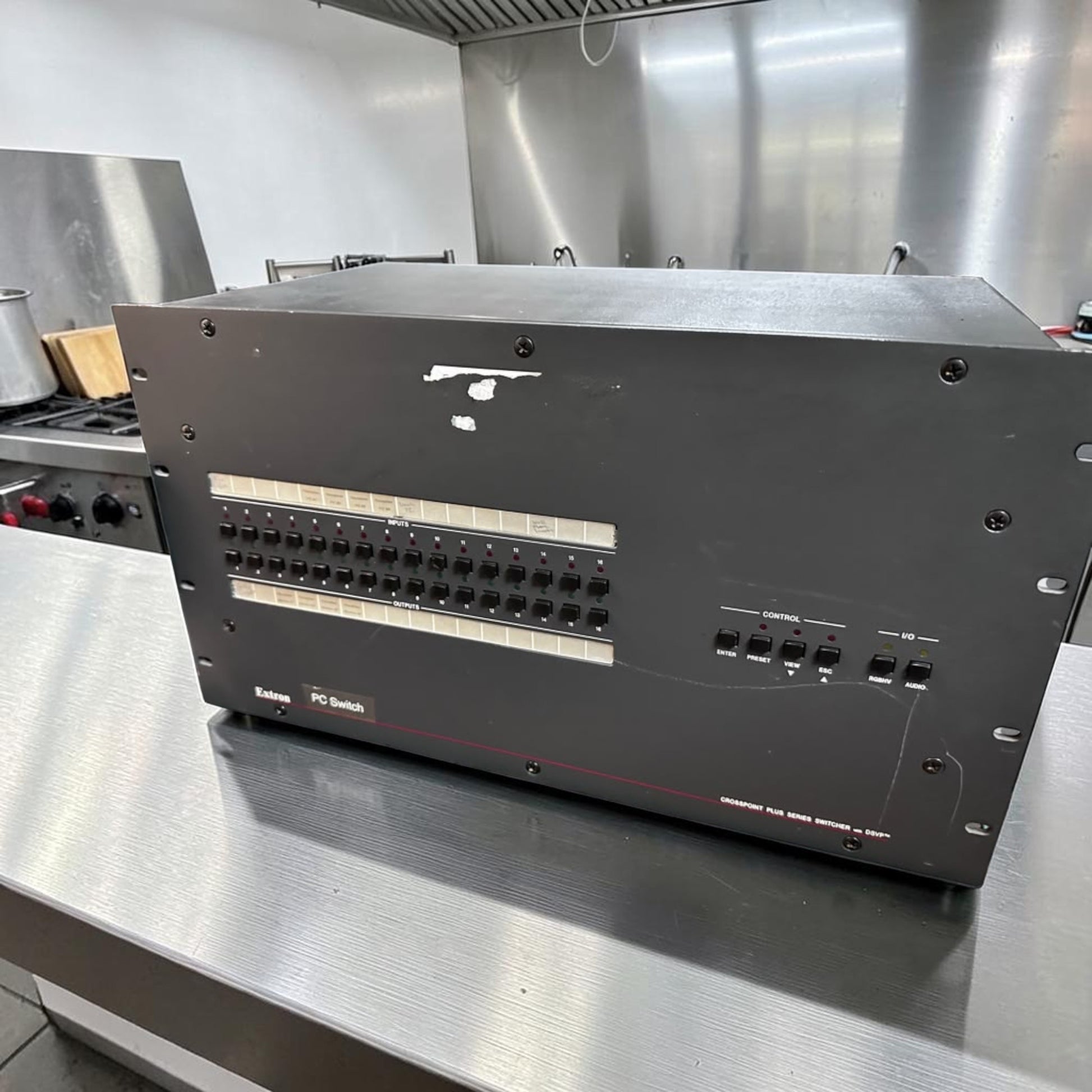

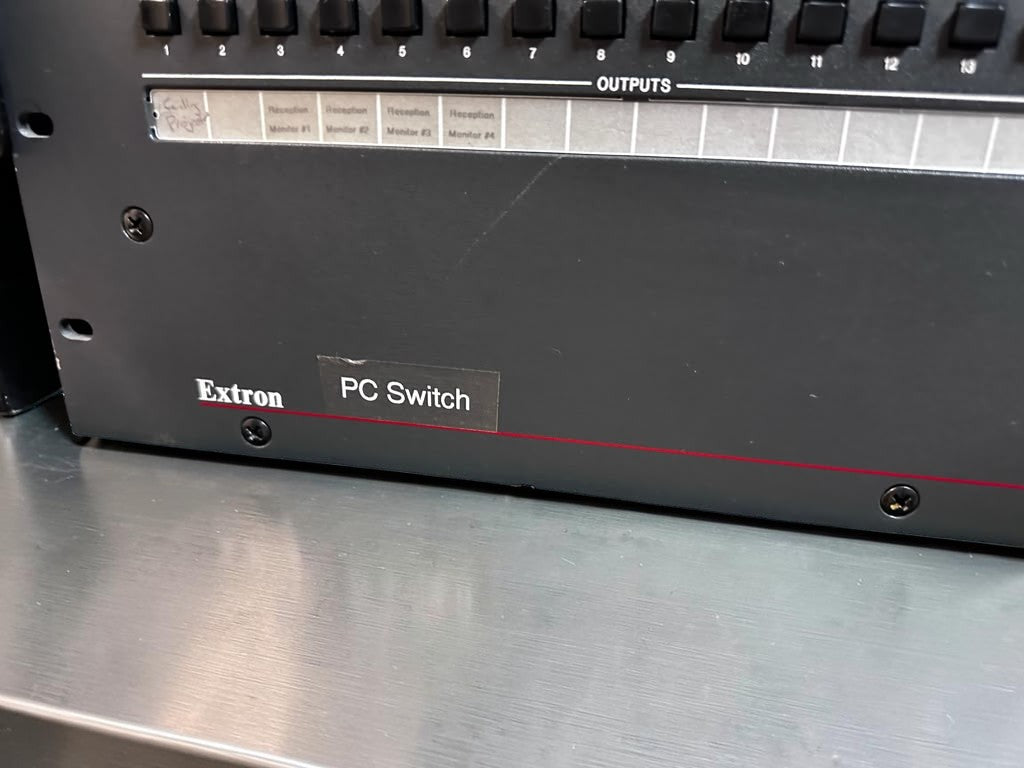

The black metal enclosure shows cosmetic wear from previous installation, including surface scratches, scuff marks, and adhesive residue. Several rear audio terminal connectors contain short sections of previously installed wiring that should be removed or re-terminated before installation. Please review all photos for the exact cosmetic condition.

Description

The Extron CrossPoint Plus 1616 HVA is a professional-grade 16-input by 16-output analog video and stereo audio matrix switcher designed for large commercial AV distribution systems.

This unit allows any connected input source to be routed independently to any single output, multiple outputs, or all sixteen outputs. Multiple routing configurations can operate simultaneously, making it suitable for control rooms, educational facilities, conference centers, auditoriums, houses of worship, broadcast environments, entertainment venues, and complex presentation systems.

The HVA version supports both analog RGBHV video and two-channel stereo audio. Audio may follow the selected video signal or operate independently through audio-breakaway routing.

According to the manufacturer’s specifications, the CrossPoint Plus series provides 425 MHz video bandwidth, independently buffered inputs and outputs, sixteen global memory presets, front-panel control, and RS-232/RS-422 remote operation. Manufacturer specifications: https://extron-electronics.manymanuals.com/audio-accessories/crosspoint-plus-matrix-switchers-84-88-124-128/user-manual-7585/8

Video Specifications

Matrix Configuration: 16 Inputs × 16 Outputs

Primary Video Format: Analog RGBHV

Additional Supported Formats:

RGBS

RGsB

RsGsBs

HDTV Component Video

Component Video

S-Video

Composite Video

Video Connectors: BNC Female

Input Connections: 16 Groups × 5 BNC

Output Connections: 16 Groups × 5 BNC

Video Bandwidth: 425 MHz at -3 dB, fully loaded

Video Gain: Unity

Switching Speed: 200 Nanoseconds Maximum

Input Impedance: 75 or 510 Ohms, depending on input configuration

Output Impedance: 75 Ohms

Switching Type: Triple-Action™

The official manual confirms the 16×16 routing configuration, supported analog video formats, BNC connections, and 425 MHz bandwidth. Technical specifications: https://extron-electronics.manymanuals.com/audio-accessories/crosspoint-plus-matrix-switchers-84-88-124-128/user-manual-7585/58

Audio Specifications

Audio Matrix: 16 Inputs × 16 Outputs

Audio Type: Two-Channel Stereo

Signal Compatibility: Balanced or Unbalanced Audio

Audio Input Connectors: Sixteen 5-Pole, 3.5 mm Captive-Screw Connectors

Audio Output Connectors: Sixteen 5-Pole, 3.5 mm Captive-Screw Connectors

Frequency Response: 20 Hz–20 kHz, ±0.05 dB

Signal-to-Noise Ratio: Greater Than 90 dB

THD + Noise: 0.03% at 1 kHz

Stereo Channel Separation: Greater Than 80 dB at 1 kHz

Audio Input Gain Adjustment: -15 dB to +9 dB

Routing Modes: Audio Follow or Audio Breakaway

Control Specifications

Front-panel input and output selection

Front-panel RGBHV and audio control

Sixteen global configuration presets

RS-232/RS-422 serial control

9-Pin Female D-Sub remote-control connection

Extron Simple Instruction Set™ compatibility

Compatible with the legacy Extron Matrix Switchers Control Program

Serial Protocol: 9600 Baud, 8 Data Bits, 1 Stop Bit, No Parity

Electrical Specifications

Voltage: 100–240V AC

Phase: Single Phase

Frequency: 50/60 Hz

Power Consumption: 36 Watts

Power Supply: Internal, Auto-Switching

Power Type: Electric

Maximum Input Rating Shown on Unit: 12 Amps

Dimensions & Weight

Width: 17 in

Depth: 9.7 in

Height: 10.5 in

Rack Height: 6U

Standard Rack Width with Mounting Ears: 19 in

Product Weight: Approximately 19.4 lb

Shipping Weight: Approximately 26 lb

The 9.7-inch depth excludes rear connectors, and the 17-inch enclosure width excludes the rack ears. Dimensions and electrical data: https://extron-electronics.manymanuals.com/audio-accessories/crosspoint-plus-matrix-switchers-84-88-124-128/user-manual-7585/60

Construction

Heavy-duty black metal enclosure

Full-width professional rack-mountable design

Six-rack-unit chassis

Commercial-grade BNC video connectors

Removable captive-screw audio terminal blocks

Internal universal power supply

Front-panel push-button control interface

Designed for permanent professional AV installation

Key Features

Sixteen video inputs and sixteen video outputs

Sixteen stereo audio inputs and sixteen stereo audio outputs

Routes any input to any combination of outputs

Supports simultaneous independent routing configurations

425 MHz analog video bandwidth

Audio-follow-video operation

Independent audio-breakaway operation

Adjustable audio input gain and attenuation

Sixteen programmable global presets

Front-panel configuration and control

Remote control through RS-232 or RS-422

Supports RGBHV, RGBS, component, S-Video, and composite video

Individually buffered inputs and outputs

Worldwide 100–240V power compatibility

Rack-mountable commercial construction

Ideal Applications

Commercial AV distribution systems

Conference and training centers

Corporate presentation rooms

Educational facilities

Auditoriums and theaters

Houses of worship

Broadcast and production facilities

Control rooms

Convention centers

Entertainment venues

Legacy analog video installations

Large multi-display systems

Certifications

UL Listed Information Technology Equipment

cUL Listed

CE Compliant

FCC Class A Compliant

Manufacturing Information

Manufacturer: Extron Electronics

Manufacturer Location: Anaheim, California, USA

Model: CrossPoint Plus 1616 HVA

Extron Part Number: 60-332-01

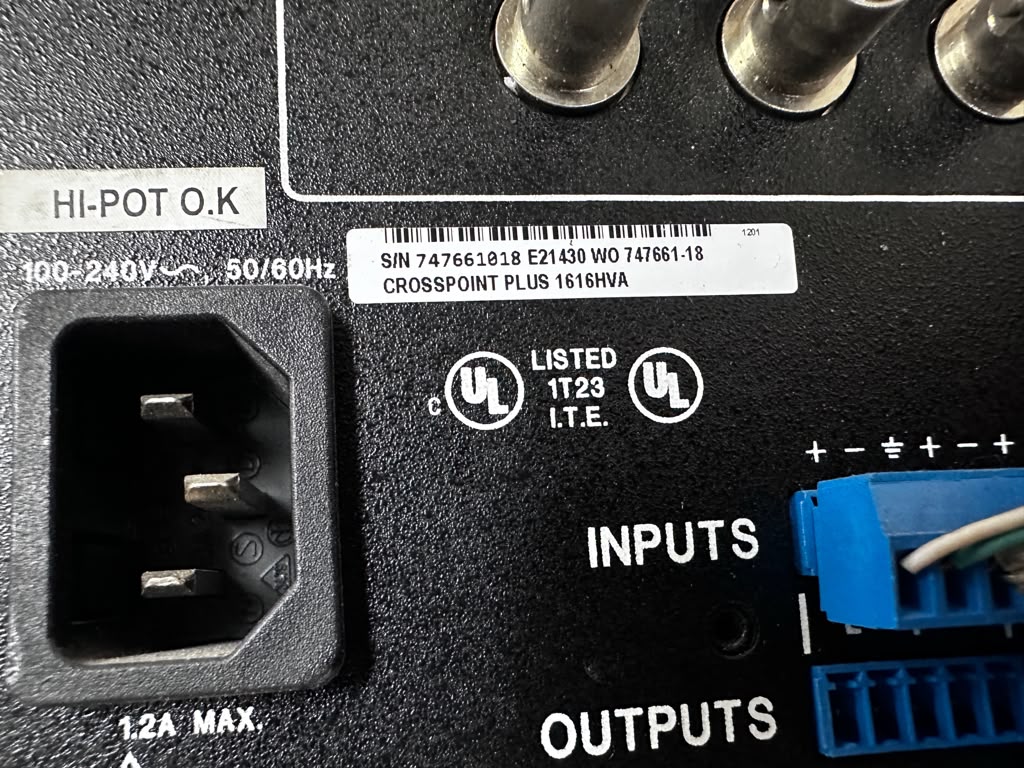

Serial Number: Visible on identification label—see photos

Product Status: Retired Legacy Model

Included

Extron CrossPoint Plus 1616 HVA Matrix Switcher

Installed rear audio captive-screw terminal connectors shown in photos

Rack-mounting ears attached to the chassis

Unit sold exactly as shown in the supplied photos

Important Notes

Sold as-is, where-is

Fully tested and operational before listing

This is a retired legacy analog AV product

HDMI, DisplayPort, DVI, SDI, or network-based video connections are not built in

External converters may be required when connecting modern digital equipment

Several audio terminal blocks contain cut wire remnants from the previous installation

Power cord and external control accessories are not included unless shown or specifically stated

Visible scratches, scuffs, label residue, and cosmetic wear are present

No manufacturer warranty included

Professional installation and system compatibility verification are recommended

Shipping calculated at checkout

Local pickup available
