Dependable Condition – Winco ESW-66 – 10 Qt Deluxe Countertop Soup Warmer – Adjustable Thermostatic Control – 400W – Fully Tested & Operational!

Dependable Condition – Winco ESW-66 – 10 Qt Deluxe Countertop Soup Warmer – Adjustable Thermostatic Control – 400W – Fully Tested & Operational!

Condition

Used – Dependable Condition – Fully Tested & Operational

This unit has been professionally inspected and tested to confirm proper heating, adjustable thermostat, control-knob, power-indicator, and wet-heat holding operation.

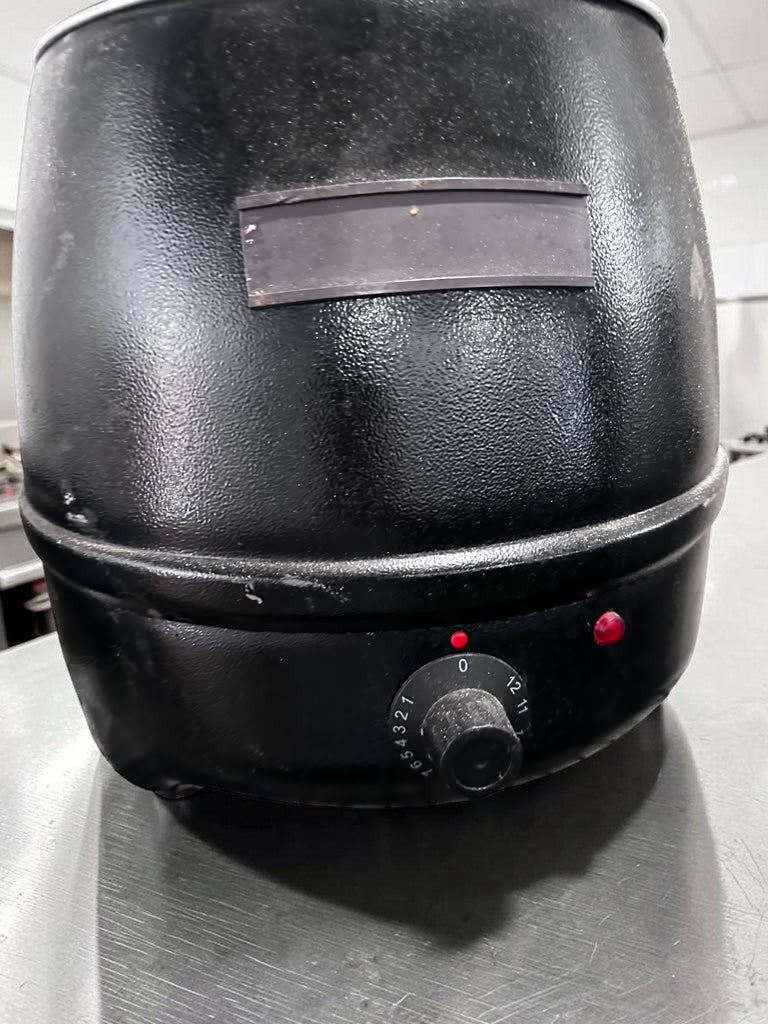

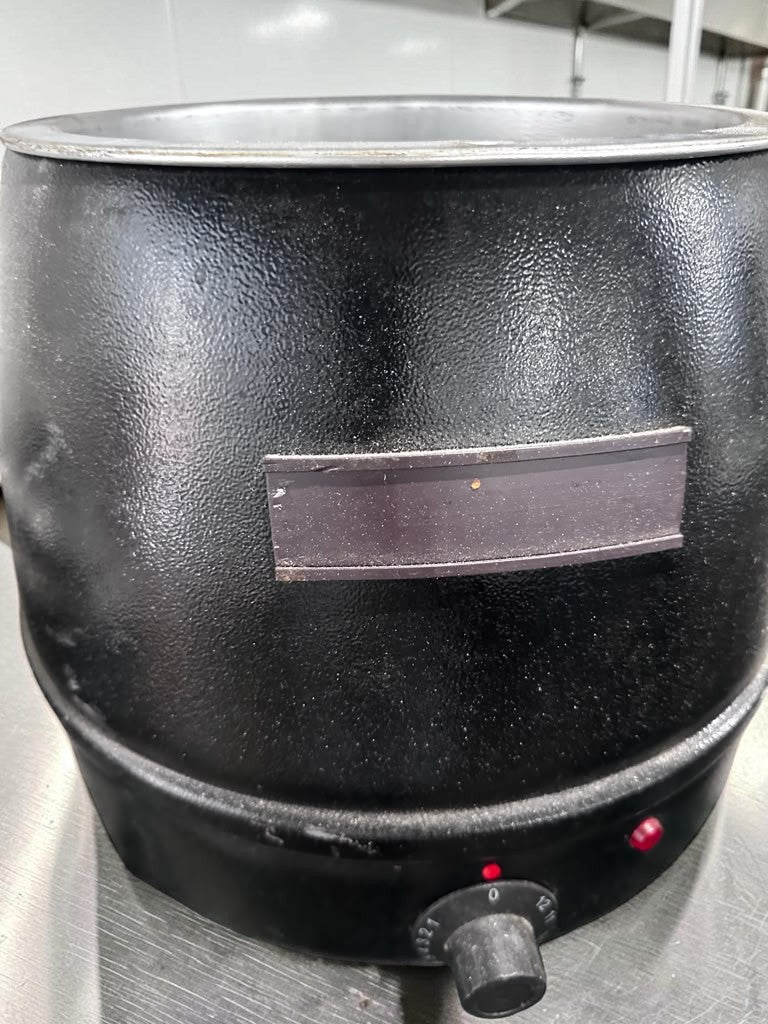

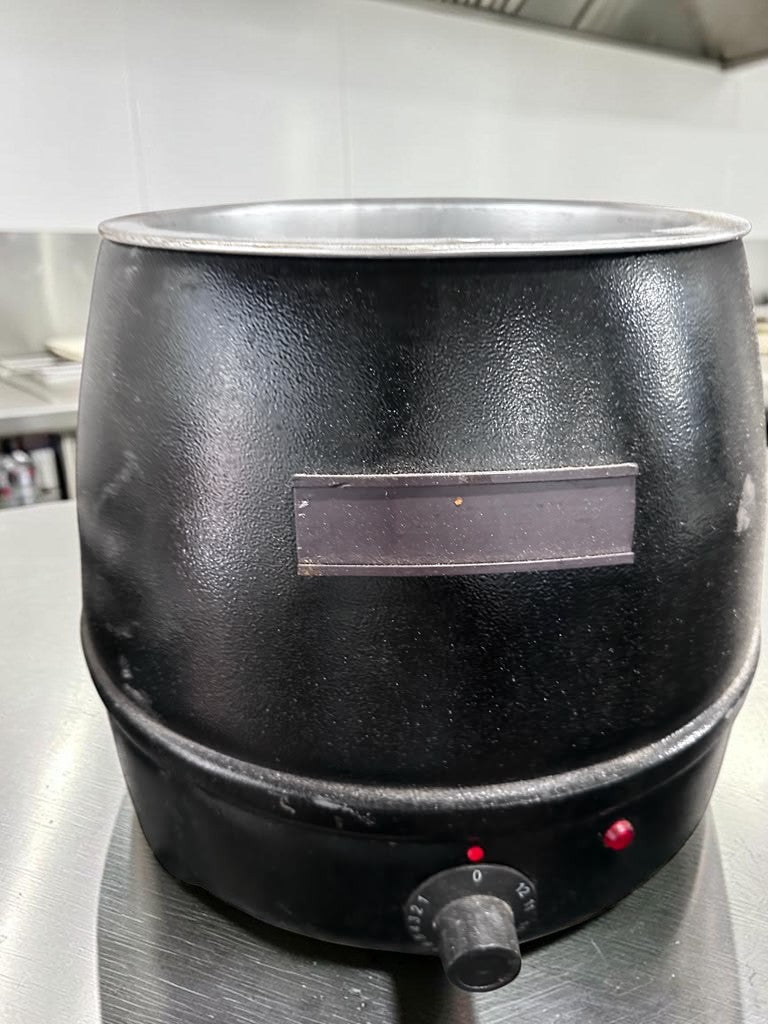

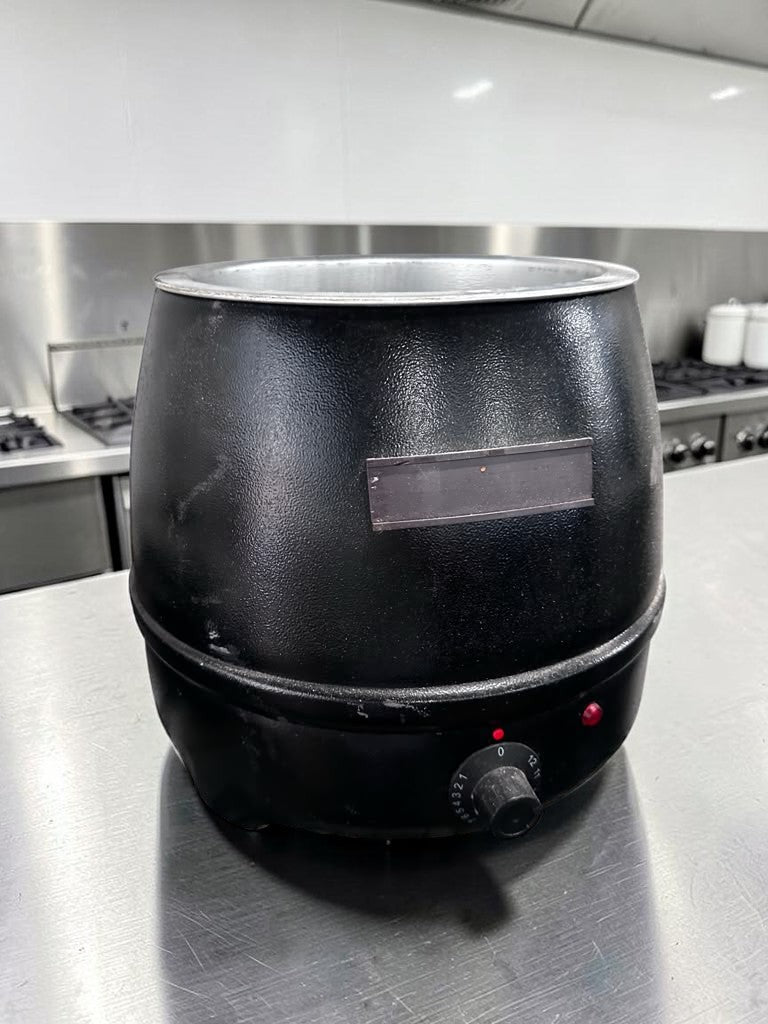

The textured black exterior shows light scratches, scuffs, small paint marks, fingerprints, and cosmetic wear consistent with previous commercial use. The stainless-steel upper rim and food-contact components should be cleaned and sanitized before service.

Description

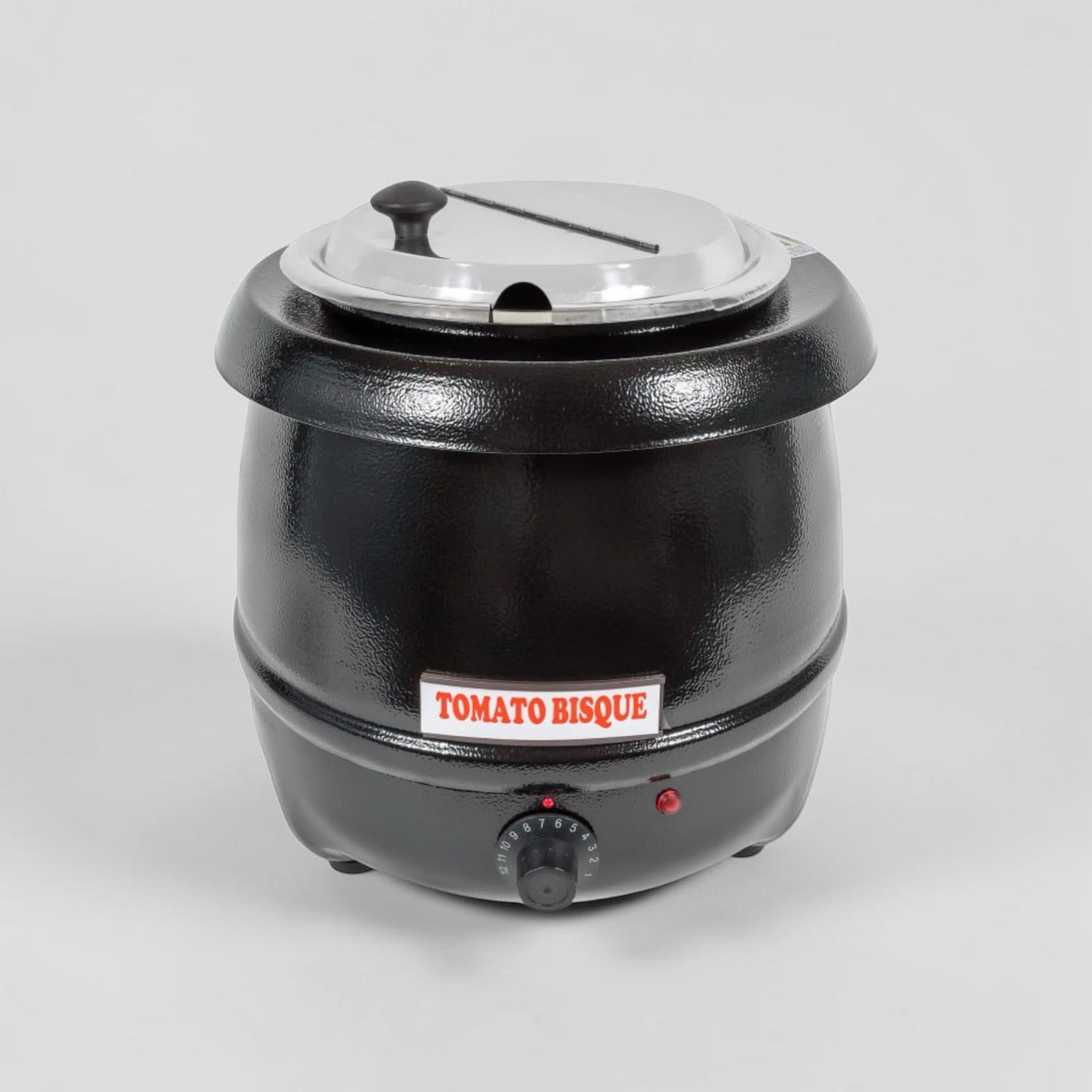

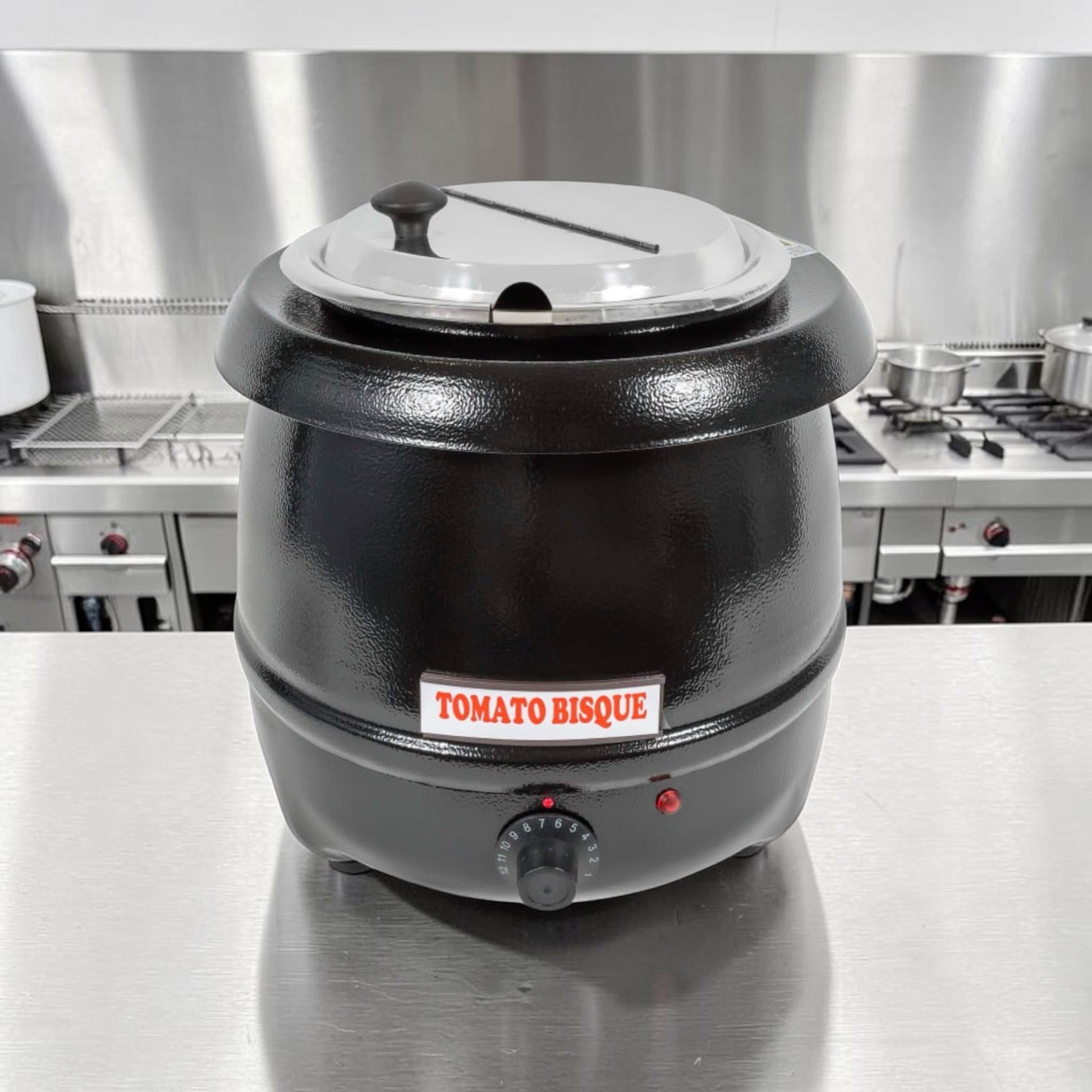

The Winco ESW-66 is a commercial countertop soup warmer designed to keep soup, chili, stew, sauce, gravy, curry, and similar prepared foods at safe serving temperatures for extended periods.

Its adjustable thermostatic control allows the operator to select an appropriate heat level for initial warm-up and continuous holding. The wet-heat bain-marie system distributes heat around the removable inner container, helping maintain consistent temperatures without exposing food directly to the heating element.

Double-wall insulated construction helps retain heat while keeping the exterior cooler to the touch. The compact kettle-style design is suitable for restaurants, cafés, delis, buffets, cafeterias, hotels, catering operations, concession stands, and self-service food stations.

The manufacturer identifies the ESW-66 as a 10-quart commercial soup warmer with adjustable heat control, a removable stainless-steel bain-marie insert, and double-wall insulation. Official Winco ESW-66 product information

Electrical Specifications

Voltage on Data Plate: 110V AC

Catalog Nominal Voltage: 120V AC

Phase: Single Phase

Frequency on Data Plate: 60 Hz

Wattage: 400 Watts

Published Amperage: Approximately 3.3 Amps at 120V

Power Type: Electric

Electrical Connection: Cord-and-Plug Connection

Plug Type: NEMA 5-15P

The attached data plate identifies this specific unit as 110V, 60Hz, 400W. Current North American product literature commonly markets the ESW-66 as a nominal 120V appliance. It should therefore be listed as 110–120V nominal, while retaining the exact data-plate information in the description.

The official specification sheet confirms the 400-watt rating and NEMA 5-15P connection. Winco ESW-66 specification sheet

Heating & Holding System

Capacity: Up to 10 Quarts / 2.5 Gallons

Number of Insets: 1

Heating Method: Wet-Heat Bain-Marie System

Heat Control: Adjustable Thermostatic Dial

Control Range: Settings 1–12

Initial Warm-Up Settings: 8–12

Normal Holding Settings: 1–8

Heating Element: 400-Watt Electric Element

Water Requirement: Approximately 20 oz / 0.6 Liter Before Installing the Insert

Operation: Commercial Food Warming and Holding

Indicator Lights: Power and Heating Indicators

The manufacturer’s manual specifies wet-heat operation and instructs operators to add approximately 20 ounces of water before installing the bain-marie insert. Winco ESW-66 use and care manual

Dimensions

Width: 13.25″

Depth: 14.5″

Height: 14.5″

Metric Dimensions: Approximately 337 × 368 × 368 mm

Shipping Weight: Approximately 12.4 lb / 5.6 kg

The dimensions and shipping weight follow the current official Winco specification sheet. Some distributor listings measure the round body as approximately 13³⁄₁₆″ diameter × 15″ high, depending on whether the lid, label holder, and control components are included in the measurement.

Construction

Textured black commercial exterior

Double-wall insulated kettle construction

Stainless-steel upper collar

Removable stainless-steel bain-marie inner pot

Commercial electric heating element

Adjustable front-mounted thermostatic control

Numbered temperature-control dial

Red power and heating indicator lights

Front-mounted magnetic label holder

Stable countertop configuration

Commercial-grade internal components

Compact kettle-style design

Key Features

Up to 10-quart holding capacity

Adjustable thermostatic heat control

Twelve numbered control settings

High settings for initial warm-up

Lower settings for continuous holding

400-watt electric heating system

Wet-heat bain-marie operation

Double-wall insulated construction

Cooler-to-the-touch exterior design

Removable stainless-steel inner container

Easy-to-use front control knob

Power and heating indicator lights

Magnetic product-label holder

Compact countertop footprint

Suitable for soup, chili, stew, gravy, sauce, and curry

Designed for restaurants, buffets, cafés, delis, and catering service

Built for indoor commercial foodservice use

Certifications

ETL Listed for the United States and Canada

ETL Sanitation Certified

Conforms to UL Standard 197

Certified to CSA C22.2 No. 109

Conforms to NSF/ANSI Standard 4

Intertek Certification Number: 3138365

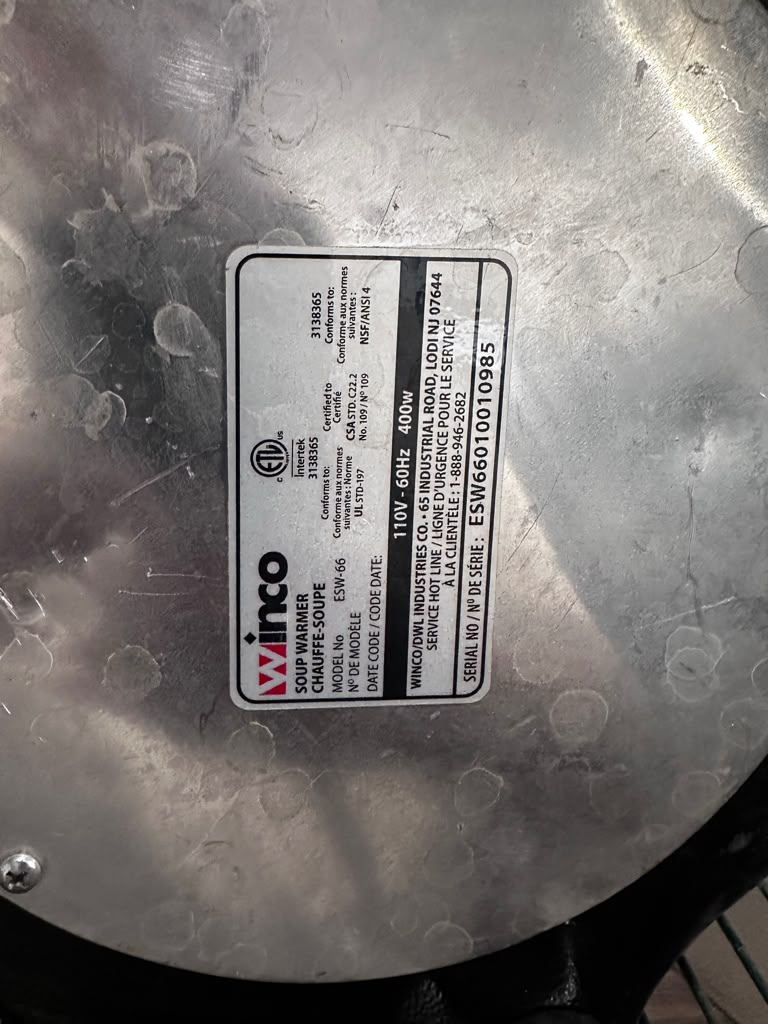

The certification markings and applicable safety standards are visible on the supplied data plate. Winco also identifies the ESW-66 as ETL safety and sanitation certified in its official product listing.

Manufacturing Information

Manufacturer: Winco Industries Co.

Brand: Winco

Model: ESW-66

Product Type: Commercial Electric Soup Warmer

Manufacturer Address: 65 Industrial Road, Lodi, New Jersey 07644, USA

Serial Number: ESW66010010985

UPC: 811642033550

Country of Manufacture: Not Confirmed on the Supplied Data Plate

Included

Winco ESW-66 commercial soup-warmer body

Installed 400-watt heating system

Installed adjustable thermostat and control knob

Installed power and heating indicator lights

Front magnetic label holder

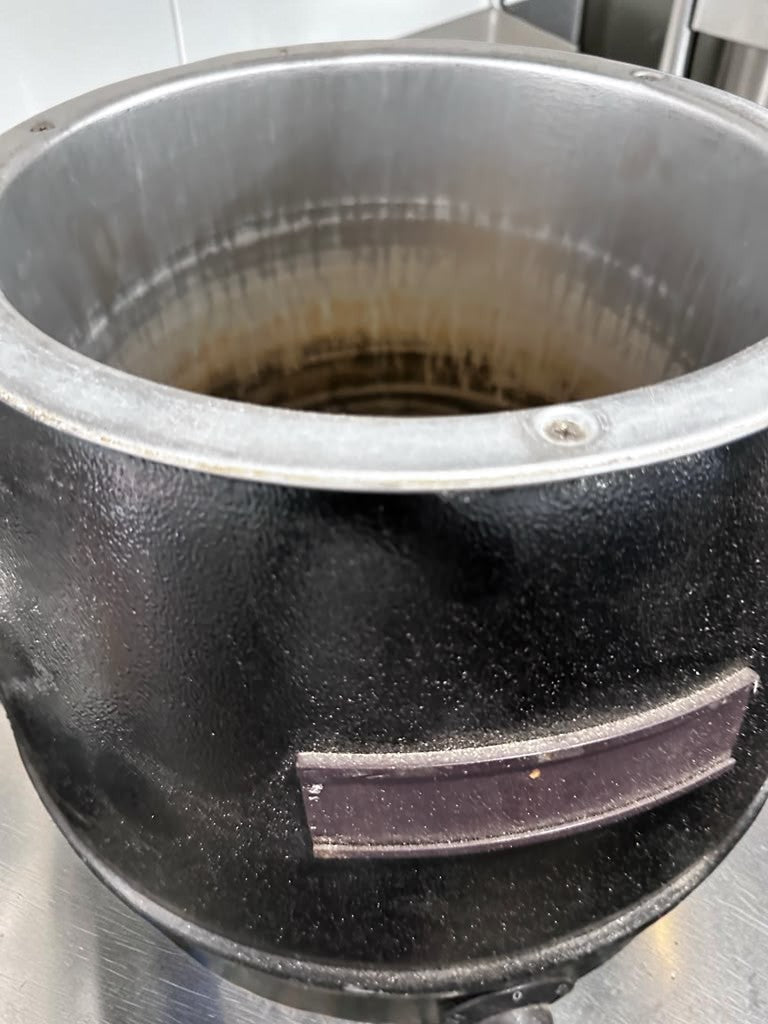

Stainless-steel inner component visible in the supplied photos

Unit sold exactly as shown in the provided photos

The original factory configuration normally includes a removable bain-marie insert, hinged stainless-steel lid, and soup-name labels. Any lid, labels, ladle, or accessories not clearly shown in the supplied photos are not guaranteed unless physically confirmed before listing.

Important Notes

Sold as-is, where-is

Fully tested and working prior to listing

Visible scratches, scuffs, fingerprints, small finish marks, and cosmetic wear from previous commercial use

Data plate shows 110V, while current commercial listings identify the North American unit as nominal 120V

Use only with a properly grounded commercial electrical outlet

Designed for indoor commercial use only

Place the warmer on a solid, level, heat-resistant surface

This unit requires wet-heat operation

Add approximately 20 oz / 0.6 liter of water before installing the bain-marie insert

Do not operate the warmer while empty or dry

Do not overfill the water jacket

The inner insert must not float in the water jacket

Do not leave the appliance unattended while operating

Do not move the warmer while switched on or filled with hot liquids

Exterior and food-contact surfaces may become hot during operation

Disconnect electrical power before filling, cleaning, or servicing

Never immerse the warmer body, power cord, or plug in water

Clean and sanitize the insert and all food-contact components before use

Do not use harsh chemicals, abrasive cleaners, or metal scouring pads on the exterior

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
