Exceptional Condition – CMA Dishmachines EST-AH2 Energy Mizer® – Commercial Low-Temperature Door-Type Dishwasher – 40 Racks/Hour – 115V – Fully Tested & Operational!

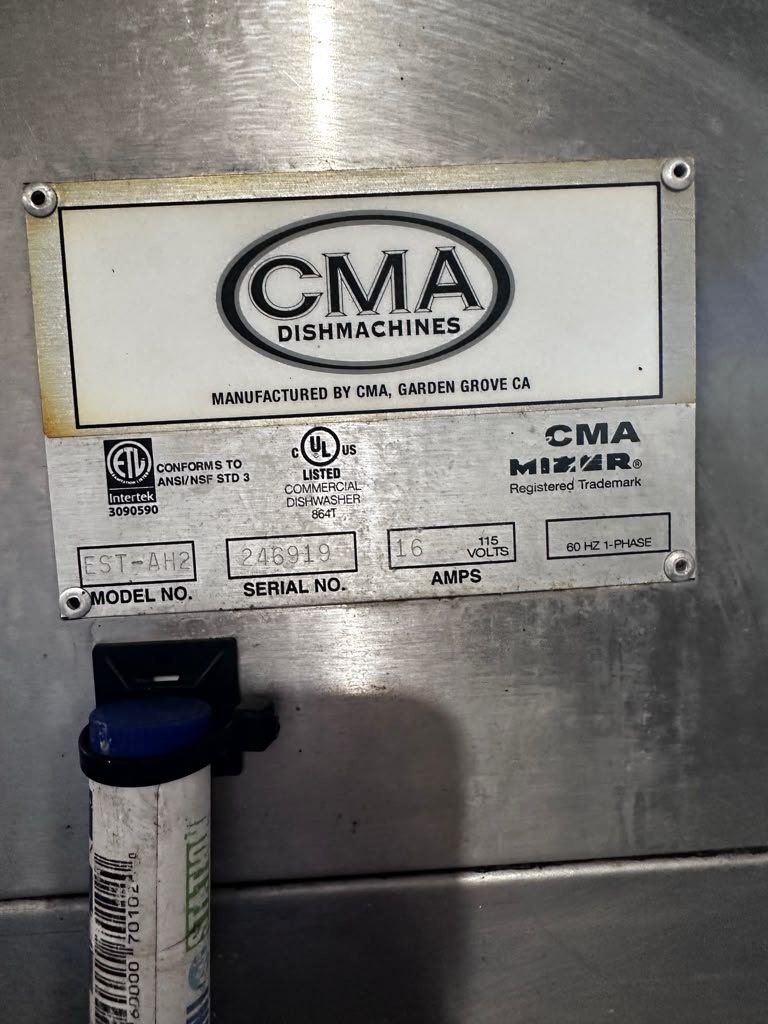

> Model verification: The data plate in the supplied photo identifies this unit as EST-AH2, serial number 246919. It should not be listed as EST-AH-EXT unless another manufacturer plate confirms the extended-door version.

Condition

Used – Good Condition – Fully Tested & Operational

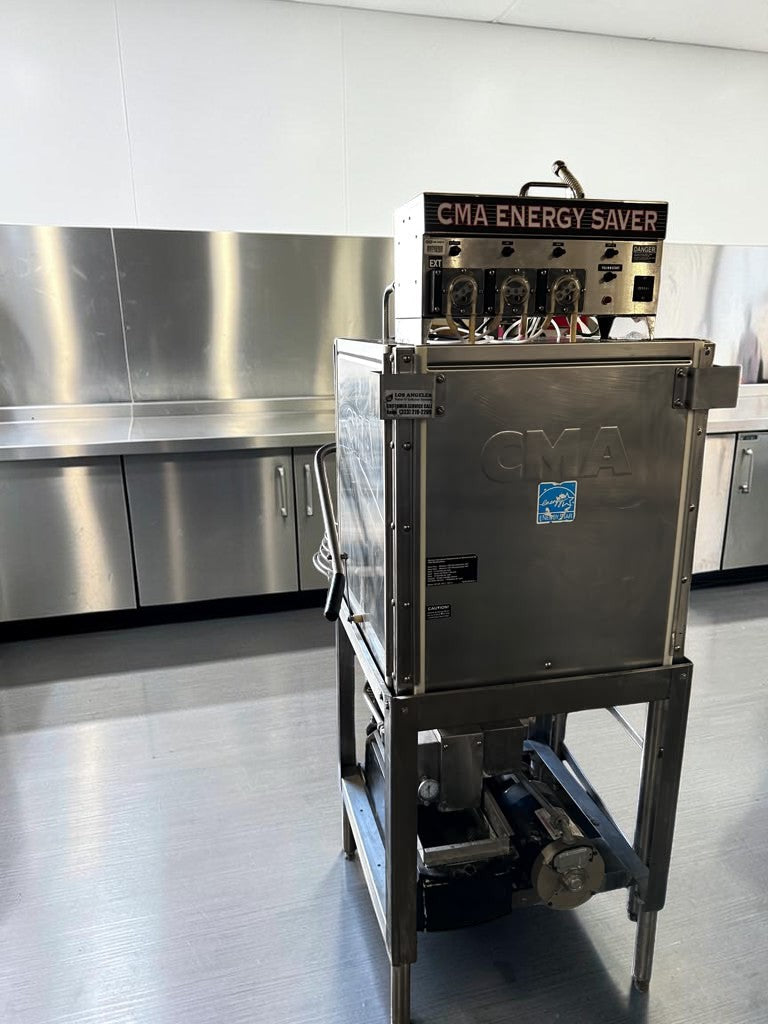

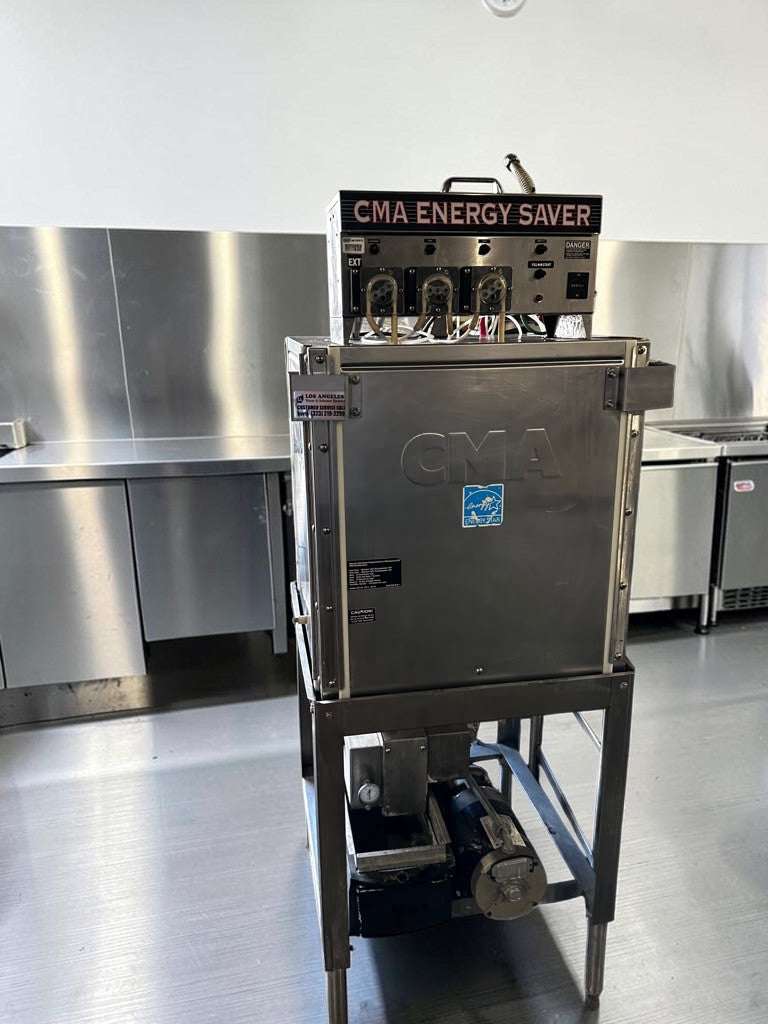

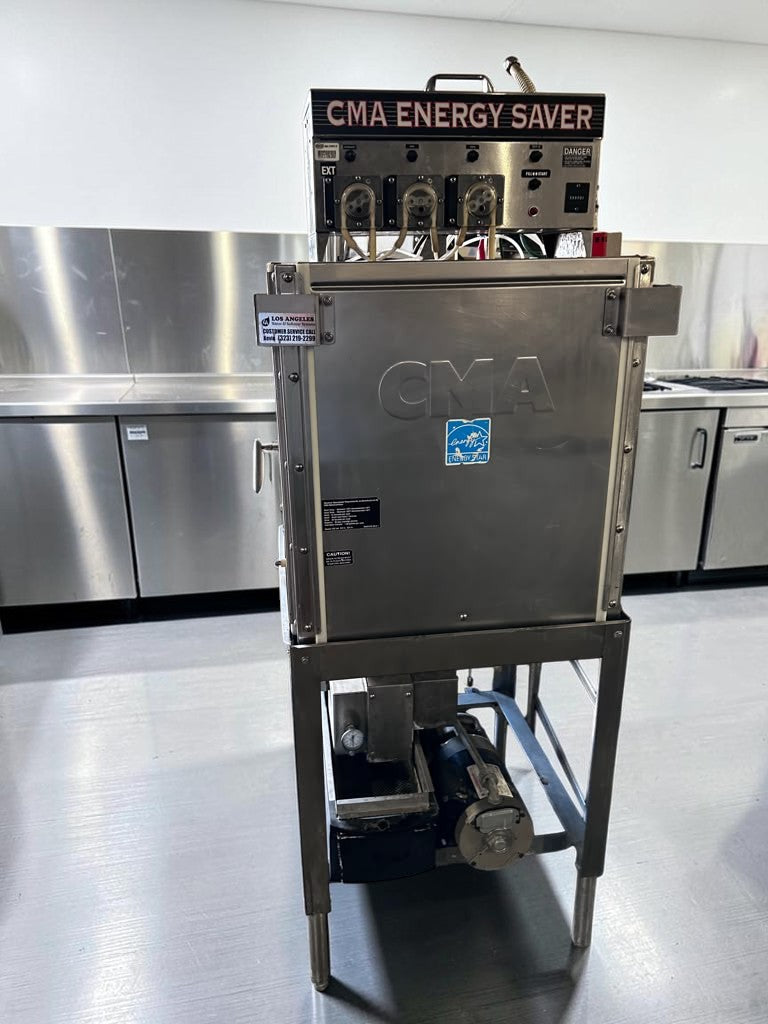

This commercial dishwasher has been professionally inspected and tested to confirm proper operation. The heavy-duty stainless steel exterior shows visible scratches, scuffs, marker writing, discoloration, and other cosmetic signs consistent with previous restaurant use.

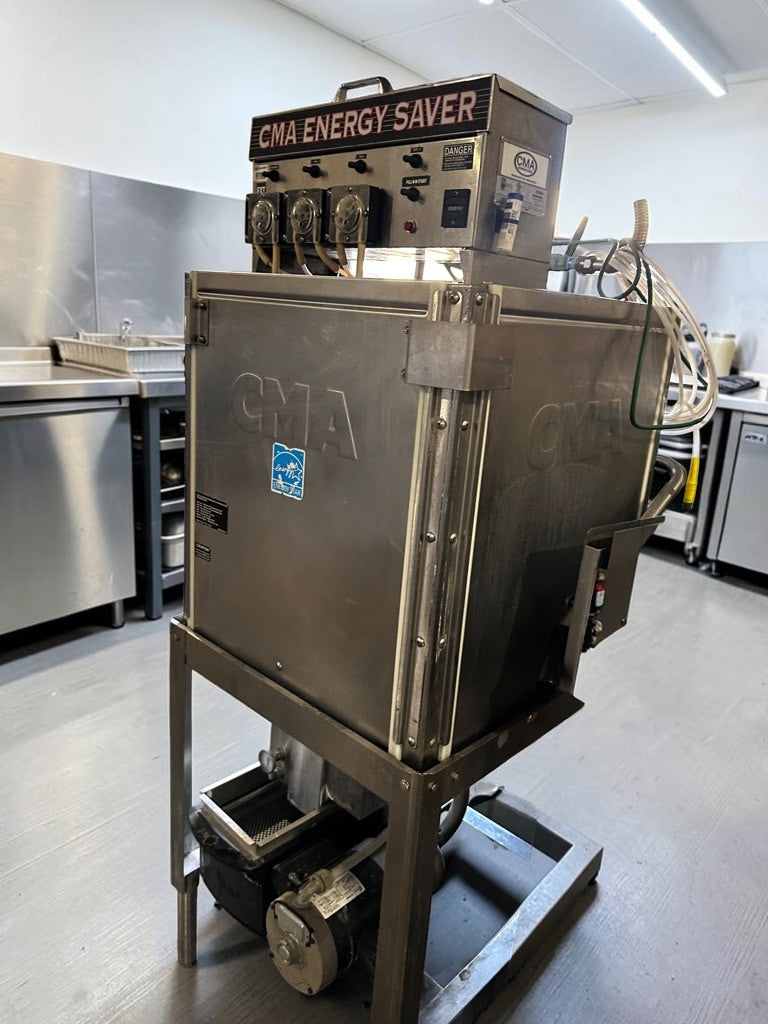

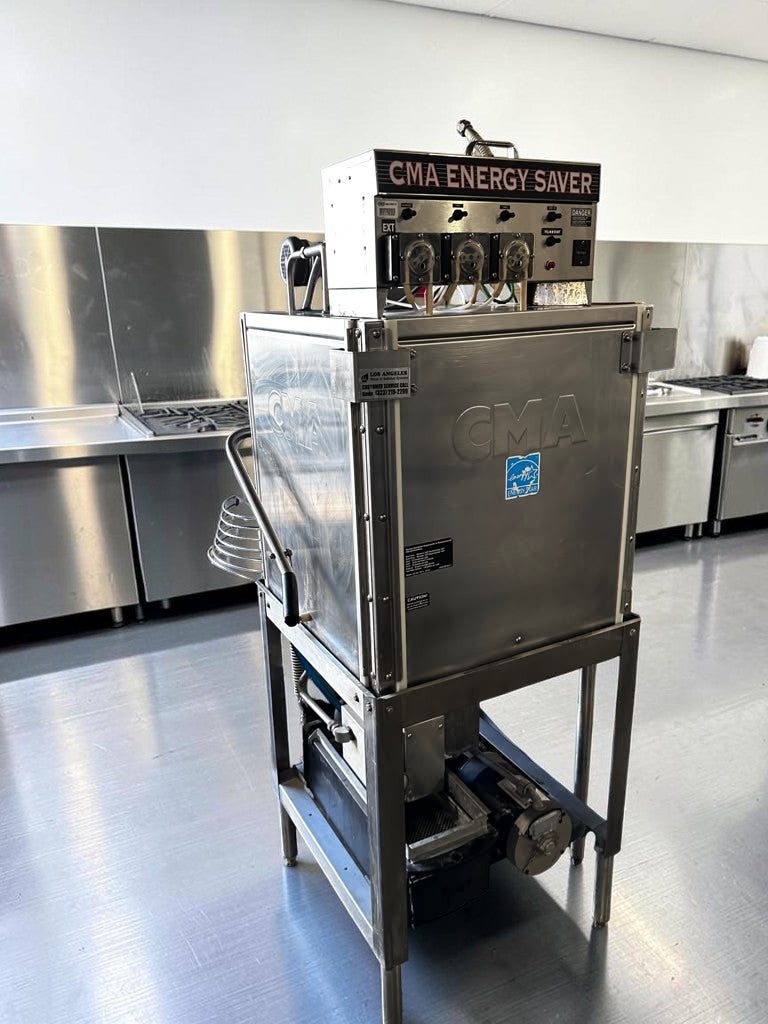

The door assembly, stainless steel wash chamber, top-mounted controls, chemical-feed components, pump system, and supporting frame are present as shown. Cosmetic wear does not affect the unit’s commercial washing function. Please review all photos carefully for the exact physical condition.

Description

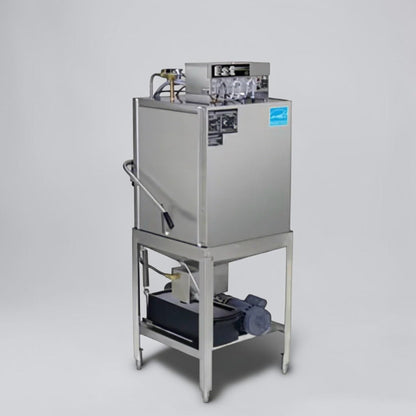

The CMA Dishmachines EST-AH2 Energy Mizer® is a commercial low-temperature, chemical-sanitizing door-type dishwasher designed for restaurants, cafés, hotels, bars, catering kitchens, institutional facilities, and other high-volume foodservice operations.

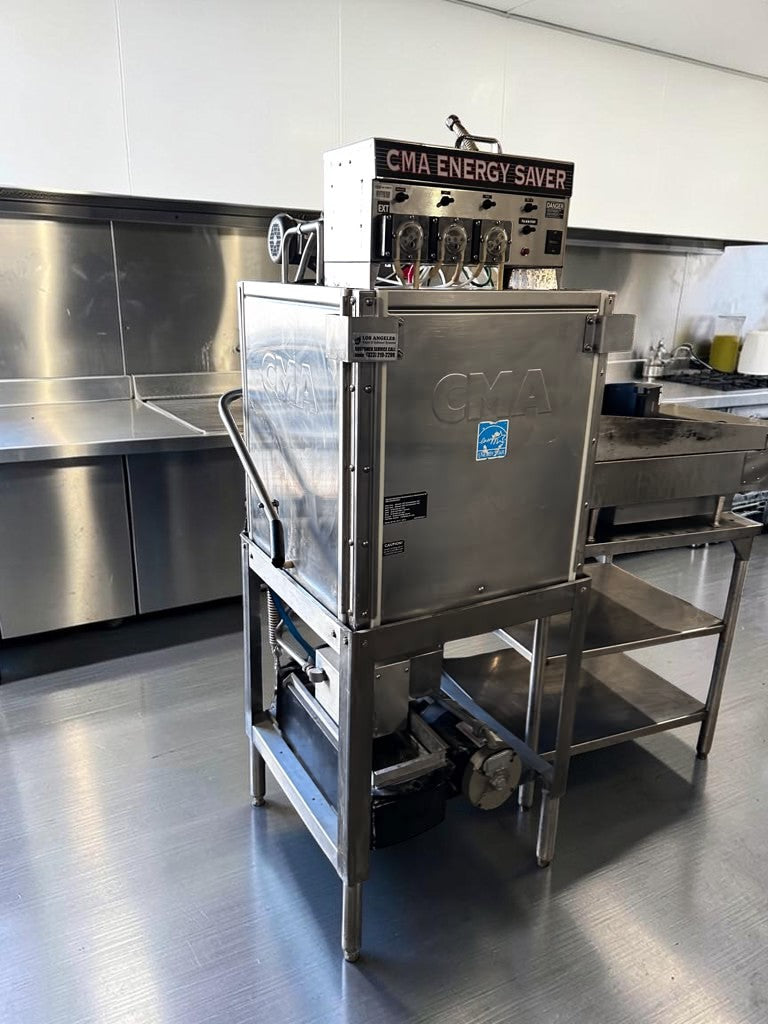

Its single-rack, straight-through configuration allows operators to load standard commercial dish racks from one side and remove them from the opposite side, helping maintain an efficient dishwashing workflow during busy service periods.

The dishwasher is constructed from durable stainless steel and features top-mounted operating controls, built-in chemical-delivery components, automatic cycle operation, and a commercial wash-pump system. CMA’s AH-series machines are designed to process as many as 40 racks or approximately 160 covers per hour.

Because this is a low-temperature machine, sanitizing is completed through the properly installed commercial sanitizing chemical system rather than through a high-temperature booster heater.

Performance Specifications

Production Capacity: Up to 40 racks per hour Approximate Cover Capacity: Up to 160 covers per hour Dishwasher Style: Single-Rack Door-Type Configuration: Straight-Through Sanitation Method: Low-Temperature Chemical Sanitizing Rack Type: Standard Commercial Dish Rack Wash Pump Motor: 1 HP Operating System: Automatic Start/Stop

CMA documentation for the AH platform confirms the 40-rack-per-hour capacity, stainless steel construction, upper and lower wash arms, chemical-delivery system, and automatic operation.

Electrical Specifications

Voltage: 115V Phase: Single Phase Frequency: 60 Hz Amperage: 16 Amps Power Type: Electric

These electrical ratings are visible directly on the manufacturer data plate in the supplied photo and agree with published AH-2 specifications.

Approximate Dimensions

Width: 25.75 in Depth: 25.75 in Height: 57 in

Approximate Weight: 270 lb

Published specifications for the CMA AH-2 list a 25.75-inch width, 25.75-inch depth, and approximately 57-inch overall height.

Buyers should verify all measurements and utility clearances before installation.

Plumbing and Installation Requirements

• Commercial hot-water supply required
• Chemical sanitizer supply required
• Detergent and rinse-aid connections required
• Drain connection required
• Professional plumbing installation recommended
• Dedicated electrical circuit recommended
• Final installation must comply with applicable local plumbing, sanitation, and electrical codes

The exact water temperature, pressure, drain arrangement, chemical concentration, and utility requirements should be confirmed by a qualified commercial dishwasher technician before installation.

Construction

• Heavy-duty stainless steel body
• Stainless steel wash chamber
• Stainless steel supporting frame
• Commercial door-lift assembly
• Single-rack straight-through design

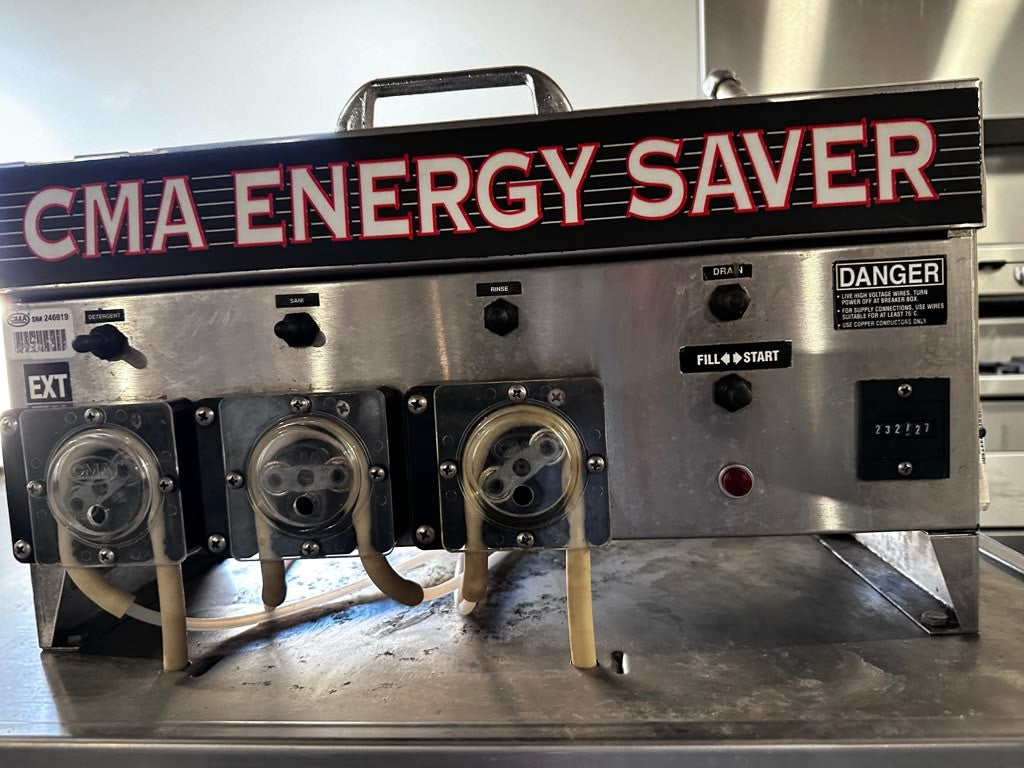

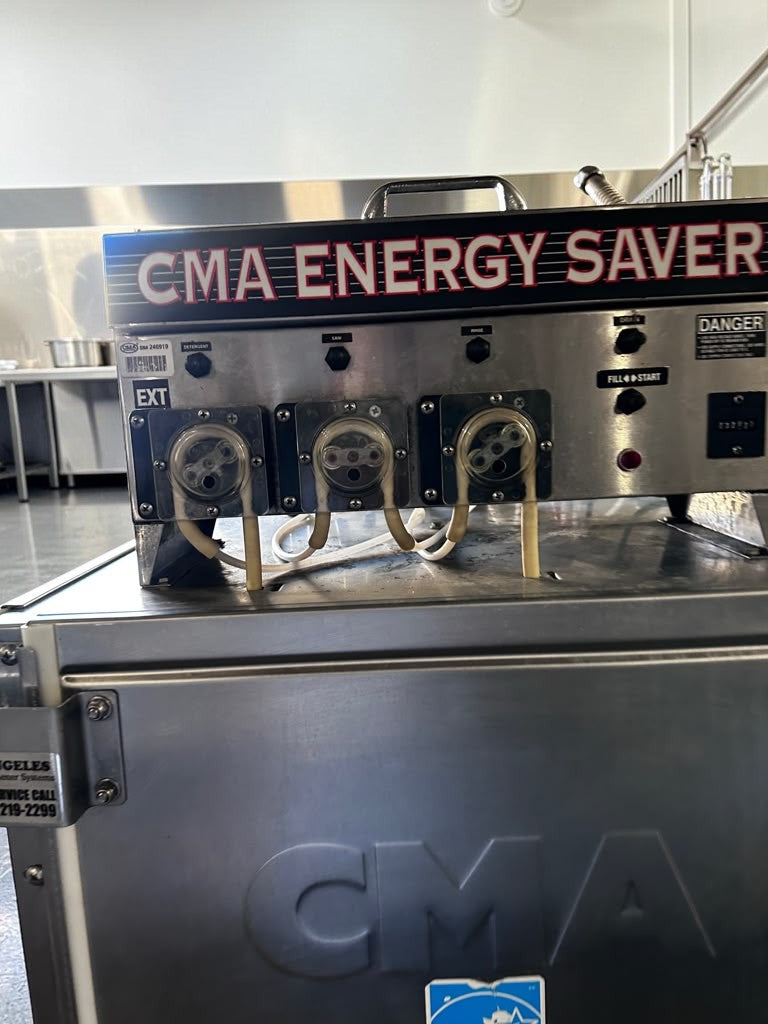

• Top-mounted control enclosure
• Upper and lower wash-arm system

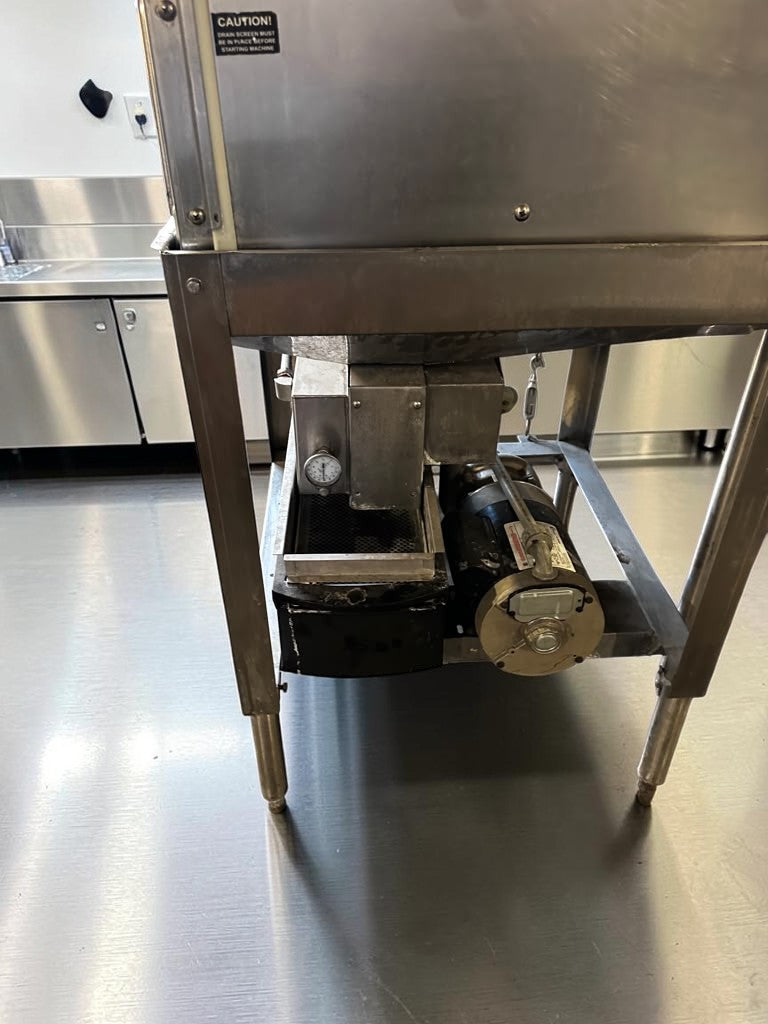

• Commercial wash-pump assembly

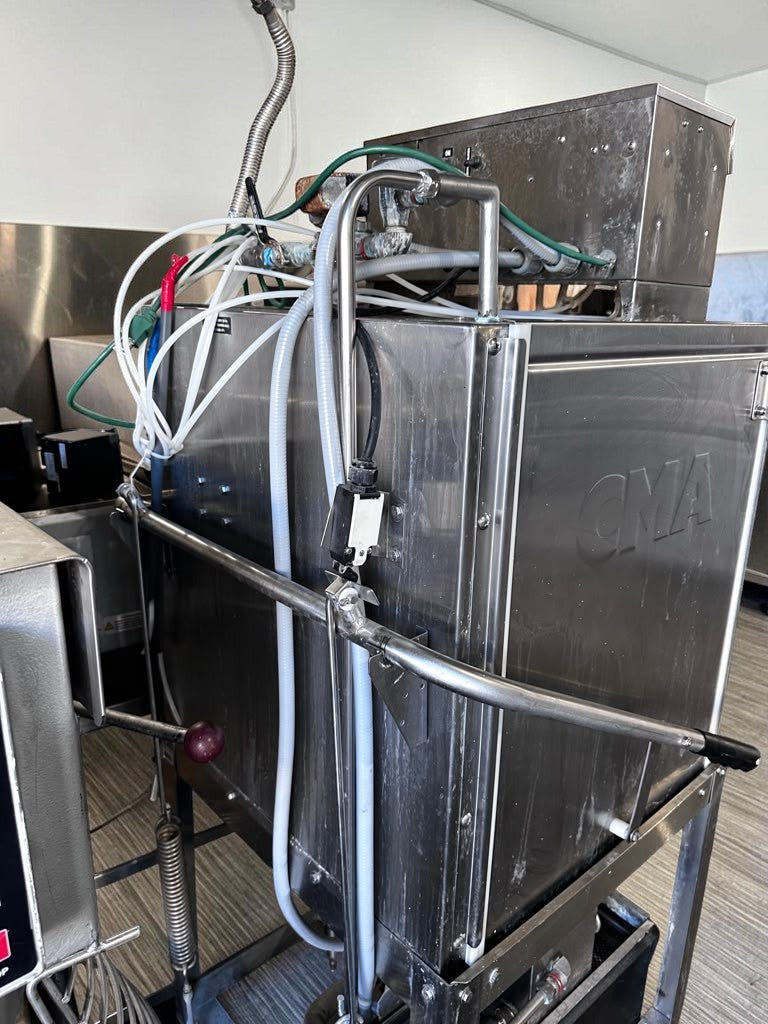

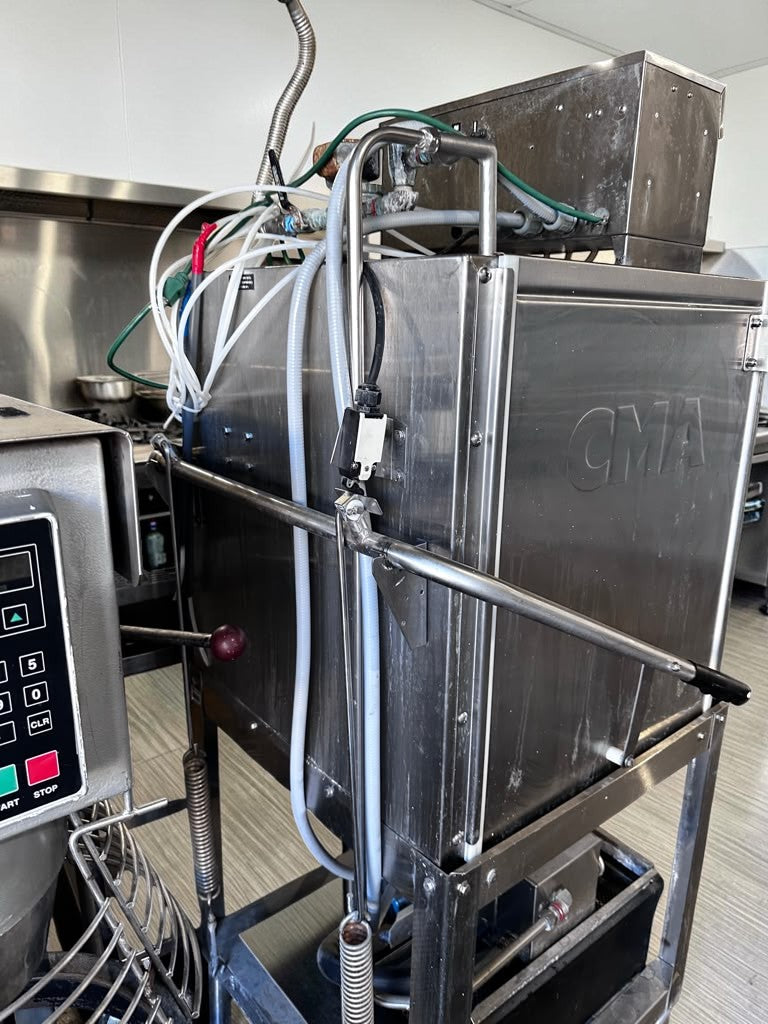

• Chemical-feed tubing and components
• Removable scrap-handling components
• Front and side service access
• Adjustable commercial legs

Key Features

• Processes up to 40 standard dish racks per hour
• Low-temperature chemical-sanitizing operation
• Single-rack door-type design
• Straight-through commercial workflow
• Automatic start and stop operation
• Top-mounted operating controls
• Built-in chemical-feed components
• Heavy-duty stainless steel construction
• Commercial 1 HP wash-pump system
• Easy-to-remove wash arms for cleaning
• Designed for continuous restaurant use
• Suitable for plates, glasses, utensils, trays, and cookware
• 115V single-phase electrical configuration
• Space-efficient upright design

Certifications

The equipment plate displays:

• UL Listed Commercial Dishwasher
• ETL / Intertek Sanitation Certification
• Conforms to ANSI/NSF Standard 3

The certifications apply to the machine as manufactured. Buyers should verify that the installation and operating setup remain compliant with local requirements.

Recommended Applications

• Restaurants
• Commercial kitchens
• Cafés and coffee shops
• Bars and pubs
• Hotels
• Catering facilities
• School kitchens
• Healthcare foodservice
• Institutional kitchens
• Commissaries
• Bakeries
• High-volume dishwashing stations

Manufacturing Information

Manufacturer: CMA Dishmachines Manufactured By: CMA, Garden Grove, California, USA Model: EST-AH2 Model Family: AH-2 Energy Mizer® Serial Number: 246919 Electrical Rating: 115V / 60 Hz / Single Phase / 16 Amps

Included

• CMA Dishmachines EST-AH2 dishwasher
• Stainless steel dishwasher body
• Installed supporting frame
• Top-mounted control assembly
• Installed wash-pump system
• Chemical tubing and installed components shown in photos

Unit is sold exactly as shown in the supplied photos.

Dish racks, chemical containers, external tables, faucets, booster equipment, plumbing accessories, and surrounding equipment are not included unless specifically stated.

Important Notes

• Sold as-is, where-is
• Used commercial restaurant equipment
• Fully tested and operational prior to listing
• Visible cosmetic scratches, scuffs, writing, and discoloration
• Installation must be performed by a qualified professional
• Sanitizer, detergent, and rinse-aid chemicals are not included
• Buyer is responsible for confirming local code requirements
• Buyer should confirm final dimensions and connections before purchase
• No manufacturer warranty included
• Shipping calculated at checkout
• Freight shipping may be required
• Local pickup available
• Review all photos before purchasing
