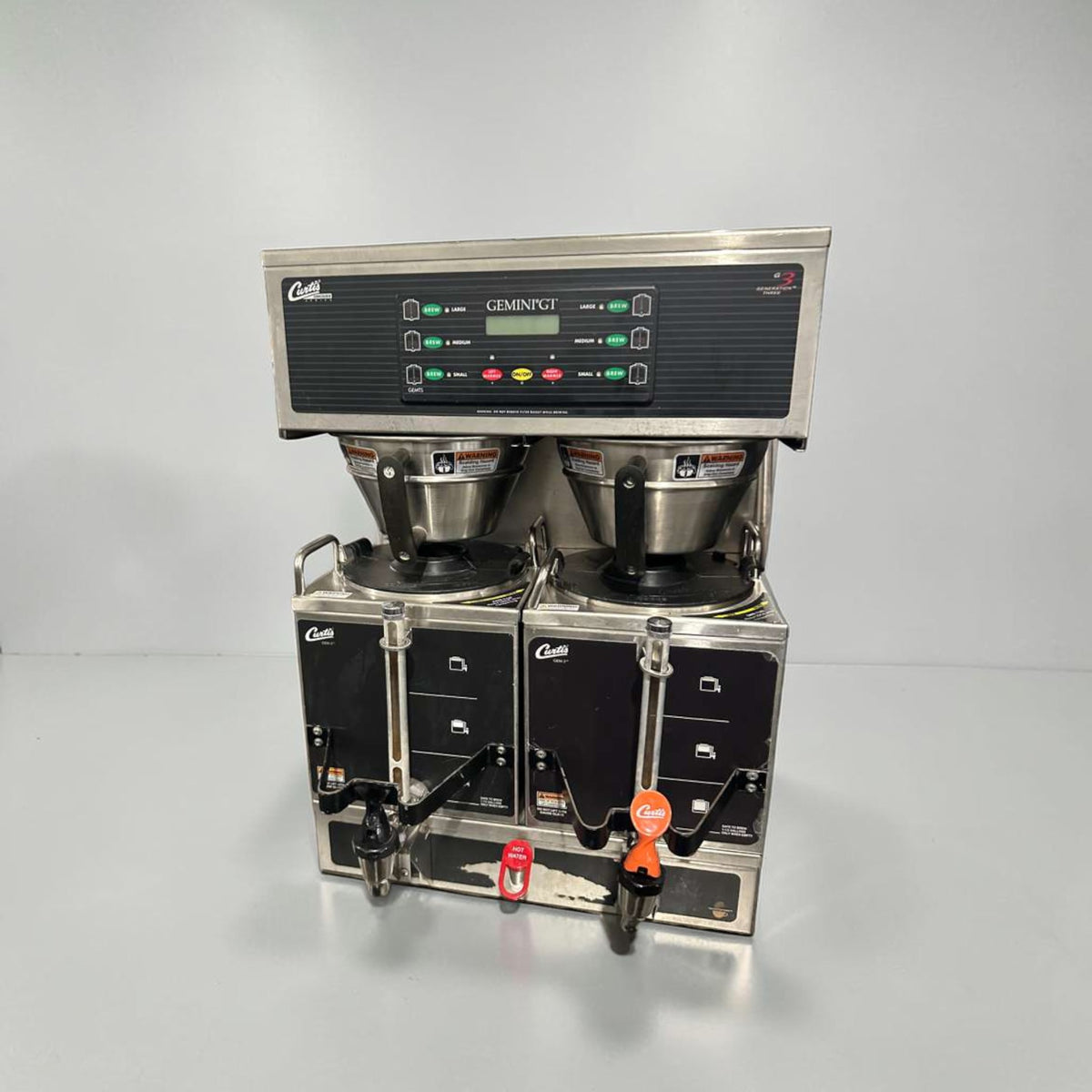

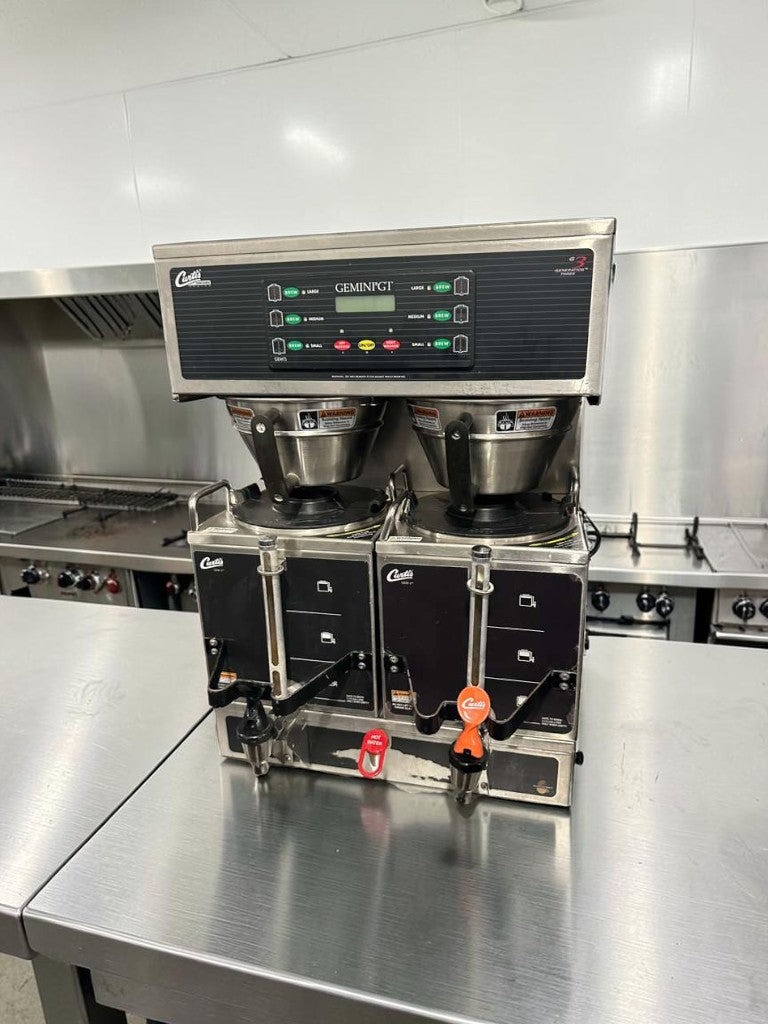

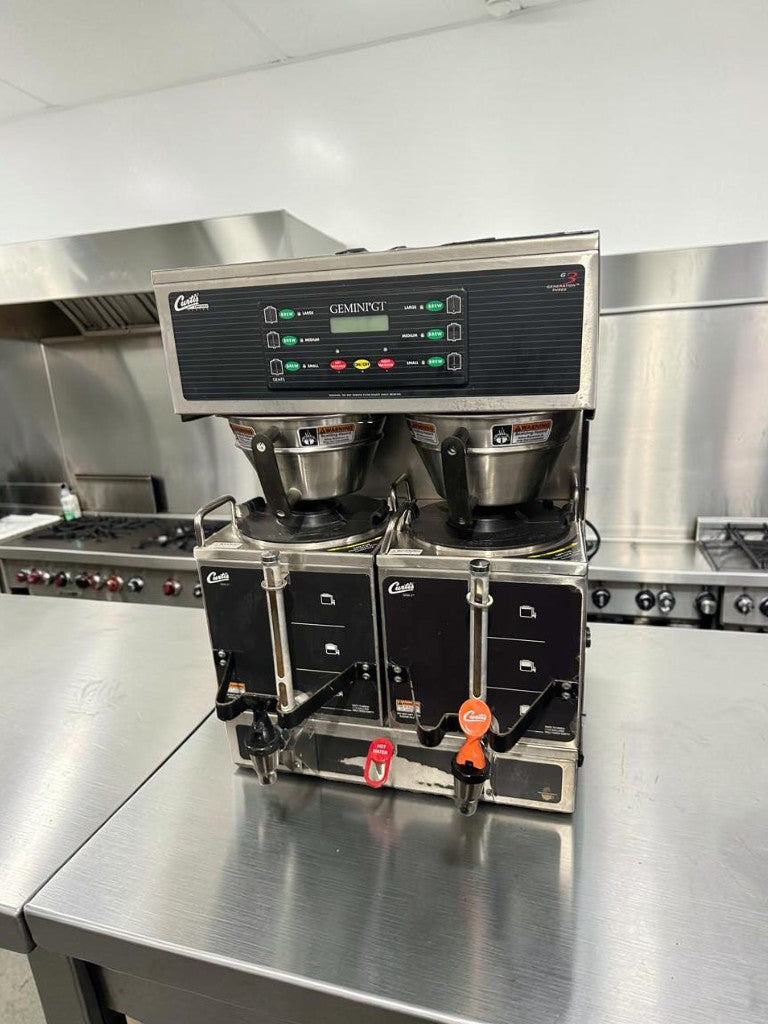

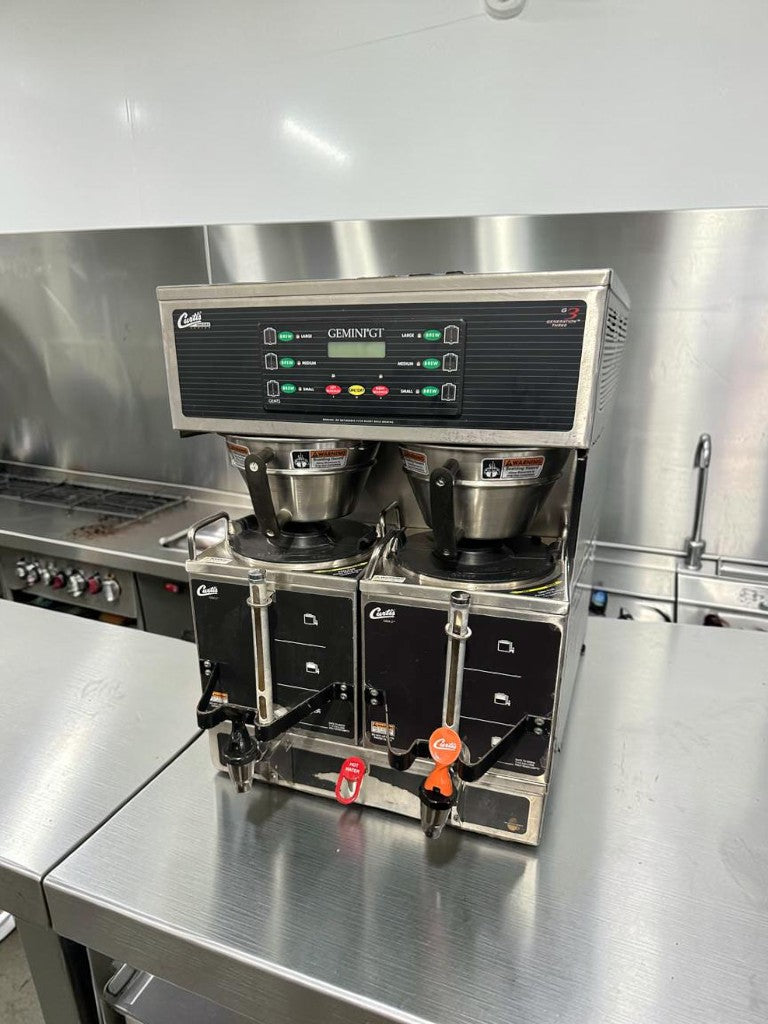

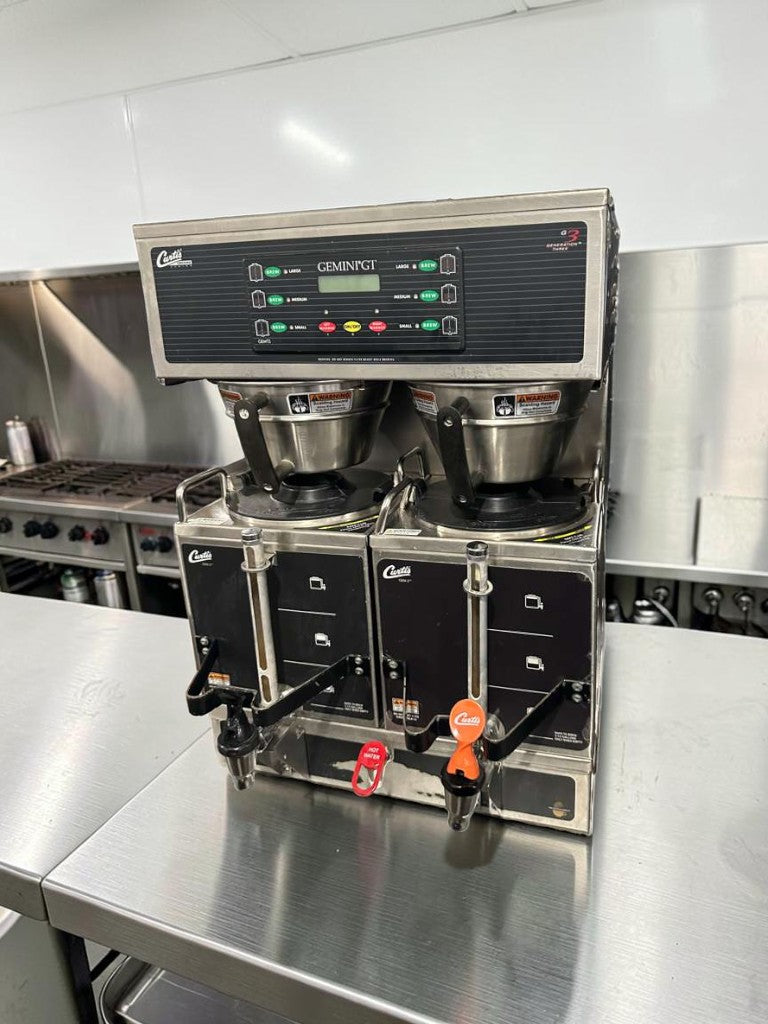

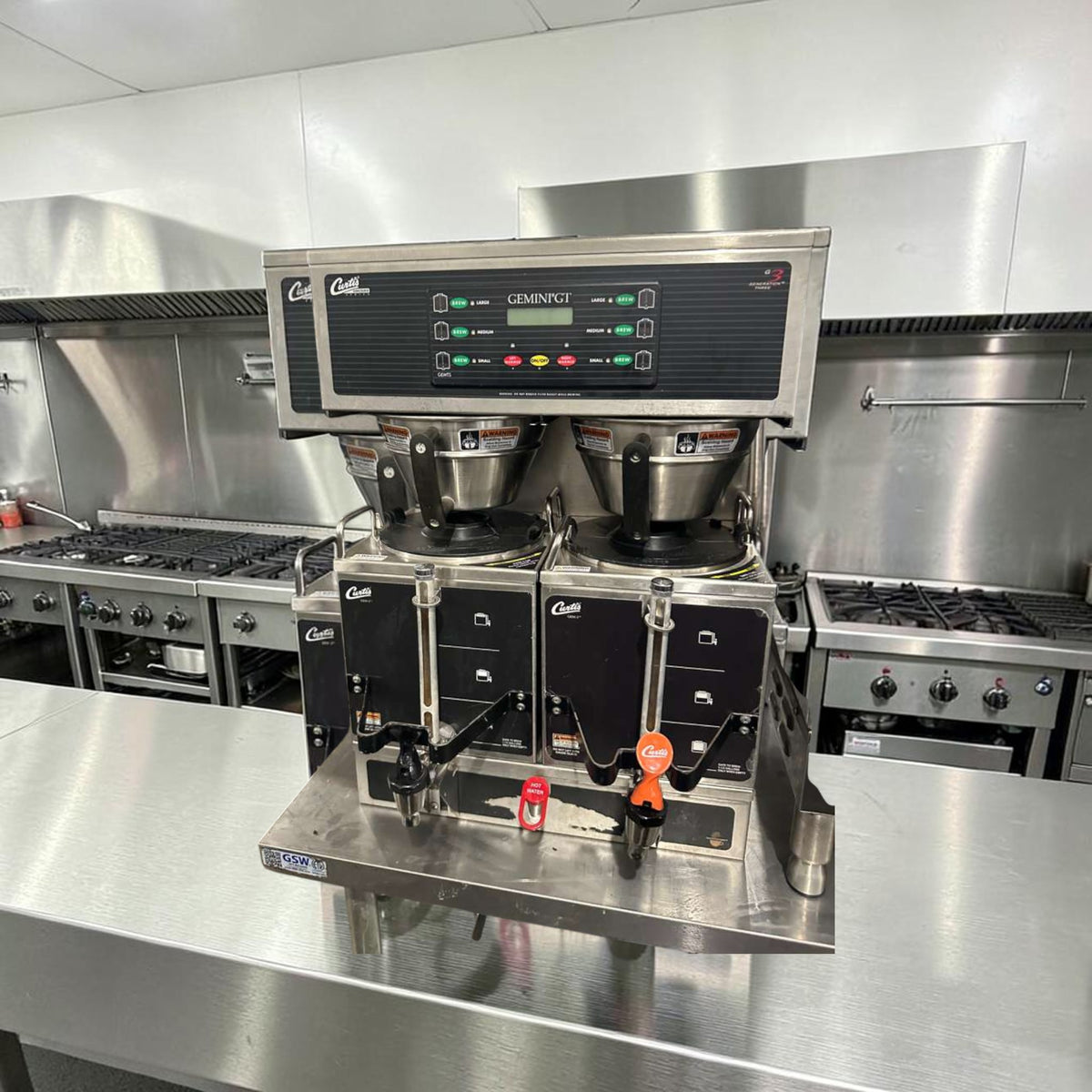

Exceptional Condition – Curtis GEMTS10A1000 Gemini G3 – Twin 1.5 Gallon Commercial Satellite Coffee Brewer – 220V – UL & NSF Listed – Fully Tested & Operational!

Condition

Used – Excellent Condition – Fully Tested & Operational

This Curtis GEMTS10A1000 Gemini G3 twin commercial coffee brewer has been professionally inspected and tested to confirm proper operation. The stainless steel exterior is clean and presents well, with normal light cosmetic signs of previous commercial foodservice use.

The brewer includes the twin brewing stations, digital G3 control system, two Gemini satellite servers, hot water dispensing faucet, and stainless steel commercial construction. It is ready for continued use in a restaurant, café, bakery, hotel, convenience store, catering operation, or other high-volume beverage service environment.

Description

The Wilbur Curtis GEMTS10A1000 Gemini G3 Twin 1.5 Gallon Coffee Brewer is designed for high-volume commercial coffee service where speed, consistency, and brewing flexibility are essential.

This twin-head system allows operators to brew on two sides independently, making it possible to prepare multiple coffee batches or different coffee varieties at the same time. Each side supports multiple batch sizes, allowing operators to adjust production based on customer demand.

Curtis' G3 digital control system provides programmable control over brewing functions, including brew volume, brew time, pulse brewing, pre-infusion, water bypass, and other parameters. This gives operators greater consistency while allowing recipes to be customized for different coffee products.

The brewer uses 1.5-gallon Gemini satellite servers, helping maintain serving temperature while allowing brewed coffee to be moved away from the brewer to serving stations.

Curtis lists the GEMTS10A1000 with a 5.2-gallon internal tank and production capability of up to approximately 21 gallons per hour depending on electrical configuration. (Wilbur Curtis)

Brewing Capacity

Brewer Style: Twin Automatic Satellite Brewer

Number of Brew Heads: 2

Satellite Capacity: 1.5 Gallons Each

Batch Capacity: Approx. 0.5–1.5 Gallons per brew cycle

Maximum Production: Up to approx. 21 Gallons Per Hour

Tank Capacity: 5.2 Gallons

The twin configuration makes this system particularly suitable for high-volume breakfast service, cafés, banquet facilities, hotels, cafeterias, and institutional kitchens. (Wilbur Curtis)

Electrical Specifications

Voltage: 220V

Phase: Single Phase

Frequency: 50/60 Hz

Amperage: 23.6 / 34.5 Amps

Wattage: 5,200 / 7,600 Watts

Wire Configuration: 3W + Ground

Heat Configuration: 3 x 2500W

Power Type: Electric

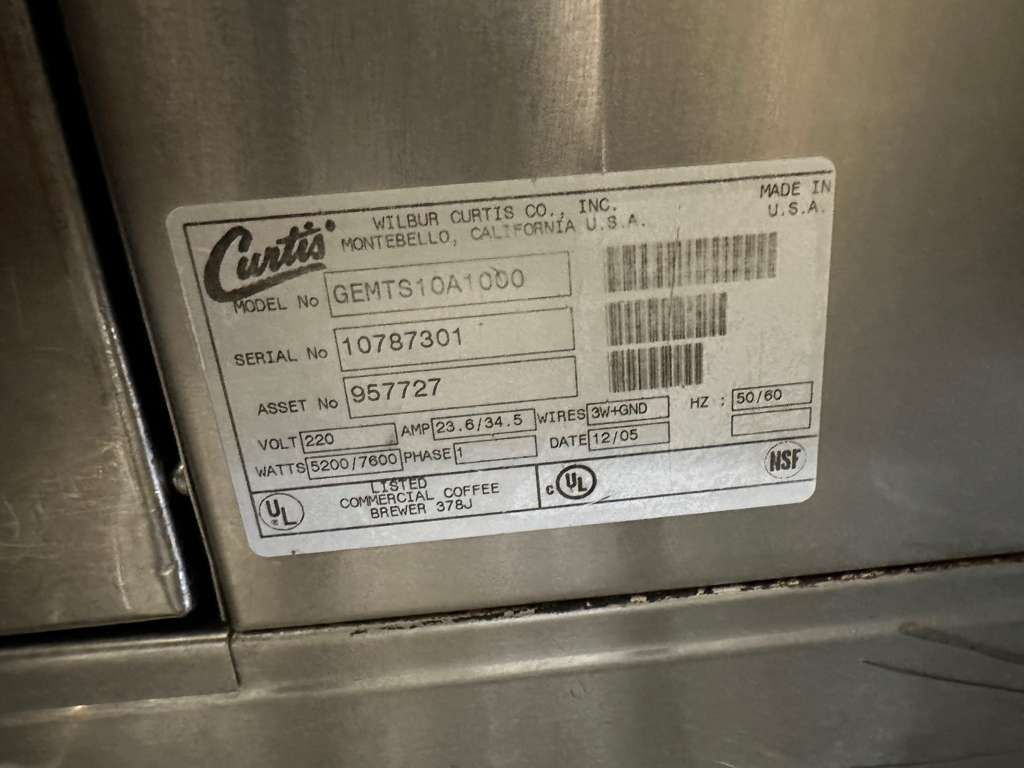

These specifications match the photographed factory data plate and Curtis' current manufacturer specifications for model GEMTS10A1000. (Wilbur Curtis)

Water Specifications

Water Connection: 3/8" Flare

Required Water Pressure: 20–90 PSI

Minimum Flow Rate: 2.0 GPM

Internal Tank Capacity: 5.2 Gallons

A proper commercial water supply and filtration system are recommended for consistent brewing performance and reduced mineral buildup. (Wilbur Curtis)

Dimensions

According to Wilbur Curtis manufacturer specifications:

Width: 18.11 in

Depth: 22.23 in

Height: 30.03 in

Shipping Specifications

Shipping Width: 25 in

Shipping Depth: 25 in

Shipping Height: 30 in

Shipping Weight: Approx. 85 lb

(Wilbur Curtis)

Construction

• Heavy-duty stainless steel exterior
• Commercial-grade twin brewing system
• Stainless steel brew baskets
• Twin Gemini satellite servers
• Digital G3 control panel
• Commercial hot water faucet
• Durable commercial plumbing components
• Heavy-duty heating system
• Designed for continuous commercial beverage service

G3 Control Features

• Digital G3 brewing controls
• Independent twin brewing stations
• Small, medium, and large batch selections
• Programmable brew volume
• Adjustable brew time
• Pulse brewing capability
• Pre-infusion programming
• Water bypass adjustment
• Programmable temperature control
• Pre-set coffee recipes
• Easy operator interface
• High-volume recovery capability

Curtis describes its G3 platform as providing programmable brewing functions with factory-set recipes and operator-adjustable brewing parameters. (WebstaurantStore)

Key Features

• Twin 1.5-gallon commercial coffee brewing system
• Two independent brew heads
• Two Gemini satellite coffee servers
• Up to approximately 21 gallons per hour
• 5.2-gallon hot water tank
• Three selectable batch sizes
• Commercial digital G3 controls
• Programmable coffee recipes
• Double-wall satellite design
• Hot water dispensing faucet
• Stainless steel commercial construction
• High-output heating system
• Ideal for continuous high-volume coffee production
• Designed for restaurants and institutional foodservice

Ideal Applications

Excellent for:

• Restaurants
• Coffee shops
• Cafés
• Hotels
• Breakfast operations
• Bakeries
• Convenience stores
• Corporate cafeterias
• Schools
• Hospitals
• Churches
• Catering operations
• Banquet facilities
• Institutional kitchens
• High-volume beverage stations

Certifications

UL Listed

cUL Listed

NSF Certified

The UL and NSF certification markings are visible directly on the photographed factory data plate, and Curtis lists UL and NSF certifications for this model. (Wilbur Curtis)

Manufacturing Information

Manufacturer: Wilbur Curtis Co., Inc.

Brand: Curtis

Country of Manufacture: USA

Manufacturing Location: Montebello, California, USA

Model: GEMTS10A1000

Manufacturer Item Number: 1360100192

Serial Number: 10787301

Asset Number: 957727

Manufacturing Date: 12/05

Included

• Curtis GEMTS10A1000 Gemini G3 Twin Coffee Brewer
• Two Gemini 1.5-gallon satellite servers shown
• Twin stainless steel brew baskets
• Hot water dispensing faucet
• Integrated G3 digital controls

Unit sold exactly as shown in photos.

Important Notes

• Sold as-is, where-is
• Fully tested and working prior to listing
• Used commercial restaurant equipment
• Normal cosmetic wear from previous commercial use may be present
• Requires commercial 220V electrical connection
• Requires water supply connection
• Professional installation recommended
• Water filtration recommended
• No manufacturer warranty included
• Shipping calculated at checkout
• Local pickup available
• Buyer should verify electrical and plumbing requirements before purchase
