Exceptional Condition – Curtis WB5GT63001 – 5-Gallon Digital Hot Water Dispenser with Aerator – Dual Voltage 120/220V – Fully Tested & Operational!

Exceptional Condition – Curtis WB5GT63001 – 5-Gallon Digital Hot Water Dispenser with Aerator – Dual Voltage 120/220V – Fully Tested & Operational!

Condition

Used – Exceptional Condition – Fully Tested & Operational

This unit has been professionally inspected and tested to confirm proper heating, temperature control, automatic refill, aeration pump, digital display, and dispensing operation. The stainless-steel exterior is clean with light cosmetic scratches, water marks, and signs of previous commercial use.

Description

The Curtis WB5GT63001 commercial hot-water dispenser is designed to provide a dependable supply of precisely controlled hot water for restaurants, cafés, coffee shops, hotels, cafeterias, convenience stores, and commercial beverage stations.

This unit features a large 5-gallon tank, digital temperature controls, automatic refill, and a built-in agitation pump that provides continuous or on-demand aeration. It is ideal for preparing tea, hot chocolate, instant soup, oatmeal, freeze-dried products, and other hot beverages or foods.

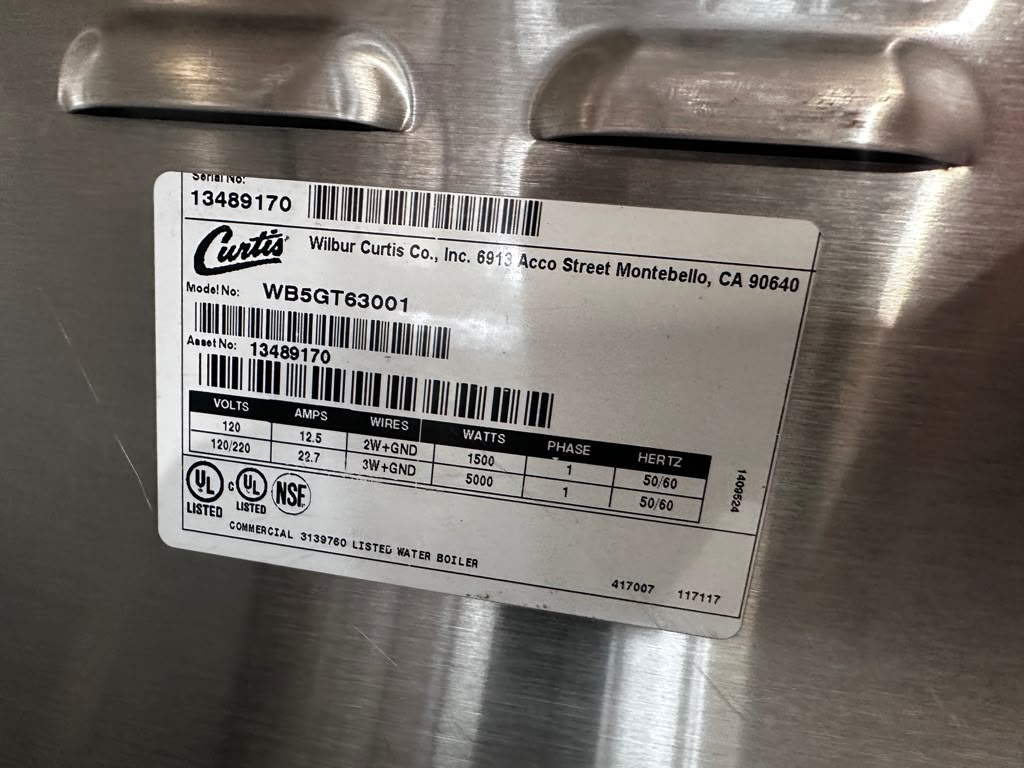

The data plate identifies this unit as WB5GT63001. The corresponding commercial catalog model is WB5GT63000.

Electrical Specifications

Voltage: 120V / 220V Dual Voltage

Phase: Single Phase

Frequency: 50/60 Hz

Amperage: 12.5 Amps at 120V / 22.7 Amps at 220V

Wattage: 1,500 Watts at 120V / 5,000 Watts at 220V

Heating Elements: Two 2,500-Watt Elements

Power Type: Electric

Wiring: 2-Wire Plus Ground / 3-Wire Plus Ground

Water & Heating System

Tank Capacity: 5 Gallons

Temperature Range: 140°F–210°F

Hot-Water Output: Approximately 4.5–15 Gallons per Hour

Water Connection: ¼″ Flare

Incoming Water Pressure: 20–90 PSI

Minimum Water Flow: 1 GPM

Water Supply: Direct Cold-Water Connection

Refill System: Automatic Refill

Aeration: Continuous or On-Demand Agitation Pump

Specifications and dimensions were verified through the official Curtis WB5GT63000 product listing.

Construction

Heavy-gauge stainless-steel exterior

Commercial stainless-steel hot-water tank

Front-mounted dispensing faucet

Large digital LED temperature display

Side-access service panels

Insulated 5-gallon tank

Adjustable commercial leveling feet

Commercial-grade internal heating components

Key Features

5-gallon hot-water capacity

Dual-voltage 120/220V operation

Programmable temperature control

Adjustable 140°F–210°F temperature range

Continuous or on-demand aeration

Automatic solid-state refill system

Large digital LED display

Automatic water-level monitoring

On-board operational diagnostics

Up to approximately 15 gallons per hour

Space-saving countertop design

Designed for continuous commercial use

Ideal for tea, soup, oatmeal, hot chocolate, and instant-food preparation

Certifications

UL Listed

cUL Listed

NSF Certified

Approved for Commercial Foodservice Applications

Manufacturing Information

Manufacturer: Wilbur Curtis Co., Inc.

Brand: Curtis

Model on Data Plate: WB5GT63001

Catalog Model: WB5GT63000

Serial Number: 13489170

Manufacturer Location: Montebello, California, USA

Country of Manufacture: Not Confirmed on Data Plate

Included

Curtis WB5GT63001 commercial hot-water dispenser

Installed 5-gallon hot-water tank

Installed digital control panel and LED display

Installed commercial dispensing faucet

Installed automatic refill system

Installed aeration pump

Installed heating elements

Unit sold exactly as shown in the provided photos

Important Notes

Sold as-is, where-is

Fully tested and working prior to listing

The data plate shows model WB5GT63001

Corresponding catalog model is WB5GT63000

Visible scratches, scuffs, water marks, and cosmetic wear from previous commercial use

Professional electrical and plumbing installation required

Voltage configuration must be confirmed before connection

Connect only to a filtered cold-water supply

Do not connect the unit to a hot-water supply

Regular cleaning and descaling are recommended

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
