First-Class Condition – BUNN 41400.0500 ITB – Dual-Dilution 3-Gallon Commercial Iced Tea Brewer – 120V – NSF & UL Listed – Fully Tested & Operational!

First-Class Condition – BUNN 41400.0500 ITB – Dual-Dilution 3-Gallon Commercial Iced Tea Brewer – 120V – NSF & UL Listed – Fully Tested & Operational!

Condition

Used – First-Class Condition – Fully Tested & Operational

This commercial tea brewer has been professionally inspected and tested to confirm proper heating, water-fill operation, digital control response, brewing functions, and dual-dilution operation.

The stainless-steel exterior is clean overall with scratches, scuffs, water marks, minor discoloration, and normal cosmetic evidence of previous commercial use. The control panel, digital display, brew-selection buttons, and dual color-coded dilution controls remain present.

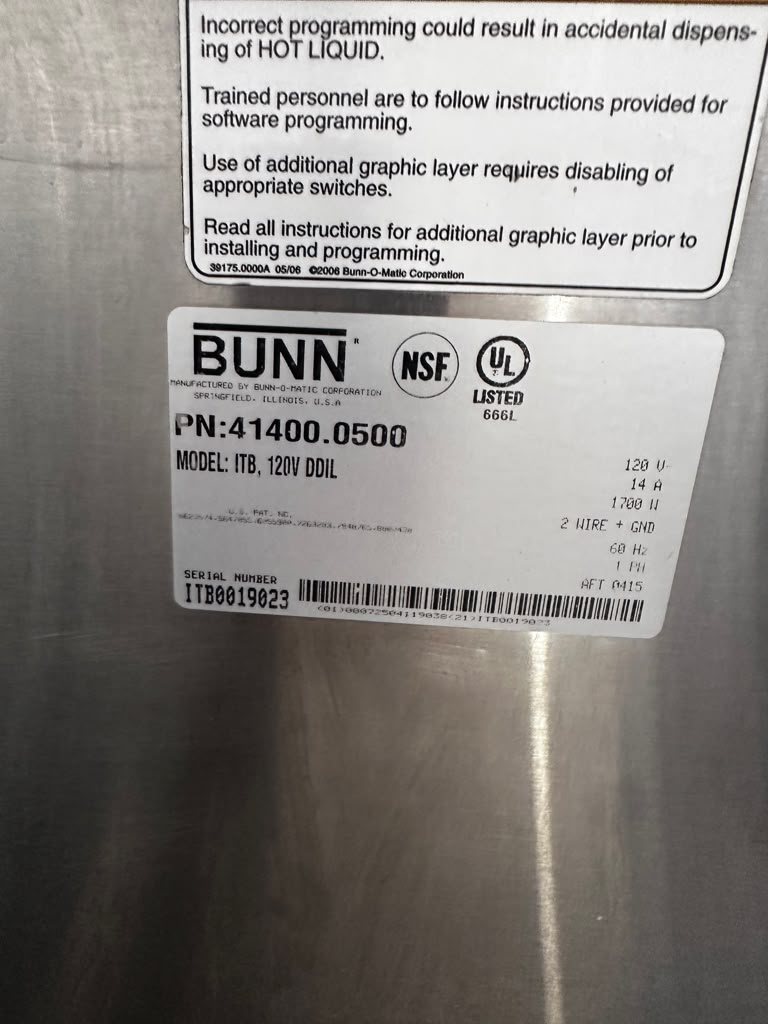

The supplied manufacturer data plate confirms that the photographed machine is:

BUNN Product Number: 41400.0500

Model: ITB, 120V DDIL

This is the older dual-dilution ITB configuration—not product number 52000.0100.

Description

The BUNN 41400.0500 ITB Dual Dilution commercial iced tea brewer is designed for restaurants, cafés, convenience stores, hotels, cafeterias, catering kitchens, and other high-volume beverage operations.

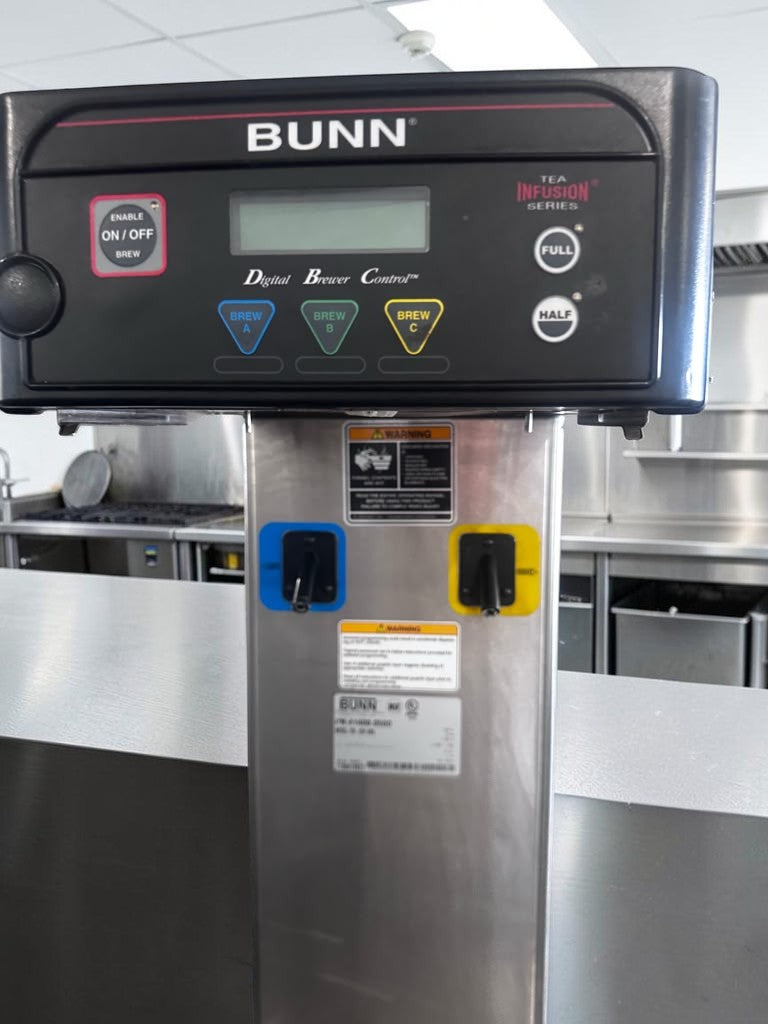

BUNN Infusion Series technology provides programmable brewing control for consistent tea extraction. The front control panel includes three programmable recipe buttons—Brew A, Brew B, and Brew C—along with full- and half-batch selection.

The dual-dilution configuration allows the brewer to serve two dispenser positions, making it suitable for maintaining separate tea selections, such as sweet and unsweet tea, or two different tea recipes.

The current BUNN replacement for this photographed dual-dilution configuration is 52000.0301, not the single-dilution 52000.0100. BUNN describes the current dual-dilution model as accommodating two narrow 3.5-gallon tea dispensers and providing programmable recipes, pre-infusion, pulse brewing, digital temperature control, and energy-saving operation. BUNN official dual-dilution product information

Brewing Specifications

Brewer Style: Automatic Commercial Iced Tea Brewer

Batch Configuration: Full and Half Batch

Typical Full-Batch Capacity: Approximately 3 Gallons

Brewer Configuration: Single Brewing System with Dual Dilution

Recipe Selections: Three Programmable Brew Buttons

Brew Buttons: Brew A, Brew B, and Brew C

Batch Buttons: Full and Half

Control Type: Digital Brewer Control

Display Type: Digital LCD Readout

Primary Application: Commercial Iced Tea Production

Actual batch volumes depend on the programmed recipes and dispenser configuration.

Electrical Specifications

Voltage: 120V

Phase: Single Phase

Frequency: 60 Hz

Amperage: 14 Amps

Wattage: 1,700 Watts

Electrical Configuration: 2-Wire Plus Ground

Power Type: Electric

Published Plug Type: NEMA 5-15P

The voltage, amperage, wattage, frequency, phase, and wiring configuration are confirmed directly from the supplied data plate.

Water and Plumbing Requirements

Water Access: Direct Plumbed Water Connection

Published Water Pressure Range: Approximately 20–90 PSI

Published Water Inlet: 1/4″ Male Flare Fitting

Water Type: Cold Potable Water Supply

Drain Connection: Normally Not Required for Standard Brewing Operation

Water Filtration: Strongly Recommended

The current BUNN ITB specifications confirm a plumbed water connection, 20–90 PSI operating range, and 1/4-inch male flare fitting. BUNN official ITB specifications

Installation should be performed in accordance with local plumbing codes. A dedicated water shutoff valve should be installed where accessible.

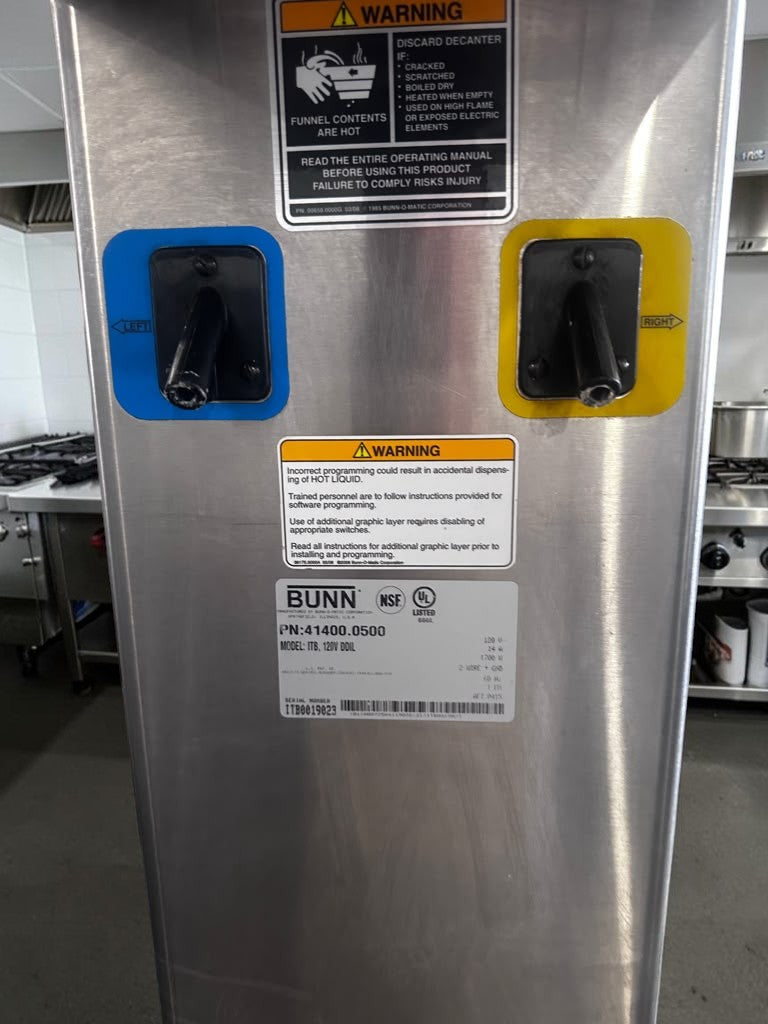

Dual-Dilution System

Two color-coded dilution positions

Blue dilution control position

Yellow dilution control position

Supports separate dispenser placement

Suitable for sweet and unsweet tea service

Allows separate tea recipe organization

Helps support multiple beverage selections

Designed for high-volume beverage operations

The exact photographed 41400.0500 is identified by commercial-equipment listings as a BUNN ITB dual-dilution brewer with approximately 3-gallon brewing capacity. Exact legacy model reference

Dimensions

Width: Approximately 12″

Depth: Approximately 23″

Height: Approximately 34″

Approximate Metric Dimensions: 30.5 × 58.4 × 86.4 cm

These dimensions correspond to the older photographed 41400.0500 legacy configuration. The current 52000.0301 replacement has slightly different published dimensions of 12.2″ wide × 22.9″ deep × 35″ high.

Final measurements should be confirmed directly from the physical unit before arranging countertop placement, shelving clearance, shipping, or installation.

Construction

Commercial-grade stainless-steel exterior

Tall, narrow countertop footprint

Black molded control-panel housing

Digital LCD display

Three programmable brew-recipe buttons

Full- and half-batch selection buttons

Dual color-coded dilution positions

Internal heated water tank

Commercial tank-heating system

Automatic water-fill system

Commercial sprayhead assembly

Removable tea-brewing funnel configuration

Dispenser-positioning base rails

Adjustable commercial programming

Front-accessible operating controls

Durable construction for continuous foodservice use

Key Features

BUNN Infusion Series brewing technology

Three programmable tea recipes

Full- and half-batch selections

Digital Brewer Control system

Dual-dilution configuration

Designed for approximately 3-gallon iced tea batches

Supports separate beverage dispenser positions

Consistent commercial tea extraction

Programmable brewing parameters

Suitable for sweet and unsweet tea service

Stainless-steel commercial exterior

Space-saving narrow footprint

Automatic water-fill system

Commercial 1,700-watt heating system

120V single-phase electrical configuration

Standard commercial NEMA 5-15P connection

Direct plumbing connection

Designed for restaurants and cafés

Suitable for convenience stores

Suitable for hotel beverage stations

Suitable for cafeterias and institutional kitchens

Suitable for catering and event operations

Certifications

UL Listed

NSF Certified

The UL Listed and NSF marks are visible on the supplied manufacturer data plate.

No ETL certification should be claimed for this specific unit because the supplied plate identifies UL and NSF only.

Manufacturing Information

Manufacturer: Bunn-O-Matic Corporation

Brand: BUNN

Product Family: Infusion Series

Model: ITB, 120V DDIL

Product Number: 41400.0500

Current Replacement Product Number: 52000.0301

Product Type: Commercial Dual-Dilution Iced Tea Brewer

Manufacturer Location: Springfield, Illinois, USA

Serial Number: ITB0019023

Manufacturing Date Code: April 2015

Country of Manufacture: Not Explicitly Confirmed on Supplied Data Plate

Included

BUNN 41400.0500 ITB dual-dilution iced tea brewer

Installed digital control panel

Installed dual-dilution components

Installed internal water-heating and brewing system

Power cord and plug, if physically present at pickup

Unit sold exactly as shown in the supplied photographs

Tea dispensers, tea funnel, paper filters, water filter, supply hose, shutoff valve, fittings, sweetener pump, CO₂ system, tea products, and additional accessories are not included unless physically present at pickup.

Important Notes

Sold as-is, where-is

Fully tested and operational before listing

Photographed product number is 41400.0500

Photographed model is ITB, 120V DDIL

Do not list the photographed unit as 52000.0100

Current comparable dual-dilution model is 52000.0301

Visible cosmetic wear from previous commercial use

Clean and sanitize before beverage service

Descale the internal water system as required

Inspect the tea funnel before operation

Confirm that the funnel lock operates correctly

Confirm both dilution positions during final testing

Verify full- and half-batch programming

Verify Brew A, Brew B, and Brew C settings

Confirm the displayed water temperature

Confirm the internal tank fills and heats correctly

Use only a cold potable water supply

Install an accessible water shutoff valve

Use commercial water filtration when possible

Confirm inlet water pressure before installation

Flush new water lines before connecting the brewer

Do not operate without an adequate water supply

Do not immerse the brewer in water

Disconnect electrical power before cleaning internal components

Allow heated components to cool before servicing

Hot water and steam can cause burns

Use the proper commercial tea funnel and paper filters

Position dispensers correctly before beginning a brew cycle

Do not remove the tea funnel until dripping has stopped

Keep the sprayhead clean and unobstructed

Clean dilution nozzles regularly

Do not use abrasive cleaners on stainless steel

Do not spray water directly into the control panel

Commercial electrical and plumbing installation recommended

Confirm cord and plug condition before installation

Use a properly grounded 120V electrical outlet

Do not use an undersized extension cord

Tea dispensers are sold separately unless stated otherwise

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
