Brand New Condition – AAF Flanders PRE-PLEAT 40 LPD – Commercial MERV 8 Pleated Air Filter – Low Pressure Drop – UL 900 Classified – New Old Stock!

Brand New Condition – AAF Flanders PRE-PLEAT 40 LPD – Commercial MERV 8 Pleated Air Filter – Low Pressure Drop – UL 900 Classified – New Old Stock!

Condition

Brand New / New Old Stock – Unused – Original Packaging

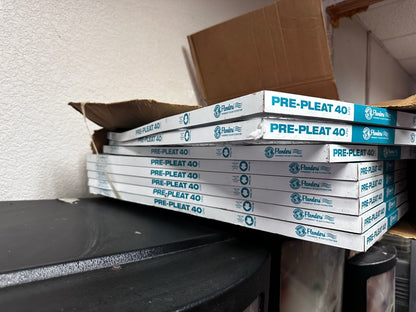

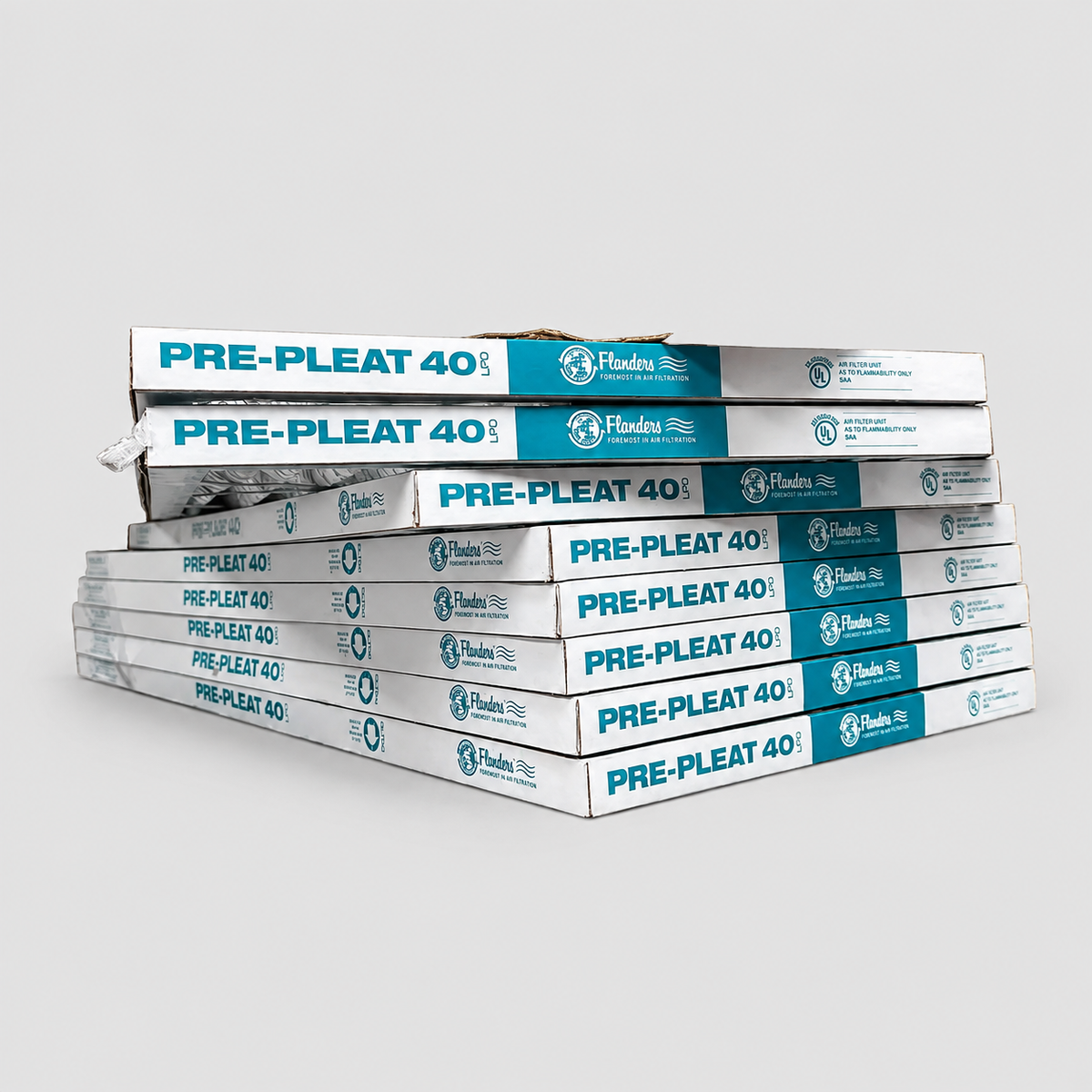

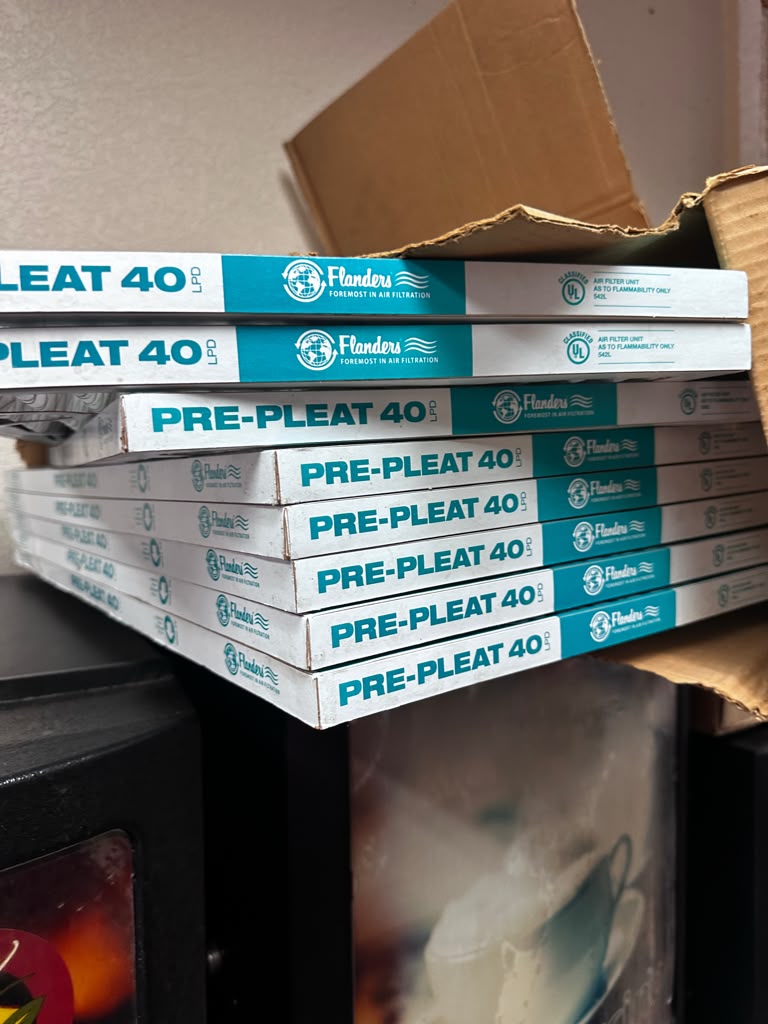

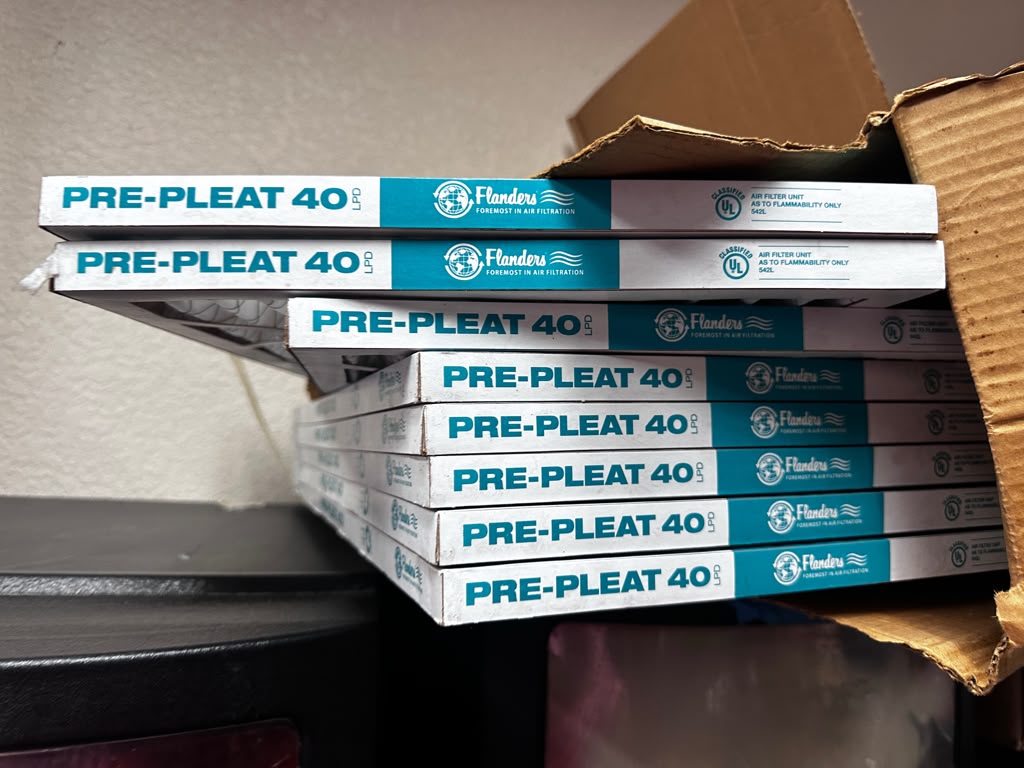

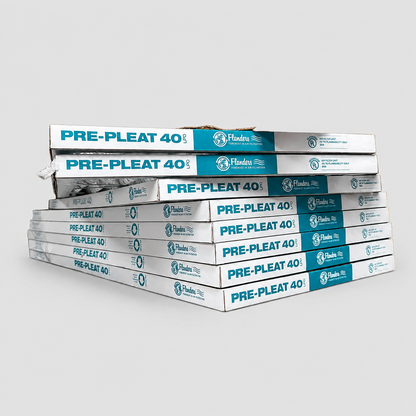

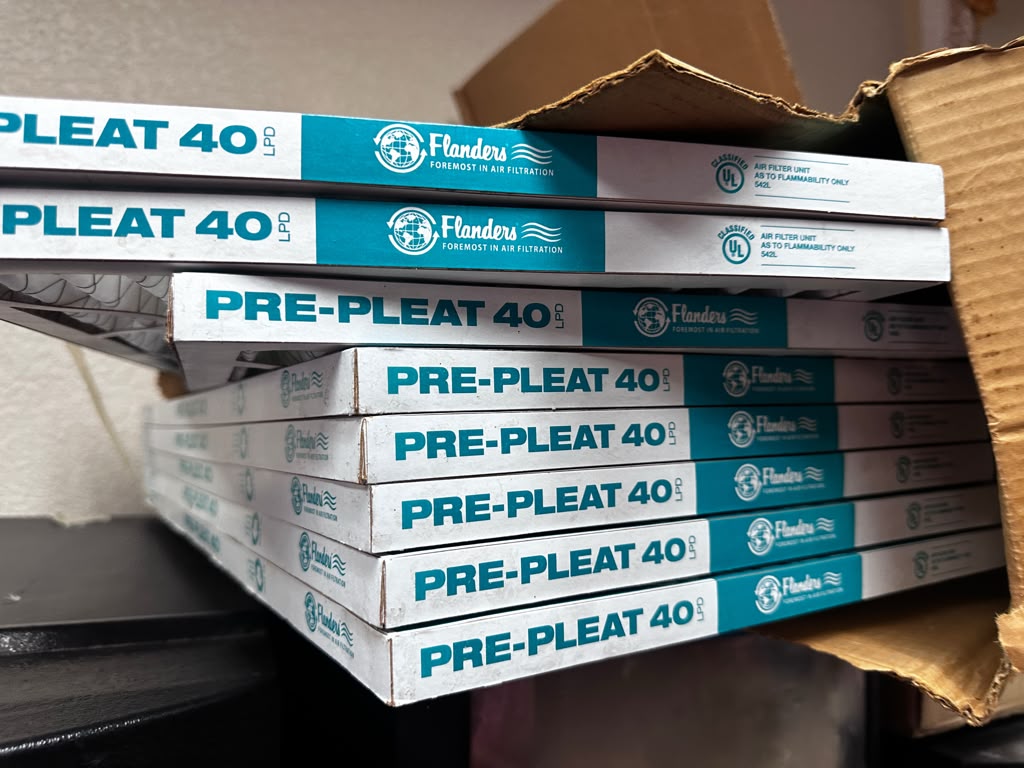

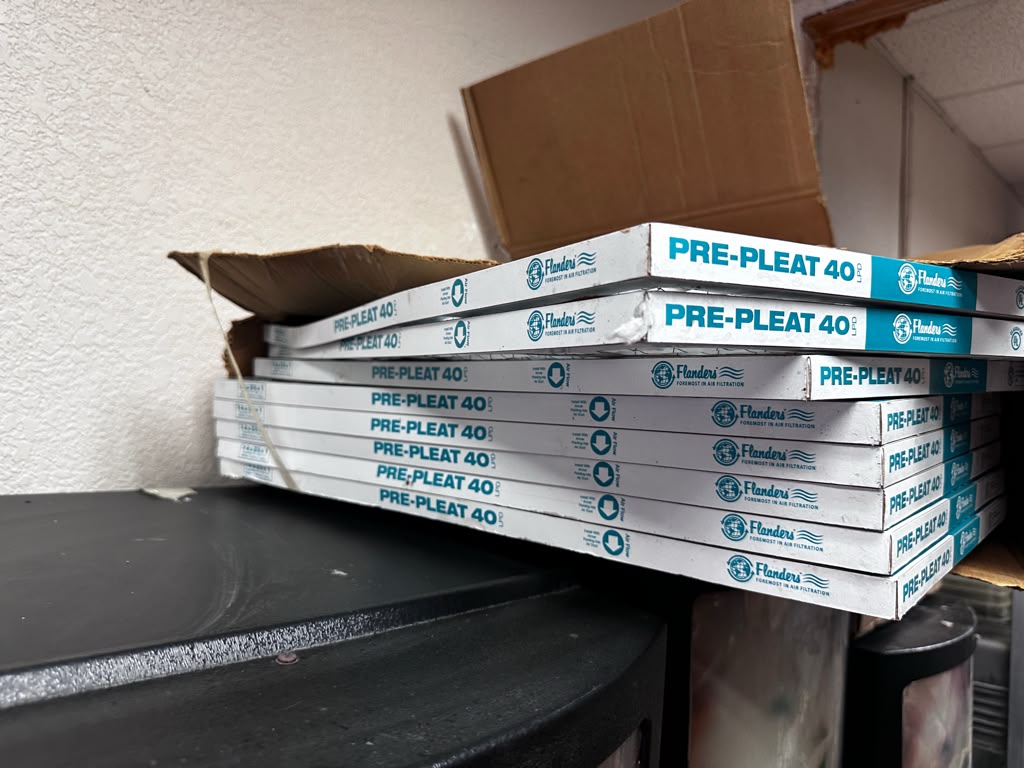

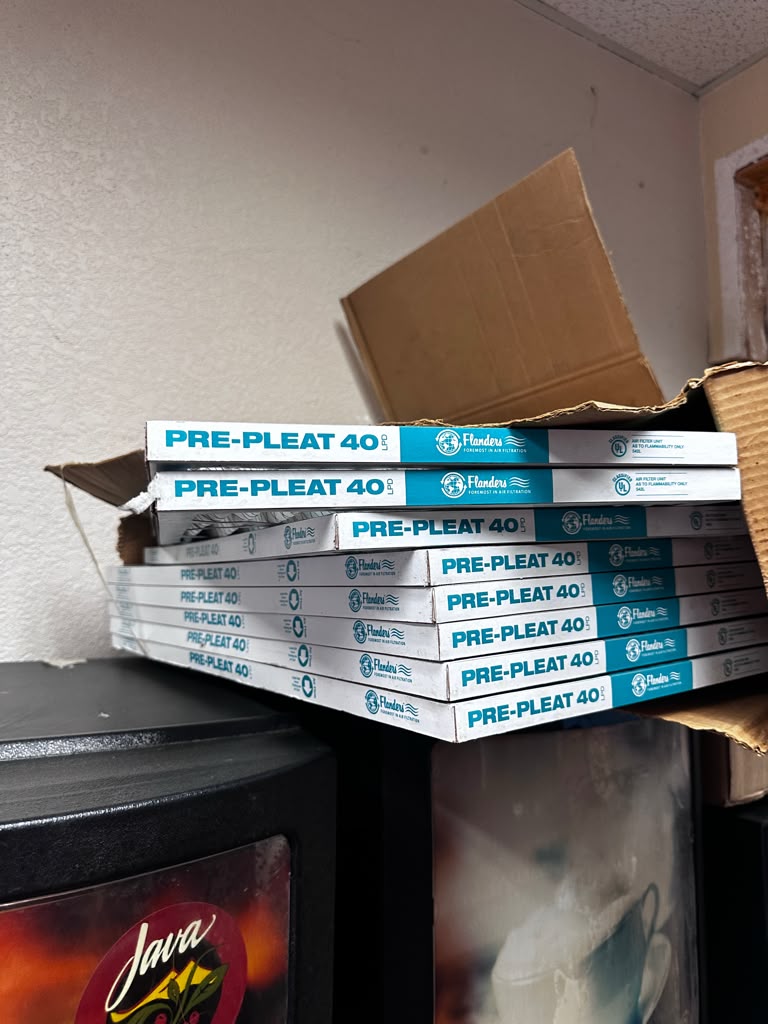

These AAF Flanders PRE-PLEAT 40 LPD filters are unused and remain in their original individual manufacturer packaging.

The individual filter cartons appear clean and intact with normal storage-related cosmetic wear to some packaging. The outer shipping carton shows visible warehouse/storage wear but does not affect the unused filters inside.

These are new old stock commercial HVAC filters ready for installation once the required filter dimensions are confirmed.

Description

The AAF Flanders PRE-PLEAT 40 LPD is a commercial-grade pleated air filter engineered for low initial pressure drop, high dust-holding capacity, and dependable mechanical particle filtration.

The PRE-PLEAT 40 LPD series uses 100% synthetic non-woven filter media arranged in a V-pleat configuration. The media is supported by expanded metal to help maintain pleat stability and reduce flutter during operation.

Unlike filters that depend primarily on an electrostatic charge, the PRE-PLEAT 40 LPD uses mechanical particle capture to maintain its filtration characteristics throughout service. Manufacturer literature identifies the series as maintaining a mechanical MERV 8 / MERV 8A rating under ASHRAE Standard 52.2.

The low-pressure-drop design helps maintain airflow while reducing HVAC system resistance, making these filters suitable for commercial buildings, restaurants, offices, industrial facilities, healthcare support areas, retail facilities, warehouses, schools, and other HVAC applications.

Filtration Specifications

Filter Series: PRE-PLEAT 40 LPD

Filter Type: Pleated Disposable Air Filter

MERV Rating: MERV 8 / MERV 8A

Filtration Method: Mechanical Particle Capture

Media: 100% Synthetic Non-Woven Media

Pleat Configuration: V-Pleat

Media Support: Expanded Metal Grid

Pressure Drop Design: Low Pressure Drop / LPD

Recommended Final Pressure Drop: Up to 1.0 in. w.g., subject to HVAC system design

Manufacturer documentation states that the PRE-PLEAT 40 LPD is designed for high dust-holding capacity while maintaining relatively low airflow resistance.

Operating Specifications

Maximum Operating Temperature: 180°F / 82°C

Humidity Capability: Up to 100% RH under published operating specifications

Typical Airflow Applications: Commercial HVAC / AHU / RTU systems

Power Required: None

Electrical Connection: None

Dimensions

WIDTH

VERIFY FROM END LABEL – Not visible in supplied photos

HEIGHT

VERIFY FROM END LABEL – Not visible in supplied photos

DEPTH

VERIFY FROM END LABEL – PRE-PLEAT 40 LPD was manufactured in 1", 2", and 4" depths

I would not put guessed dimensions into Shopify, because the PRE-PLEAT 40 LPD family includes numerous nominal sizes. Manufacturer documentation confirms multiple depths and a large range of width/height combinations.

Construction

100% synthetic non-woven filtration media

V-pleat filter configuration

Expanded-metal media backing

Heavy-duty moisture-resistant frame

Diagonal frame support structure

Horizontal support members

Sealed media pack designed to reduce air bypass

Disposable commercial HVAC construction

Lightweight installation design

Recyclable media/frame components where applicable

Key Features

Mechanical MERV 8 / MERV 8A filtration

Low-pressure-drop design

High dust-holding capacity

Commercial HVAC filtration

Synthetic non-woven media

V-pleat construction

Expanded-metal media support

Designed to minimize media flutter

Maintains filtration without relying exclusively on electrostatic charge

Moisture-resistant commercial filter frame

Disposable design

Suitable for commercial and industrial HVAC systems

Suitable for restaurants and foodservice facilities

Suitable for offices and commercial buildings

Suitable for warehouses

Suitable for healthcare support applications

Suitable for schools and institutional facilities

Suitable for heating, ventilation, and air-conditioning equipment

Certifications

UL 900 Classified

ASHRAE Standard 52.2 – MERV 8 / MERV 8A

The individual cartons in your photos also visibly carry the UL Classified Air Filter Unit – As To Flammability Only marking. Published PRE-PLEAT 40 LPD documentation likewise confirms UL 900 classification.

Manufacturing Information

Manufacturer: AAF Flanders / Flanders

Brand: Flanders

Product Line: PRE-PLEAT 40 LPD

Equipment Type: Commercial Pleated HVAC Air Filter

Filter Classification: MERV 8 / MERV 8A

Included

One AAF Flanders PRE-PLEAT 40 LPD Filter per purchased unit

Original manufacturer carton

Filters supplied exactly as shown in photos

If selling the entire quantity as one lot, change this section to the exact counted quantity before publishing.

Important Notes

Brand new / unused new old stock

Original individual packaging

Outer storage carton shows warehouse wear

Actual filter size must be verified from end label before ordering

Verify HVAC filter dimensions before installation

Disposable filter – not designed to be washed

No electrical power required

No manufacturer warranty included unless otherwise stated

Shipping calculated at checkout

Local pickup available
