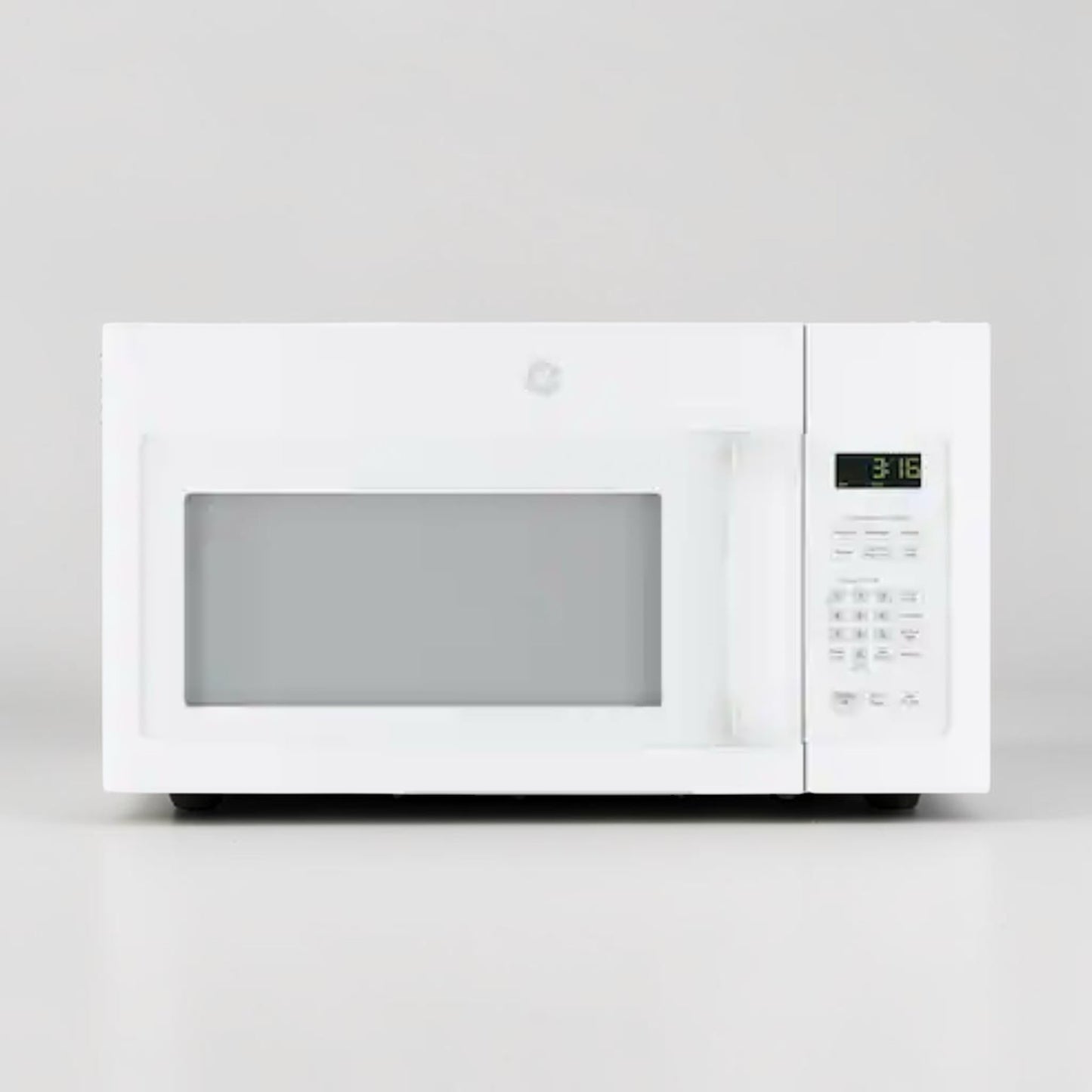

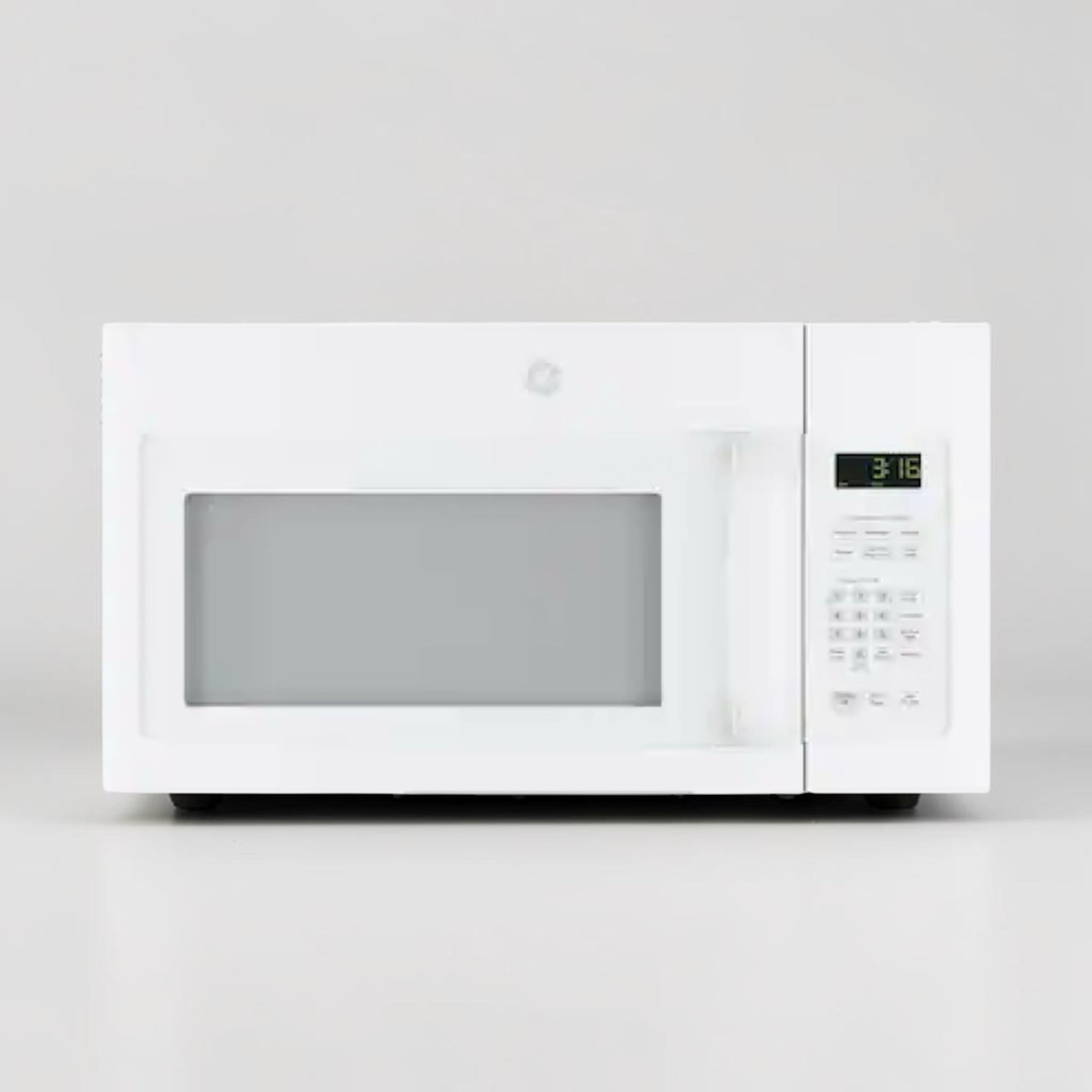

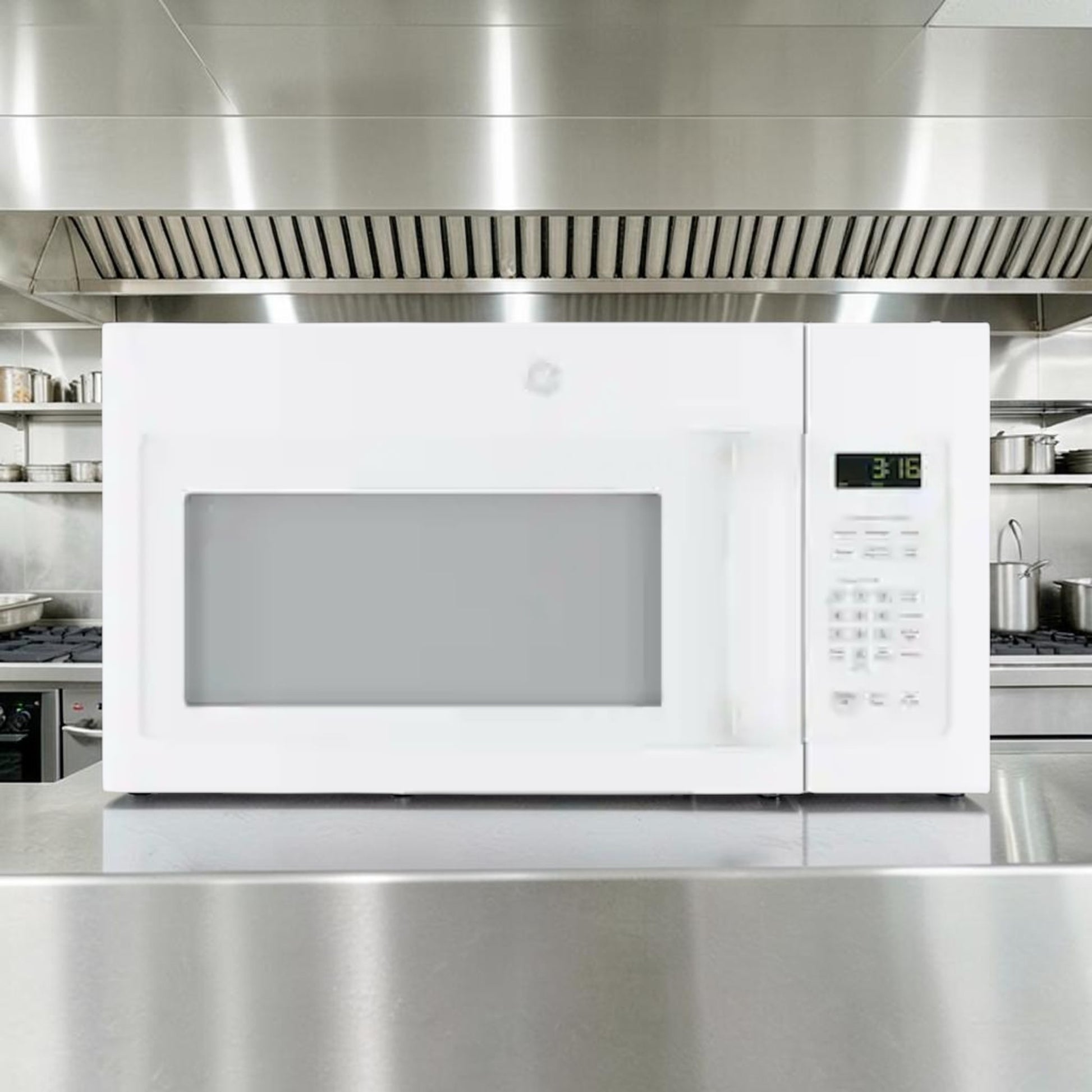

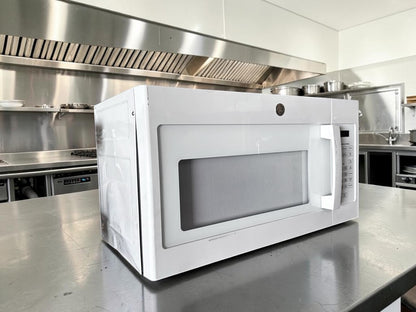

Brand-New Condition – GE JVM3160DF9WW – 1.6 Cu. Ft. Over-the-Range Microwave – 1,000W Cooking Power – 300 CFM Vent – White – 120V

Immaculate Brand-New Condition – GE JVM3160DF9WW – 1.6 Cu. Ft. Over-the-Range Microwave – 1,000W Cooking Power – 300 CFM Vent – White – 120V

🔹 Condition

Brand New – Never Used – Fully Inspected & Operational

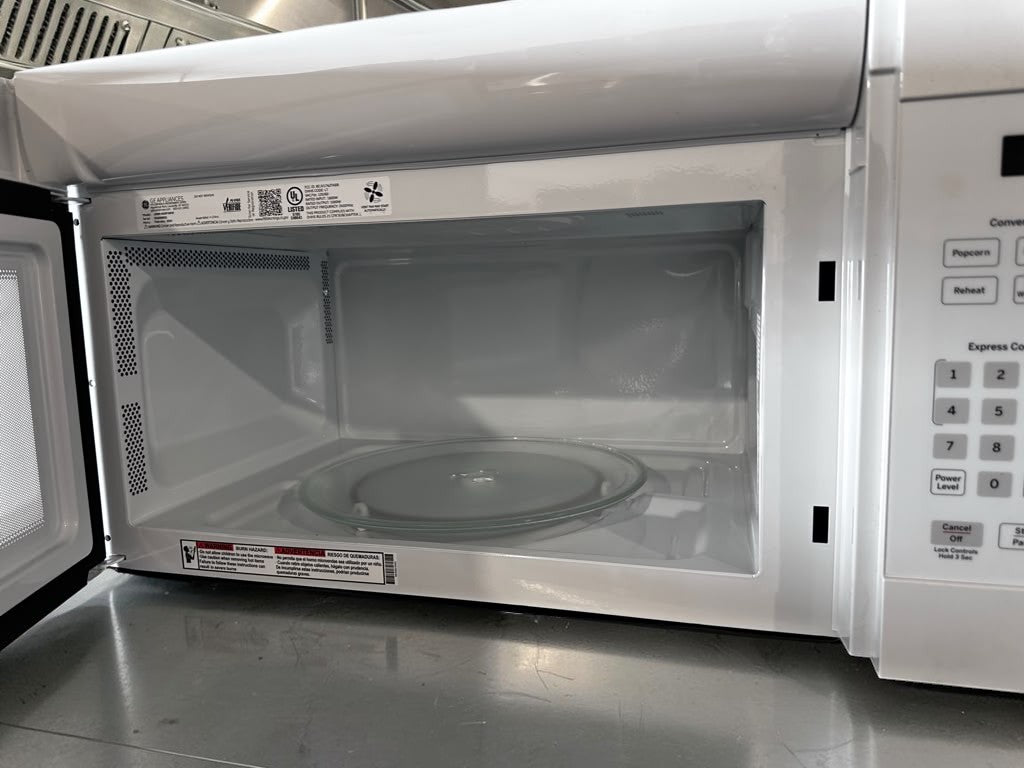

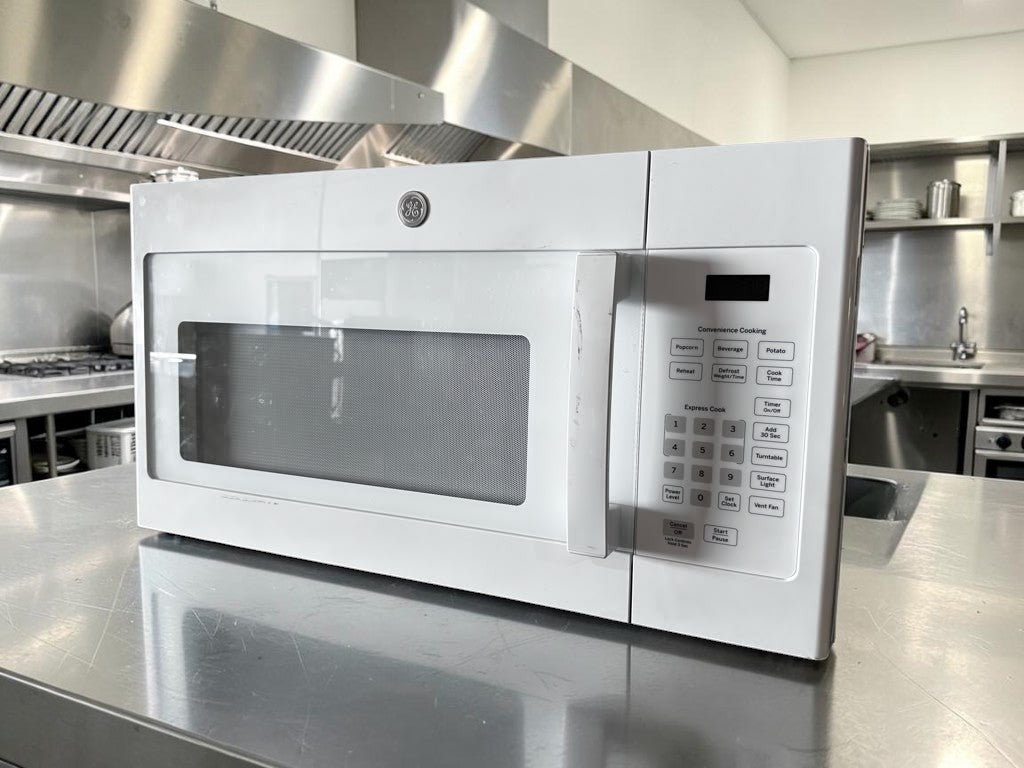

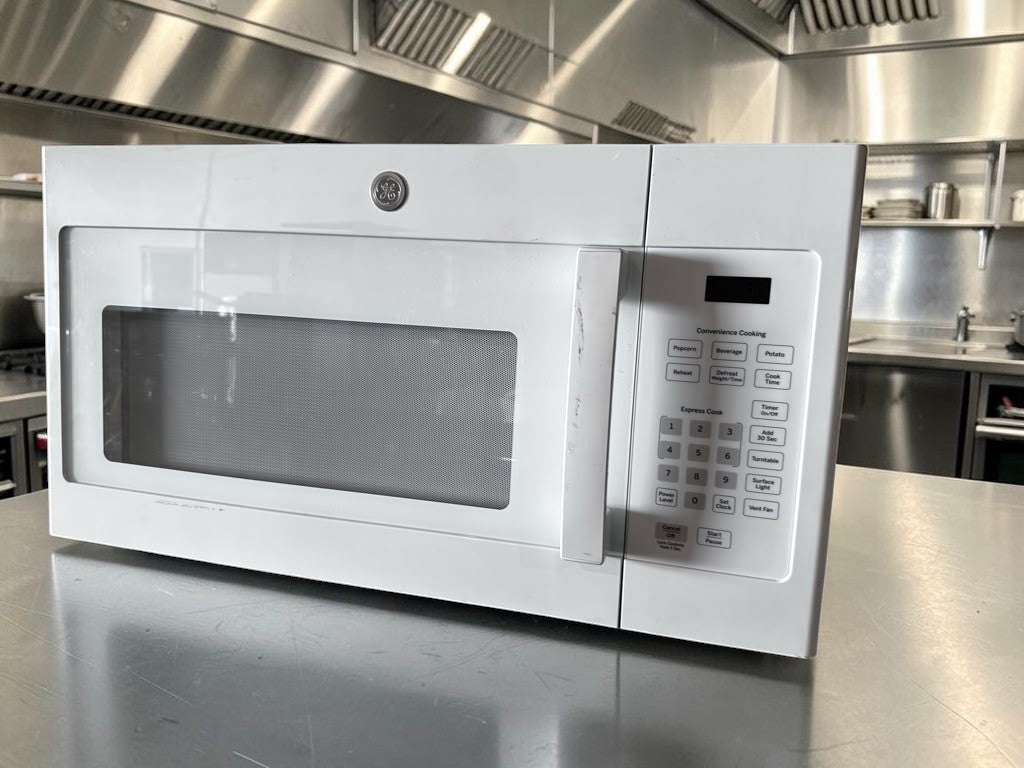

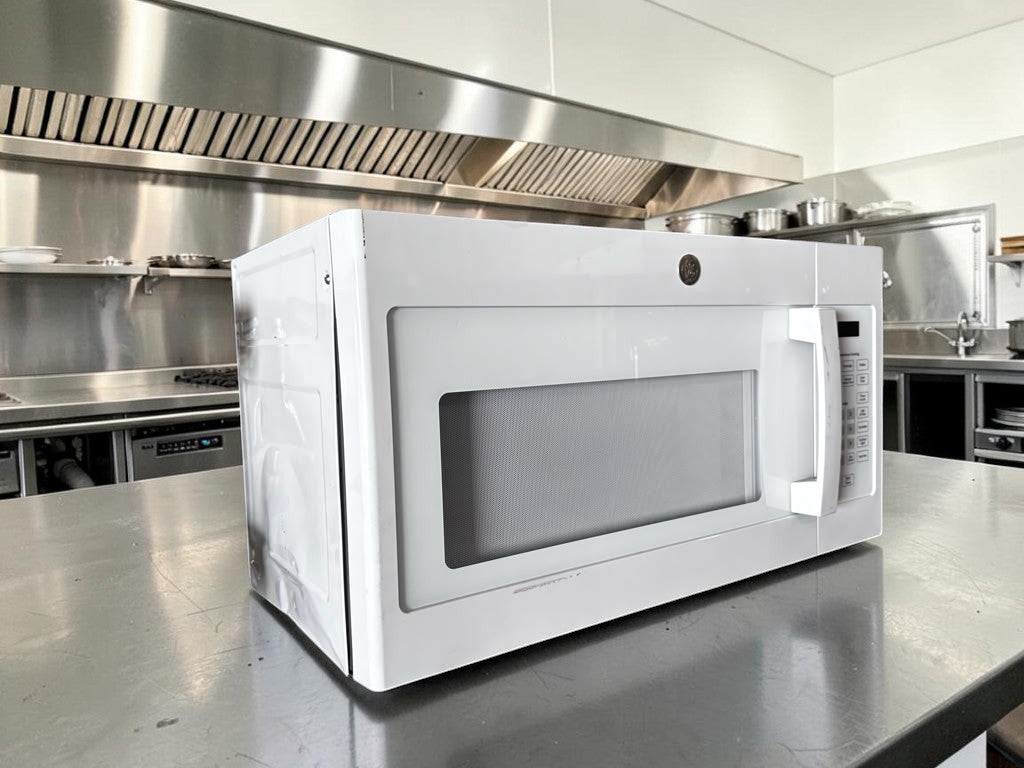

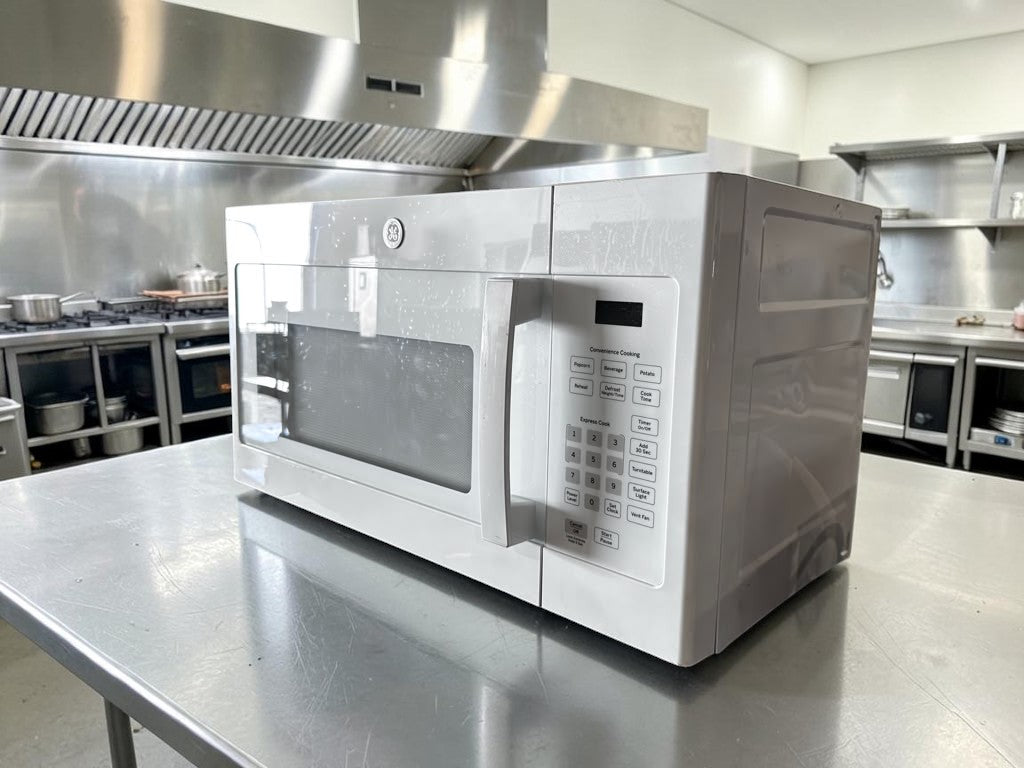

This GE over-the-range microwave is brand new and has never been placed into regular service. The clean white exterior, spotless cooking cavity, glass turntable, control panel, handle, and interior surfaces are in excellent unused condition.

The appliance was manufactured in February 2025, as confirmed by the manufacturer’s identification label shown in the photos. It is ready for installation in a residential kitchen, office breakroom, staff kitchen, rental property, café preparation area, or other suitable application.

🔹 Description

The GE JVM3160DF9WW is a full-size over-the-range microwave combining a spacious 1.6 cu. ft. cooking cavity, 1,000 watts of microwave cooking power, and a built-in two-speed 300 CFM ventilation system.

Designed for installation above a standard 30-inch cooking range, this appliance saves valuable counter space while providing convenient microwave cooking, reheating, defrosting, cooktop lighting, and ventilation in one integrated unit.

Its electronic touch controls include dedicated settings for popcorn, beverages, potatoes, reheating, weight/time defrosting, cooking time, power level adjustment, Express Cook, and adding 30 seconds to the cooking cycle.

The glass turntable can be switched on or off, providing additional flexibility when heating larger or unusually shaped containers. The built-in ventilation system helps remove steam, smoke, cooking odors, and airborne moisture from the cooking area.

The identification plate shows the complete production model as JVM3160DF9WW. GE lists the corresponding consumer model family as JVM3160DFWW.

🔹 Electrical Specifications

Voltage: 120V

Phase: Single Phase

Frequency: 60 Hz

Electrical Input: 1,580W

Rated Amperage: 15 Amps

Microwave Cooking Output: 1,000W

Power Levels: 10

Power Type: Electric

GE specifies a 120V, 60 Hz electrical supply, 15-amp input rating, 1,580-watt electrical input, and 1,000 watts of microwave cooking output.

🔹 Capacity

Total Interior Capacity: 1.6 cu. ft.

Turntable Diameter: 12.75 in

Interior Cavity Width: 18.81 in

Interior Cavity Height: 9.25 in

Interior Cavity Depth: 14.41 in

The generous interior capacity accommodates dinner plates, serving dishes, bowls, mugs, reheating containers, frozen meals, and other everyday food items.

🔹 Ventilation System

Ventilation Capacity: 300 CFM

Fan Speeds: 2

Ventilation Configuration: Convertible

Factory Configuration: Recirculating

External Venting Options: Top or rear exhaust

Recirculating Charcoal Filter: Included by the manufacturer

The ventilation system can operate in recirculating mode or be configured for external top or rear ventilation, depending on installation requirements.

🔹 Dimensions

Overall Width: 29.875 in

Overall Depth: 15.5625 in

Overall Height: 16.125 in

Overall Depth Including Handle: 23.75 in

Depth with Door Fully Open: 39 in

Required Cabinet Width: 30 in

Cutout Width: 30 in

Cutout Height: Approximately 16.25–16.5 in

Cutout Depth: 13 in

Net Weight: Approximately 63 lb

Approximate Shipping Weight: 63 lb

GE’s official specifications list the appliance at 29.875 inches wide, 15.5625 inches deep, and 16.125 inches high.

🔹 Construction

Durable white-finished exterior

White door and matching handle

Large viewing window with perforated screen

Electronic touch-control panel

Digital LED display with clock

Glass cooking turntable

Left-hinged microwave door

Integrated over-the-range installation design

Built-in cooktop ventilation system

Integrated cooktop surface lighting

Interior incandescent cooking light

Easy-mount installation configuration

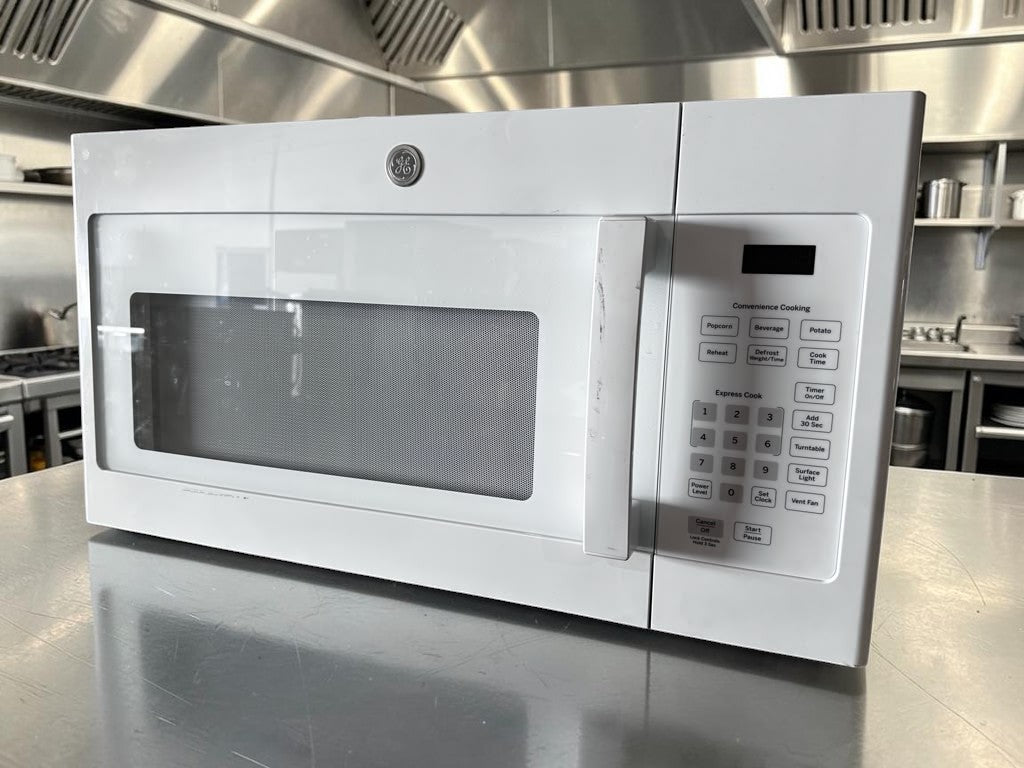

🔹 Cooking Controls

Popcorn setting

Beverage setting

Potato setting

Reheat function

Cook Time control

Weight Defrost

Time Defrost

Power Level adjustment

Express Cook for one to six minutes

Add 30 Seconds function

Timer On/Off

Set Clock

Start/Pause

Cancel/Off

Control Lock

Turntable On/Off

Surface Light control

Vent Fan control

GE confirms these electronic convenience controls and ten adjustable microwave power levels for the JVM3160DFWW model family.

🔹 Key Features

Spacious 1.6 cu. ft. interior capacity

Powerful 1,000W microwave cooking output

Two-speed 300 CFM ventilation system

Convertible recirculating or external ventilation

Ten microwave power levels

One-touch convenience cooking controls

Express Cook settings from one to six minutes

Automatic and manual defrost options

Turntable On/Off capability

12.75-inch glass turntable

Integrated cooktop surface light

Bright and night-light settings

Digital LED display and clock

Control-lock safety feature

Over-the-range design saves counter space

Designed for standard 30-inch cabinet openings

Clean white exterior finish

Suitable for residential and light-duty foodservice support areas

🔹 Certifications

UL Listed

AHAM Verified

The certification markings are visible on the manufacturer’s identification label inside the unit.

🔹 Manufacturing Information

Manufacturer: GE Appliances

Brand: GE

Model Shown on Data Plate: JVM3160DF9WW

Base Consumer Model: JVM3160DFWW

Serial Number: DA205862L

Manufacturing Date: February 2025

Country of Assembly: China

Color: White

Installation Type: Over-the-Range

Door Hinge: Left

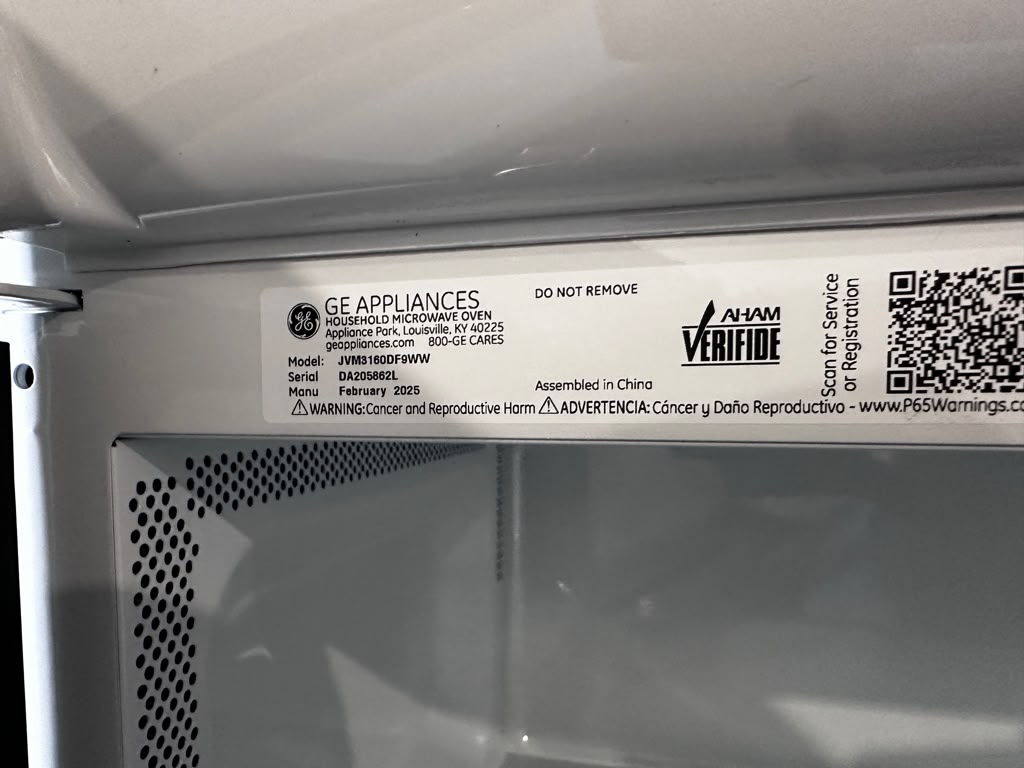

The manufacturing date, complete production model, serial number, and assembly country are visible on the identification label in the supplied photos.

🔹 Included

GE JVM3160DF9WW over-the-range microwave

Glass turntable

Turntable support assembly

Integrated ventilation fan

Integrated cooktop surface light

Factory-installed controls and door assembly

Charcoal recirculating filter, subject to final physical verification

Mounting plate and installation hardware only if shown or confirmed during final inventory inspection

Unit sold exactly as shown in the photos

🔹 Important Notes

Brand-new appliance

Never placed into regular service

Manufactured in February 2025

Professional installation is recommended

Installation must comply with applicable electrical and ventilation requirements

Confirm mounting bracket and installation hardware before purchase

A dedicated, properly grounded electrical connection is required

Sold exactly as photographed

Manufacturer warranty eligibility is not guaranteed

Shipping calculated at checkout

Local pickup available
