High-Grade Condition – Federal Industries UCR3633C – 36″ Curved-End Refrigerated Self-Serve Display Case – 120V – Used Commercial Equipment!

High-Grade Condition – Federal Industries UCR3633C – 36″ Curved-End Refrigerated Self-Serve Display Case – 120V – Used Commercial Equipment!

Condition

Used – High-Grade Condition – Clean Commercial Appearance

The unit shows cosmetic evidence of previous commercial use, including light scratches, surface marks, residue, and ordinary wear.

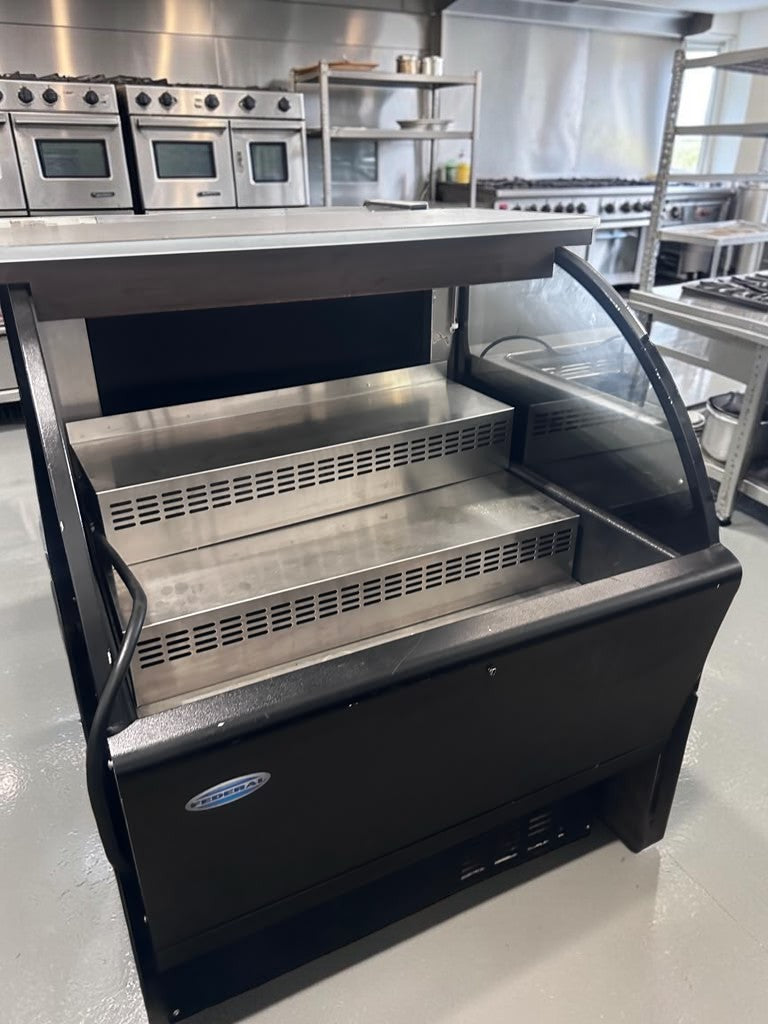

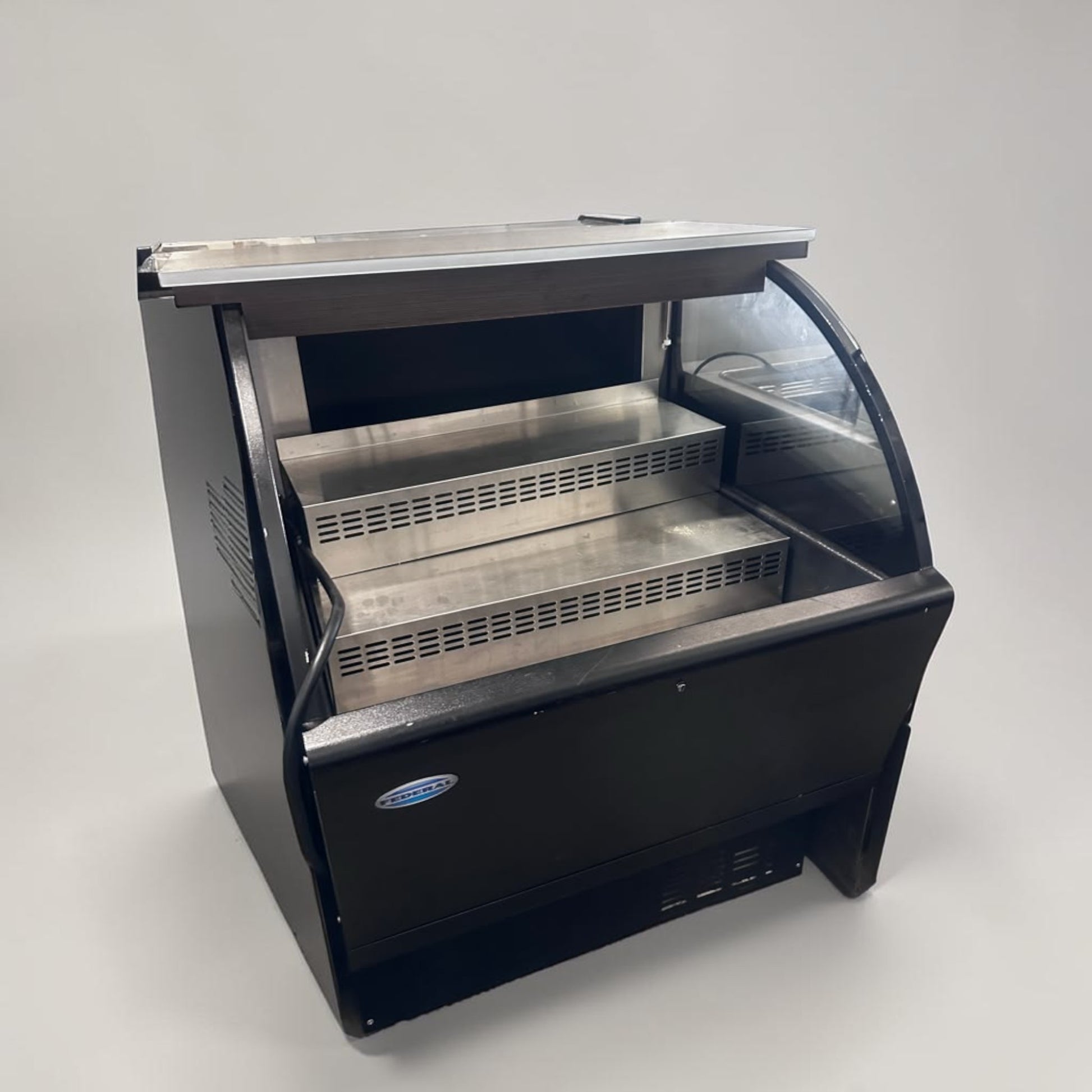

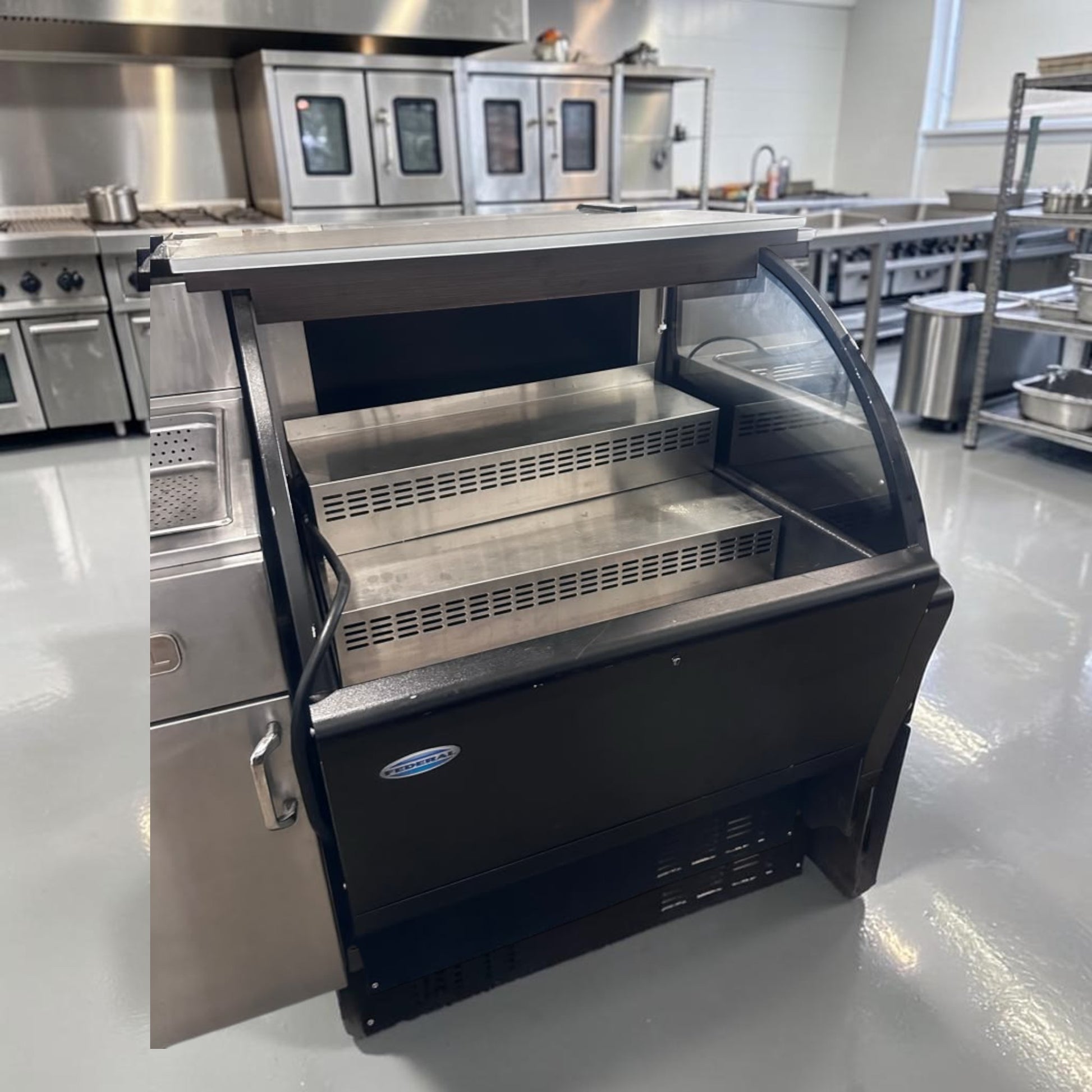

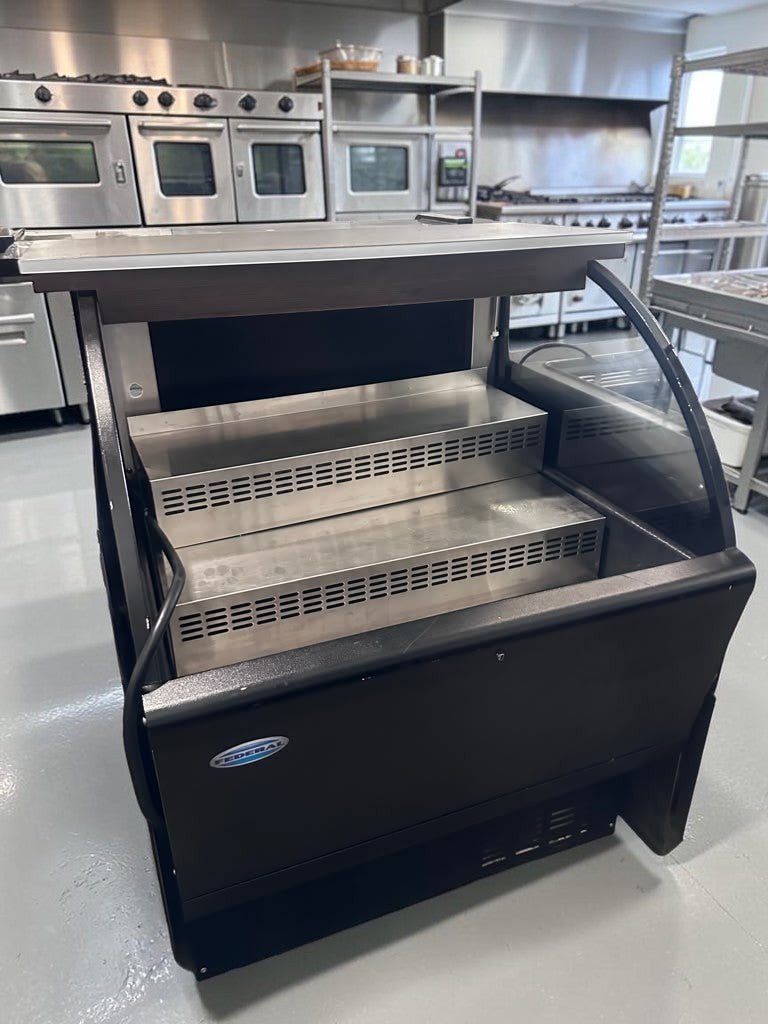

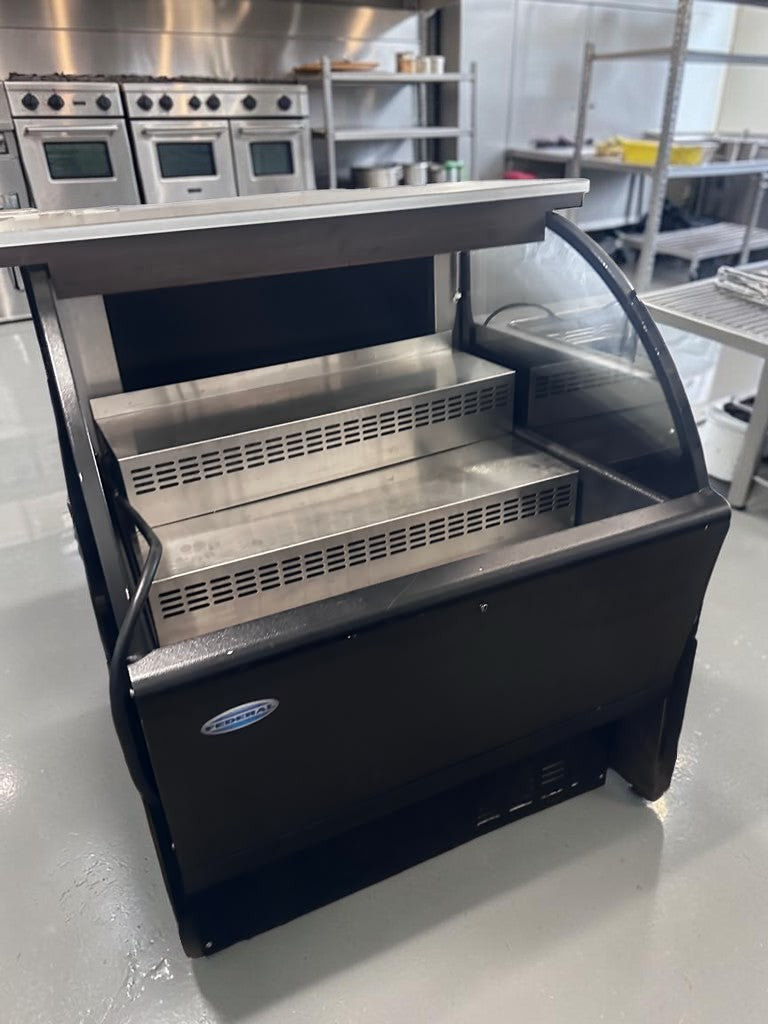

The curved glass end panels appear intact in the supplied photograph. The stainless-steel stepped display area, black exterior panels, and front ventilation section are present.

Cooling operation must be confirmed from the warehouse test before adding “Fully Tested & Operational” to the published listing.

Description

The Federal Industries UCR3633C is a compact refrigerated self-service display case designed for packaged foods, bottled beverages, desserts, salads, sandwiches, grab-and-go meals, and other refrigerated impulse-sale products.

Its curved glass ends provide clear product visibility from multiple viewing angles. The two-level stepped interior helps display products at different heights, while the open-front design allows customers to select items without opening a door.

The self-contained refrigeration system eliminates the need for a remote condensing unit. Federal specifies an average holding range of approximately 38°F–40°F for the current UCR series. Official Federal Industries specifications

Estimated Model and Dimensions

Most Likely Model: UCR3633C

Width: 35.7″

Depth: 34″

Height: 32.5″

Approximate Metric Dimensions: 907 × 864 × 826 mm

Approximate Weight: 446 lb. / 202 kg

These are the official published dimensions for the 36-inch UCR3633C. The photographed unit’s proportions correspond much more closely to this model than to the 47.7-inch UCR4833C. Federal UCR specification sheet

Electrical Specifications

Voltage: 120V

Phase: Single Phase

Frequency: 60 Hz

Plug Type: NEMA 5-15P on the current version

Published Current-Model Amperage: 10 Amps

Power Type: Electric

The voltage is published for the UCR3633C, but the amperage must be confirmed from the photographed unit’s data plate because production revisions can carry different electrical loads. Published electrical specifications

Refrigeration

Self-contained refrigeration system

Electronic temperature control

Published operating temperature approximately 38°F–40°F

On-demand condensate evaporator

Rear refrigeration air intake and discharge

Front access for refrigeration service

Current Replacement Refrigerant: R290

Do not enter R290 as the photographed unit’s confirmed refrigerant without a data-plate photo. An older production version could use a different refrigerant.

Construction

Black commercial laminate exterior

Black powder-coated steel base

Curved glass end panels

Stainless-steel two-step product riser visible in the photograph

Open-front self-service configuration

Black interior rear panel

Stainless-steel top surface

Recessed casters

Adjustable leg levelers

Front-access refrigeration compartment

Rear ventilation configuration

Commercial cord-and-plug connection

Key Features

Approximately 36-inch compact footprint

Open-front customer access

Curved glass product visibility

Two-level stepped refrigerated display

Suitable for packaged refrigerated products

Designed for impulse merchandising

Self-contained refrigeration

Electronic temperature regulation

Integrated condensate evaporation

Compact undercounter-height design

Suitable for integration into a serving counter

Easy-access front refrigeration service panel

Commercial grab-and-go configuration

Suitable Products

Packaged sandwiches

Salads

Grab-and-go meals

Bottled beverages

Desserts

Yogurt

Packaged fruit

Cold snacks

Packaged bakery products requiring refrigeration

Prepared refrigerated foods

Only packaged refrigerated products should be displayed unless the applicable health and sanitation requirements permit otherwise.

Certifications

UL Listed

cUL Listed

UL Sanitation Listed to NSF/ANSI 7

Type II operating conditions

DOE 2017 compliant on the current production version

Made in USA

Certification markings should be confirmed on the photographed unit’s data plate before final publication.

Included

One Federal Industries refrigerated self-service display case

Installed curved glass end panels

Installed two-step stainless-steel display riser

Installed self-contained refrigeration system

Installed recessed casters or leveling system, as physically present

Unit sold exactly as shown in the supplied photograph

Food products, trays, baskets, countertop sections, neighboring equipment, night covers, electrical adapters, and additional accessories are not included.

Important Notes

Model estimated from design and relative dimensions

Most likely model is UCR3633C

Estimated width is 35.7 inches

Do not list this unit as the 48-inch UCR4833C

Data plate is not visible in the supplied photograph

Serial number is not available

Manufacturing date is not available

Actual refrigerant is not confirmed

Actual amperage is not confirmed

Confirm cooling operation before publishing the tested condition

Confirm that the unit maintains food-safe refrigeration temperatures

Clean and sanitize before commercial use

Inspect both curved glass panels

Inspect the electrical cord and plug

Keep the rear ventilation openings unobstructed

Do not block the refrigerated air curtain

Do not exceed the manufacturer’s ambient operating conditions

Do not store products above the approved load line

Professional commercial-refrigeration inspection is recommended

Sold as-is, where-is

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
