Pristine Condition – Manitowoc IY0524A-161 Indigo Series – 22" Commercial Air-Cooled Half-Dice Ice Maker – Approx. 485 lb/day – 115V – NSF & UL Listed – Fully Tested & Operational!

Condition

Used – Pristine Condition – Fully Tested & Operational

This Manitowoc IY0524A-161 commercial modular ice maker has been professionally inspected and tested to confirm proper operation.

The stainless steel exterior shows normal cosmetic signs of prior commercial kitchen use, including light surface scratches, minor discoloration, and wear consistent with regular restaurant service.

The digital control display, air-cooled condenser system, refrigeration components, evaporator, water system, and internal operating components are present as shown in the photos.

The machine produces commercial half-dice cube ice and is ready for continued restaurant, bar, hotel, café, healthcare, institutional, or beverage-service use.

Description

The Manitowoc IY0524A-161 Indigo Series Commercial Ice Maker is a high-performance modular cube ice machine designed for demanding professional foodservice operations.

This model produces approximately 485 lb of half-dice cube ice per 24 hours under rated operating conditions and uses an efficient air-cooled condenser system.

The Indigo Series incorporates Manitowoc's EasyRead digital display, which provides operational status information, cleaning reminders, diagnostics, and machine performance information.

The unit produces half-dice style ice, a versatile commercial cube size widely used in restaurants, bars, hotels, cafés, convenience stores, healthcare facilities, and beverage applications.

The modular design allows the ice machine head to be installed over a compatible commercial storage bin.

Ice Production

• Rated Ice Production: Approximately 485 lb per 24 Hours

• Ice Type: Half-Dice Cube

• Ice Shape: Rectangular Half-Dice Cube

• Ice Machine Type: Modular

• Condenser Type: Air-Cooled

• Production Method: Commercial Cube Ice

Published specifications for the IY0524A list approximately 485 lb/day of ice production.

Ice Cube Size

Half-Dice Cube Dimensions:

Approximately 3/8 in W × 1-1/8 in D × 7/8 in H

This half-dice format provides excellent displacement in beverage glasses while maintaining good cooling performance.

Electrical Specifications

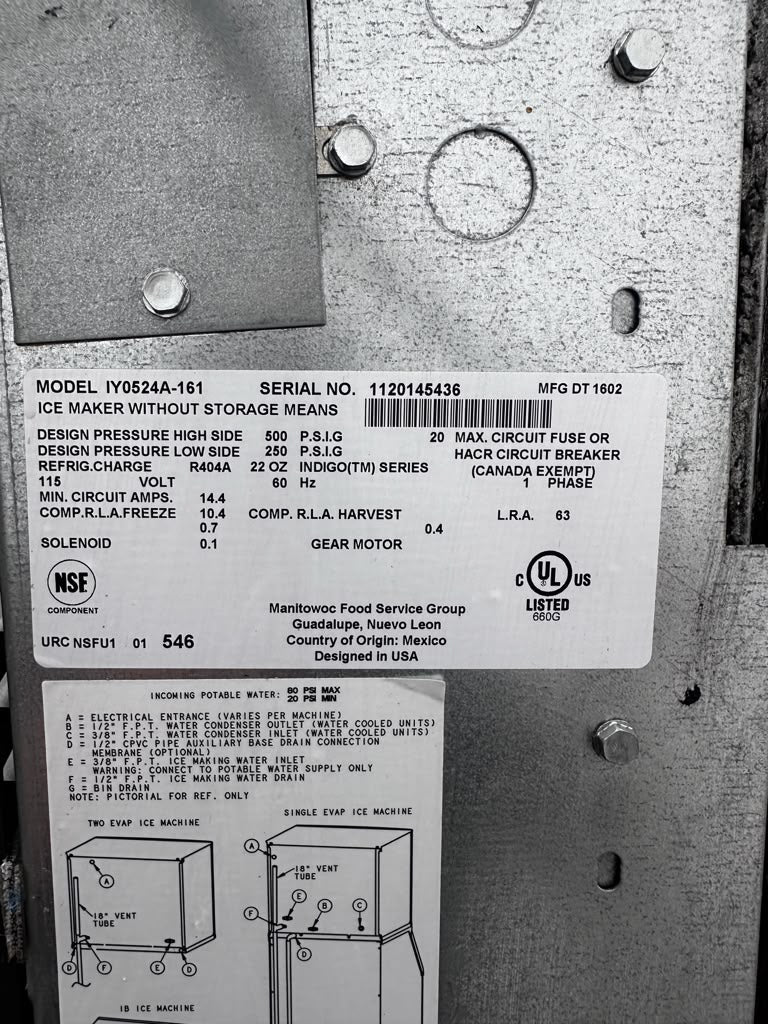

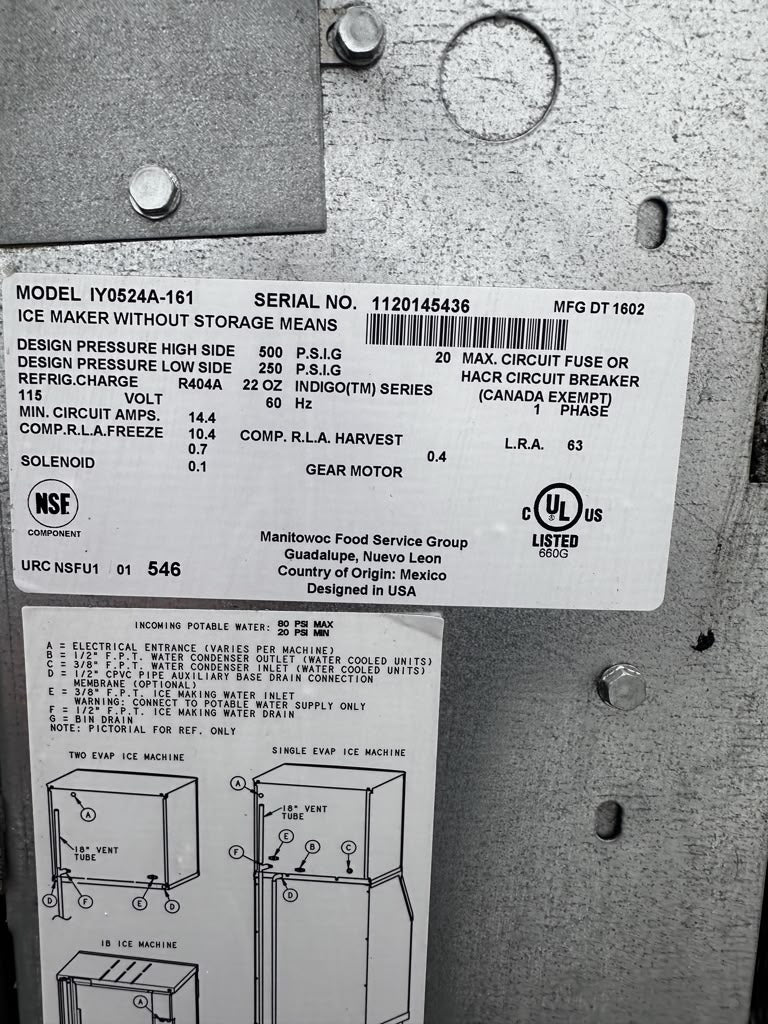

Specifications taken directly from the equipment data plate:

• Voltage: 115V

• Phase: Single Phase

• Frequency: 60 Hz

• Minimum Circuit Ampacity: 14.4 Amps

• Maximum Circuit Fuse / HACR Breaker: 20 Amps

• Compressor RLA – Freeze: 10.4 Amps

• Compressor LRA: 63 Amps

• Solenoid: 0.1 Amp

• Gear Motor: 0.4 Amp

• Power Type: Electric

Refrigeration

• Refrigerant: R404A

• Refrigerant Charge: 22 oz

• Condenser Type: Air-Cooled

• High-Side Design Pressure: 500 PSI

• Low-Side Design Pressure: 250 PSI

The R404A refrigerant charge and pressure ratings are confirmed directly from the supplied data plate.

Water Requirements

Incoming Potable Water Pressure:

• Maximum: 80 PSI

• Minimum: 20 PSI

The data plate also identifies separate connections for potable water, drain, and optional auxiliary drain connections.

Dimensions

Published Manitowoc IY0524A dimensions:

• Width: 22 in

• Depth: 24.5 in

• Height: 21.5 in

• Approximate Weight: 156–165 lb depending on published source

These dimensions correspond to the exact IY0524A platform.

Construction

Heavy-duty stainless steel exterior

Commercial modular ice-machine head

Air-cooled condenser

Digital EasyRead control display

Commercial evaporator assembly

Removable food-zone components

Commercial water-distribution system

Durable refrigeration components

Modular installation design

Front-access control interface

Professional-grade internal components

Designed for continuous commercial operation

Key Features

Produces approximately 485 lb of ice per day

Half-dice cube ice

Air-cooled condenser

Modular ice-machine design

22-inch compact width

Digital EasyRead display

Operational status monitoring

Cleaning reminders

Diagnostic information

Commercial refrigeration system

R404A refrigerant

Programmable production control capabilities

Removable food-zone components

Designed for restaurants and beverage-service operations

High-volume ice production

Reliable Manitowoc Indigo Series technology

Suitable for use with compatible commercial storage bins

Digital Control System

The Manitowoc Indigo platform features an illuminated EasyRead display designed to provide:

Machine operating status

Cleaning schedules

Diagnostic feedback

Asset information

Ice-production scheduling

Preventative maintenance data

Selected Indigo models can store operating information for service diagnostics.

Ideal Applications

Restaurants

Bars

Hotels

Cafés

Coffee Shops

Convenience Stores

Healthcare Facilities

Hospitals

Schools

Universities

Cafeterias

Commercial Kitchens

Banquet Facilities

Catering Operations

Institutional Foodservice

Beverage Stations

Quick-Service Restaurants

High-Volume Foodservice Operations

Certifications

NSF Component Certified

UL / cULus Listed

Certification markings are visible directly on the equipment data plate supplied in your photos.

Manufacturing Information

• Manufacturer: Manitowoc Foodservice Group

• Brand: Manitowoc Ice

• Series: Indigo Series

• Model: IY0524A-161

• Serial Number: 1120145436

• Manufacturing Date: February 2016

• Equipment Type: Commercial Modular Air-Cooled Half-Dice Ice Maker

• Country of Origin: Mexico

• Designed in: USA

• Manufacturer Location: Guadalupe, Nuevo Leon

The manufacturing information above is taken directly from the equipment data plate.

Included

Manitowoc IY0524A-161 Ice Maker Head

Digital control display

Air-cooled refrigeration system

Installed evaporator and water-system components

Installed commercial storage bin shown in photos

Unit sold exactly as shown in photos

• Important: The lower storage bin carries an Ice-O-Matic badge, while the ice maker head itself is Manitowoc.

Only components physically shown in the supplied photos are included.

Important Notes

Sold as-is, where-is

Fully tested and operational prior to listing

Used commercial equipment may show cosmetic wear from prior use

115V commercial electrical connection required

20 Amp maximum circuit protection specified on data plate

Requires potable water connection

Requires drain connection

Proper commercial water filtration is strongly recommended

Unit uses R404A refrigerant

Refrigeration service should be performed by a qualified technician

Ice storage bin is a separate Ice-O-Matic branded component

Verify bin compatibility and dimensions before installation

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
