Outstanding Condition – LVO FL14F – 14-Pan Front-Load Commercial Pot, Pan, Bowl & Utensil Washer – 460V 3-Phase – Fully Tested & Operational!

Condition

Used – Outstanding Condition – Fully Tested & Operational

This heavy-duty commercial pan washer has been professionally inspected and tested to confirm electrical power-up, control response, automatic filling, wash-pump operation, wash and rinse cycles, temperature-control functions, pressure-gauge response, safety-switch operation, and mechanical performance.

The stainless steel exterior shows scratches, scuffs, water spots, surface marks, discoloration, residue, and normal cosmetic wear consistent with previous commercial use.

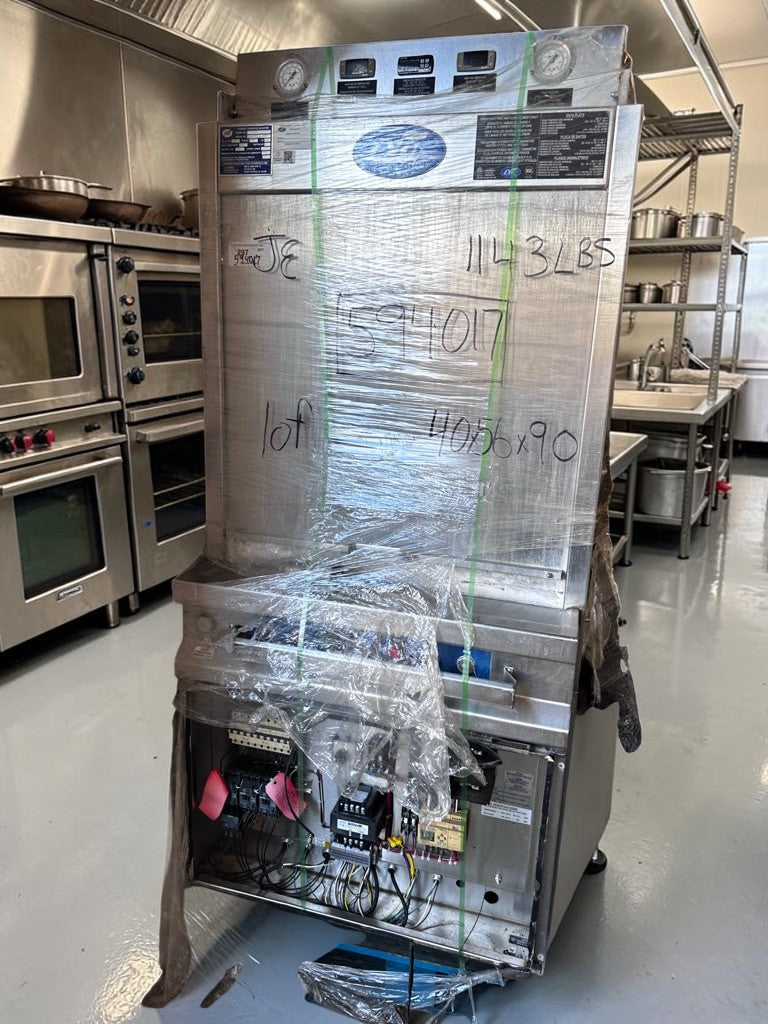

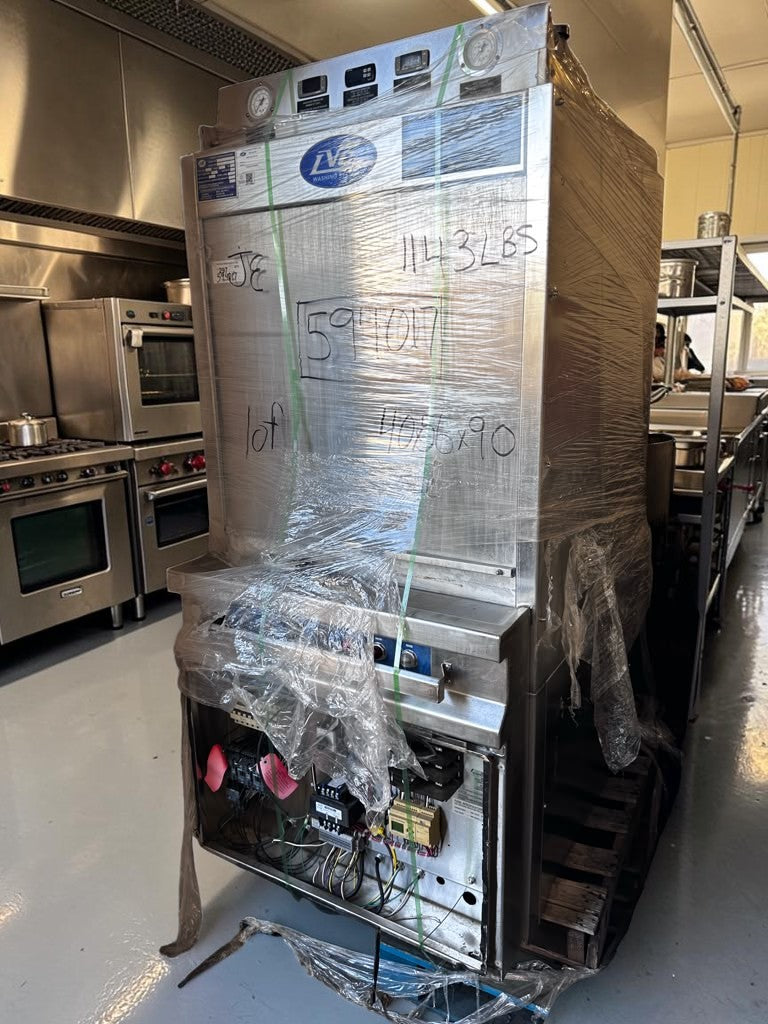

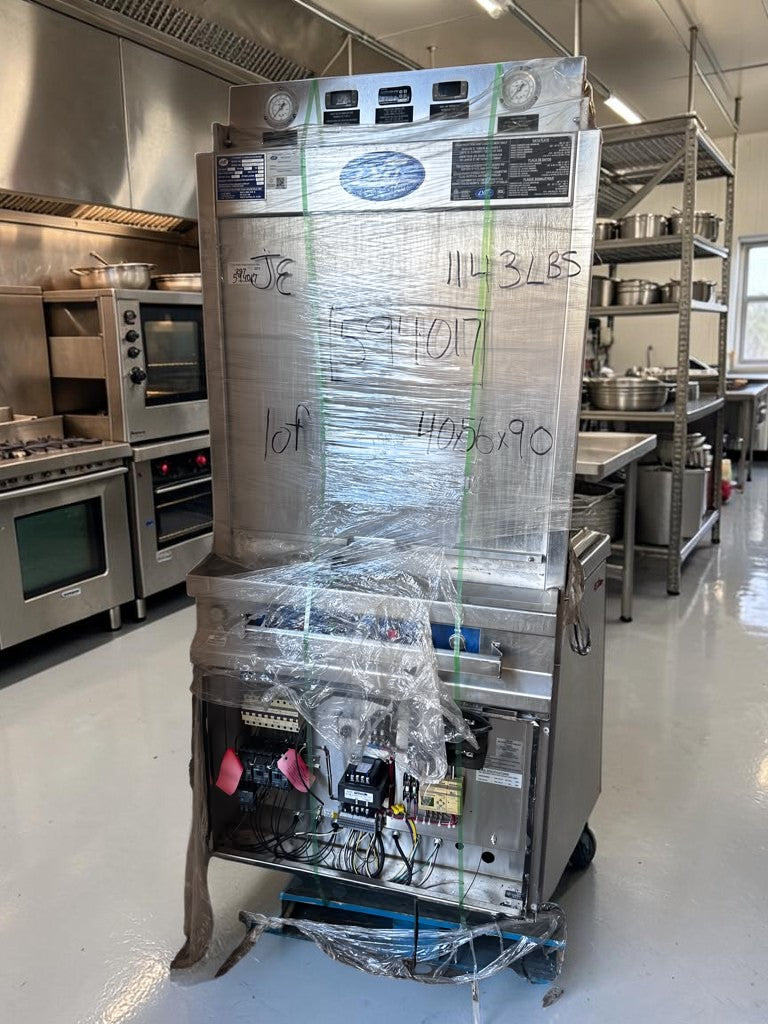

The unit is currently secured to a blue shipping pallet with plastic wrapping and green straps. Handwritten warehouse and shipping markings are visible on the front wrapping.

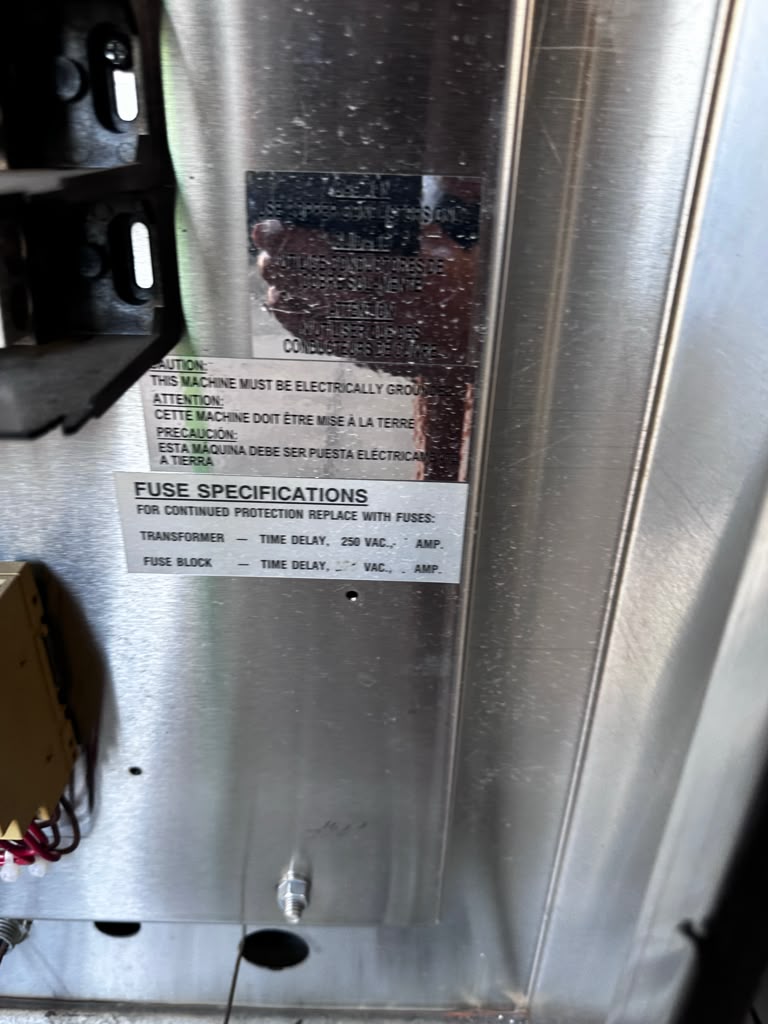

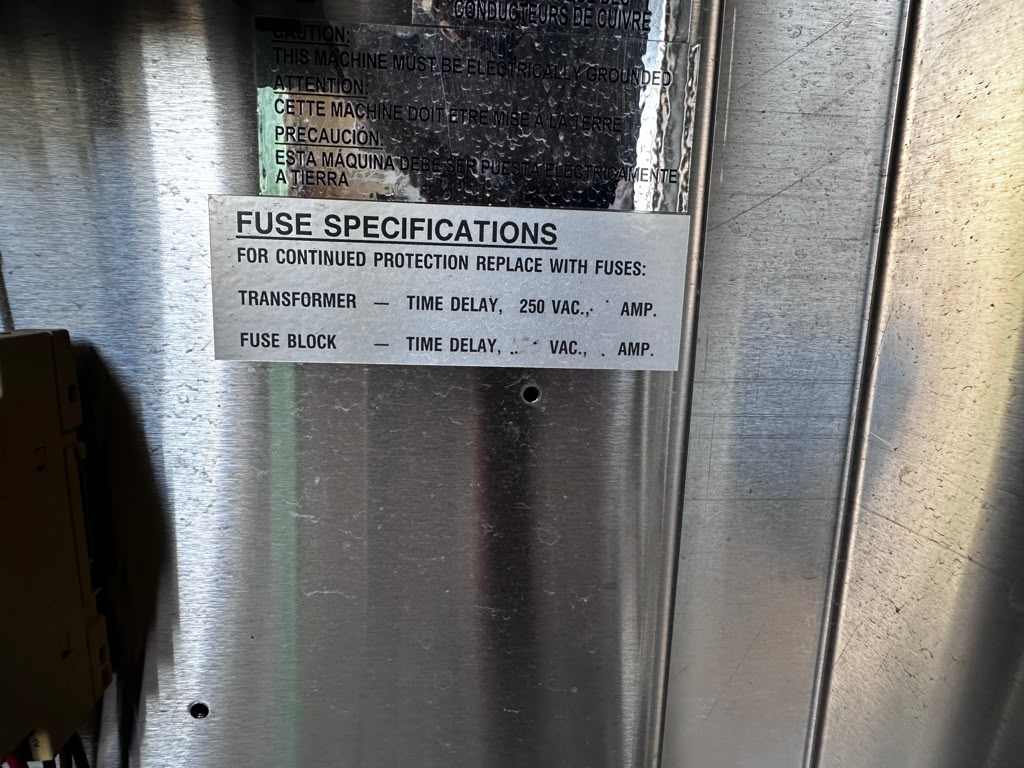

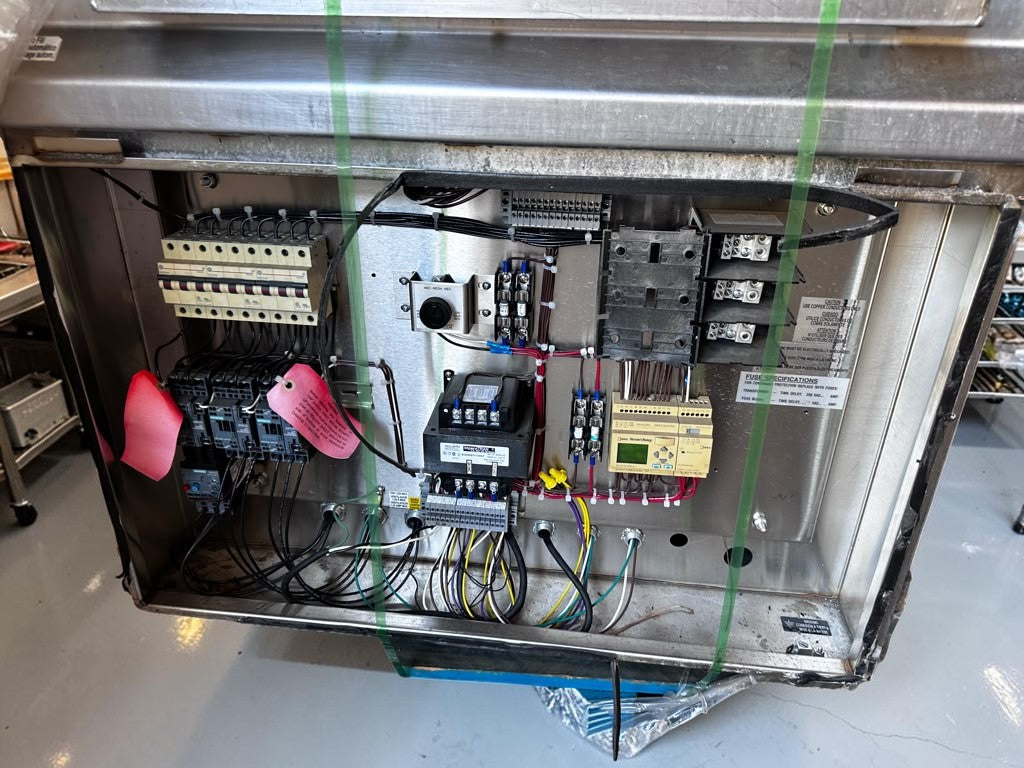

The lower electrical control compartment is shown open in the supplied photographs. The internal breakers, contactors, transformer, controller, terminal blocks, wiring, fuses, and other electrical components appear installed. The removable electrical service cover is not installed in the photos and should be verified at pickup.

The interior wash chamber, utility rack, spray-arm assemblies, scrap trays, pump-inlet screen, and drain components are not clearly shown. Their exact presence and condition should be physically verified.

Please review all supplied photos for the exact cosmetic condition and included components.

Model Identification

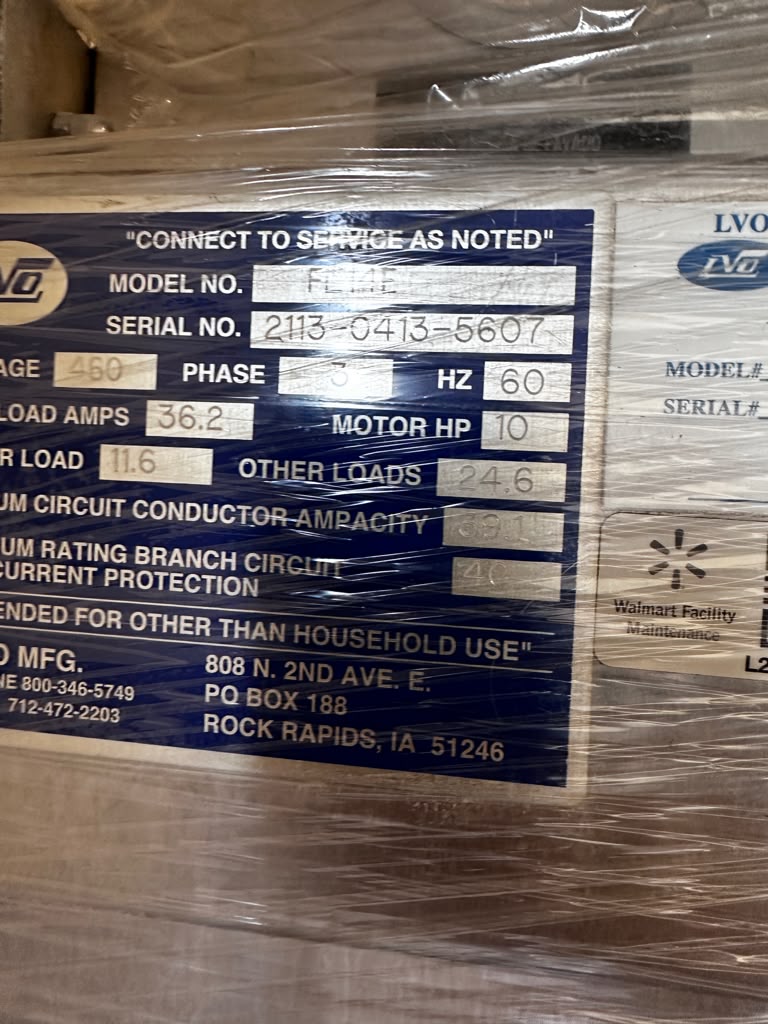

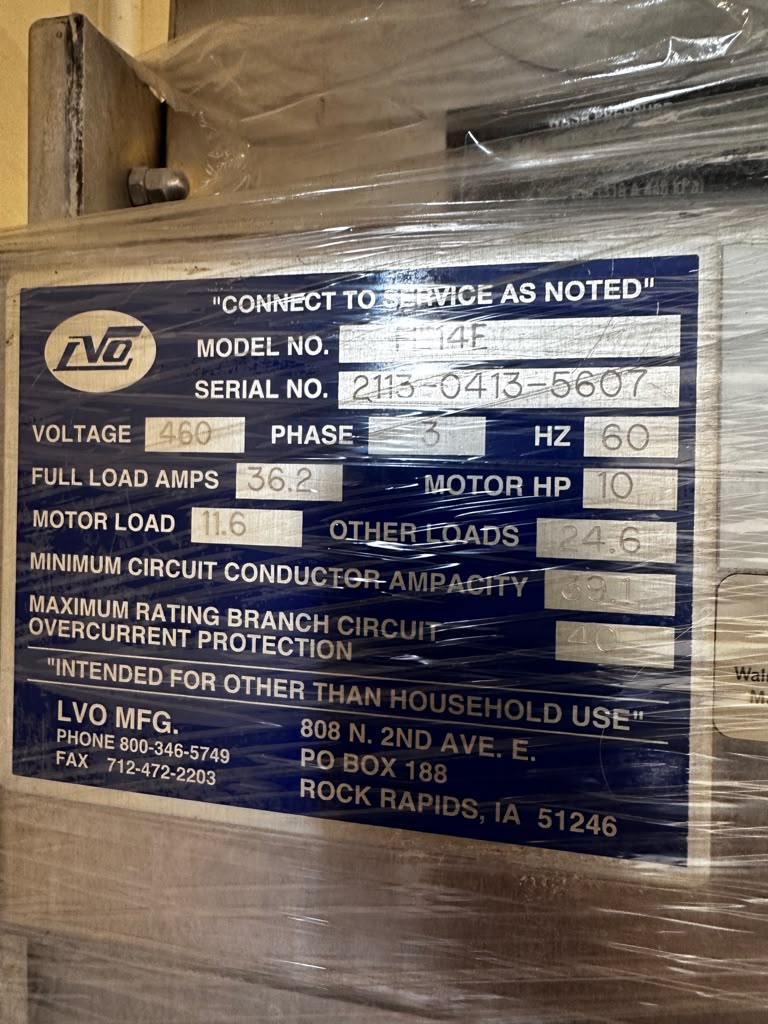

The supplied manufacturer data plate confirms:

Brand: LVO

Manufacturer: LVO Manufacturing, Inc.

Exact Data-Plate Model: FL14F

Product Family: FL14

Machine Type: Front-Load Commercial Pan Washer

Serial Number: 2113-0413-5607

Voltage: 460V

Phase: Three Phase

Frequency: 60Hz

Full-Load Amperage: 36.2A

Motor Horsepower: 10 HP

Motor Load: 11.6A

Other Electrical Loads: 24.6A

Minimum Circuit-Conductor Ampacity: 39.1A

Maximum Branch-Circuit Overcurrent Protection: Appears to be 40A

Heating Configuration: Electric

Intended Use: Other Than Household Use

Manufacturer Location: Rock Rapids, Iowa 51246, USA

The data plate is partially covered by clear plastic, but the model marking reads FL14F. This machine belongs to LVO’s established FL14 front-load washer family.

Manufacturing Date

LVO states that digits five through eight of its 12-digit serial number identify the month and year of manufacture.

This unit’s serial number is:

2113-0413-5607

The date portion is:

0413

Therefore, the manufacturing date is:

April 2013

The serial-number date format is confirmed by LVO’s official manuals page: https://www.lvomfg.com/site/service/manuals/.

Description

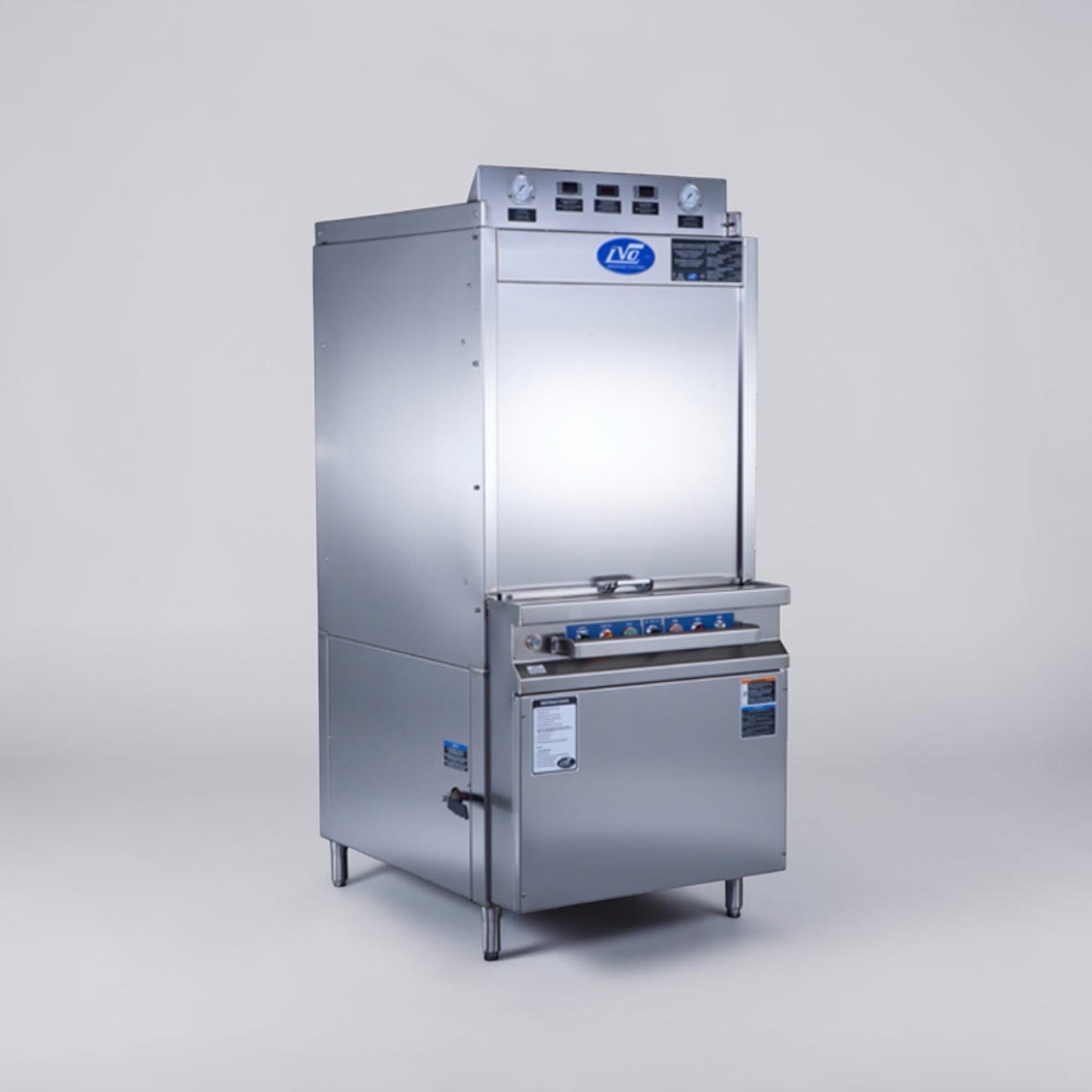

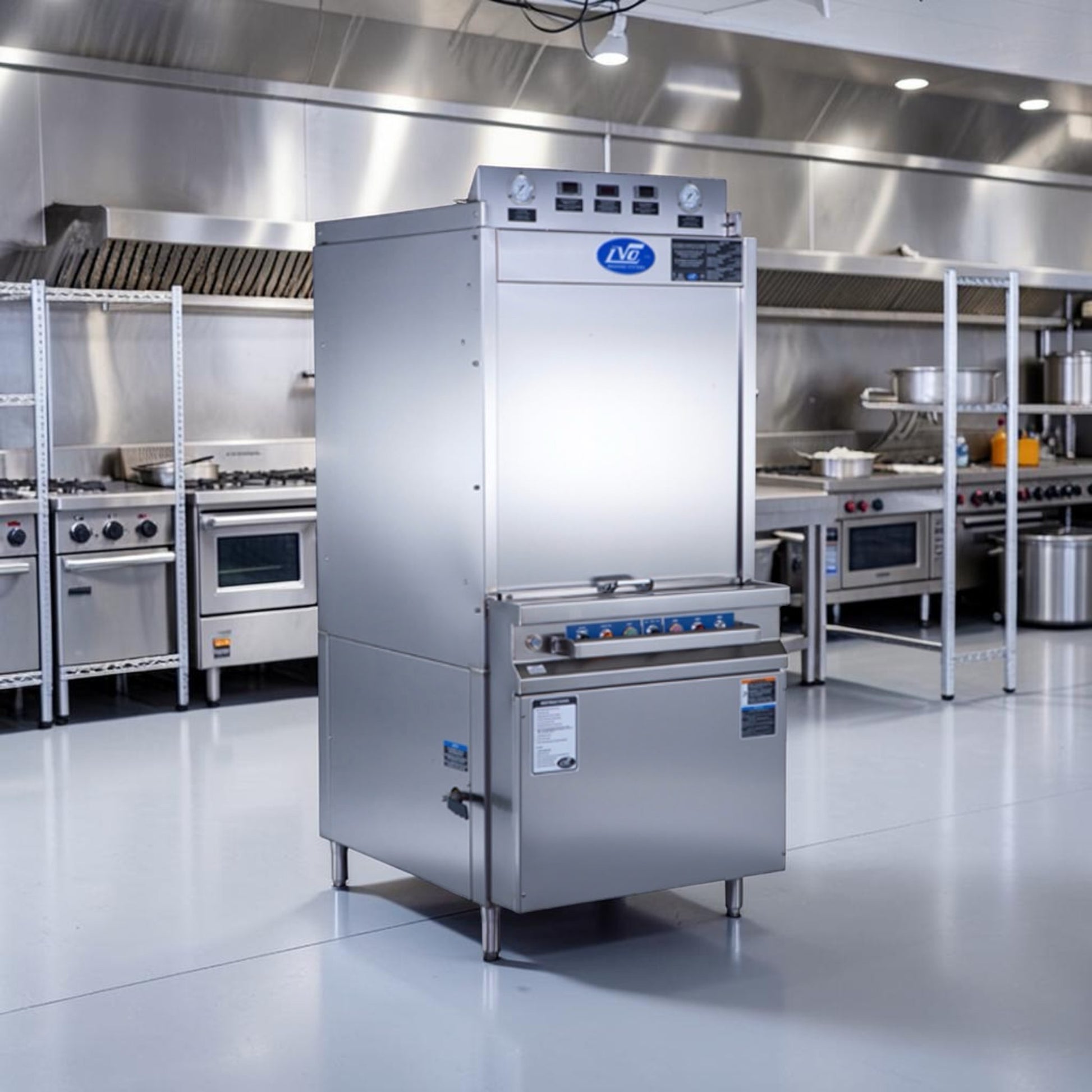

The LVO FL14F is a heavy-duty commercial front-load washer engineered for washing sheet pans, pots, mixing bowls, buckets, utensils, bakery tools, food-preparation equipment, and other compatible commercial kitchen items.

It uses a powerful 10-horsepower recirculating pump and two rotating stainless steel spray arms to deliver a high-pressure wash throughout the chamber.

The FL14 platform is designed to accommodate up to 14 standard sheet pans per load and is rated by LVO for production of up to approximately 140 pans per hour, depending on the selected wash cycle, loading arrangement, soil level, and operating conditions.

The fully automatic operating sequence includes filling, washing, a rest period, sanitizing rinse, and optional steam-exhaust operation. Three selectable wash durations allow the operator to choose an appropriate cycle for lightly, moderately, or heavily soiled items.

This electric-heated version uses one 9kW heating element in the wash tank and a separate 9kW booster-heating element in the rinse tank. The booster raises properly supplied hot water to the sanitizing-rinse temperature.

The front-loading design offers access to a large wash chamber while limiting the floor space required compared with larger walk-in or rack-style washing systems.

LVO identifies the FL14 as its most popular front-load model and confirms its 14-pan capacity, 10HP pump, 40-gallon wash tank, 9kW rinse booster, three wash times, and heavy-gauge stainless steel construction. Official LVO FL14 product specifications: https://www.lvomfg.com/site/product/fl14/

Wash Capacity

Sheet-Pan Capacity: Up to 14 Pans per Load

Manufacturer-Published Production Capacity: Up to 140 Pans per Hour

Mixing-Bowl Capacity: Up to One 140-Quart Mixing Bowl, Depending on Rack and Bowl Dimensions

Compatible Items May Include:

Standard sheet pans

Bun pans

Cake pans

Bakery pans

Mixing bowls

Commercial pots

Commercial pans

Food-preparation bowls

Buckets

Utensils

Whisks

Paddles

Scrapers

Ladles

Spatulas

Food-processing components

Bakery-production tools

Other compatible heat-resistant commercial kitchenware

Actual capacity varies according to item dimensions, rack style, required spacing, soil level, selected cycle, and whether every rack position can be used.

Loose items must be secured in an appropriate utensil basket. Glassware and fragile household items should not be placed inside this high-pressure machine.

Wash System

Pump Motor: 10 HP

Pump Flow: Approximately 180 Gallons per Minute

Normal Manufacturer-Published Wash Pressure: Approximately 50–60 PSI

Permitted Wash-Pressure Range on This Unit’s Data Plate: 45–65 PSI

Wash-Arm Configuration: Two Rotating Stainless Steel Spray Arms

Wash Hubs: Heavy-Duty Commercial Hub System

Wash Tank Capacity: 40 Gallons

Wash-Tank Heating: One 9kW Electric Heating Element

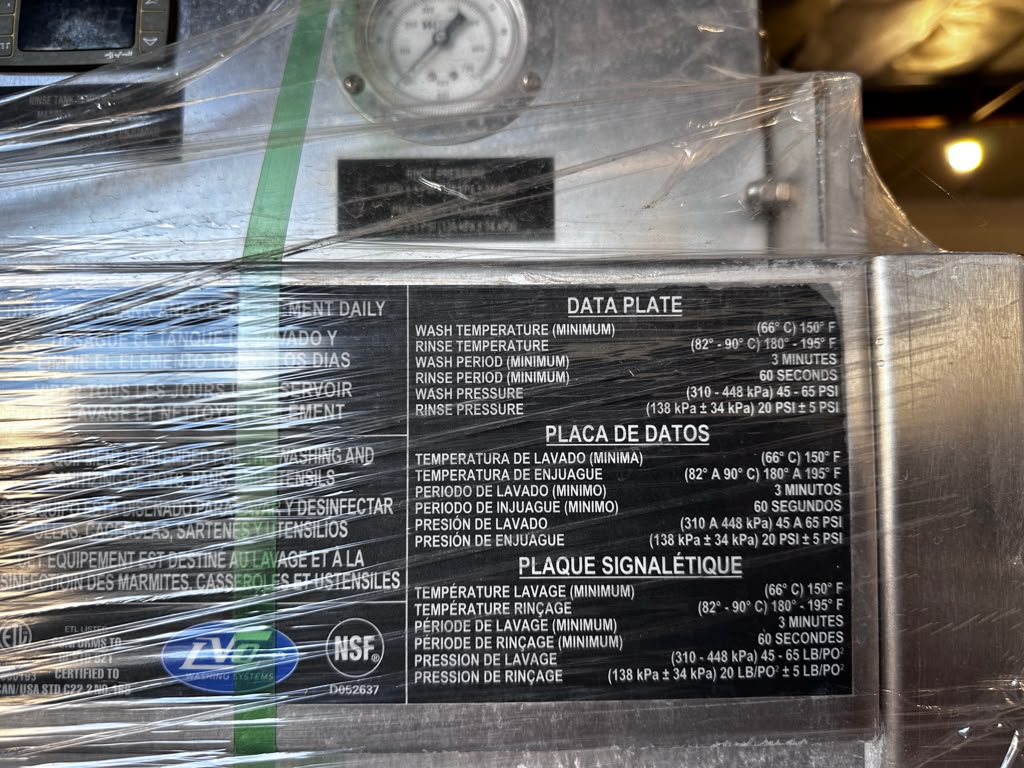

Wash Temperature – Data-Plate Minimum: 150°F / 66°C

Normal Recommended Operating Range: Approximately 155–160°F / 68–71°C

Water Recirculation: High-Volume Recirculating Wash System

The approximately 180-GPM flow is recirculated from the 40-gallon wash tank rather than drawn continuously from the building’s water supply.

The powerful high-pressure system requires correct racking. Items must be positioned so water can reach their soiled surfaces and drain freely after the wash.

Sanitizing Rinse System

Rinse Method: Fresh Hot-Water Sanitizing Rinse

Rinse-Tank Capacity: Approximately 9.5 Gallons

Rinse Booster: One 9kW Electric Heating Element

Incoming Hot-Water Temperature: 140°F / 60°C Recommended

Rinse Temperature on This Unit’s Data Plate: 180–195°F / 82–90°C

Rinse Period: 60 Seconds Minimum

Rinse Pressure: 20 PSI ± 5 PSI

Water Consumption per Cycle: Approximately 6.5 Gallons

Published Hourly Water Requirement: Approximately 78 Gallons per Hour at 12 Cycles per Hour

The rinse-booster tank is designed to raise the incoming hot water to the required sanitizing temperature.

The final installation must comply with local health-department, plumbing, backflow-prevention, and commercial warewashing requirements.

Automatic Cycle Specifications

The LVO FL14 provides three preset wash selections:

Light Wash: Approximately 3 Minutes

Medium Wash: Approximately 5 Minutes

Heavy Wash: Approximately 7 Minutes

Rest Period: Approximately 20 Seconds

Sanitizing Rinse: Approximately 60 Seconds

Optional Fan Period: Approximately 30 Seconds

The automatic operating sequence is:

Machine fills to the required level

Wash and rinse heating systems bring water to temperature

Operator selects Light, Medium, or Heavy

Start control activates the wash-pump cycle

High-pressure wash water circulates through the rotating spray arms

Wash cycle ends

Approximately 20-second rest period allows wash water and suds to drain

Fresh hot-water sanitizing rinse begins

Optional steam-exhaust fan operates when configured

Cycle resets for unloading

Factory settings can be adjusted only by a qualified technician and must remain compliant with sanitation requirements.

Suitable Applications

Commercial bakeries

Wholesale bakeries

Supermarket bakeries

Restaurants

Hotels

Resorts

Catering kitchens

Commissary kitchens

Central-production kitchens

Institutional kitchens

School cafeterias

University kitchens

Hospitals

Healthcare foodservice facilities

Correctional-facility kitchens

Military kitchens

Food-production facilities

Food-processing operations

Candy and confectionery production

Commercial dough-production operations

Large banquet facilities

High-volume pastry kitchens

Commercial kitchens processing heavily soiled pots and pans

Facilities requiring dedicated bakery-pan washing

Final suitability depends on the items being washed, available utilities, local codes, detergent program, sanitation requirements, rack configuration, and installation space.

Electrical Specifications

Power Type: Electric

Exact Voltage: 460V

Phase: Three Phase

Frequency: 60Hz

Full-Load Amperage: 36.2 Amps

Motor Horsepower: 10 HP

Motor Load: 11.6 Amps

Other Loads: 24.6 Amps

Minimum Circuit-Conductor Ampacity: 39.1 Amps

Maximum Branch-Circuit Overcurrent Protection: Appears to be 40 Amps

Wash Heating Element: 9kW

Rinse-Booster Heating Element: 9kW

Total Installed Electric Heating: Approximately 18kW

Electrical Connection: Commercial Hardwired Connection

Plug Type: No Plug – Hardwired Installation Required

The electrical specifications above come directly from the manufacturer plate on this specific machine and take precedence over generalized specifications for other FL14 versions.

LVO’s manual publishes approximately 36.8A for a typical 460V electric FL14. This specific unit’s plate states 36.2A, so the unit-specific figure is used in this listing.

A licensed commercial electrician must verify the building service, phase rotation, wiring, grounding, disconnect, conductor sizing, and overcurrent protection.

Incorrect phase rotation can cause the pump to rotate backward and produce low or unstable wash pressure.

Do not connect this washer to 208V, 230V, single-phase power, a household receptacle, an adapter, or an extension cord.

Utility Requirements

Electrical

460V

Three phase

60Hz

36.2A full-load current

Hardwired connection

Nearby lockable disconnect required

Grounding required

Hot Water

Connection: 1/2-Inch Hot-Water Supply

Recommended Incoming Temperature: 140°F / 60°C

Required Operating Flow: Approximately 78 GPH at 12 Cycles per Hour

Rinse Pressure: 20 PSI ± 5 PSI

Maximum Allowable Supply Pressure: 125 PSI

A shutoff valve and accessible union should be provided.

Drain

Drain Size: 1.5-Inch Copper Drain Connection

Drainage must comply with local code. A floor sink, air gap, grease interceptor, vent, or other components may be required.

Steam Exhaust

Exhaust Connection: 6-Inch Vent Collar

The manufacturer recommends compatible PVC, CPVC, or stainless steel ducting where permitted. The exhaust must not terminate inside a wall, ceiling cavity, attic, or other concealed space.

Local code may require installation beneath an approved exhaust hood.

Detergent

A commercial automatic non-sudsing detergent-feeding system is required. The detergent feeder and chemical containers are normally supplied and installed by the buyer’s chemical provider.

Dimensions

LVO’s official FL14 owner’s manual publishes:

Width: 36 in

Depth: 53 in

Height: 84.75 in

Height with Door Fully Open: 106 in

Door Opening Width: 32 in

Door Opening Height: 30 in

Wash-Chamber Width: Approximately 32 in

Wash-Chamber Height: Approximately 30 in

Wash-Chamber Length: Approximately 36.5 in

The dimensions above apply to the FL14 machine and do not include the blue shipping pallet, temporary wrapping, straps, field-installed ductwork, external plumbing, electrical conduit, wall disconnect, chemical containers, or required service clearances.

The official manual recommends at least:

Side Clearance: 16 in Minimum

Control-Box Side Clearance: 36 in Minimum

Rear Clearance: 12 in Minimum

Additional space should be provided for installation, cleaning, maintenance, door travel, rack handling, and electrical service.

Weight and Moving Requirements

The exact manufacturer-rated net weight was not confirmed in the supplied data plate or official owner’s manual.

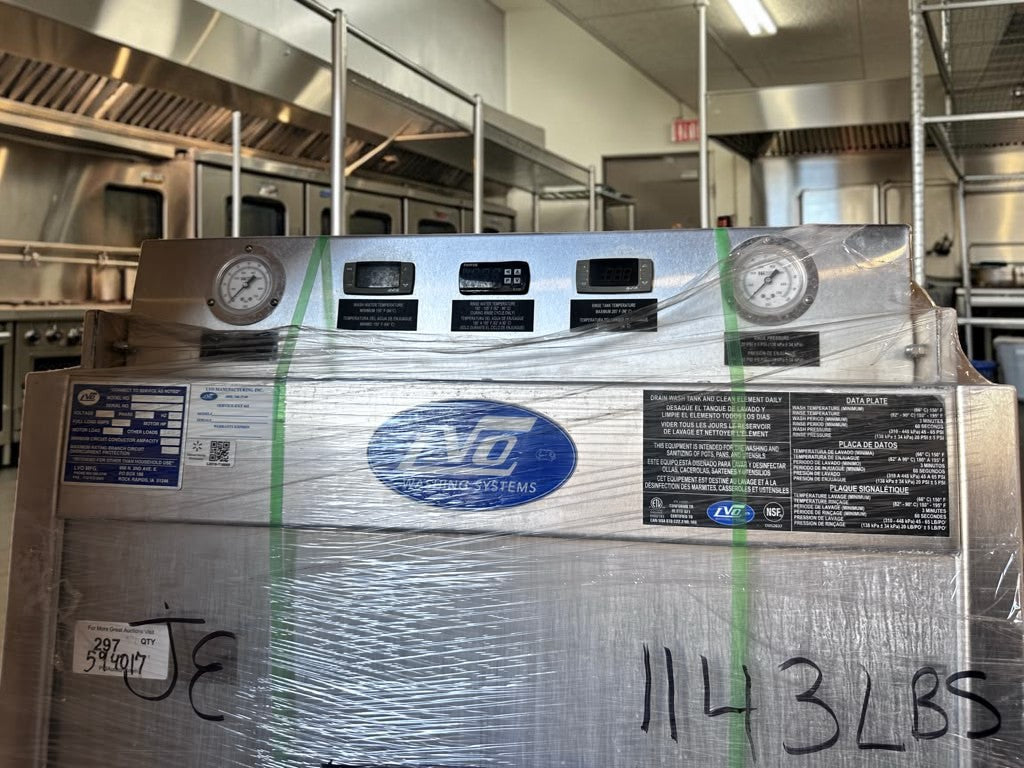

A handwritten “1143 LBS” marking is visible on the front wrapping. This appears to be a warehouse or freight notation and should not be treated as a verified manufacturer net-weight specification without confirmation.

This is a large, extremely heavy commercial machine and requires professional material-handling equipment.

Use a properly rated forklift, pallet jack, machinery dolly, or commercial rigging service.

Do not attempt to move the washer manually.

Do not lift it by the door, gauges, control panel, plumbing connections, vent assembly, electrical cabinet, or exposed wiring.

Construction

14-gauge stainless steel cabinet panels

12-gauge stainless steel structural framework

Stainless steel wash chamber

Stainless steel interior piping

Stainless steel rinse system

Two rotating stainless steel spray arms

Heavy-duty commercial wash hubs

Front-loading vertical door

Large commercial wash chamber

40-gallon stainless wash tank

Approximately 9.5-gallon rinse-booster tank

One 9kW wash-tank heater

One 9kW rinse-booster heater

10HP high-volume pump

Approximately 180-GPM recirculating system

Electronic cycle controller

Light, Medium, and Heavy wash selections

Automatic fill system

Wash-pressure gauge

Rinse-temperature and pressure instrumentation

Low-water protection

Door safety switch

Commercial electrical control cabinet

Internal circuit breakers

Commercial contactors

Control transformer

Terminal blocks

Three-phase power-distribution components

6-inch steam-exhaust connection

Adjustable leveling-leg system

Commercial hardwired installation

Key Features

Up to 14 sheet pans per load

Up to approximately 140 pans per hour

Accommodates compatible 140-quart mixing bowls

Powerful 10HP pump

Approximately 180-GPM wash-water circulation

High-pressure 45–65 PSI wash range

Two rotating stainless steel wash arms

Three selectable wash cycles

Light, Medium, and Heavy settings

Automatic operating sequence

40-gallon wash tank

Electric wash-tank heating

9kW wash heating element

9kW rinse-booster element

Fresh hot-water sanitizing rinse

180–195°F rinse range on the data plate

60-second minimum rinse period

20 PSI ± 5 PSI rinse pressure

Automatic filling

Low-water protection

Door safety interlock

Heavy-gauge stainless steel construction

Large front-loading chamber

Dedicated steam-exhaust connection

Commercial hardwired electrical configuration

460V three-phase operation

Designed for intensive commercial use

Suitable for bakery pans

Suitable for pots and mixing bowls

Suitable for secured commercial utensils

ETL electrical listing

NSF sanitation listing

Safety Features

Low-Water Cutoff: Prevents normal operation when the wash tank does not contain sufficient water

Door Safety Switch: Prevents wash-pump operation when the door is not completely closed

Electrical Circuit Breakers: Installed inside the control cabinet

High-Limit Protection: Manufacturer-designed wash and rinse high-limit controls

Grounding Connection: Dedicated control-panel grounding provision

Pressure Gauges: Allow wash and rinse conditions to be monitored

Temperature Monitoring: Allows sanitizing-rinse temperature verification

Front Door Counterbalance: Manufacturer-designed door-weight and cable system

Commercial Disconnect Requirement: Separate accessible building disconnect required

Never bypass the door switch, low-water cutoff, high-limit controls, circuit breakers, grounding system, or other safety devices.

Door cables, pulleys, counterweights, and connections must be inspected for wear before commercial service.

Certifications

The supplied photos and LVO documentation confirm:

ETL Listed

NSF Sanitation Listed

Commercial Warewashing Equipment

The manufacturer’s FL14 brochure lists ETL electrical and NSF sanitation approvals for the United States and Canada.

Certification labels should be physically inspected if a local health department or electrical authority requires an exact standard number. Official LVO FL14 brochure: https://www.lvomfg.com/site/wp-content/uploads/2017/02/FL-14.pdf

Manufacturing Information

Brand: LVO

Manufacturer: LVO Manufacturing, Inc.

Exact Model: FL14F

Product Family: FL14

Product Type: Commercial Front-Load Pan, Pot, Bowl and Utensil Washer

Serial Number: 2113-0413-5607

Manufacturing Date: April 2013

Heating Type: Electric

Voltage: 460V

Phase: Three Phase

Frequency: 60Hz

Full-Load Amperage: 36.2A

Pump Motor: 10HP

Manufacturer Address: 808 N. 2nd Avenue E., Rock Rapids, Iowa 51246

Country of Manufacture: Not Explicitly Stated on the Supplied Data Plate

Included

One LVO FL14F commercial front-load pan washer

Installed 10HP pump and motor assembly

Installed 40-gallon wash-tank system

Installed rinse-booster tank

Installed 9kW wash-heating system

Installed 9kW rinse-booster system

Front-loading wash-chamber door

Installed wash-pressure gauge

Installed rinse-temperature and pressure instrumentation

Front operating controls

Electronic cycle controller

Light, Medium, and Heavy cycle selection

Automatic-fill controls

Internal electrical breakers

Installed contactors and relays

Control transformer

Terminal blocks

Installed internal wiring

Low-water safety system

Door safety-switch system

Installed exhaust connection and upper assembly shown

Manufacturer identification plate

Operating data plate

ETL and NSF markings

All permanently installed components shown in the supplied photographs

Unit sold exactly as pictured

Not Included

Blue shipping pallet

Green shipping straps

Plastic shipping wrap

Forklift or pallet jack

Freight delivery

Rigging or installation service

Building electrical disconnect

Electrical conduit

Field wiring

Plug or power cord

Voltage transformer

Phase converter

Hot-water heater

Hot-water supply plumbing

Water shutoff valve

Backflow preventer

Drain plumbing

Floor sink

Grease interceptor

Vent ductwork

Exhaust hood

Detergent feeder

Rinse-aid feeder

Chemical containers

Commercial detergent

Rinse chemicals

Water softener

Calcium filter

Bun or sheet-pan rack is not shown

Cake-pan rack is not shown

Utensil basket is not shown

Hold-down rack is not shown

Loose sheet pans

Pots

Bowls

Buckets

Utensils

Operator manual

Replacement parts

Electrical service cover if not separately present at pickup

Additional accessories not shown in the supplied photos

Installation Requirements

Installation must be completed by qualified commercial equipment technicians, electricians, and plumbers.

Position the washer on a level, structurally sound commercial floor.

Install and level the manufacturer-designed legs before operation.

Provide sufficient clearance for the front door to reach its full open height of approximately 106 inches.

Maintain at least 16 inches of service clearance along the sides, 36 inches on the control-box side, and 12 inches behind the machine.

Provide a properly sized 460V, three-phase, 60Hz electrical service.

Install a nearby accessible commercial disconnect.

Connect the main grounding conductor to the designated grounding lug.

Verify phase rotation before extended pump operation.

Provide a 1/2-inch 140°F hot-water supply with an accessible shutoff valve and union.

Verify approximately 20 PSI rinse pressure during the rinse cycle.

Provide a code-compliant 1.5-inch drain connection.

Install a floor sink, air gap, vent, or grease interceptor where required.

Connect the 6-inch steam-exhaust collar to an approved ventilation system.

Do not discharge steam into a concealed wall, ceiling, attic, or unventilated space.

Install an automatic commercial detergent feeder with delivery verification or an appropriate chemical alarm.

Use a water softener or calcium-treatment system in hard-water areas.

Before energizing the heating elements, fill the rinse tank completely according to the manufacturer’s startup procedure.

Cleaning & Care

Turn the power switch off and disconnect the building electrical supply before cleaning or servicing.

Drain the wash tank completely at the end of the operating day.

Remove and clean the scrap trays.

Remove and clean the pump-inlet screen.

Do not allow debris to enter the open pump inlet.

Inspect all wash nozzles for blockage.

Inspect all rinse nozzles for blockage.

Clean blocked nozzles according to the manufacturer’s instructions.

Rinse the interior wash chamber thoroughly.

Brush the electric wash-tank heating element daily.

Keep the low-water probe free from food residue and mineral buildup.

Use only non-sudsing commercial warewashing detergent.

Never use household dishwashing liquid or foaming soap.

Inspect wash arms and hubs for excessive movement or wear.

Confirm that the spray arms rotate freely.

Inspect the door cables, pulleys, counterweight connections, and safety switch.

Keep the temperature and pressure gauges clean and readable.

Check wash pressure during operation.

Check rinse pressure only while the rinse cycle is active.

Check sanitizing temperature during the rinse cycle.

Clean the ventilation system and verify fan operation when installed.

Leave the machine drained and empty when not in use.

Use a qualified technician for pump, motor, heater, controller, wiring, breaker, contactor, door, pressure, and temperature repairs.

Important Notes

Sold as-is, where-is

Fully tested and operational prior to listing

Used commercial warewashing equipment

Exact data-plate model is FL14F

Commercial product family is FL14

Serial number is 2113-0413-5607

Manufactured in April 2013

Electric-heated configuration

Requires 460V electrical service

Requires three-phase power

Requires 60Hz service

Full-load amperage is 36.2A

Motor load is 11.6A

Other electrical loads total 24.6A

Minimum circuit-conductor ampacity is 39.1A

Maximum overcurrent-protection marking appears to be 40A

Requires professional hardwired installation

No electrical plug is used

Includes a 10HP pump

Pump recirculates approximately 180 GPM

Wash pressure must remain within the approved range

Unit data plate specifies 45–65 PSI wash pressure

Wash tank holds approximately 40 gallons

Rinse tank holds approximately 9.5 gallons

Wash-temperature minimum is 150°F

Rinse temperature is 180–195°F

Rinse period is at least 60 seconds

Incoming hot water should be approximately 140°F

Requires a 1/2-inch hot-water supply

Requires a 1.5-inch drain connection

Requires a 6-inch steam-exhaust connection

Detergent feeder is not shown

Utility racks are not shown

Wash-chamber interior is not shown

Electrical control compartment is open in the photos

Electrical service cover is not installed in the photographs

Verify that the electrical cover is present before pickup

Verify internal racks, screens, wash arms, and accessories before purchase

Plastic wrapping limits inspection of some exterior surfaces

Handwritten warehouse markings are visible on the wrapping

Handwritten 1,143-pound marking is not a verified manufacturer weight

Professional moving and rigging are required

Do not lift manually

Do not operate while secured to the shipping pallet

Do not operate with the electrical compartment exposed

Do not energize heaters before correctly filling the machine

Verify correct pump rotation after electrical installation

Do not operate without scrap trays and the pump-inlet screen

Do not obstruct the rotating wash arms

Do not wash loose glassware or fragile household items

Use an approved utensil basket for small items

Do not use foaming household detergent

Maintain correct sanitizing temperature and pressure

Installation must comply with electrical, plumbing, ventilation, sanitation, and building codes

No manufacturer warranty included

Shipping calculated at checkout

Freight or local pickup recommended

Local pickup available
