Prime Condition – Pentair Everpure E-Series E20 – Commercial Water Prefilter with Twin-Series Filter Head – Dual Pressure Gauges – 20″ Housing – Fully Tested & Operational!

Prime Condition – Pentair Everpure E-Series E20 – Commercial Water Prefilter with Twin-Series Filter Head – Dual Pressure Gauges – 20″ Housing – Fully Tested & Operational!

🔹 Condition

Used – Excellent Condition – Fully Tested & Operational

This Pentair Everpure commercial water-filtration assembly has been professionally inspected and tested to confirm proper operation. The prefilter housing, twin filter head, pressure gauges, shutoff valve, flushing connection, mounting bracket, and plumbing manifold are clean and ready for continued commercial service.

The system shows light cosmetic signs of prior commercial use, including minor scratches, surface marks, and normal wear on the black housing and mounting components. It is ready for installation with compatible replacement filter cartridges.

🔹 Description

The Pentair Everpure E-Series commercial water-filtration assembly is designed to improve incoming water quality and help protect restaurant equipment from sediment, dirt, rust, and other suspended particles.

This assembly combines a full-size E20 prefilter housing with a commercial Twin-Series dual-cartridge filter head, allowing two compatible Everpure primary cartridges to operate as part of one high-capacity filtration system.

The E20 prefilter uses a 20-inch sediment cartridge to capture larger particles before they reach the primary filtration cartridges. This helps extend cartridge service life, reduce premature clogging, and maintain more consistent water flow.

Two integrated pressure gauges allow operators to monitor inlet and outlet pressure and identify increasing pressure drop as the cartridges become loaded. The built-in blue shutoff and flushing valve supports easier servicing and cartridge changes.

This commercial system is ideal for restaurants, cafés, coffee shops, ice machines, beverage dispensers, fountain systems, combi ovens, steam equipment, foodservice operations, and other applications requiring dependable filtered water.

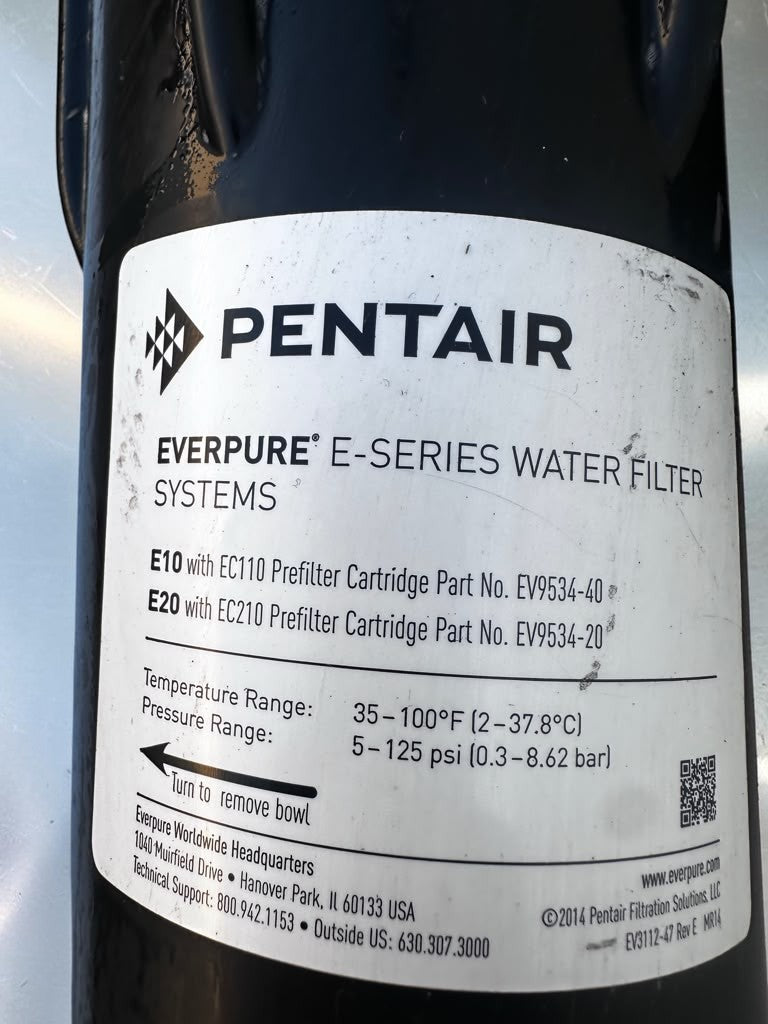

Pentair identifies the E20 prefilter as a commercial 20-inch system that reduces larger dirt and rust particles, while its Twin-Series head supports two compatible Everpure fine-filter cartridges.

🔹 Water Specifications

Water Type: Cold Potable Water

Temperature Range: 35°F–100°F

Pressure Range: 5–125 PSI, as shown on the photographed housing

Recommended Operating Pressure: Within manufacturer limits

Prefilter Micron Rating: 10 Micron Nominal with Compatible EC210 Cartridge

Prefilter Cartridge Size: 20 in

Maximum E20 Flow Rate: Up to 8 GPM

Primary Filter Positions: 2

Inlet Connection: 3/4 in

Outlet Connection: 3/4 in

Pentair lists the E20 as an 8 GPM, 10-micron commercial prefilter, while the Twin-Series head uses 3/4-inch inlet and outlet connections.

🔹 Electrical Specifications

Voltage: Not Applicable

Phase: Not Applicable

Frequency: Not Applicable

Amperage: Not Applicable

Power Type: Non-Powered

The filtration system operates through incoming water pressure and requires no electrical connection.

🔹 Filtration System

E20 full-size commercial prefilter housing

20-inch sediment prefilter configuration

Twin-Series dual-cartridge filter head

Two primary quick-change cartridge positions

Dual pressure gauges

Integrated water shutoff valve

Built-in flushing connection

Commercial plumbing manifold

Wall-mounting bracket

Replaceable filter-cartridge design

🔹 Dimensions

E20 Prefilter Housing

Height: Approximately 22.44 in

Width: Approximately 5.16 in

Depth: Approximately 5.5 in

Complete Assembly

Overall Width: Approximately 22 in

Overall Depth: Approximately 7 in

Overall Height: Approximately 27 in

Number of Primary Cartridge Positions: 2

Prefilter Bowl Size: 20 in

Mounting Type: Vertical Wall Mount

Final complete-system dimensions should be confirmed physically before installation. Pentair’s published E20 dimensions are approximately 22.44 inches high by 5.16 inches wide by 5.5 inches deep.

🔹 Construction

Heavy-duty black commercial prefilter housing

Durable commercial plumbing manifold

Twin quick-change filter heads

Steel wall-mounting bracket

Two analog pressure gauges

Blue quarter-turn shutoff valve

Integrated flush and service connection

Reinforced inlet and outlet fittings

Replaceable housing O-ring

Serviceable prefilter bowl

Commercial foodservice water-treatment construction

🔹 Key Features

Commercial two-stage filtration configuration

E20 20-inch sediment prefilter

Twin primary-cartridge filtration head

Two integrated pressure gauges

Monitors inlet and outlet water pressure

Helps identify cartridge restriction

Removes larger dirt and rust particles

Helps extend primary-filter cartridge life

10-micron nominal prefiltration with EC210 cartridge

Maximum E20 flow rate up to 8 GPM

Built-in water shutoff valve

Built-in flushing connection

Quick-change primary cartridge design

Heavy-duty wall-mounting bracket

No electrical connection required

Designed for commercial foodservice applications

Compatible with selected Everpure commercial cartridges

Suitable for continuous commercial water service

Pentair states that its Twin-Series head includes a built-in shutoff and flushing valve, pressure monitoring, mounting hardware, and fittings.

🔹 Recommended Applications

Restaurants

Commercial kitchens

Coffee shops

Cafés

Ice machines

Fountain beverage systems

Coffee brewers

Espresso machines

Combi ovens

Steam equipment

Foodservice beverage stations

Hotels

Catering facilities

Convenience stores

Institutional kitchens

School cafeterias

Hospital foodservice operations

High-volume water applications

🔹 Certifications

Pentair Everpure commercial water-filtration components are manufactured for foodservice water-treatment applications.

Specific NSF certification depends on the compatible primary cartridges installed in the Twin-Series head.

The prefilter and head assembly should be operated only with approved potable-water cartridges and within the manufacturer’s pressure and temperature limits.

🔹 Manufacturing Information

Manufacturer: Pentair Everpure

Brand: Everpure

Prefilter Series: E-Series

Prefilter Model: E20

Prefilter Part Number: EV979590

Twin Head Model: Twin-Series Head

Twin Head Part Number: EV927224

Equipment Type: Commercial Prefilter and Dual-Cartridge Water-Filtration Assembly

Prefilter Cartridge: EC210

EC210 Cartridge Part Number: EV9534-20 / EV9534-26

Country of Manufacture: Confirm from individual component labels

Installation Type: Vertical Wall-Mounted

Pentair identifies EV979590 as the E20 prefilter and EV927224 as the commercial Twin-Series dual-cartridge head.

🔹 Included

Pentair Everpure E20 prefilter housing

Commercial 20-inch prefilter bowl

Pentair Everpure Twin-Series dual filter head

Two installed pressure gauges

Integrated black plumbing manifold

Blue shutoff and flushing valve

Commercial wall-mounting bracket

Installed inlet and outlet fittings shown in photos

Unit sold exactly as shown in photos

🔹 Important Notes

Sold as-is, where-is

Fully tested and working prior to listing

Primary quick-change filter cartridges are not included

EC210 prefilter cartridge should be replaced before installation unless otherwise stated

Replacement cartridges must be purchased separately

Water lines and installation plumbing are not included

Professional installation is recommended

Use only with cold potable water

Do not exceed the rated pressure or temperature range

Flush new cartridges according to manufacturer instructions

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
