Prime Condition – Ecolab 9320-2268 Split Twin – Commercial Dual-Outlet Water Filtration System – ECO-TO20S & ECO-TO14 Cartridges – Dual Pressure Gauges – Fully Inspected & Ready for Professional Installation!

Prime Condition – Ecolab 9320-2268 Split Twin – Commercial Dual-Outlet Water Filtration System – ECO-TO20S & ECO-TO14 Cartridges – Dual Pressure Gauges – Fully Inspected & Ready for Professional Installation!

Condition

Used – Prime Condition – Fully Inspected for Physical Completeness

This commercial water-filtration assembly has been inspected for overall physical condition and completeness.

The split-twin manifold, two Ecolab-branded filtration cartridges, wall-mounting plate, two pressure gauges, shutoff valves, flushing components, cartridge-locking heads, and visible threaded connections are present.

The housings and manifold show scratches, scuffs, water marks, discoloration, residue, label wear, and normal cosmetic evidence of previous commercial installation and service.

Because the remaining capacity and sanitary condition of previously installed filtration media cannot be determined visually, both cartridges should be replaced before the system is returned to foodservice operation.

The manifold must be sanitized, professionally installed, pressure-tested, flushed, and checked for leaks before use.

Description

The Ecolab 9320-2268 Split Twin Head Filtration System is designed to supply filtered cold water to two commercial foodservice applications from one wall-mounted assembly.

Unlike a standard parallel twin-head system, the split-twin configuration provides separate filtration paths and separate filtered-water outlets. This allows different cartridge types and sizes to be installed according to the requirements of the connected equipment.

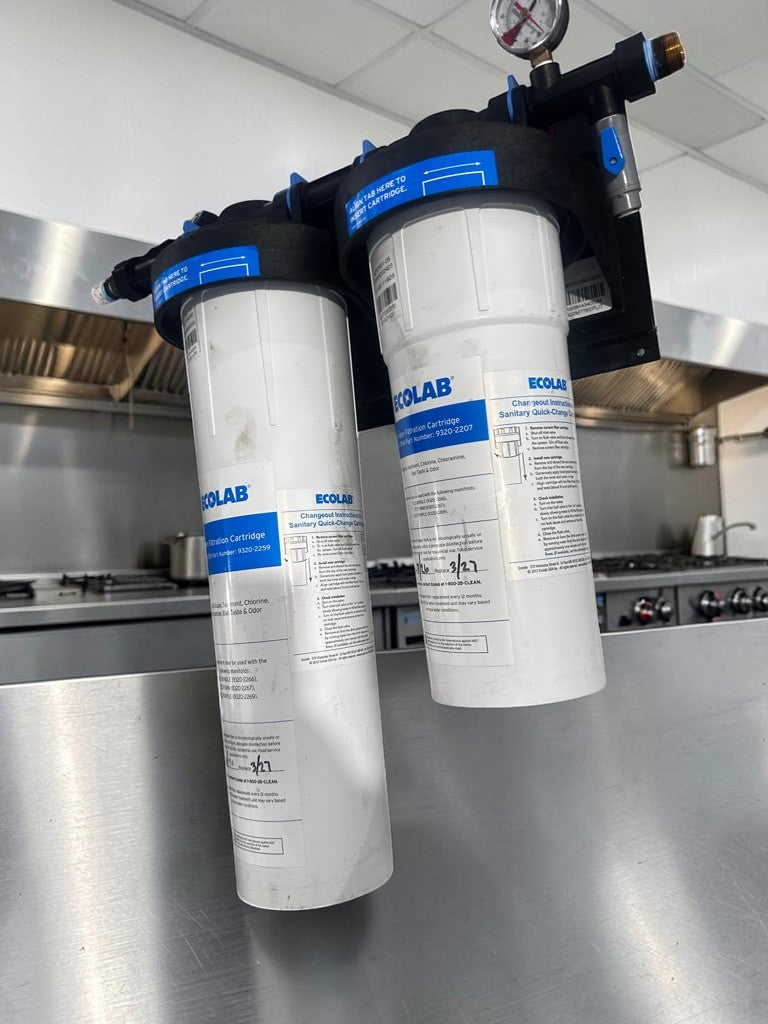

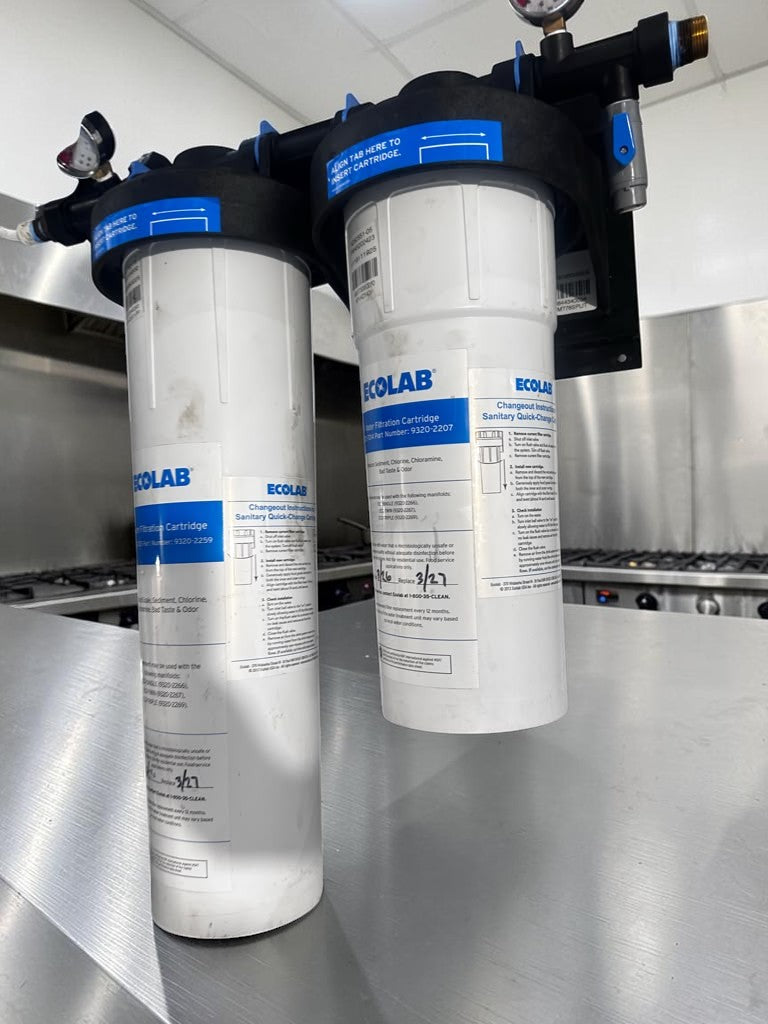

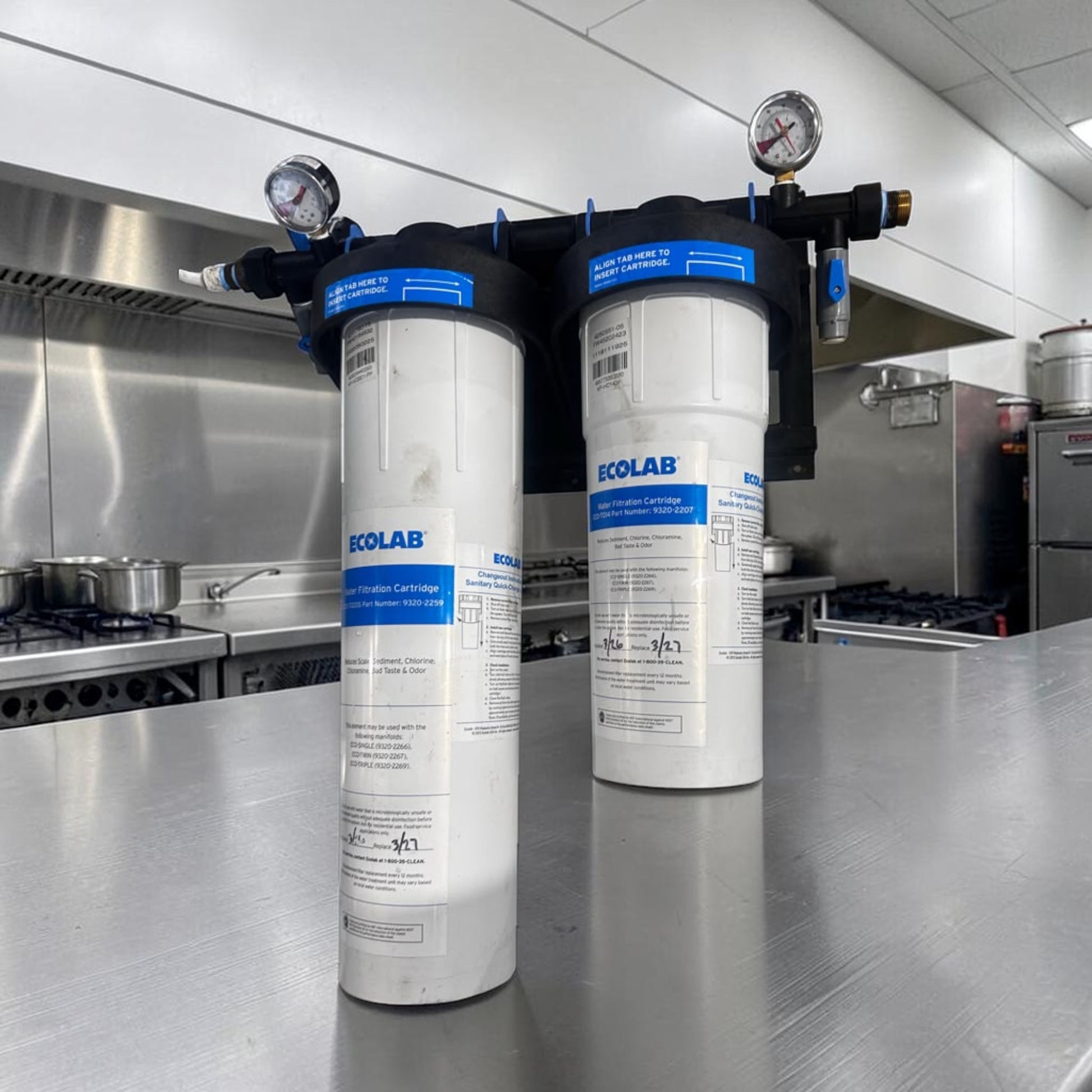

The photographed assembly includes:

• One 20-inch Ecolab ECO-TO20S cartridge with scale-control media
• One 14-inch Ecolab ECO-TO14 high-capacity carbon cartridge
• Two pressure gauges
• Separate service controls
• Quick-change cartridge heads
• Wall-mounting plate
• Commercial threaded water connections

The ECO-TO20S side is intended for applications that benefit from chlorine, chloramine, taste, odor, particulate, and scale reduction, such as ice machines, coffee equipment, brewers, steamers, and combination ovens.

The ECO-TO14 side provides high-capacity chlorine, chloramine, taste, odor, and particulate reduction for fountain beverages, drinking water, juice systems, coffee, tea, and other cold-water foodservice applications.

Ecolab’s published documentation identifies 9320-2268 as its Split Twin Head system and specifies a cold-water operating range of 40–100°F and 40–100 PSI. Official Ecolab filtration specifications

System Configuration

System Type: Split Twin / Dual Independent Filtration Paths

Ecolab Head Model: 9320-2268 – Based on Configuration and Published Documentation

Current KineticoPRO Equivalent: KP-300-778SD

Number of Cartridges: 2

Number of Pressure Gauges: 2

Number of Water Inlets: 1

Number of Filtered-Water Outlets: 2

Manifold Arrangement: Split Double Manifold

Water Application: Cold Potable Water

Electrical Connection: None

The current KineticoPRO specification identifies KP-300-778SD as the split-double manifold with two outlets and two pressure gauges. Official KineticoPRO manifold specifications

Approximate Dimensions

Width: Approximately 22″

Depth: Approximately 10″

Installed Hardware Height: Approximately 29″ with the 20-inch cartridge installed

Recommended Installation Height: Approximately 33″, including cartridge-removal clearance

Approximate Metric Hardware Dimensions: 559 × 254 × 737 mm

These dimensions are based on Ecolab’s published installation dimensions for its split-twin system with a 20-inch cartridge. Warehouse measurements should be used if exact shipping dimensions are required.

Operating Requirements

Minimum Operating Pressure: 40 PSI

Maximum Operating Pressure: 100 PSI

Minimum Water Temperature: 40°F / 4.4°C

Maximum Water Temperature: 100°F / 37.8°C

Connection Size: 3/4″ FNPT

Water Type: Cold Potable Water Only

Power Requirement: None

Voltage: Not Applicable

Phase: Not Applicable

Amperage: Not Applicable

Drain Requirement: Normally not required for standard filtration operation

Installation requirements may vary according to connected equipment, local plumbing codes, incoming water quality, and required flow rates.

Cartridge One

Ecolab ECO-TO20S

Ecolab Part Number: 9320-2259

Kinetico Cartridge Identification: KP-HC2001-PP

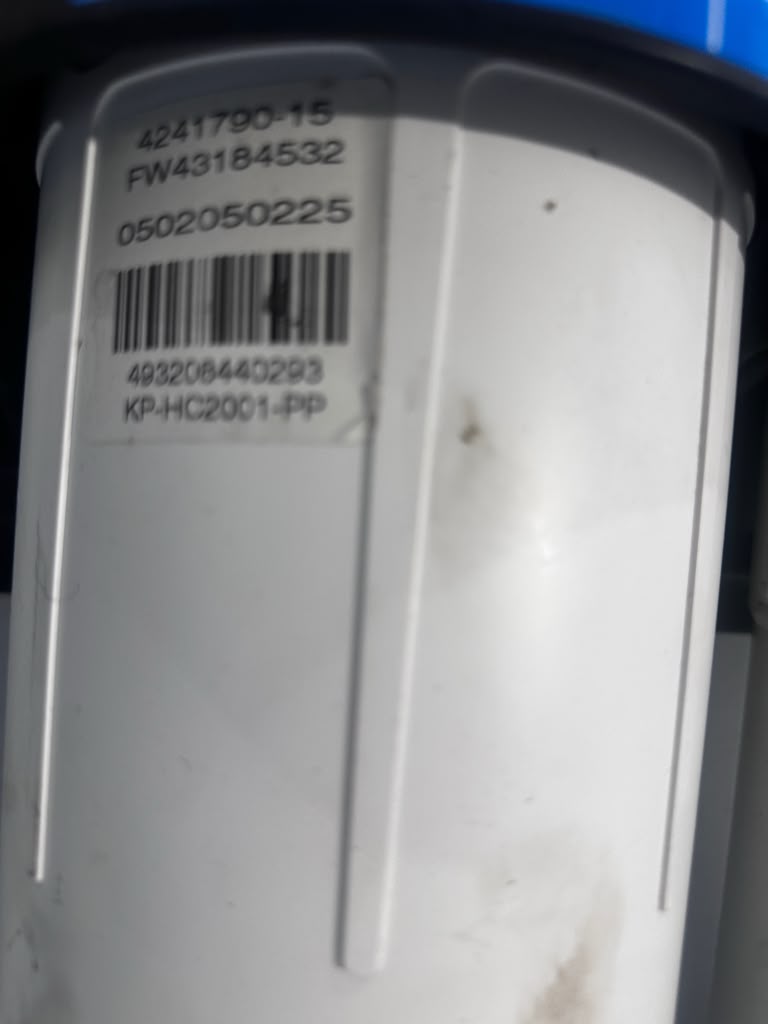

Visible Production Identification: 4241790-15

Visible Production Code: FW43184532

Visible Number: 0502050225

Visible Barcode Number: 493208440203

Cartridge Length: 20″

Filtration Media: High-capacity activated hollow carbon with scale-control media

Scale Control: Yes

Published Chlorine Capacity: Up to 100,000 Gallons at 10 GPM

Published Chloramine Capacity: Up to 22,500 Gallons at 3 GPM

Particulate Reduction: Approximately 0.5 Micron / Class I

Primary Reduction Claims:

• Chlorine taste and odor
• Chloramines
• Unpleasant taste
• Unpleasant odor
• Fine particulates
• Sediment
• Scale-causing minerals

Suitable Applications:

• Ice machines
• Coffee and tea brewers
• Steamers
• Combination ovens
• Frozen-beverage equipment
• Hot-beverage equipment
• Equipment requiring scale control

The 9320-2259 cartridge is identified by Ecolab as the ECO-TO20S 20-inch scale-control cartridge. Exact cartridge identification

Cartridge Two

Ecolab ECO-TO14

Ecolab Part Number: 9320-2207

Kinetico Cartridge Identification: KP-HC1401

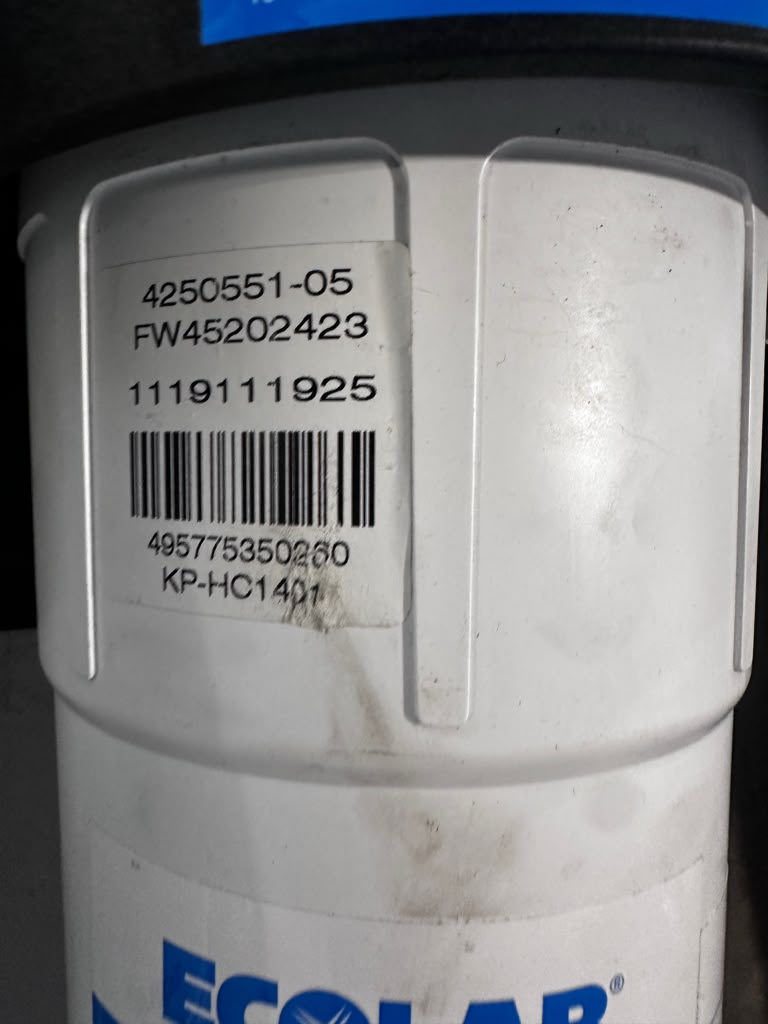

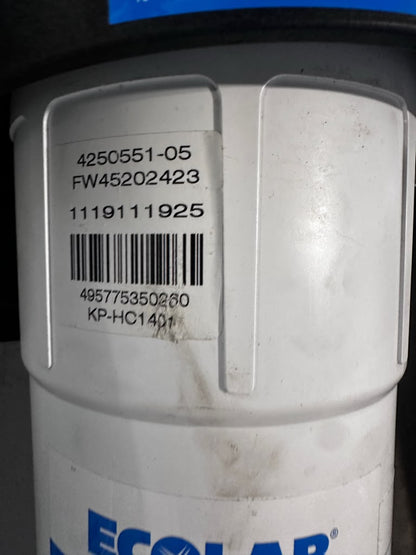

Visible Production Identification: 4250551-05

Visible Production Code: FW45202423

Visible Number: 1119111925

Visible Barcode Number: 495775350260

Cartridge Length: 14″

Filtration Media: High-capacity activated hollow carbon

Scale Control: No

Published Chlorine Capacity: Up to 75,000 Gallons at 7 GPM

Published Chloramine Capacity: Up to 15,000 Gallons at 3.7 GPM

Particulate Reduction: Approximately 0.5 Micron / Class I

Primary Reduction Claims:

• Chlorine taste and odor
• Chloramines
• Unpleasant taste
• Unpleasant odor
• Fine particulates
• Sediment
• Organic compounds that may affect beverage quality

Suitable Applications:

• Fountain beverage systems
• Drinking-water lines
• Juice dispensers
• Coffee and tea equipment
• Specialty beverages
• Cold-beverage stations
• Foodservice ingredient water

The label and manufacturer number confirm this cartridge as the Ecolab ECO-TO14, part 9320-2207. Exact cartridge identification and current listing

Important Capacity Explanation

The published capacities apply to each cartridge and filtration path individually.

Do not advertise the system as having a combined 175,000-gallon capacity because:

• The manifold is a split-twin configuration
• Each cartridge supplies a separate outlet
• The cartridges have different media
• The cartridges have different lengths
• The cartridges have different service-flow ratings
• Only the ECO-TO20S side provides scale control

Actual cartridge life depends on incoming water quality, chlorine or chloramine concentration, sediment load, scale conditions, daily water consumption, operating pressure, and maintenance procedures.

Construction

Heavy-duty commercial filtration manifold

Split-double manifold configuration

Two independent filtration heads

Two sanitary quick-change cartridges

Durable polypropylene cartridge construction

Activated hollow-carbon filtration media

Food-grade scale-control media in the ECO-TO20S cartridge

Integrated metal wall-mounting plate

Two installed pressure gauges

Integrated shutoff controls

Integrated flushing components

Blue cartridge-alignment tabs

Twist-lock cartridge installation

Commercial threaded inlet and outlet connections

Non-electric operation

Modular serviceable design

White, black, and Ecolab-blue finish

Key Features

Two independent filtered-water outlets

Supports different filtration requirements simultaneously

One high-capacity 20-inch scale-control cartridge

One high-capacity 14-inch carbon cartridge

Reduces chlorine and chloramine

Improves beverage taste and odor

Reduces fine particulates and sediment

Helps protect connected equipment

Scale control on the ECO-TO20S outlet

Two gauges assist with pressure monitoring

Sanitary quick-change cartridge design

Cartridges can be replaced without opening conventional filter sumps

Wall-mounted commercial configuration

No electricity required

Low-pressure-drop filtration design

Suitable for high-volume foodservice operations

Compatible with commercial water-using equipment

Commercial Applications

Restaurants

Fast-food restaurants

Cafés

Coffee shops

Hotels

Bars

Commercial kitchens

Convenience stores

Food courts

Catering facilities

Banquet operations

Institutional kitchens

School cafeterias

Healthcare foodservice

Corporate dining

Grocery-store foodservice

Beverage stations

Fountain-drink systems

Ice-machine installations

Coffee and tea stations

Juice-dispensing systems

Steamers and combination ovens

Specialty-beverage equipment

Certifications

Filtration Performance: Published to NSF/ANSI Standard 42

Electrical Certifications: Not Applicable

UL Listed: Not Applicable

ETL Listed: Not Applicable

NSF-7: Not Applicable

This is non-electric water-treatment equipment. The individual filtration performance is published to NSF/ANSI 42 requirements; the completed used installation should be inspected and tested before certification claims are applied to the entire installed system.

Manufacturing Information

Displayed Brand: Ecolab

Filtration Platform Manufacturer: Kinetico Incorporated / KineticoPRO

System Family: Ecolab High-Capacity Water Filtration

Head Model: 9320-2268 – Split Twin Head

Current Equivalent Manifold: KP-300-778SD

20″ Cartridge: ECO-TO20S / 9320-2259 / KP-HC2001-PP

14″ Cartridge: ECO-TO14 / 9320-2207 / KP-HC1401

Product Type: Commercial Split-Twin Water Filtration System

Manifold Country of Manufacture: USA – Current KineticoPRO Platform

Included

One split-twin commercial filtration manifold

One Ecolab ECO-TO20S 20-inch cartridge

One Ecolab ECO-TO14 14-inch cartridge

Two installed pressure gauges

Integrated wall-mounting plate

Installed shutoff and flushing components

Installed threaded fittings shown in the photographs

Cartridge-locking and alignment components

System sold exactly as shown in the supplied photographs

Water lines, mounting screws, replacement cartridges, sanitizing chemicals, installation labor, plumbing adapters, connected equipment, and additional accessories are not included.

Important Notes

Used commercial water-filtration equipment

System model identified from its split-twin configuration

Visible cartridge numbers confirmed from supplied photographs

Cartridges are two different sizes and types

Do not list the unit as KPMF HC614-2

Do not list both cartridges as KP-HC1401

Do not describe the manifold as a standard parallel twin system

The ECO-TO20S side includes scale control

The ECO-TO14 side does not include scale control

Remaining cartridge life is unknown

Internal cartridge condition cannot be visually inspected

Both used cartridges should be replaced before foodservice use

Professional installation is required

Sanitize the complete system before installation

Flush new cartridges according to manufacturer instructions

Pressure-test the assembly before use

Inspect all seals and O-rings

Replace damaged or hardened seals

Inspect both pressure gauges

Confirm gauge accuracy during commissioning

Check every fitting for leakage

Use only with cold potable water

Do not connect to hot water

Do not exceed 100 PSI

Use a pressure regulator when supply pressure may exceed the rating

Do not expose the system to freezing temperatures

Do not install where the system can be struck or damaged

Mount the system securely to a structurally suitable wall

Provide adequate clearance beneath both cartridges

Confirm each outlet’s equipment requirements

Do not connect microbiologically unsafe water without adequate disinfection

Follow local plumbing, food-safety, and health-code requirements

Actual water quality should be tested after installation

Sold as-is, where-is

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
