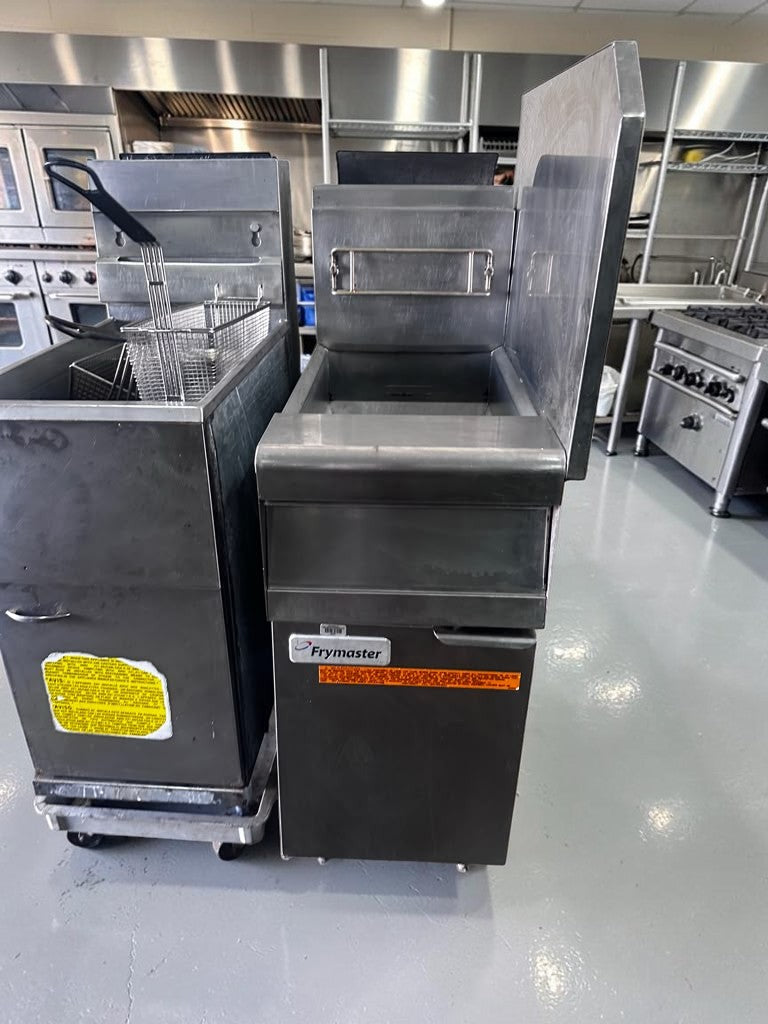

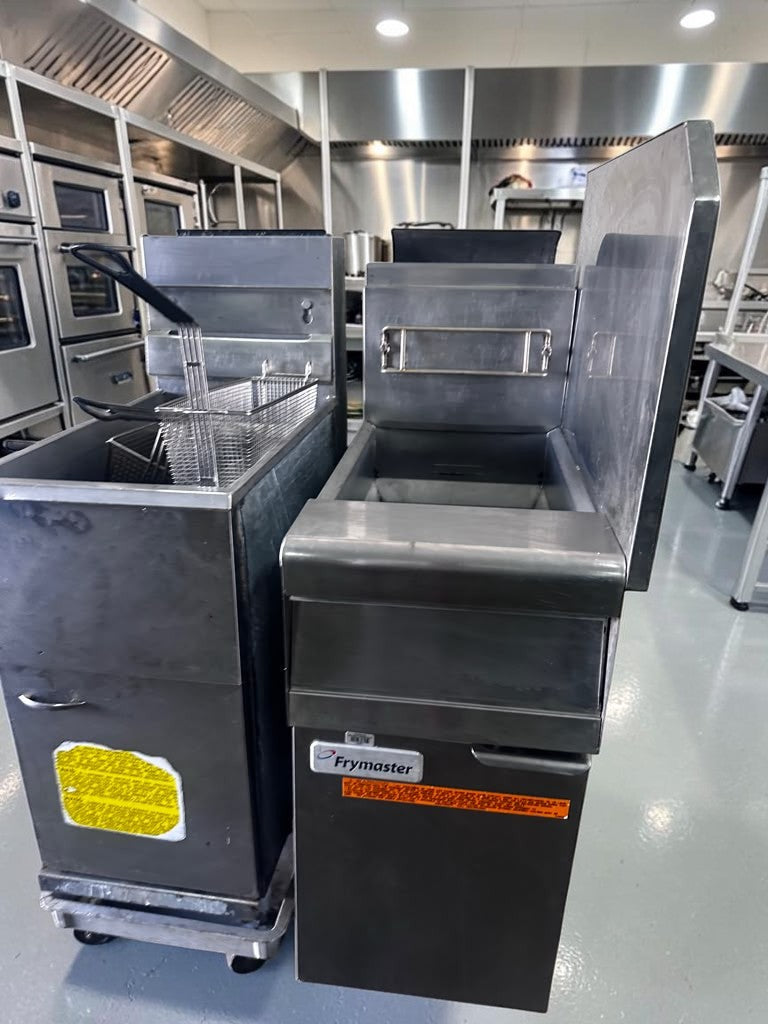

Prime Condition – Frymaster PMJ145SC – 16″ Natural-Gas Floor Fryer – 40–50 lb Oil Capacity – 104,300 BTU – Fully Tested & Operational!

Condition

Used – Prime Condition – Fully Tested & Operational

This unit has been professionally inspected and tested to confirm proper heating, burner, thermostat, pilot, gas-valve, and drain operation.

The stainless-steel exterior and interior show scratches, grease residue, discoloration, oxidation, surface rust, and cosmetic wear consistent with previous commercial kitchen use.

Description

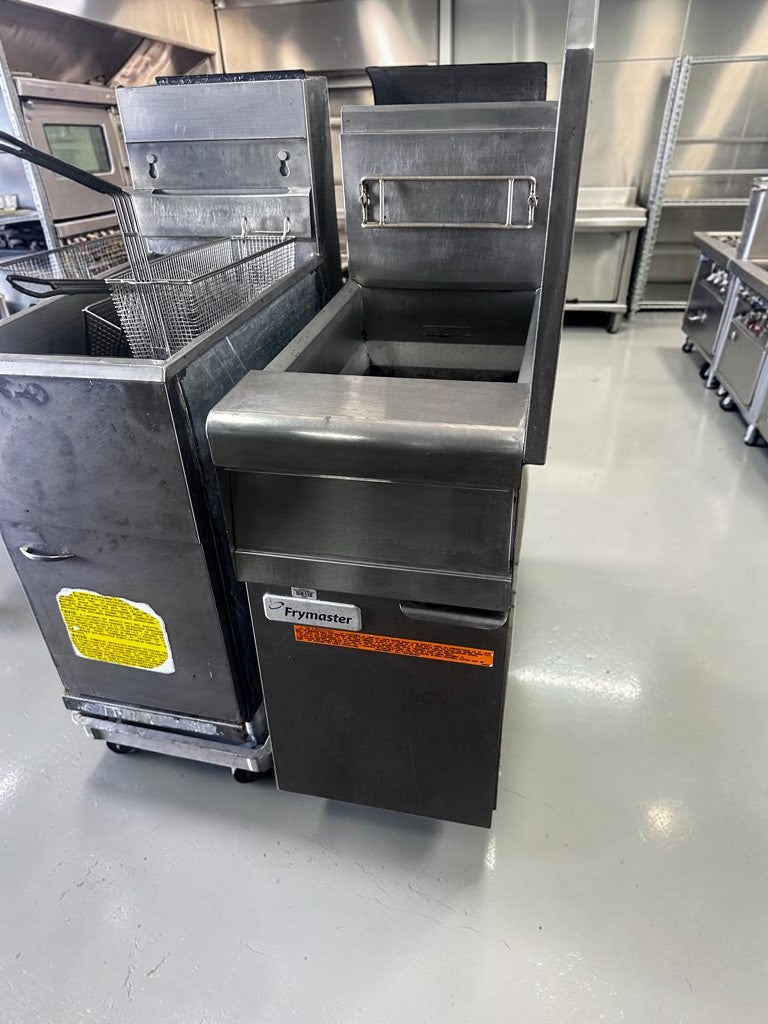

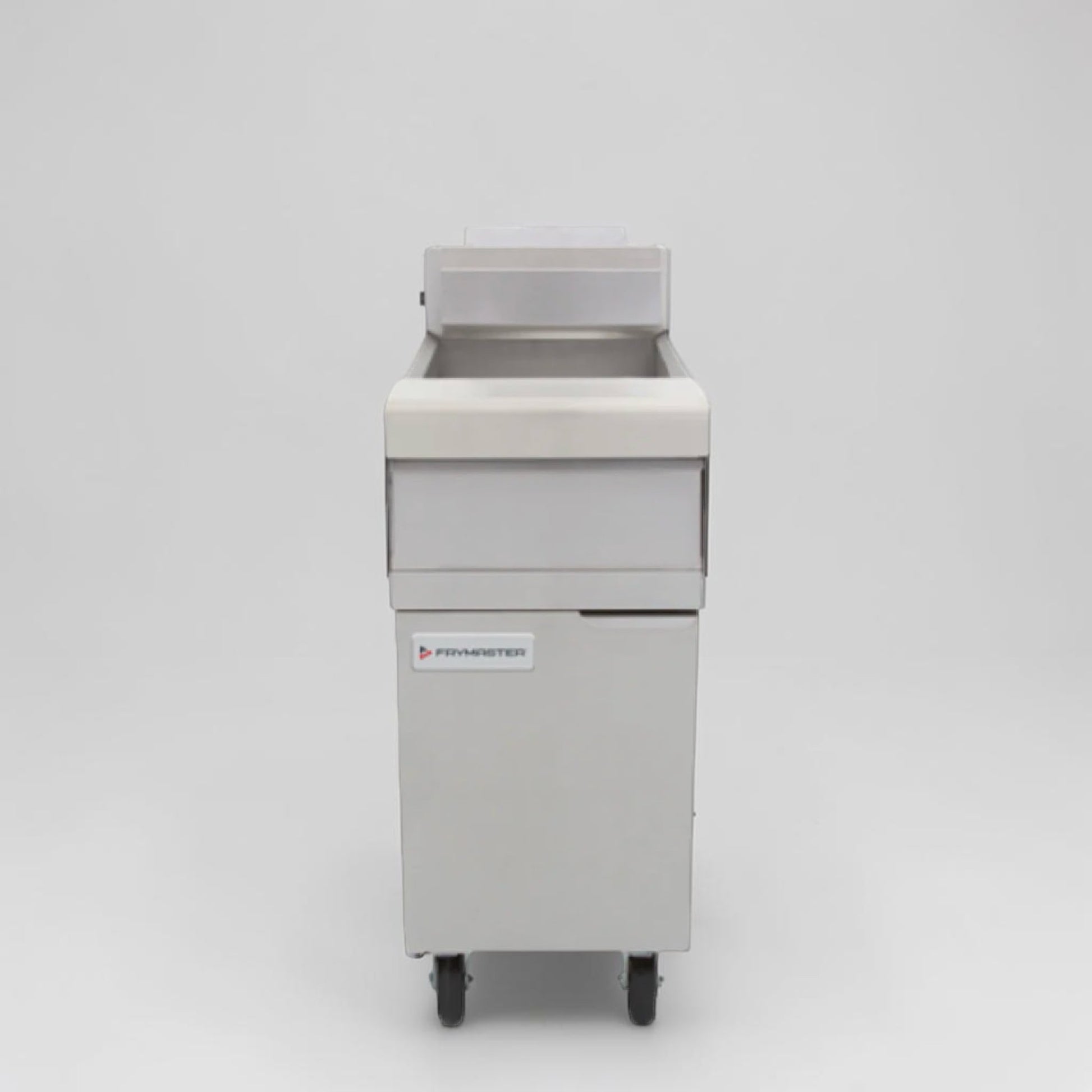

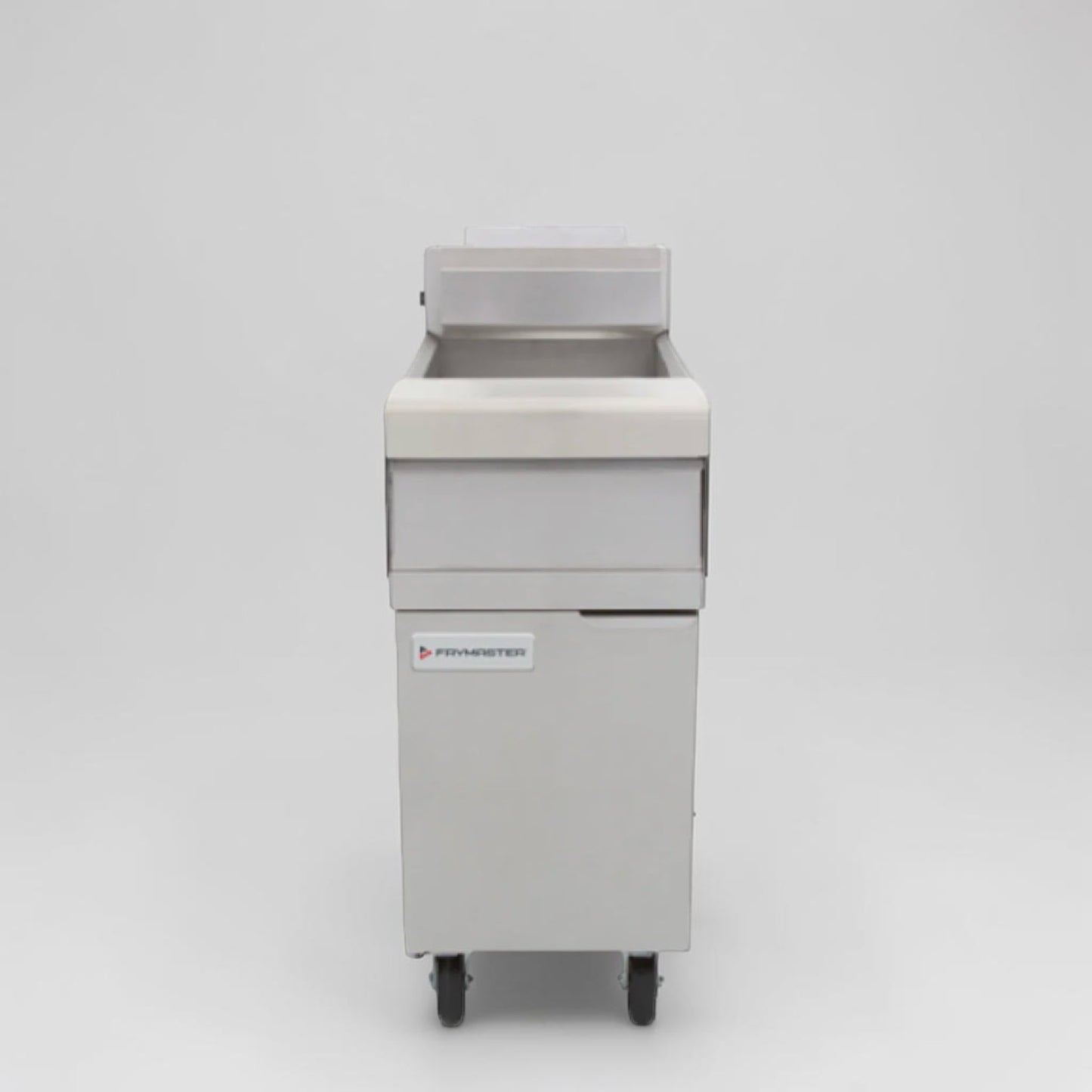

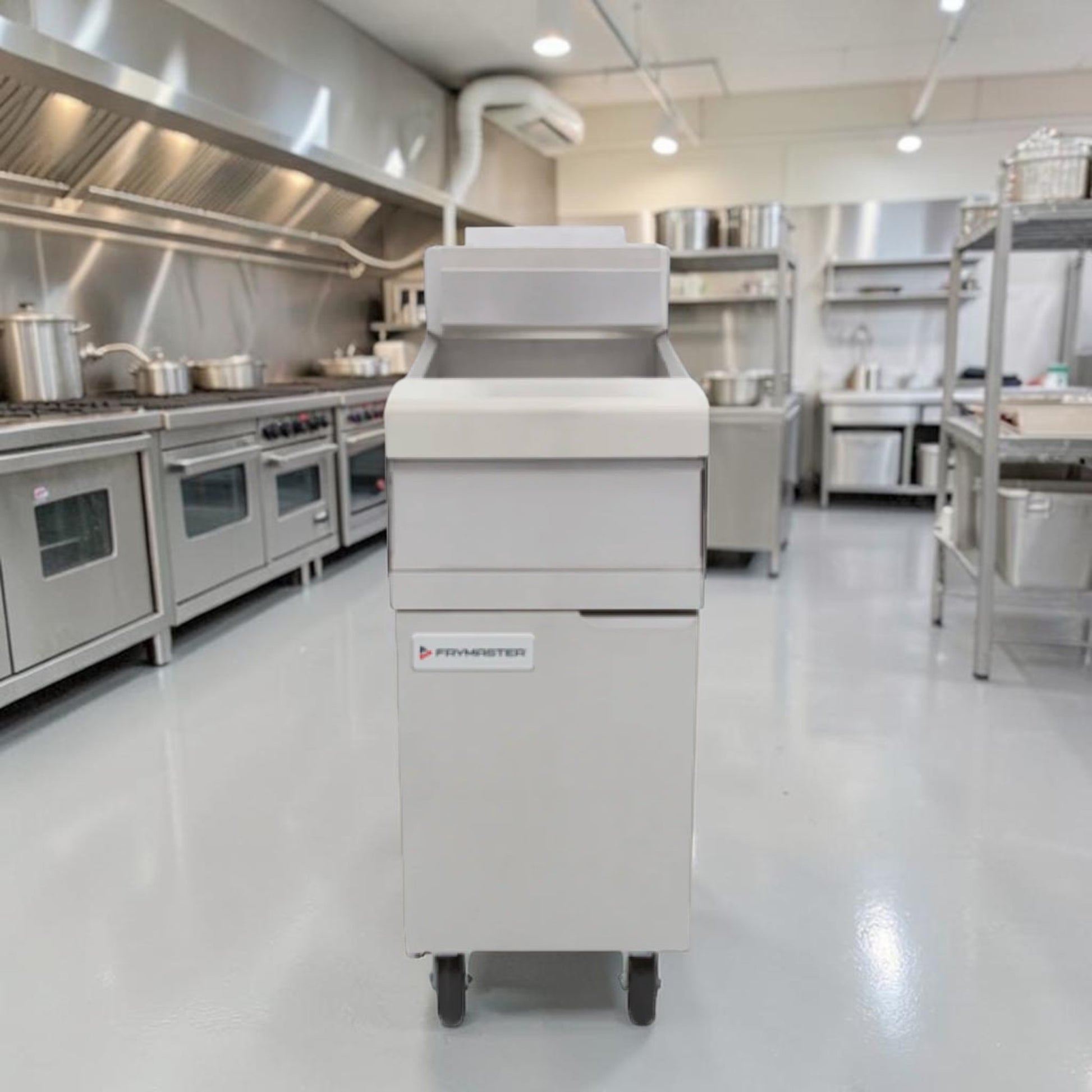

The Frymaster PMJ145SC is a heavy-duty commercial natural-gas floor fryer from Frymaster’s MJ45 Performance Series.

Its open-pot design provides direct access to the stainless-steel frypot and deep cold zone, making routine cleaning and sediment removal easier than with traditional tube-style fryers.

The Master Jet burner system distributes heat around the frypot for efficient heat transfer, rapid temperature recovery, and consistent frying performance during busy commercial service.

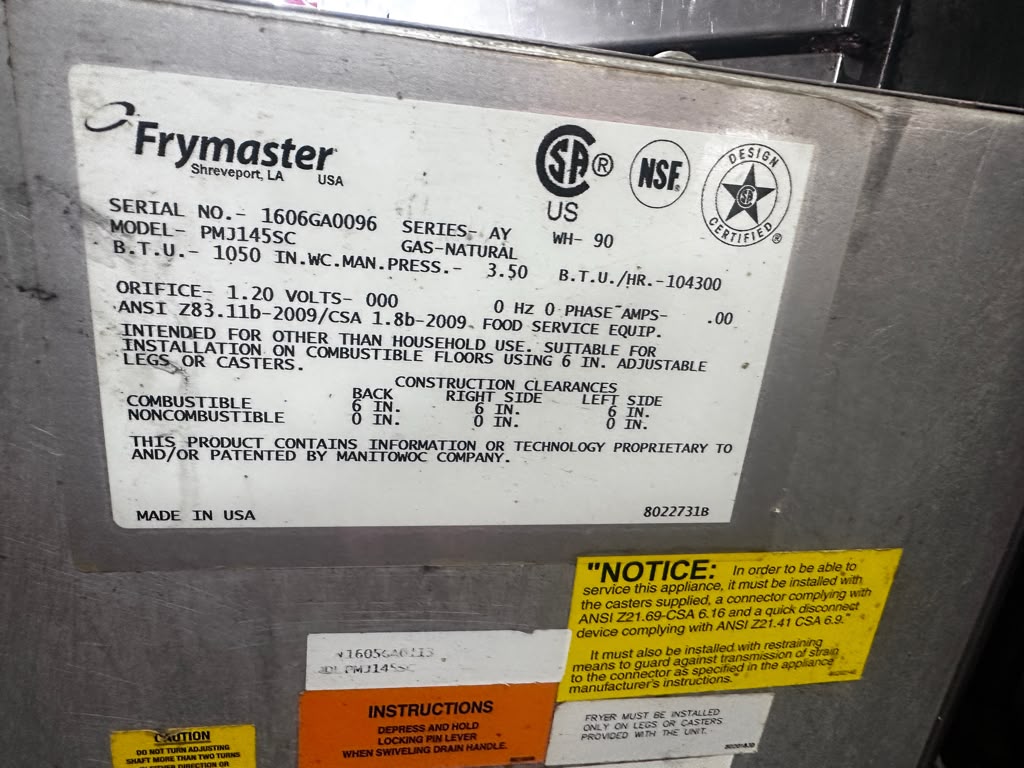

This exact fryer is rated at 104,300 BTU per hour, as confirmed by its data plate. Published MJ45-series specifications may show higher input ratings, but the rating plate on this specific unit takes precedence.

Gas Specifications

Gas Type: Natural Gas

Gas Input: 104,300 BTU/hr – Confirmed by Data Plate

Burner System: Frymaster Master Jet

Manifold Pressure: 3.5″ W.C. – Confirmed by Data Plate

Recommended Minimum Incoming Natural-Gas Pressure: Approximately 6″ W.C.

Gas Connection: ¾″ Commercial Gas Connection

Control Type: Millivolt Gas Control

Ignition System: Standing Pilot / Millivolt System

External Electrical Connection: Not Required for This Configuration

Professional installation by a licensed commercial gas technician is required.

Electrical Specifications

Voltage: 0V / No External Electrical Supply Required

Phase: Not Applicable

Frequency: 0 Hz

Amperage: 0 Amps

Power Type: Natural Gas

The unit’s data plate shows 000 volts, 0 Hz, 0 phase, and 0.00 amps, indicating a gas-powered millivolt-control configuration.

Dimensions

Width: Approximately 15.625″

Nominal Width: 16″

Depth: Approximately 31.5″

Height: Approximately 46″

Published Net Weight: Approximately 202 lb

Standard Leg Height: 6″ with Approximately 1″ Adjustment

These dimensions follow the legacy MJ45-series configuration. Frymaster MJ45 specification sheet: https://fm-xweb.frymaster.com/products/pdf%20files/mj45spec.pdf

Frypot & Oil Capacity

Frypot Configuration: One Full Open Frypot

Minimum Oil Capacity: Approximately 40 lb / 20 Liters

Maximum Oil Capacity: Approximately 50 lb / 25 Liters

Frying Area: Approximately 14″ × 15″

Frying Depth: Approximately 5″

Cold Zone: Deep Sediment-Collection Cold Zone

Drain Valve: 1¼″ Manual Ball-Type Drain Valve

The legacy MJ45 specification identifies a minimum 40-pound and maximum 50-pound shortening capacity. MJ45 capacity and configuration: https://www.bakedeco.com/images/spec/Frymaster-MJ45.pdf

Construction

Stainless-steel open frypot

Stainless-steel front door

Commercial stainless-steel exterior surfaces

Single full-size frypot

Open-pot design without internal burner tubes

Deep cold zone for collecting food particles and sediment

Forward-sloping frypot bottom

Manual front-access drain valve

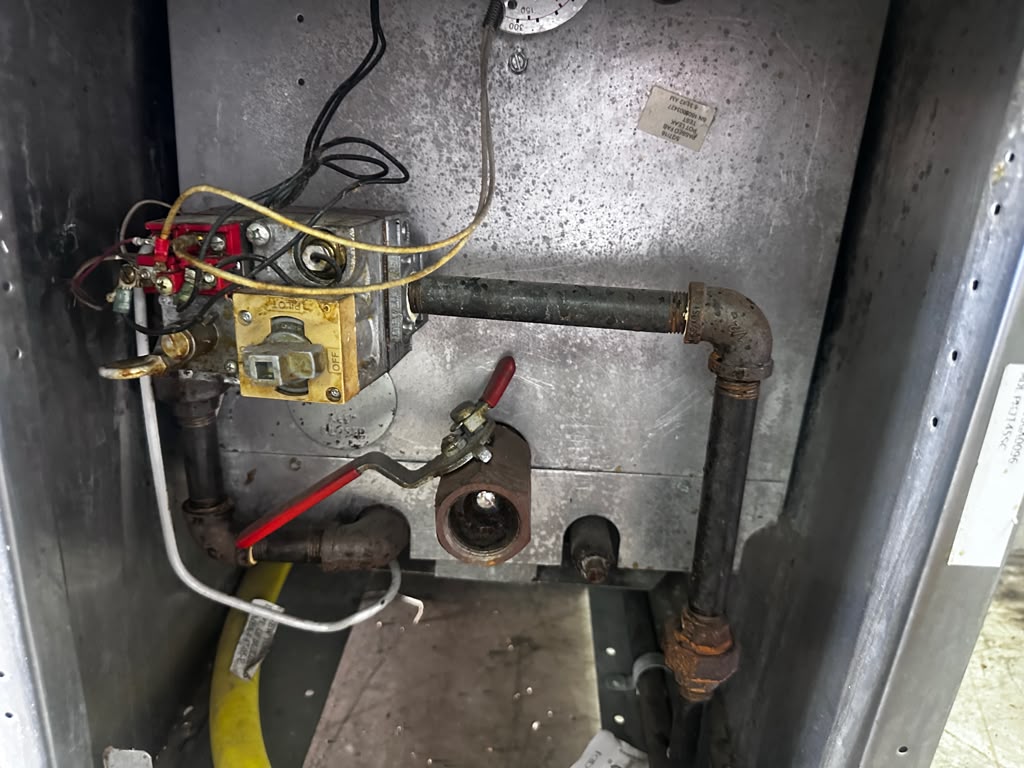

Front-access gas-control compartment

Master Jet burner system

Centerline temperature probe

High-limit safety thermostat

Rear flue and basket-hanger area

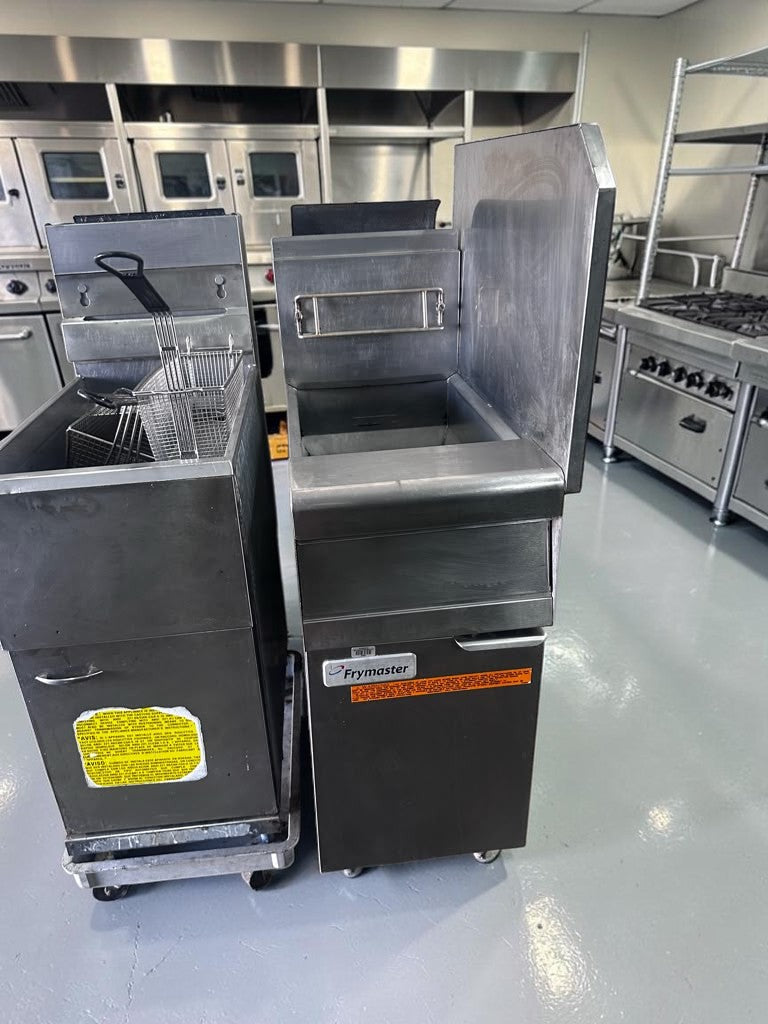

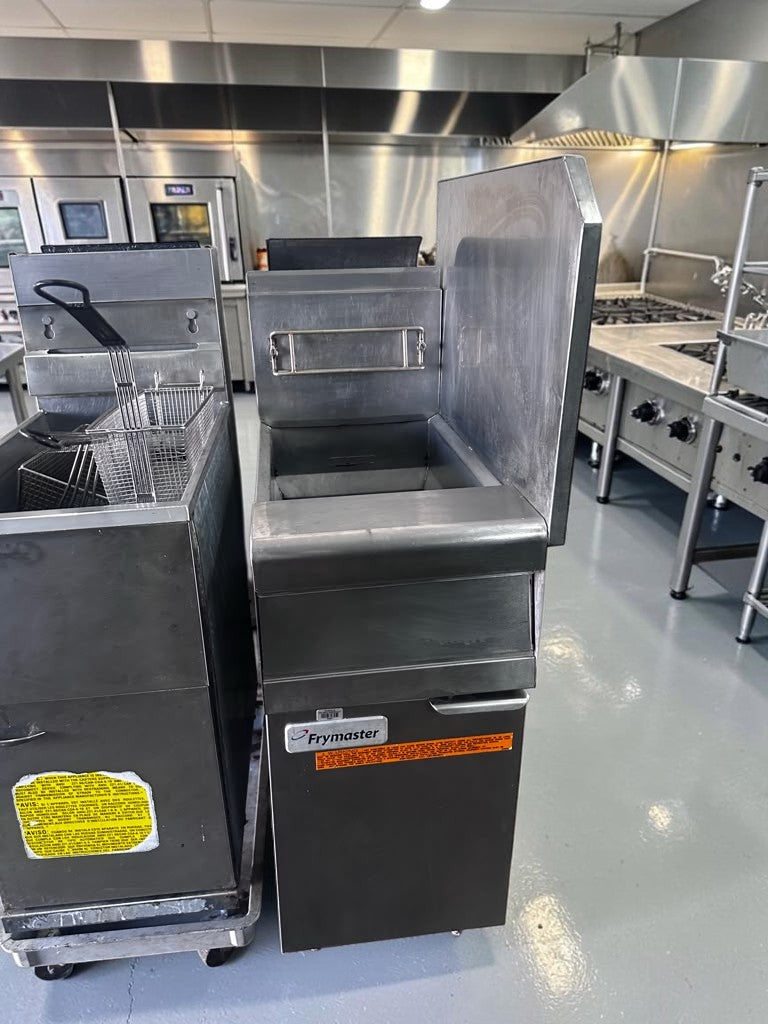

Installed side splash panel as shown

Commercial floor-model construction

Key Features

Approximately 40–50 lb oil capacity

104,300 BTU/hr natural-gas input

Space-saving 16-inch-wide cabinet

Single full-size open frypot

Master Jet burner technology

Fast heat transfer and temperature recovery

Centerline fast-action temperature probe

Millivolt operation requiring no standard electrical outlet

Deep cold zone helps separate sediment from cooking oil

Large 1¼-inch drain valve

Open frypot allows easier cleaning and manual wipe-down

Suitable for French fries, chicken, seafood, appetizers, and breaded foods

Designed for demanding commercial foodservice operations

Made in the USA

Installation Clearances

Combustible Construction

Rear Clearance: 6″

Right-Side Clearance: 6″

Left-Side Clearance: 6″

Noncombustible Construction

Rear Clearance: 0″

Right-Side Clearance: 0″

Left-Side Clearance: 0″

The data plate requires installation on noncombustible flooring using approved 6-inch adjustable legs or casters.

Certifications

NSF Certified

CSA Certified

CSA Design Certified

Conforms to ANSI Z83.11b-2009

Conforms to CSA 1.8b-2009

Commercial Foodservice Equipment Certification

Certification markings are visible on the unit’s data plate.

Manufacturing Information

Manufacturer: Frymaster

Manufacturer at Time of Production: Manitowoc Company

Model on Data Plate: PMJ145SC

Product Series: MJ45 Performance Series

Serial Number: 1606GA0096

Series Code: AY

Gas Type: Natural Gas

Manufacturer Location: Shreveport, Louisiana, USA

Country of Manufacture: USA

Included

One Frymaster PMJ145SC natural-gas floor fryer

One installed full-size stainless-steel frypot

Installed burner and millivolt gas-control system

Installed drain valve and locking handle

Installed rear basket-hanger assembly

Installed side splash panel as shown

Installed legs or casters only as physically present

Unit sold exactly as shown in the provided photos

Important Notes

Sold as-is, where-is

Fully tested and operational before listing

Configured for natural gas only

Do not connect to propane without an approved professional conversion

Visible scratches, grease residue, discoloration, oxidation, and surface rust

Fryer baskets are not shown with this unit and are not included unless separately confirmed

The adjacent fryer and its baskets are not included

Gas connector hose and quick-disconnect kit are not included unless physically provided

Clean and sanitize the frypot before operation

Gas pressure must be checked during installation

A commercial ventilation hood and fire-suppression system are required

Installation must comply with applicable fire, gas, and building codes

Professional installation by a licensed commercial gas technician is required

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
