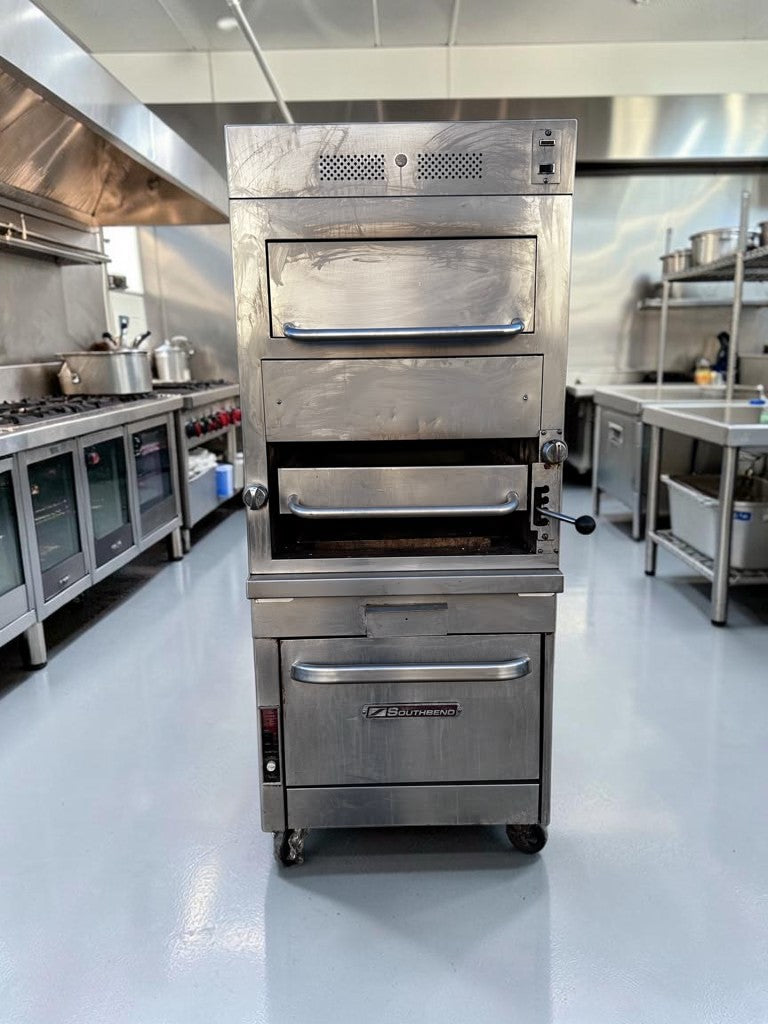

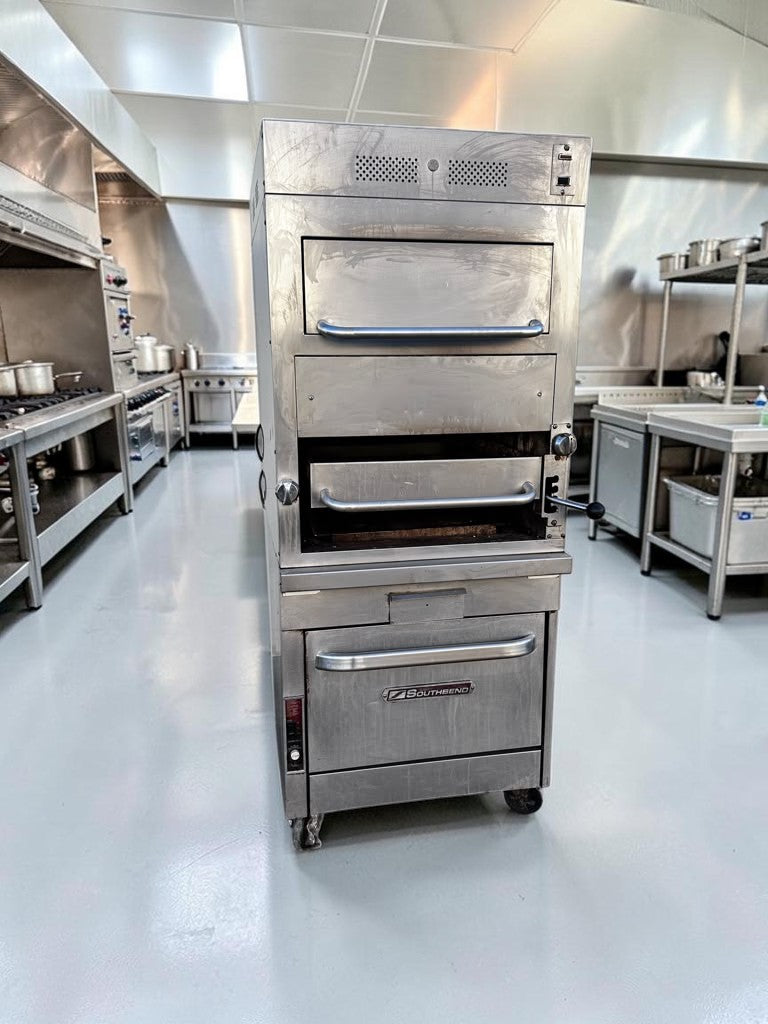

Dependable Condition – Southbend P32A-171 Platinum Series – 32" Gas Infrared Upright Broiler with Warming Oven & Convection Oven Base – Natural Gas – Fully Tested & Operational!

Condition

Used – Dependable Condition – Fully Tested & Operational

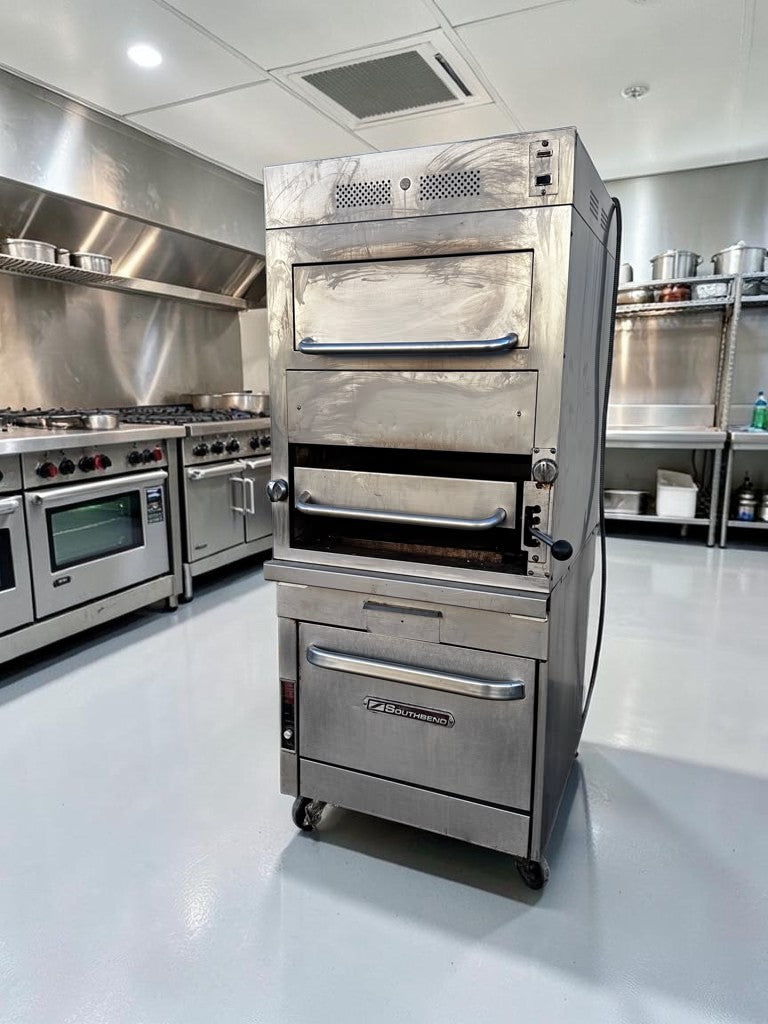

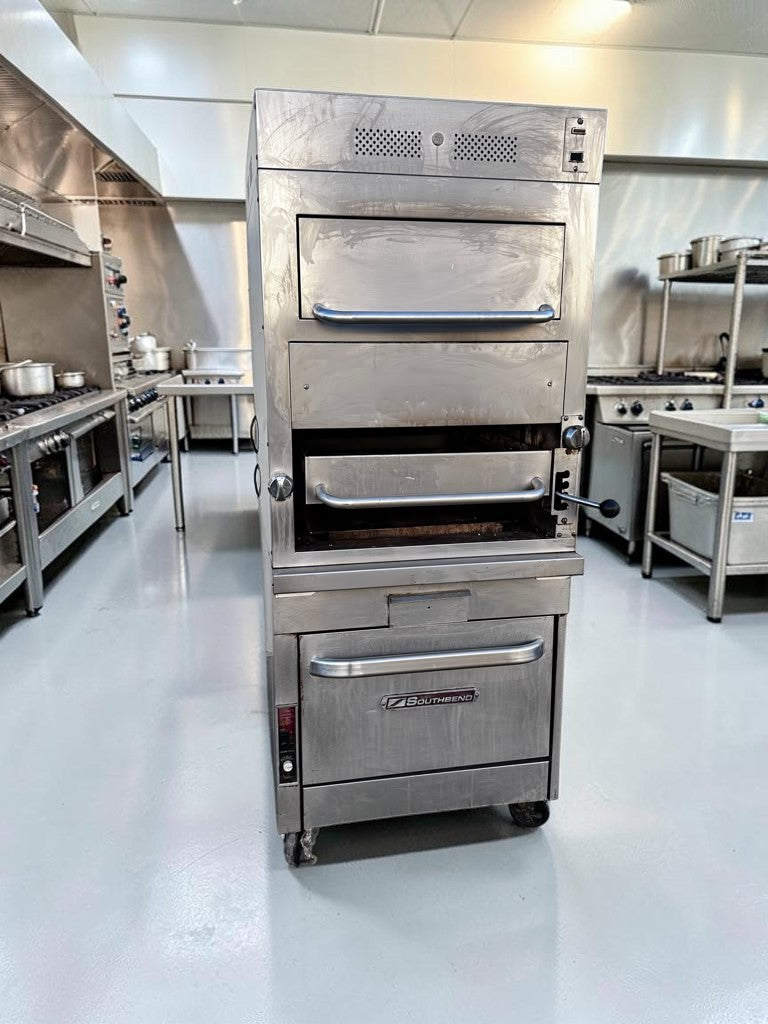

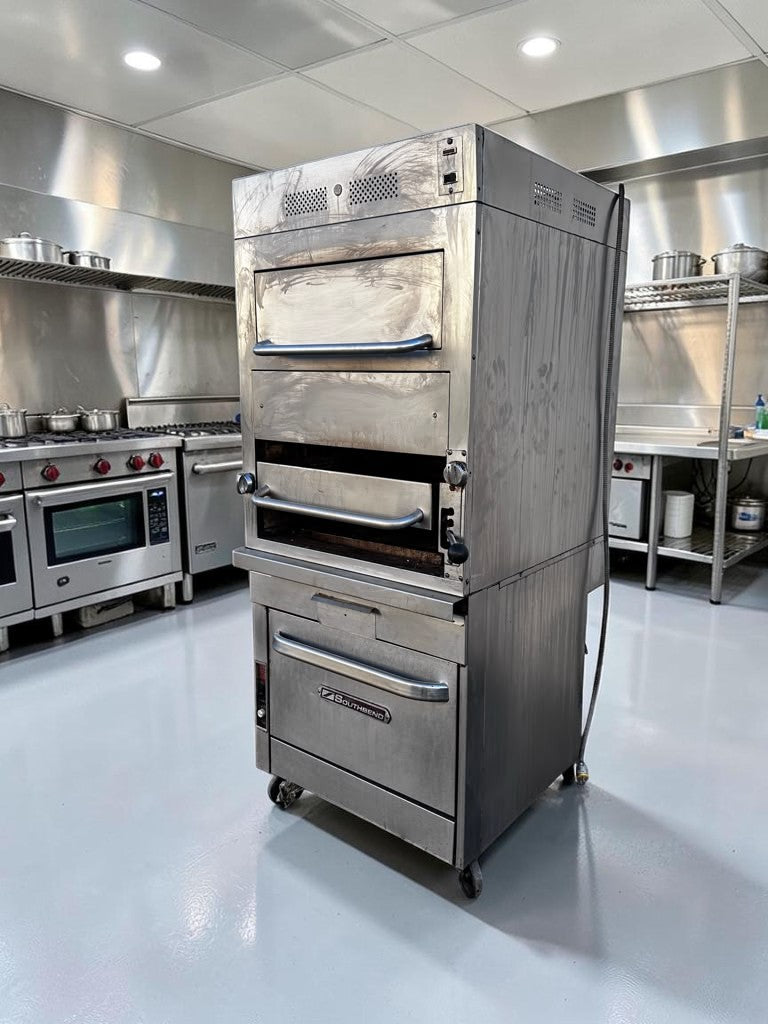

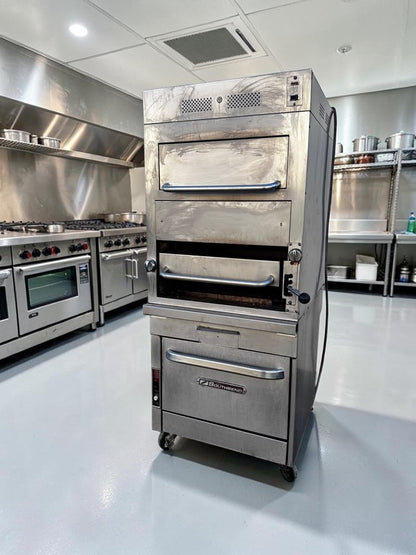

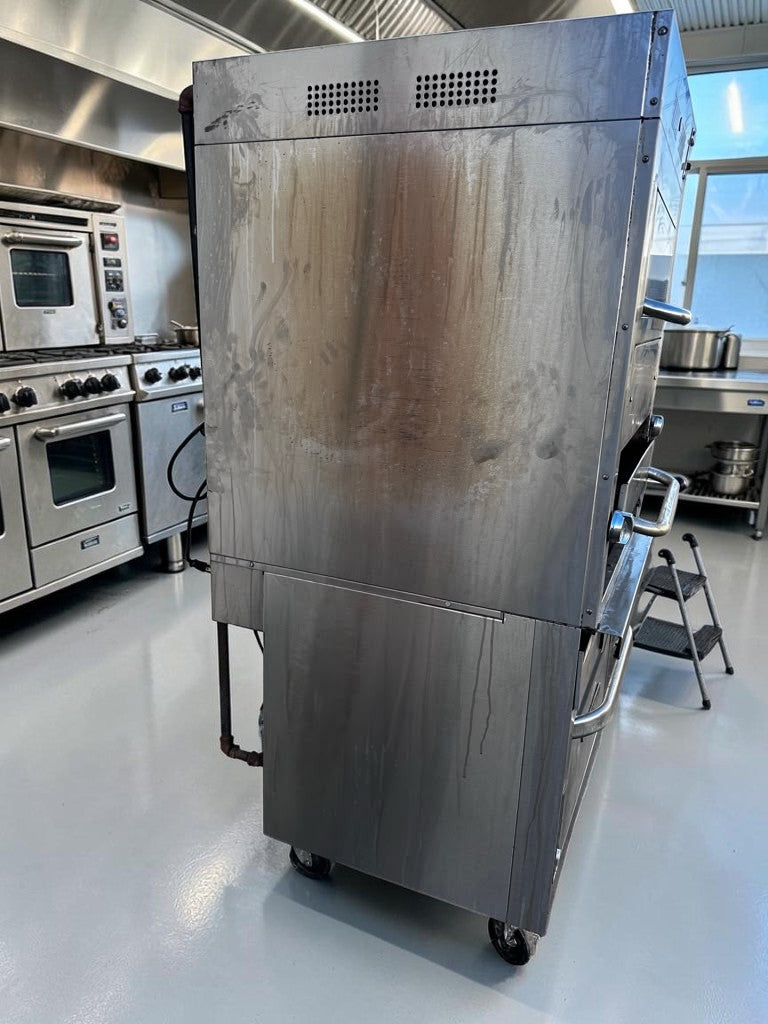

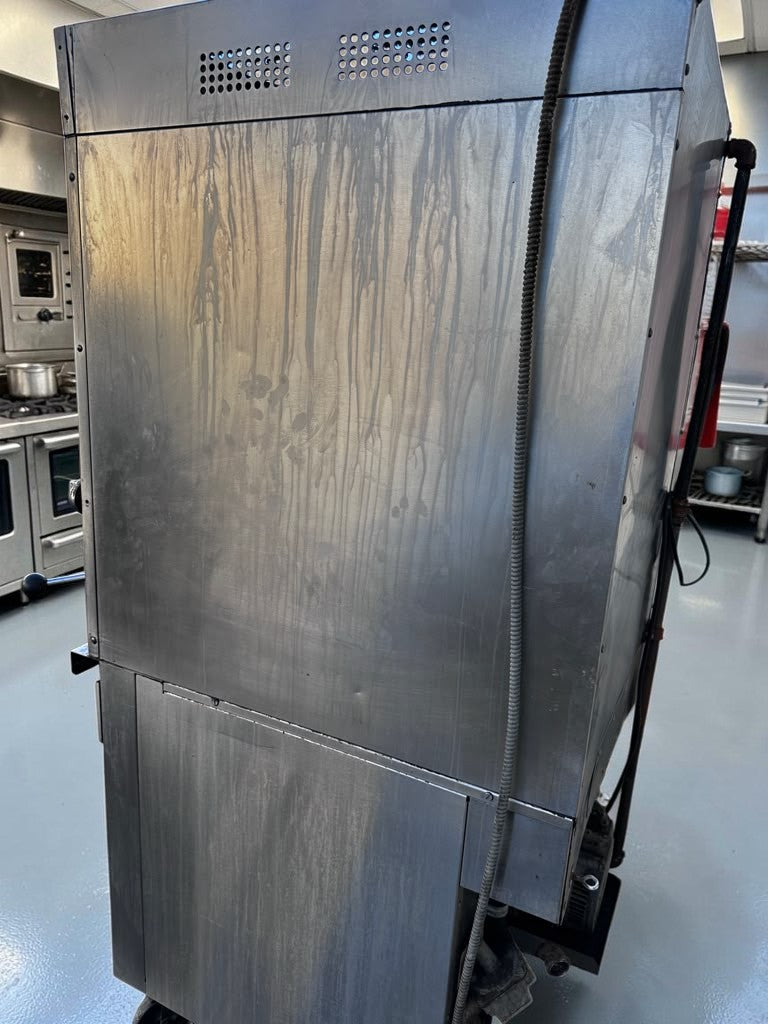

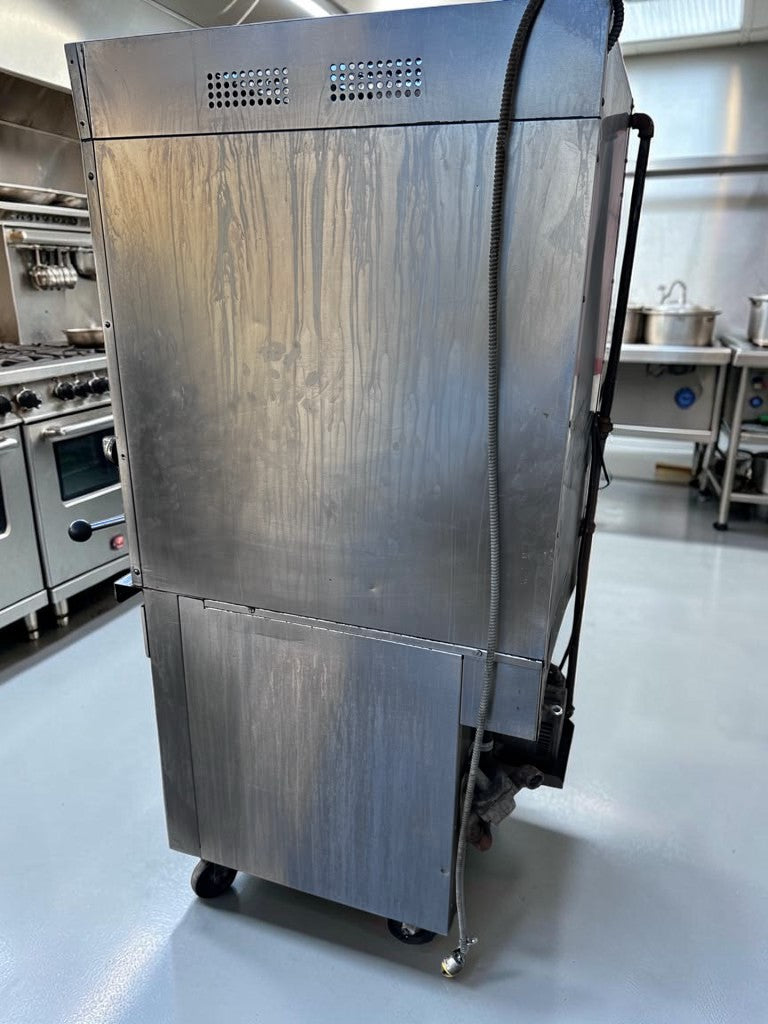

This unit has been professionally inspected and tested to confirm proper commercial operation. The stainless steel exterior shows surface scratches, discoloration, cooking residue, and normal cosmetic wear consistent with previous heavy commercial use.

A thorough professional cleaning is recommended before installation. The unit is sold exactly as shown in the photos and must be installed by a qualified commercial gas technician.

Description

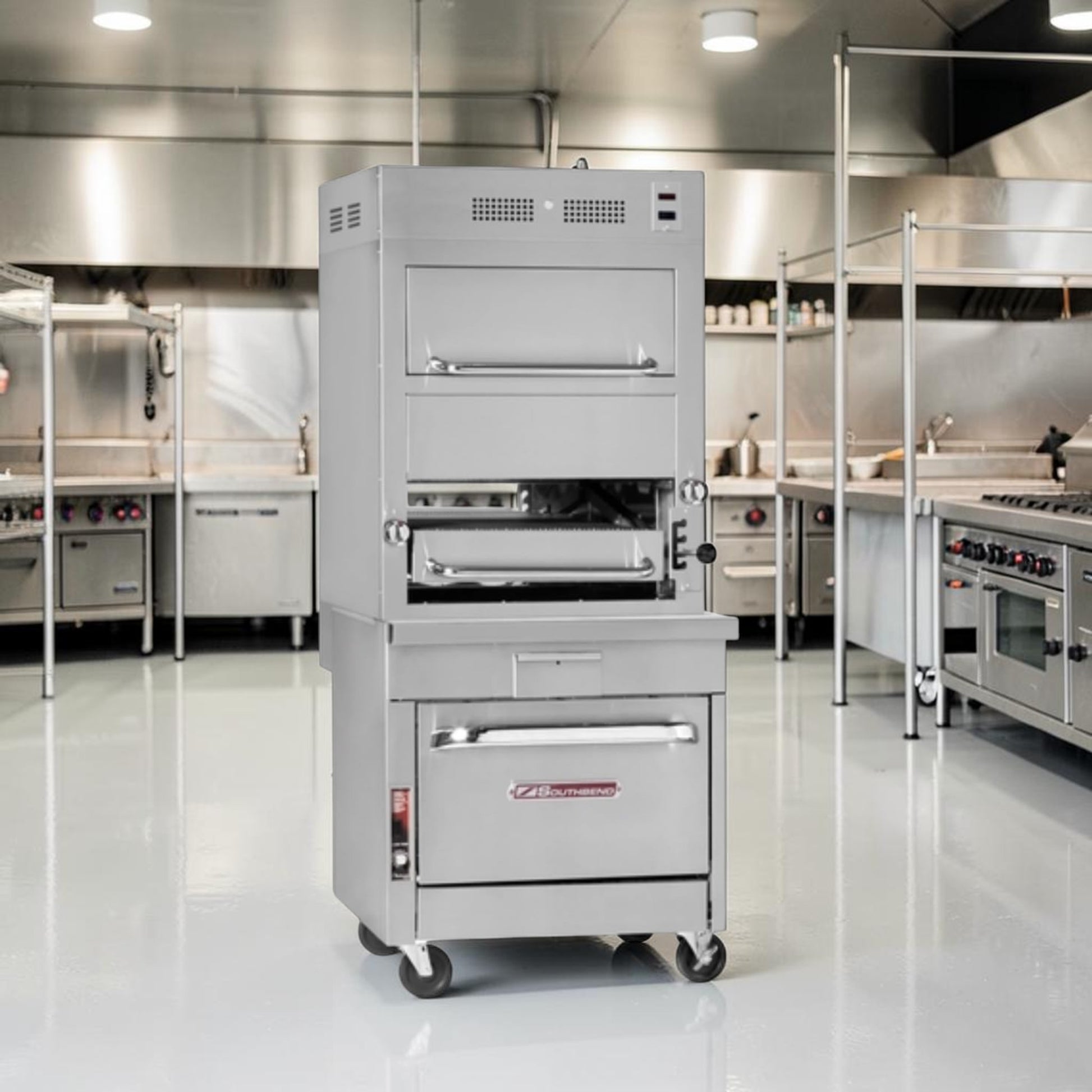

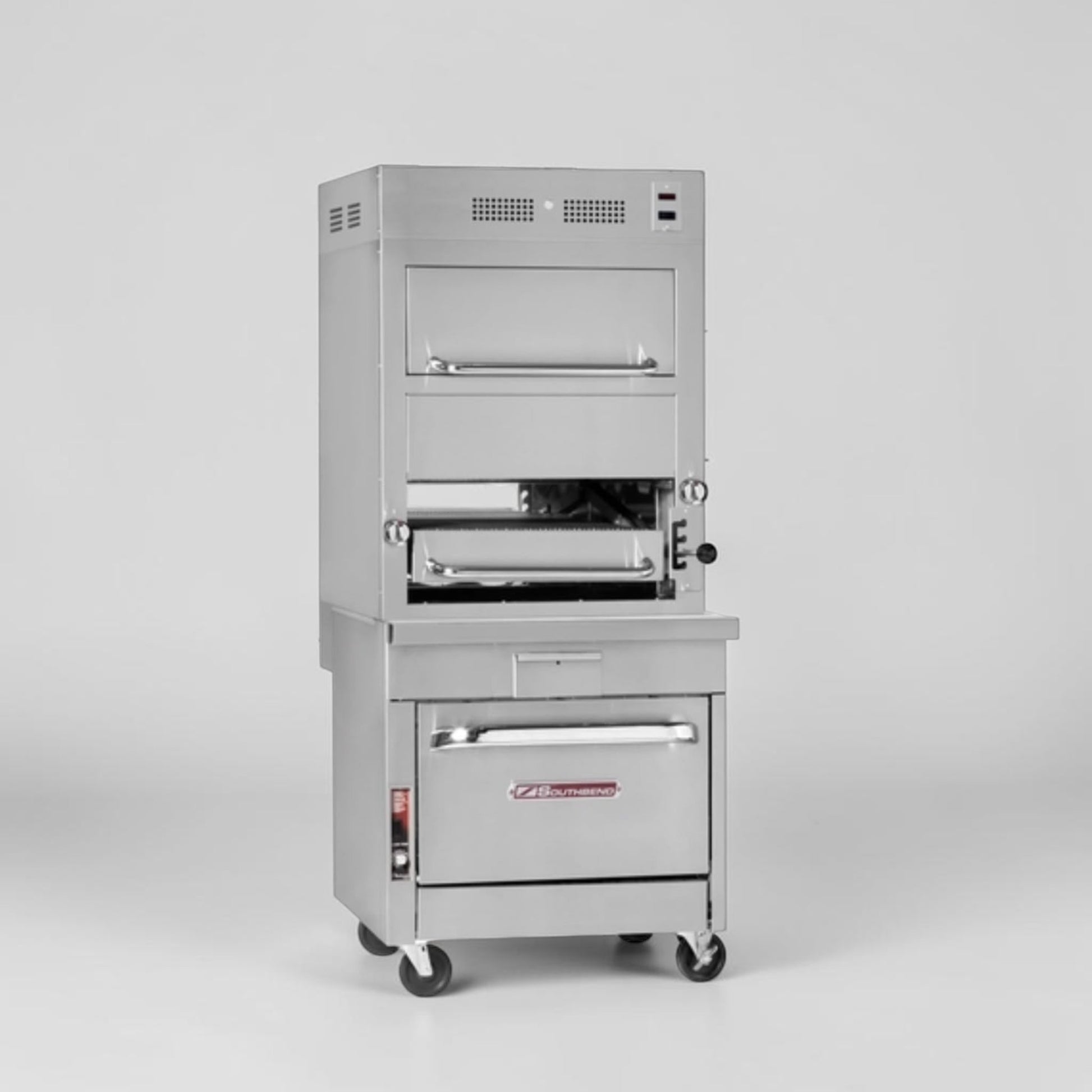

The Southbend P32A-171 Platinum Series is a heavy-duty commercial cooking unit combining a high-output infrared upright broiler, an upper warming oven, and a lower convection oven base in one compact 32-inch-wide footprint.

The broiler uses four individually controlled infrared gas burners to provide intense direct heat for cooking steaks, chops, seafood, poultry, and other high-volume menu items.

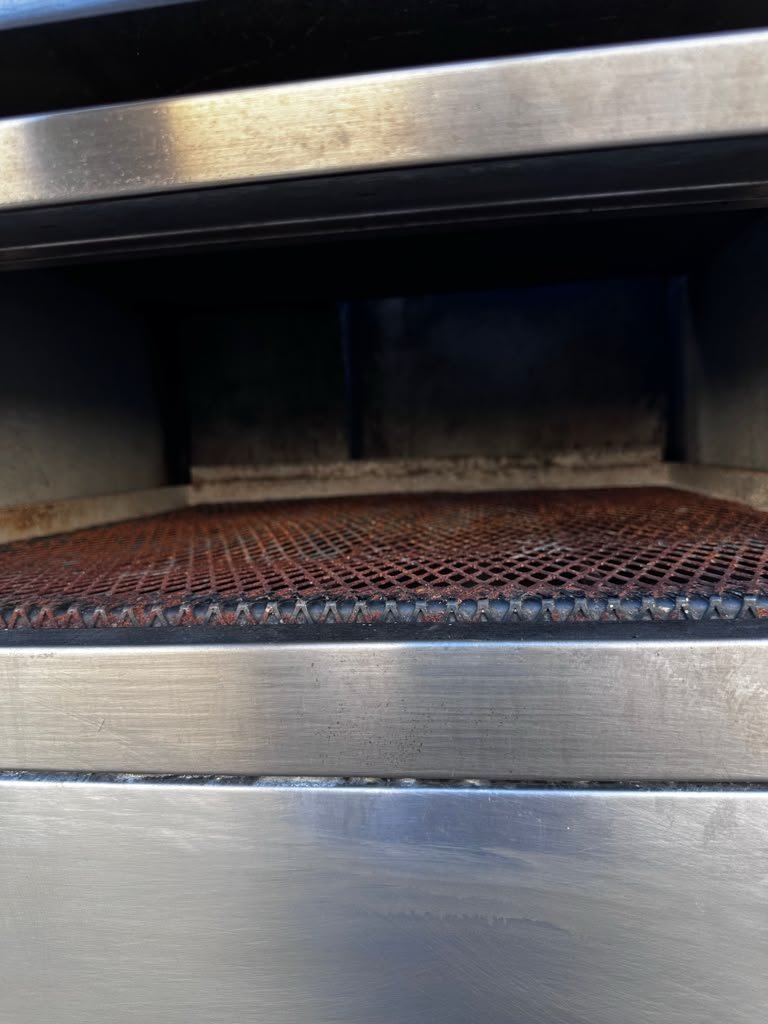

Its adjustable broiler rack allows food to be positioned at different distances from the burners, helping the operator control cooking speed, browning, and finishing.

The integrated upper warming oven uses heat generated by the broiler flue gases to keep prepared food, plates, and service items warm.

The lower convection oven circulates heated air throughout the oven cavity to provide consistent baking and roasting results across multiple racks.

This multifunction commercial cooking unit is ideal for steakhouses, restaurants, hotels, casinos, catering kitchens, commissaries, and institutional foodservice operations.

Electrical Specifications

Voltage: 115V

Phase: Single Phase

Frequency: 60 Hz

Amperage: 2.0 / 6.2 Amps

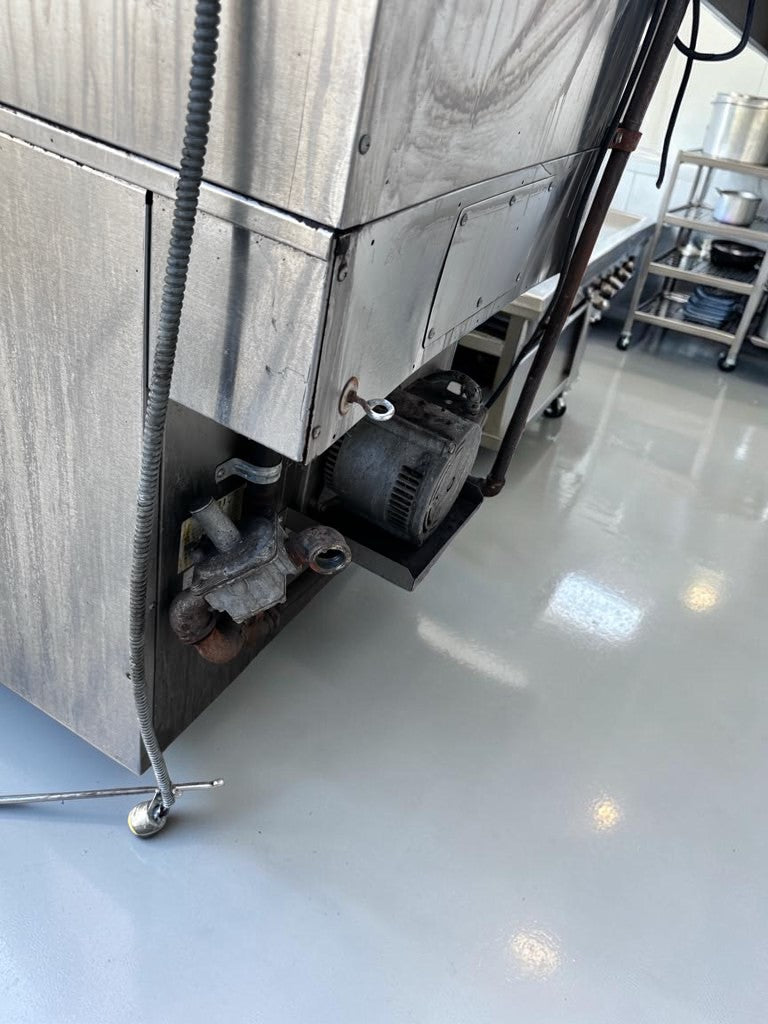

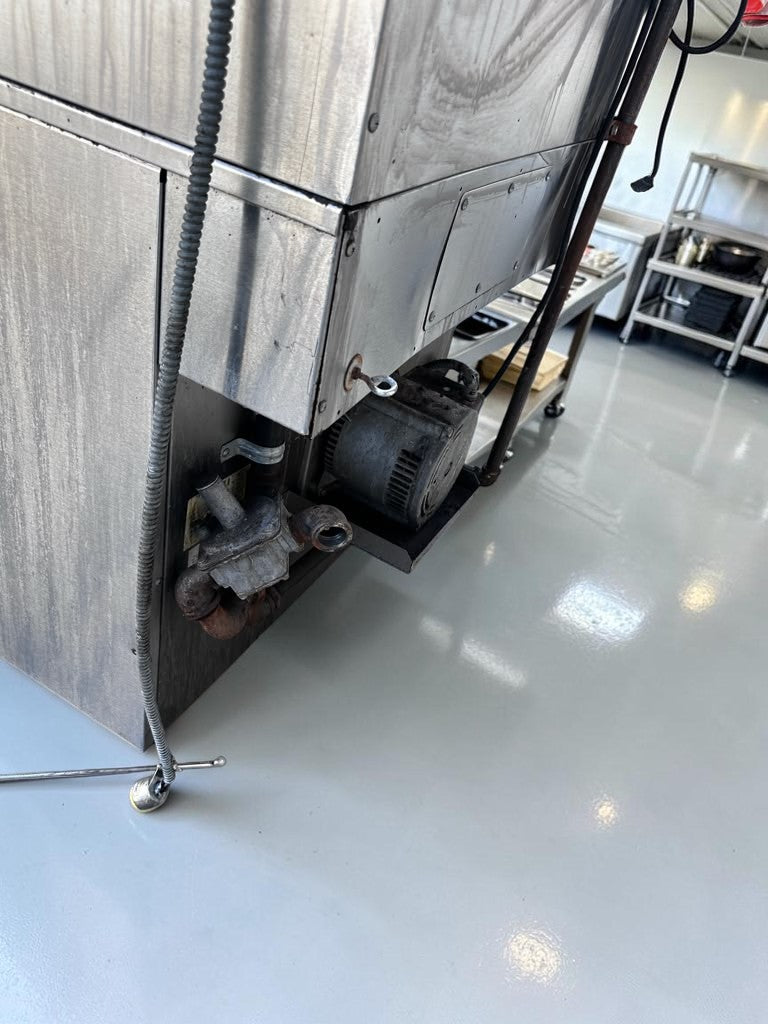

Power Type: Natural Gas with Electric Convection Blower and Controls

Gas Specifications

Gas Type: Natural Gas

Number of Broiler Burners: Four

Input per Broiler Burner: 26,000 BTU/hr.

Total Broiler Input: 104,000 BTU/hr.

Convection Oven Input: 32,000 BTU/hr.

Total Rated Input: 136,000 BTU/hr.

Broiler Type: Infrared

Gas Connection: Commercial Gas Connection

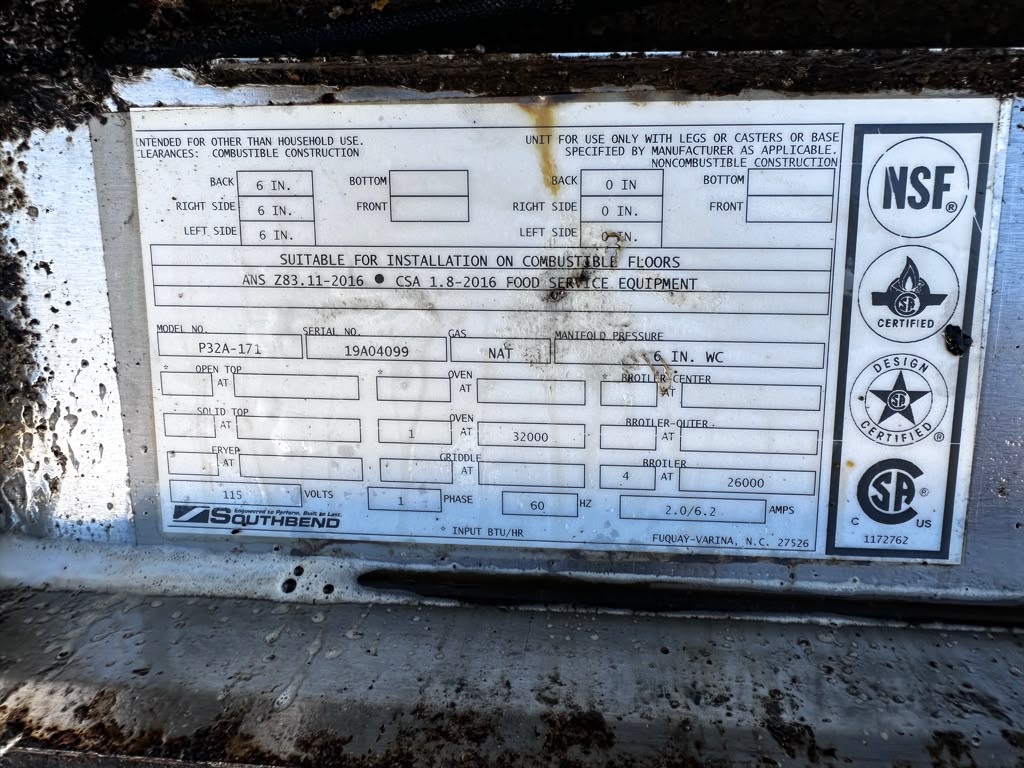

Important: The gas and BTU information above was taken directly from the photographed manufacturer data plate.

Dimensions

Width: 32 in.

Depth: 41 in.

Height: 81 in.

Broiler Grid Width: 24.5 in.

Broiler Grid Depth: 28 in.

Broiler Grid Travel: Approximately 17.25 in.

Warming Oven Interior: Approximately 25 in. W x 25 in. D

Convection Oven Interior: Approximately 26 in. W x 24 in. D x 14 in. H

Required Clearances

Combustible Construction

Back: 6 in.

Right Side: 6 in.

Left Side: 6 in.

Noncombustible Construction

Back: 0 in.

Right Side: 0 in.

Left Side: 0 in.

Suitable for installation on combustible floors when installed according to the manufacturer’s instructions and applicable local codes.

Construction

Heavy-duty stainless steel front

Stainless steel exterior sides

Commercial infrared burner system

Four individually controlled broiler burners

Adjustable broiler rack mechanism

Integrated upper warming oven

Lower convection oven base

Heavy-duty horizontal door handles

Commercial control knobs and broiler lever

Commercial-duty casters

Designed to match Southbend sectional cooking equipment

Key Features

Three commercial cooking functions in one unit

High-output infrared upright broiler

Four individually controlled infrared burners

104,000-BTU broiler section

136,000 total rated BTU

Integrated upper warming oven

Lower gas convection oven

Adjustable broiler grid height

Large removable broiler rack

Two-speed convection blower

Space-saving 32-inch-wide design

Designed for demanding commercial service

Ideal for steaks, seafood, poultry, baking, and roasting

Certifications

NSF Certified

CSA Certified

CSA Design Certified

ANSI Z83.11-2016

CSA 1.8-2016 Foodservice Equipment

The NSF and CSA certification marks are visible on the photographed manufacturer data plate.

Manufacturing Information

Manufacturer: Southbend

Parent Company: Middleby Corporation

Series: Platinum Series

Model: P32A-171

Serial Number: 19A04099

Equipment Type: Commercial Gas Infrared Upright Broiler with Warming Oven and Convection Oven Base

Gas Configuration: Natural Gas

Manufacturer Location: Fuquay-Varina, North Carolina, USA

Country of Manufacture: USA

Data Plate: Present and visible in product photos

Included

Southbend P32A-171 Infrared Upright Broiler

Integrated upper warming oven

Lower convection oven base

Adjustable broiler rack assembly

Commercial casters

Unit sold exactly as shown in photos

Important Notes

Sold as-is, where-is

Fully tested and operational prior to listing

Visible surface scratches, discoloration, and cooking residue are present

Professional deep cleaning is recommended before use

Configured for natural gas

Not intended for residential or household use

Commercial ventilation hood may be required

Buyer must verify gas pressure and connection before installation

Installation must be completed by a licensed commercial gas technician

Local fire, ventilation, gas, and building codes must be followed

No manufacturer warranty included

Shipping calculated at checkout

Local pickup available
