Superior Condition – True T-49F-HC – 54 1/8" Two-Section Reach-In Freezer – 49 Cu. Ft. – 115V – ENERGY STAR® – Fully Tested & Operational!

Condition

Used – Excellent Condition – Fully Tested & Operational

This unit has been professionally inspected and tested to confirm proper freezing performance. The refrigeration system operates correctly, the digital temperature display functions properly, and both solid doors close securely.

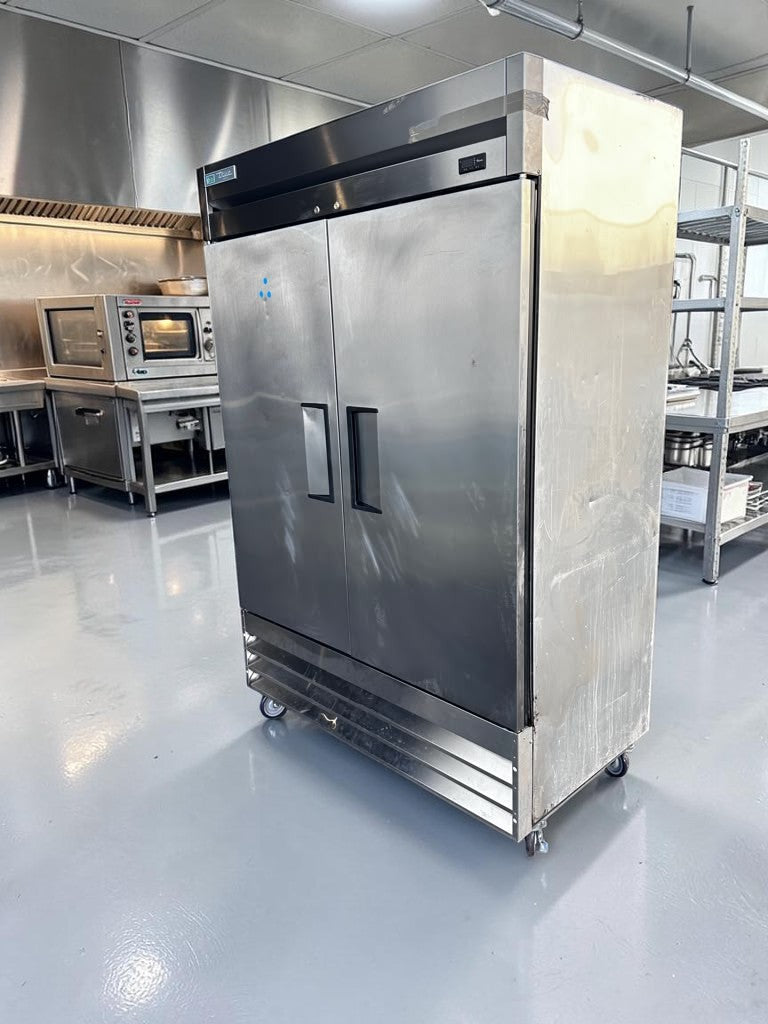

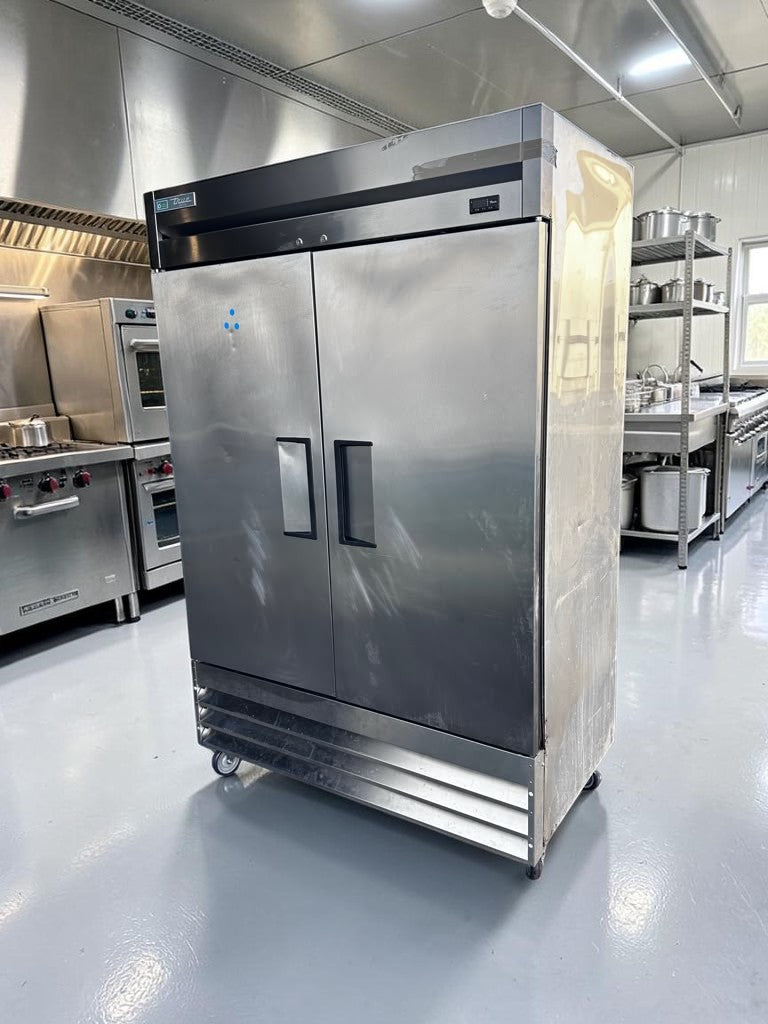

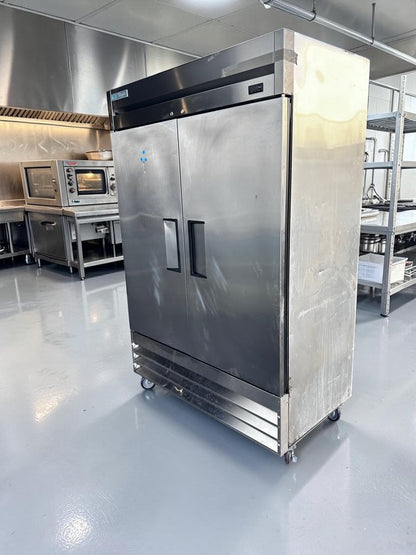

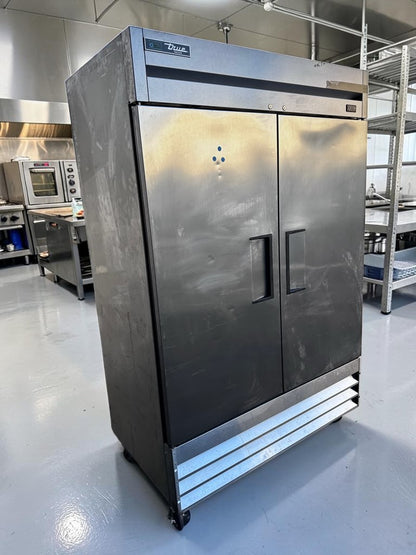

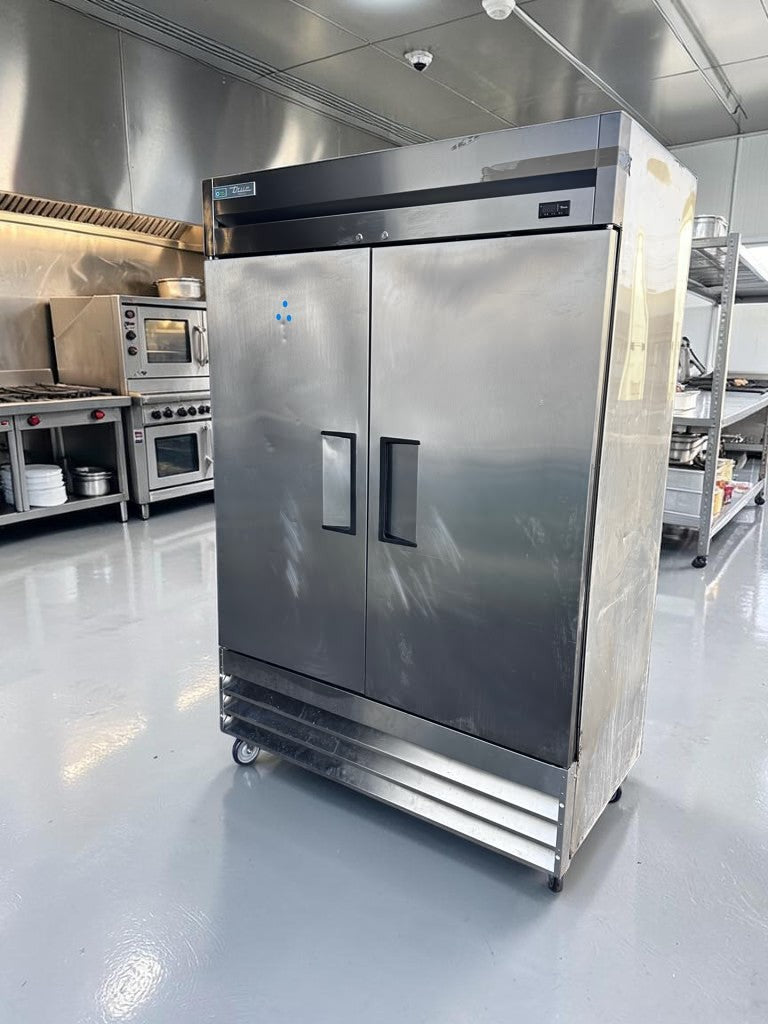

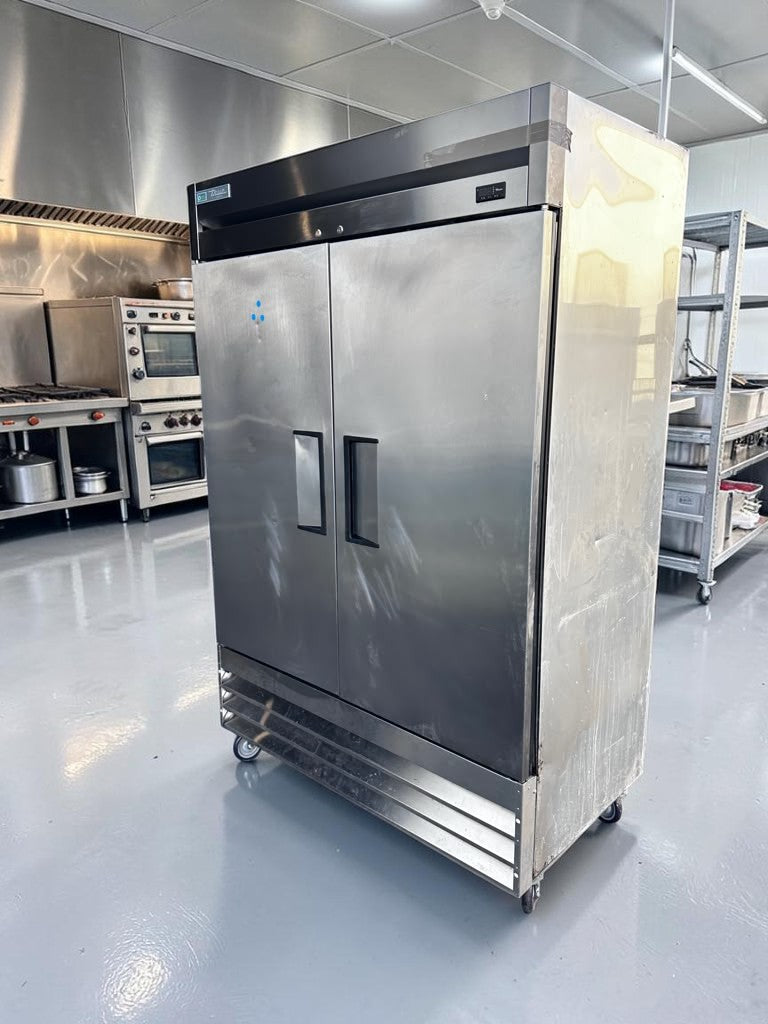

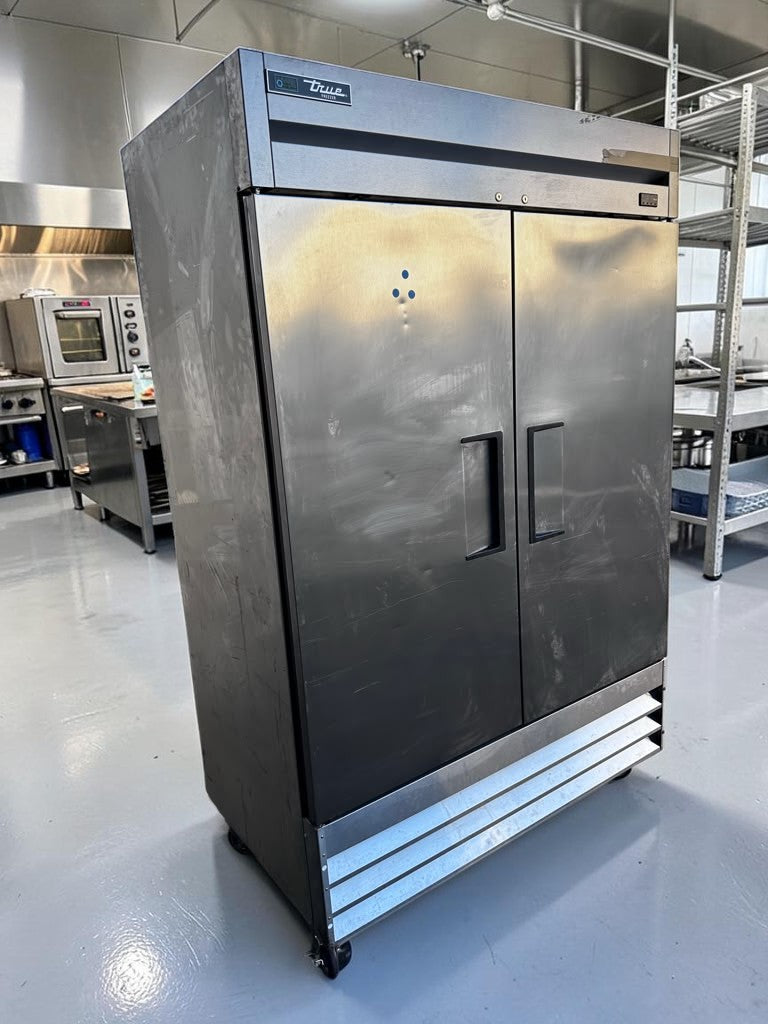

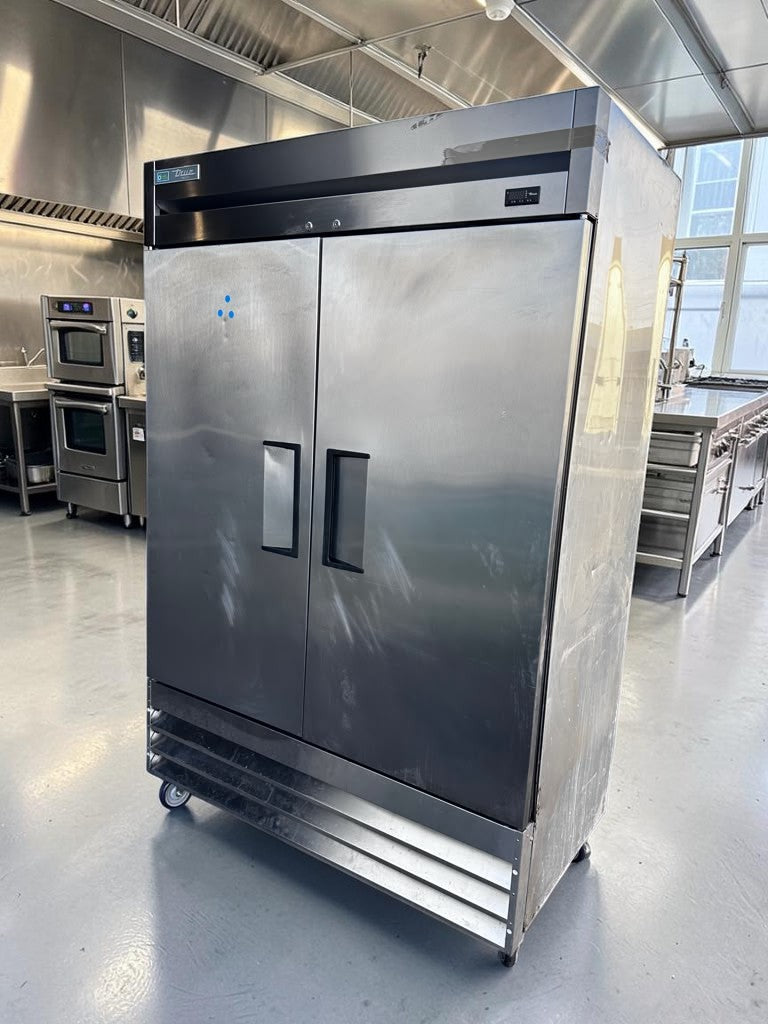

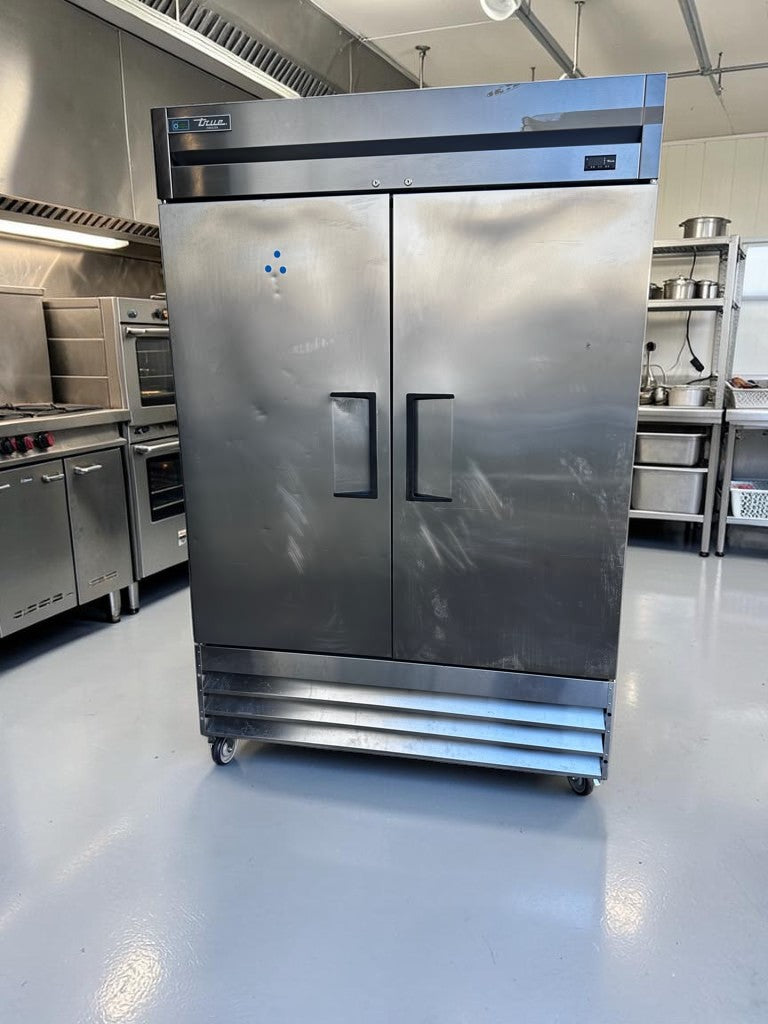

The stainless steel front is clean and presentable, with scratches, small dents, surface marks, and other normal cosmetic signs of previous commercial use. These cosmetic imperfections do not affect the freezer’s operation.

The unit is mounted on commercial casters and is ready for immediate restaurant, bakery, grocery, catering, or institutional foodservice use.

Description

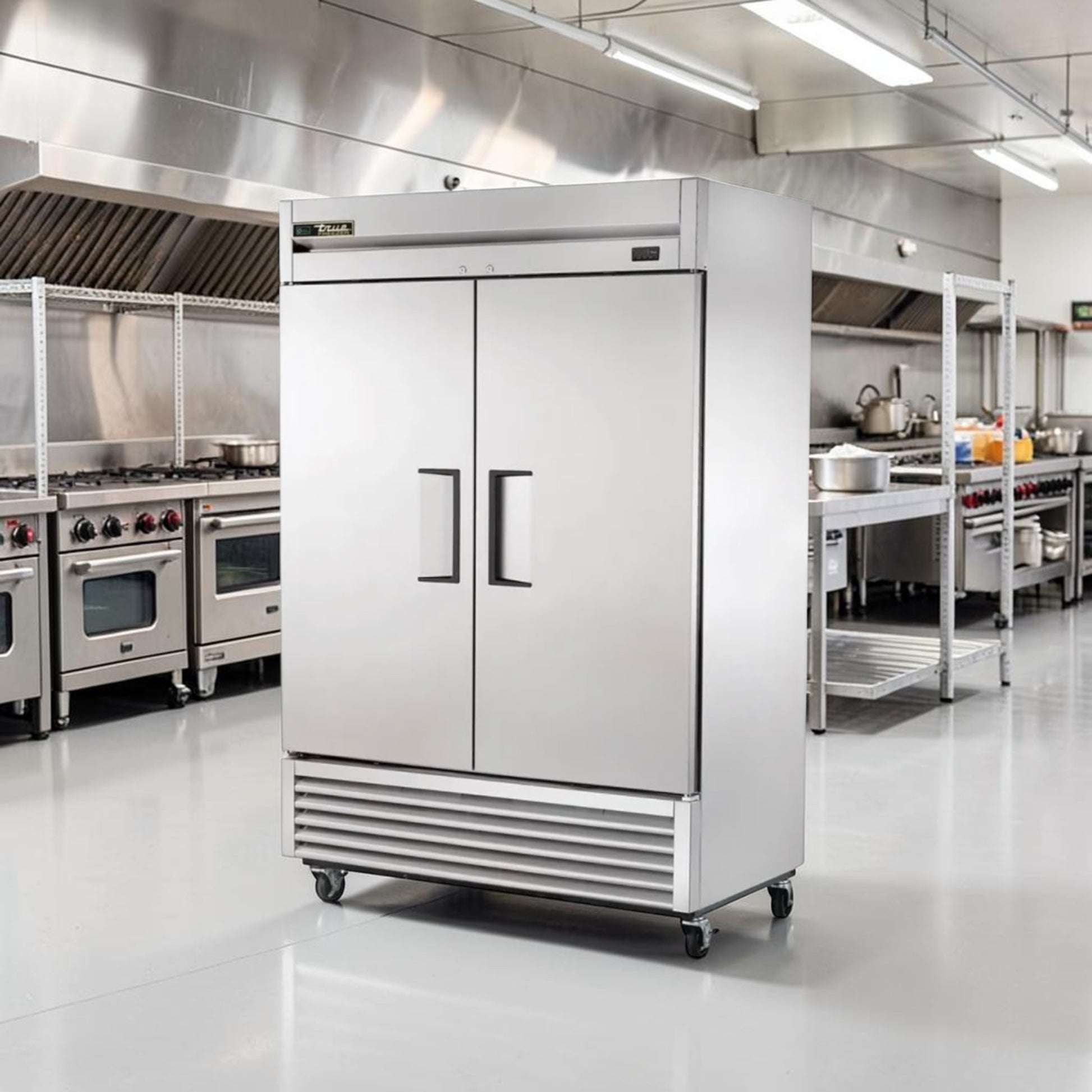

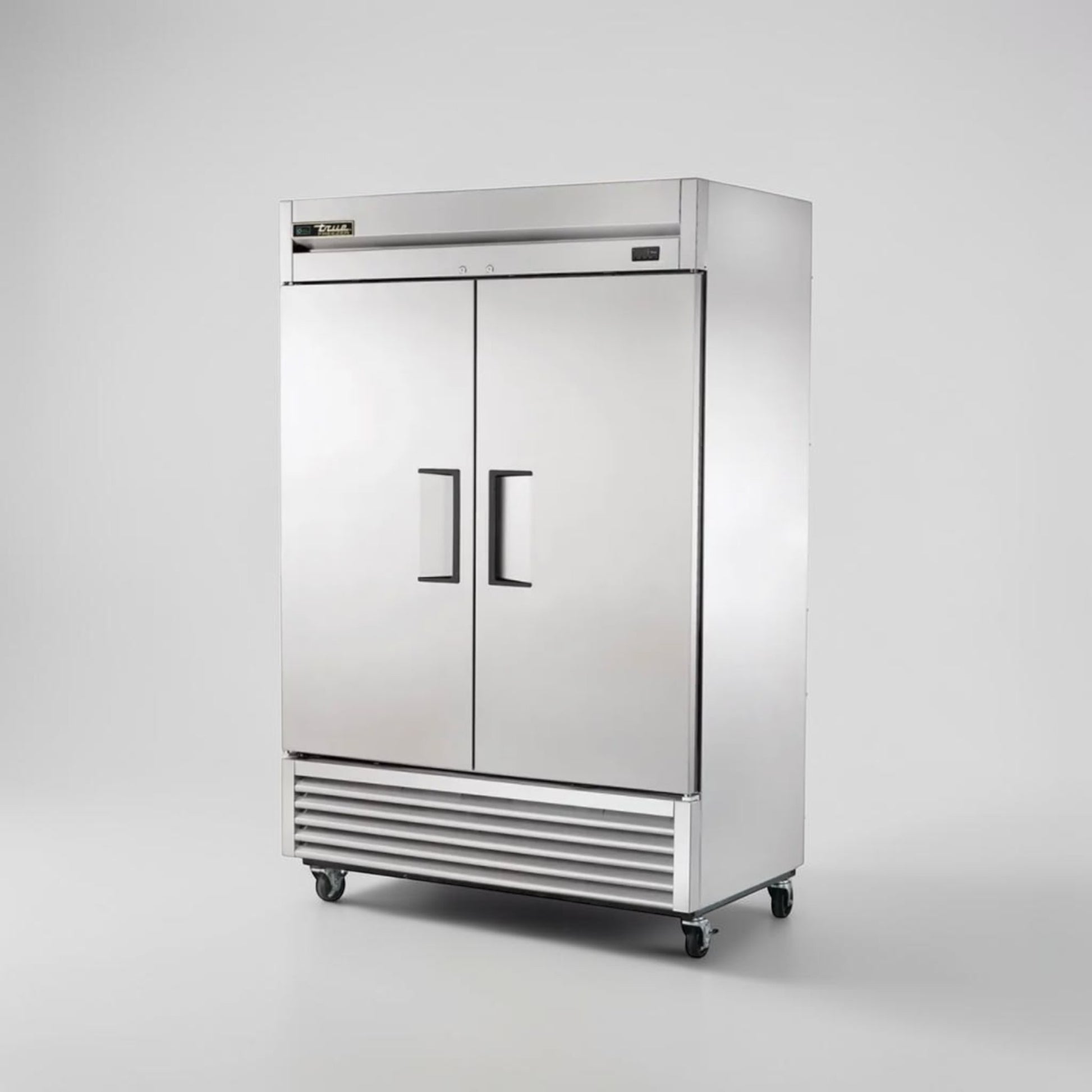

The True T-49F-HC is a heavy-duty, two-section commercial reach-in freezer engineered for dependable frozen-food storage in demanding foodservice environments.

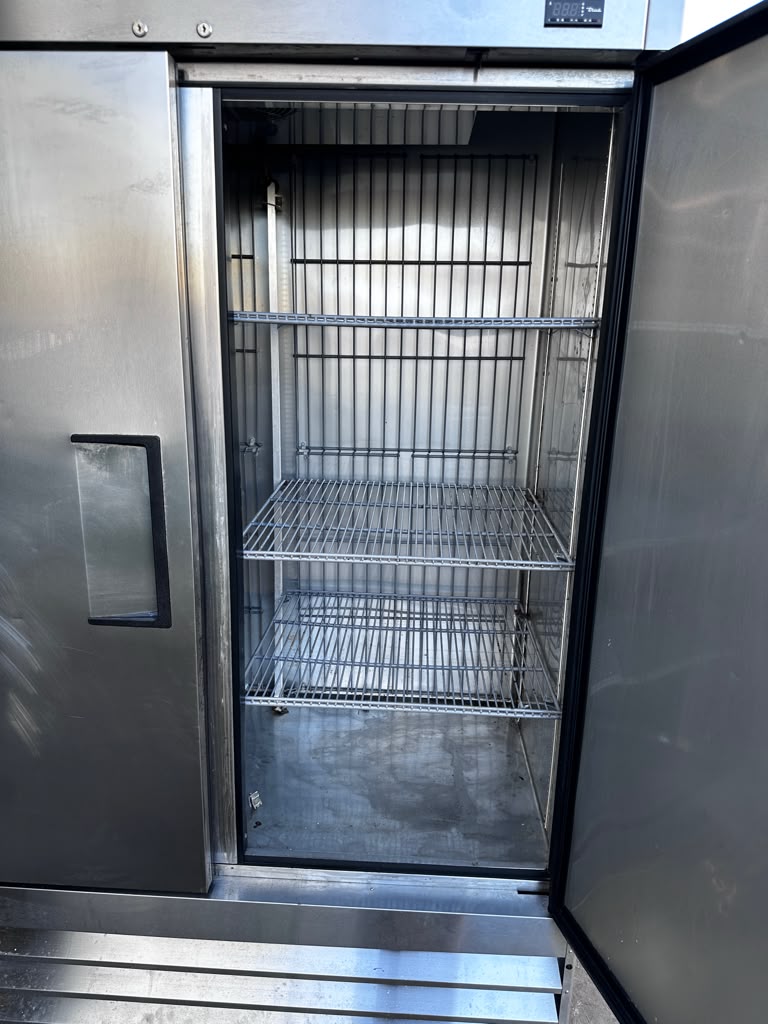

This full-size freezer provides approximately 49 cu. ft. of storage capacity and features two solid stainless steel doors, six adjustable shelves, LED interior lighting, an exterior digital temperature display, and a bottom-mounted refrigeration system.

The self-contained refrigeration system uses environmentally responsible R290 hydrocarbon refrigerant and is designed to maintain cabinet temperatures around -10°F, providing reliable frozen storage for meats, seafood, prepared foods, desserts, ingredients, and other commercial products.

Its bottom-mounted condensing unit provides convenient service access while raising the lower storage area for easier product retrieval. The freezer’s durable construction and high-capacity interior make it an excellent choice for restaurants, bakeries, cafés, hotels, cafeterias, schools, hospitals, grocery stores, and catering facilities.

Electrical Specifications

Voltage: 115V

Phase: Single Phase

Frequency: 60 Hz

Amperage: 9.6 Amps according to the attached unit data plate

Compressor: 1 HP

Plug Configuration: NEMA 5-15P

Required Circuit: Dedicated 115V, 15-Amp circuit recommended

Power Type: Electric

Cord and Plug: Factory-installed commercial power cord

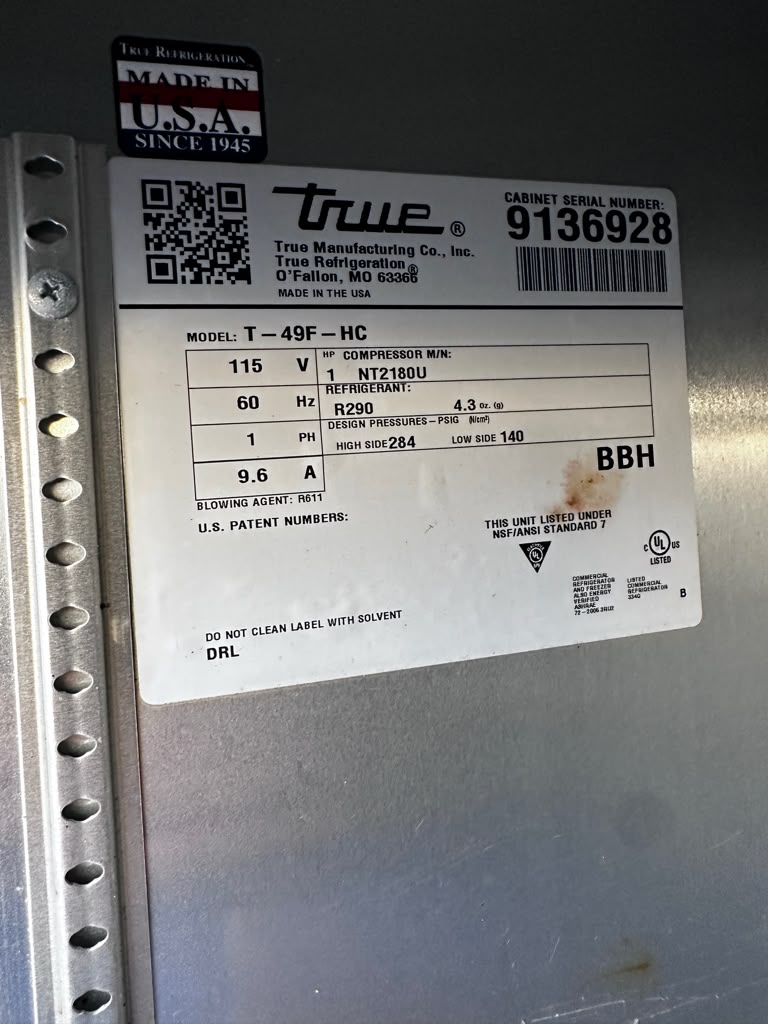

The attached data plate identifies this specific freezer as a 115V, 60 Hz, single-phase unit drawing 9.6 amps. Published documentation for this configuration also specifies a 1 HP compressor and NEMA 5-15P connection.

Refrigeration

Refrigerant: R290 Hydrocarbon

Refrigerant Charge: 4.3 oz., according to the attached data plate

Compressor Type: Self-contained, bottom-mounted

Cooling System: Capillary-tube refrigeration system

Operating Temperature: Approximately -10°F

Defrost System: Automatic, time-initiated and temperature-terminated

Condenser Location: Bottom-mounted

Evaporator: Epoxy-coated for corrosion resistance

Blowing Agent: R611

True’s refrigeration system uses electronically commutated condenser and evaporator fan motors for efficient airflow and includes an automatic defrost system for dependable commercial operation.

Capacity

Storage Capacity: Approximately 49 cu. ft.

Number of Sections: 2

Number of Doors: 2 solid swing doors

Number of Shelves: 6 adjustable wire shelves

Shelves per Section: 3

Shelf Dimensions: Approximately 24 9/16 in W × 22 3/8 in D

The two-section design provides organized frozen storage while allowing operators to access one compartment without opening the entire cabinet. Published specifications list six adjustable PVC-coated shelves.

Dimensions

Width: 54 1/8 in

Depth: 29 1/2 in

Cabinet Height: 78 3/8 in

Approximate Overall Height with Casters: 83 3/8 in

Approximate Crated Weight: 480 lb

Caster Size: 4 in

The manufacturer lists cabinet dimensions of 54 1/8"W × 29 1/2"D × 78 3/8"H and a weight of approximately 480 lb. Height can increase to approximately 83 3/8 inches when the installed casters are included.

Construction

• Stainless steel front
• Stainless steel solid doors
• Durable aluminum side panels
• Aluminum interior liner
• Stainless steel interior floor
• Heavy-duty commercial cabinet construction
• Foamed-in-place polyurethane insulation
• Bottom-mounted condensing unit
• Six adjustable PVC-coated wire shelves
• Heavy-duty commercial door handles
• Positive-seal self-closing doors
• Magnetic door gaskets
• Exterior digital temperature display
• Interior LED lighting
• Four commercial casters
• Front-accessible refrigeration system

The T-49F-HC is manufactured with a stainless steel front, aluminum sides, aluminum interior walls, and a stainless steel cabinet floor.

Key Features

• Two-section commercial reach-in freezer
• Approximately 49 cu. ft. storage capacity
• Maintains frozen products at approximately -10°F
• Two stainless steel solid swing doors
• Six adjustable commercial shelves
• Exterior digital temperature display
• Bright LED interior lighting
• Bottom-mounted refrigeration system
• Environmentally responsible R290 refrigerant
• Automatic defrost system
• Positive-seal self-closing doors
• Removable magnetic door gaskets
• Stainless steel interior floor
• Efficient electronically commutated fan motors
• Corrosion-resistant coated evaporator
• Factory-installed cord and plug
• Mobile design with commercial casters
• ENERGY STAR® qualified
• Designed for continuous commercial use
• Made in the USA

Certifications

• ENERGY STAR® Qualified
• UL Listed
• cULus Listed
• UL EPH Classified
• Listed under NSF/ANSI Standard 7
• Approved for commercial foodservice use

The attached equipment label confirms UL listing and compliance with NSF/ANSI Standard 7. Current commercial specifications also identify ENERGY STAR and UL EPH classifications.

Manufacturing Information

Manufacturer: True Manufacturing Co., Inc.

Brand: True Refrigeration

Manufacturer Location: O’Fallon, Missouri 63366, USA

Country of Manufacture: USA

Model: T-49F-HC

Cabinet Serial Number: 9136928

Compressor Model: NT2180U

Refrigerant: R290

Refrigerant Charge: 4.3 oz.

Included

• True T-49F-HC two-section reach-in freezer
• Two solid stainless steel doors
• Interior adjustable shelves shown with the unit
• Digital temperature display
• Interior LED lighting
• Bottom-mounted refrigeration system
• Factory-installed power cord and plug
• Four commercial casters
• Unit sold exactly as shown in the provided photos

Important Notes

• Sold as-is, where-is
• Fully tested and working before listing
• Normal cosmetic scratches, dents, marks, and signs of commercial use are present
• Cosmetic condition is shown in the supplied photos
• Requires a dedicated 115V electrical circuit
• Keep ventilation openings clear during installation
• Verify doorway and delivery-route measurements before purchase
• No manufacturer warranty is included with this used unit
• Buyer is responsible for confirming local installation requirements
• Shelves are included only in the quantity shown in the photos
• Shipping is calculated at checkout
• Freight delivery is available
• Local pickup is available
