Top-Tier Condition – Ecolab / KineticoPRO KPMF HC614-2 – Commercial Dual-Cartridge Water Filtration System – 150,000-Gallon Capacity – Dual Pressure Gauges – NSF/ANSI 42 Certified – Fully Inspected & Ready for Installation!

Condition

Used – Good Condition – Fully Inspected & Ready for Commercial Installation

This commercial water-filtration assembly has been professionally inspected for completeness and general physical condition. The dual-cartridge manifold, two filter cartridges, mounting plate, pressure gauges, shutoff valves, flushing components, fittings, and cartridge-locking mechanisms are present as shown.

The housings and manifold show visible scratches, scuffs, water marks, discoloration, residue, and other cosmetic signs consistent with previous commercial use.

Because the remaining life and internal condition of used filtration media cannot be reliably verified visually, replacement cartridges are recommended before returning the system to foodservice operation. A qualified water-filtration technician should sanitize, pressure-test, and commission the system after installation.

Description

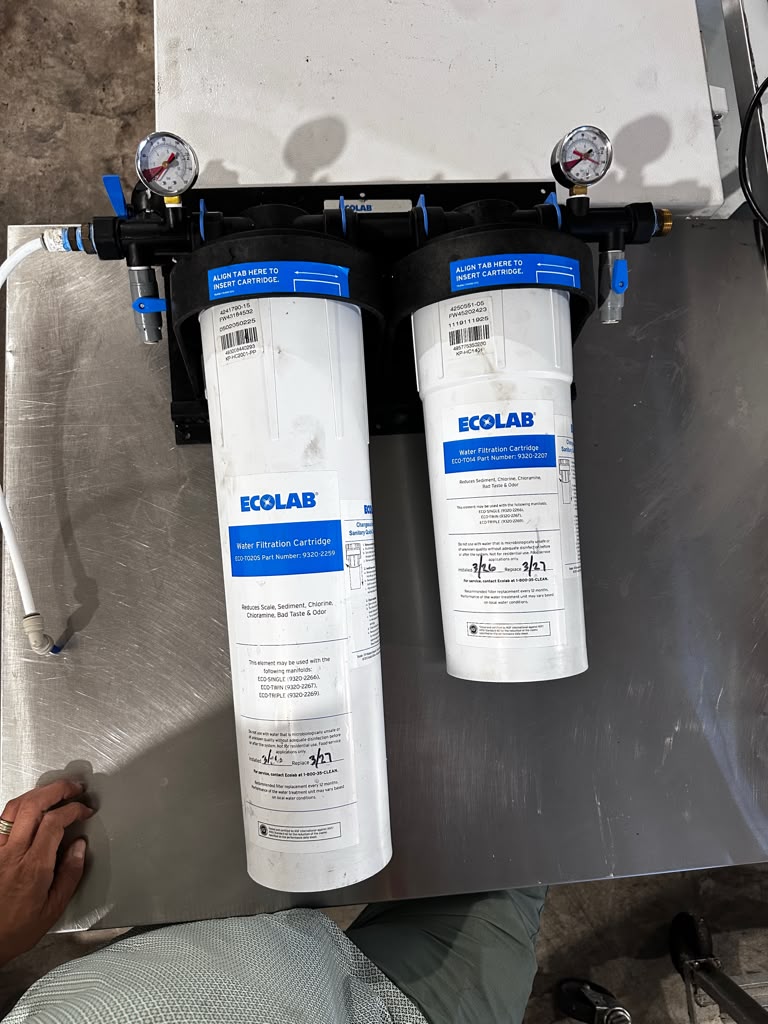

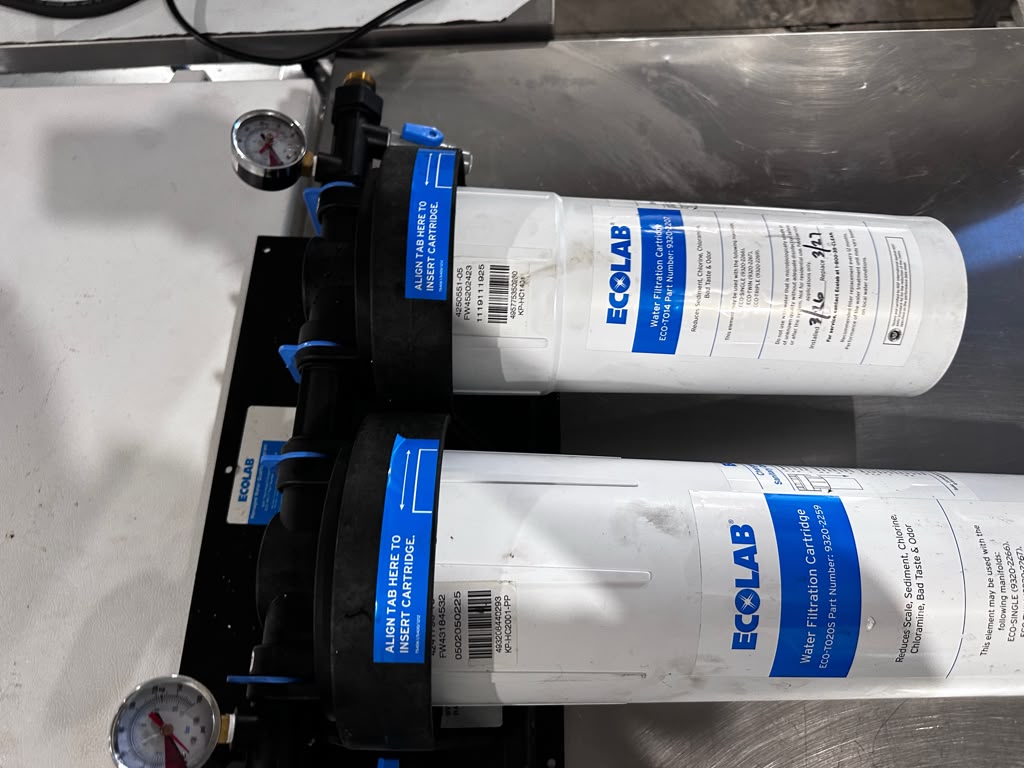

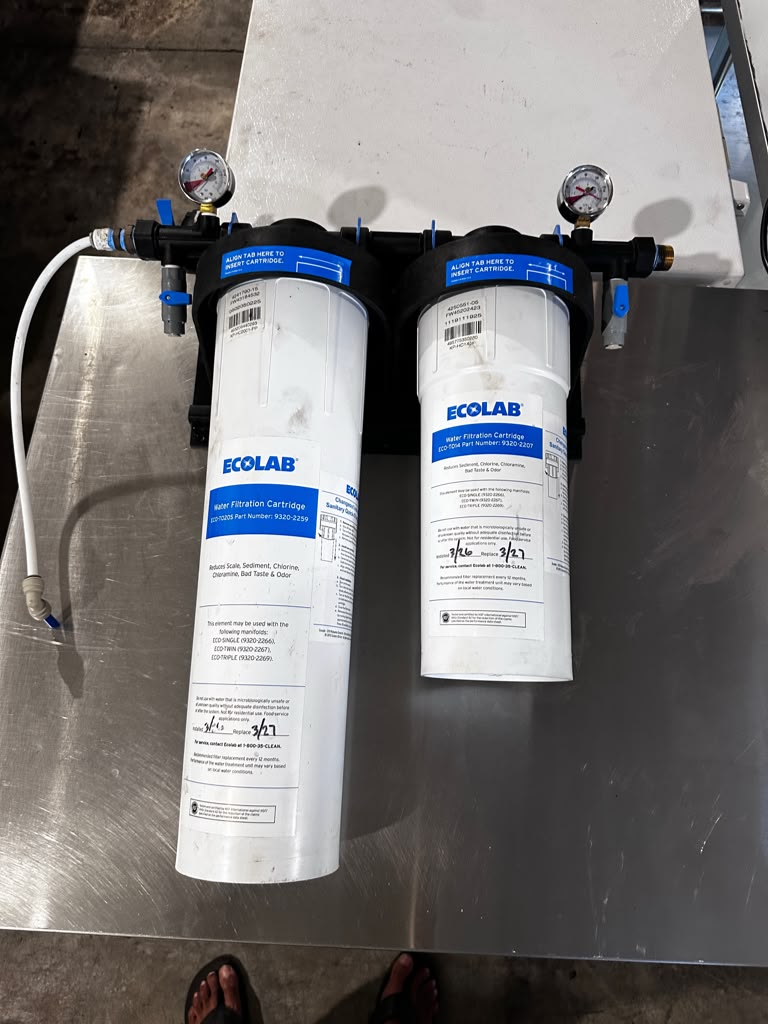

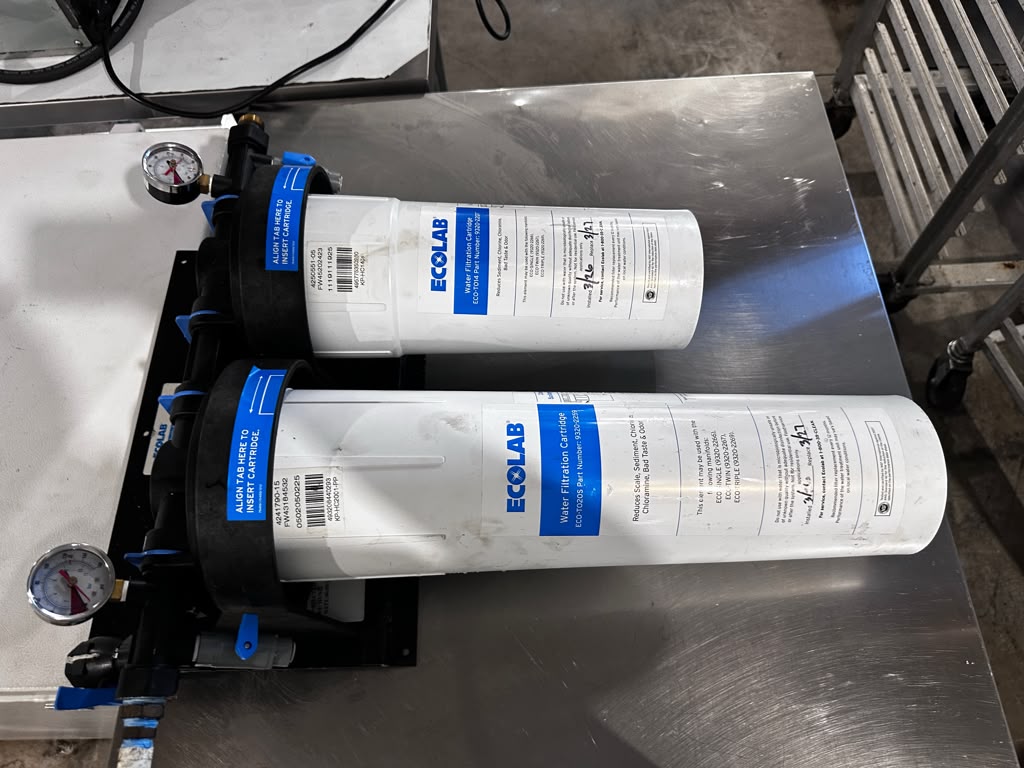

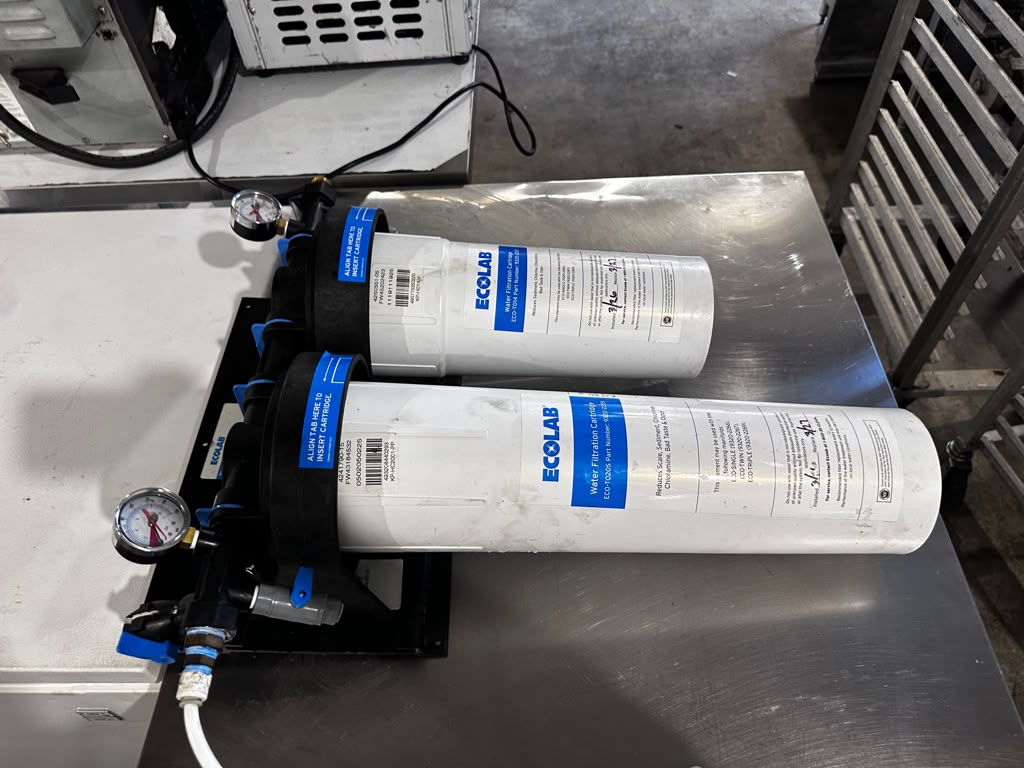

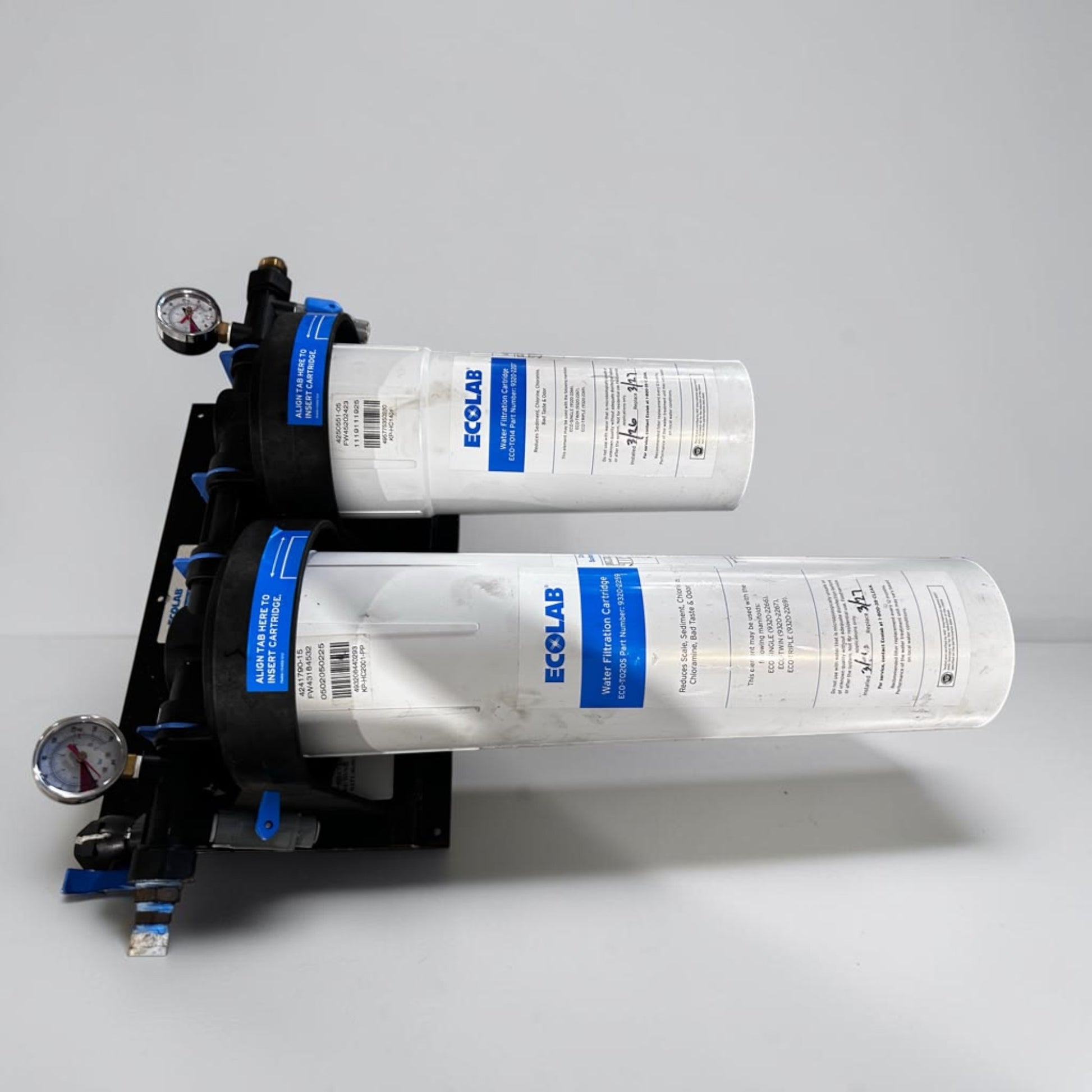

The pictured assembly is an Ecolab-branded commercial dual-cartridge water-filtration system fitted with KineticoPRO KP-HC1401 HC Series cartridges and a double-head modular manifold.

The corresponding current system configuration is the KineticoPRO KPMF HC614-2, part number KP-300-778-HC614-2, also referenced as 80-6142. It is designed for high-volume commercial beverage and multi-use water applications.

The system uses two 14-inch hollow-carbon filtration cartridges in a parallel double-manifold arrangement. This configuration is designed to improve commercial water quality by reducing chlorine, chloramines, unpleasant tastes, odors, particulates, and other contaminants that can affect beverage flavor and foodservice-equipment performance.

Typical applications include fountain beverage systems, coffee and tea equipment, juice dispensers, drinking-water lines, specialty beverage equipment, and other commercial cold-water applications. The HC614-2 is designed for high-volume beverage installations serving approximately one to three carbonators.

Filtration Specifications

System Series: KPMF HC Series System Configuration: Dual-Cartridge / Double Parallel Manifold Cartridge Model: KP-HC1401 / HC614 Number of Cartridges: 2 Cartridge Size: 14 in Filtration Media: Hollow Activated Carbon Nominal Micron Rating: 1 Micron Rated System Capacity: Up to 150,000 Gallons Primary Applications: Fountain Beverages, Juice, Drinking Water, Coffee and Tea Water Application: Cold Potable Water

The dual HC614 system is listed with a combined capacity of approximately 150,000 gallons, while each HC614 cartridge is designed around high-capacity hollow-carbon filtration.

Actual cartridge life depends on incoming water quality, flow demand, chlorine or chloramine concentration, sediment load, operating pressure, and local service conditions.

Contaminant Reduction

The HC Series filtration media is designed to reduce:

• Chlorine taste and odor
• Chloramines
• Unpleasant tastes
• Unpleasant odors
• Fine particulates
• Sediment
• Total organic compounds
• Tannins
• Trihalomethanes
• Water-quality variations that may affect beverage consistency

KineticoPRO states that its hollow-carbon technology provides high dirt-holding capacity, low pressure drop, and improved distribution of water through the filtration media.

Connection Specifications

Inlet Connection: 3/4 in FNPT Outlet Connection: 3/4 in FNPT Pressure Gauges: 2 Installed Manifold Type: Double Parallel Mounting Style: Wall-Mounted Shutoff Valve: Integrated Flushing Valve: Integrated

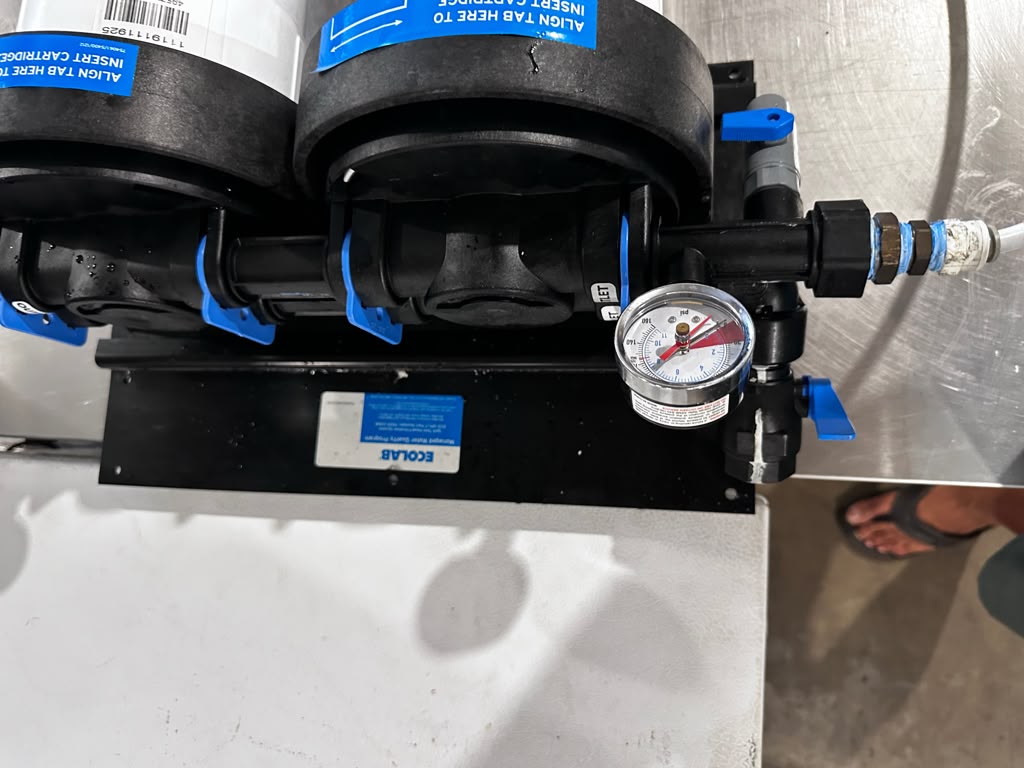

KineticoPRO’s double manifold includes a built-in mounting plate, water shutoff, flushing valve, pressure gauges, and 3/4-inch female NPT inlet and outlet connections.

Approximate Dimensions

Width: 21 in Depth: 9 in Height: Approximately 23 in with 14-inch cartridges installed

The double manifold itself is listed at approximately 21 inches wide × 9 inches deep × 11.5 inches high. The HC614 single-cartridge system measures approximately 23 inches high, so the complete dual-cartridge assembly should be allowed roughly 23 inches of installed height plus additional clearance for cartridge removal.

Buyers should verify the available wall space and provide adequate clearance below the system for cartridge replacement.

Power Requirements

Power Type: Non-Powered Voltage: Not Applicable Phase: Not Applicable Amperage: Not Applicable

This filtration system operates using incoming water pressure and does not require an electrical connection.

Construction

• Heavy-duty modular commercial manifold
• Two replaceable sanitary quick-change cartridges
• Durable polypropylene cartridge construction
• Integrated wall-mounting plate
• Two pressure gauges
• Integrated inlet shutoff
• Integrated flushing valve
• 3/4-inch FNPT water connections
• Blue cartridge-alignment guides
• Twist-lock cartridge installation
• Expandable modular filtration design
• Commercial foodservice configuration

Key Features

• Dual high-capacity filtration cartridges
• Up to 150,000 gallons of rated system capacity
• High-flow commercial design
• Hollow activated-carbon filtration media
• Reduces chlorine and chloramines
• Improves beverage taste and odor
• One-micron nominal particulate reduction
• Low pressure-drop design
• Two pressure gauges help monitor system performance
• Sanitary quick-change cartridge design
• Integrated shutoff simplifies service
• Integrated flush valve supports cartridge changes
• Wall-mounted installation saves floor space
• No electrical connection required
• Suitable for multiple beverage applications
• Designed for demanding commercial environments

Recommended Applications

• Fountain beverage systems
• Soda dispensers
• Carbonators
• Coffee brewers
• Tea brewers
• Juice dispensers
• Specialty beverage equipment
• Drinking-water systems
• Quick-service restaurants
• Full-service restaurants
• Cafés
• Convenience stores
• Hotels
• Commissaries
• Institutional foodservice operations

Certifications

The corresponding KineticoPRO HC614 system is tested and certified to:

• NSF/ANSI Standard 42
• Commercial potable-water filtration requirements
• Low-lead system requirements where applicable

The NSF/ANSI 42 certification covers aesthetic water-quality reduction claims such as chlorine, taste, odor, and particulate reduction.

Certification remains dependent on the use of approved replacement cartridges and proper installation according to manufacturer instructions.

Cartridge Identification

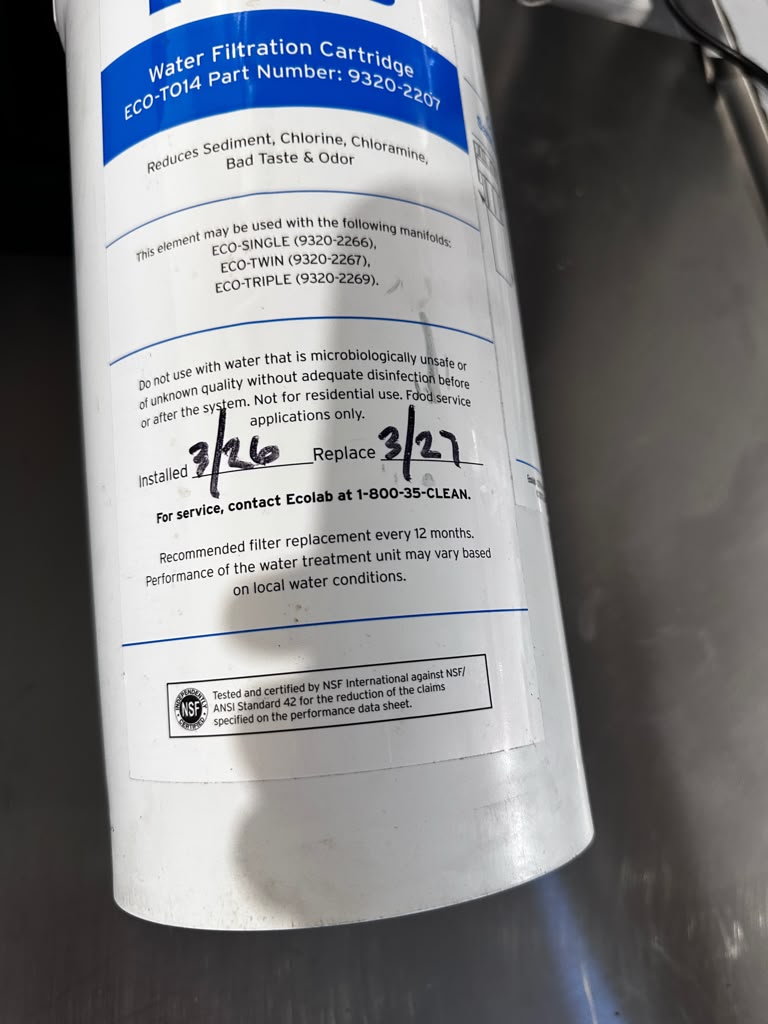

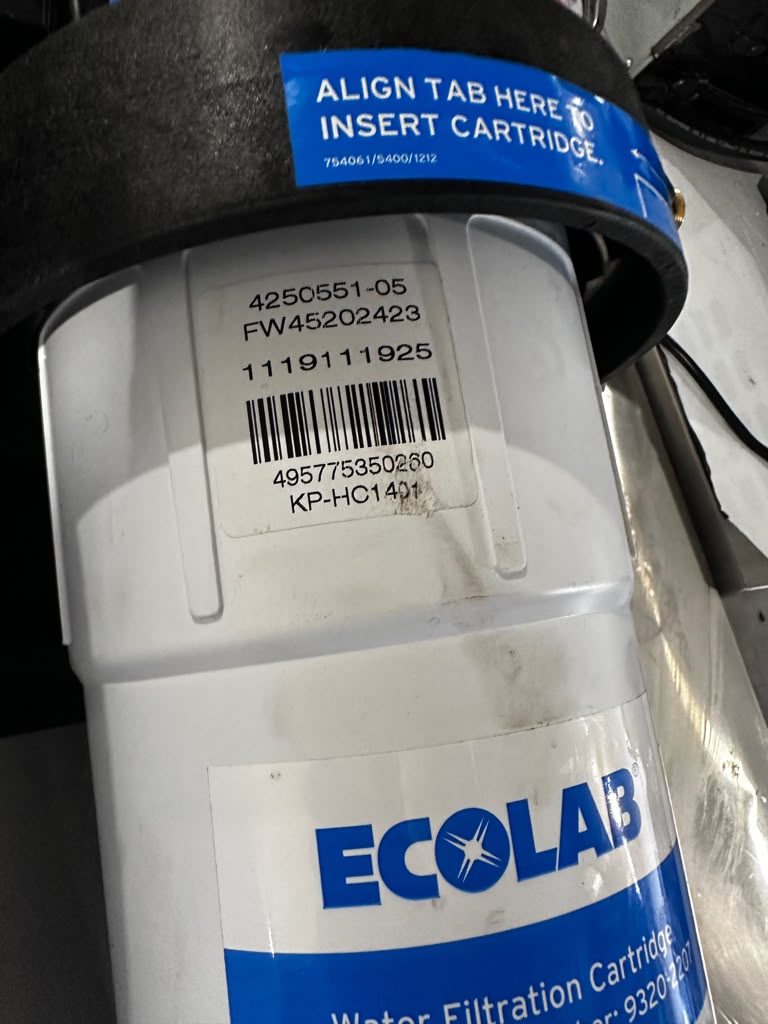

The cartridge labels visible in the photographs show:

Branding: Ecolab Cartridge Platform: KineticoPRO HC Series Cartridge Model: KP-HC1401 Visible Part / Identification Number: 4250551-05 Visible Production Code: FW45202423 Visible Barcode Number: 1119111925

The external label also instructs the installer to align the cartridge tab with the manifold before insertion.

Manufacturing Information

Brand Displayed: Ecolab Filtration Technology Manufacturer: KineticoPRO / Kinetico Incorporated Comparable System Model: KPMF HC614-2 System Part Number: KP-300-778-HC614-2 Alternate Part Number: 80-6142 Manifold Model: KP-300-778 Cartridge Model: KP-HC1401 / HC614 Equipment Type: Commercial Dual-Cartridge Water Filtration System Manifold Country of Manufacture: USA

KineticoPRO identifies the KP-300-778 as its double parallel commercial manifold.

Included

• One dual-head commercial filtration manifold
• Two Ecolab-branded KP-HC1401 filtration cartridges
• Two installed pressure gauges
• Integrated shutoff and flushing controls
• Wall-mounting plate
• Installed fittings and components shown in the photographs

The system is sold exactly as shown in the supplied photos.

Water lines, mounting screws, additional plumbing fittings, sanitizing chemicals, replacement cartridges, installation labor, and surrounding equipment are not included unless specifically stated.

Important Notes

• Sold as-is, where-is
• Used commercial water-filtration equipment
• Fully inspected for physical completeness
• Remaining cartridge life is unknown
• Replacement cartridges are recommended before use
• The system should be sanitized before installation
• Professional installation and pressure testing are required
• Use only with potable cold water
• Do not connect to water exceeding manufacturer temperature or pressure limits
• Confirm flow requirements for the connected equipment
• Confirm local plumbing and health-code requirements
• Provide adequate clearance for future cartridge replacement
• Water quality should be tested after installation
• No manufacturer warranty included
• Shipping calculated at checkout
• Local pickup available
• Review all photographs carefully before purchasing
