High-Grade Condition – Wilbur Curtis PTT310000 – G3 Polaris 3-Gallon Low-Profile Commercial Iced Tea Brewer – Digital Controls – 120V – NSF & UL Listed – Fully Tested & Operational!

🔹 Condition

Used – High-Grade Condition – Fully Tested & Operational

This unit has been professionally inspected and tested to confirm proper commercial operation.

The stainless steel body, digital control system, heating system, brewing components, water inlet system, electronic controls, and brewing functions have been checked for proper operation.

The stainless steel exterior shows normal cosmetic signs of prior commercial use, including light surface scratches, discoloration, and marks consistent with restaurant and beverage-service environments.

The unit remains structurally solid and is ready for continued commercial beverage service.

🔹 Description

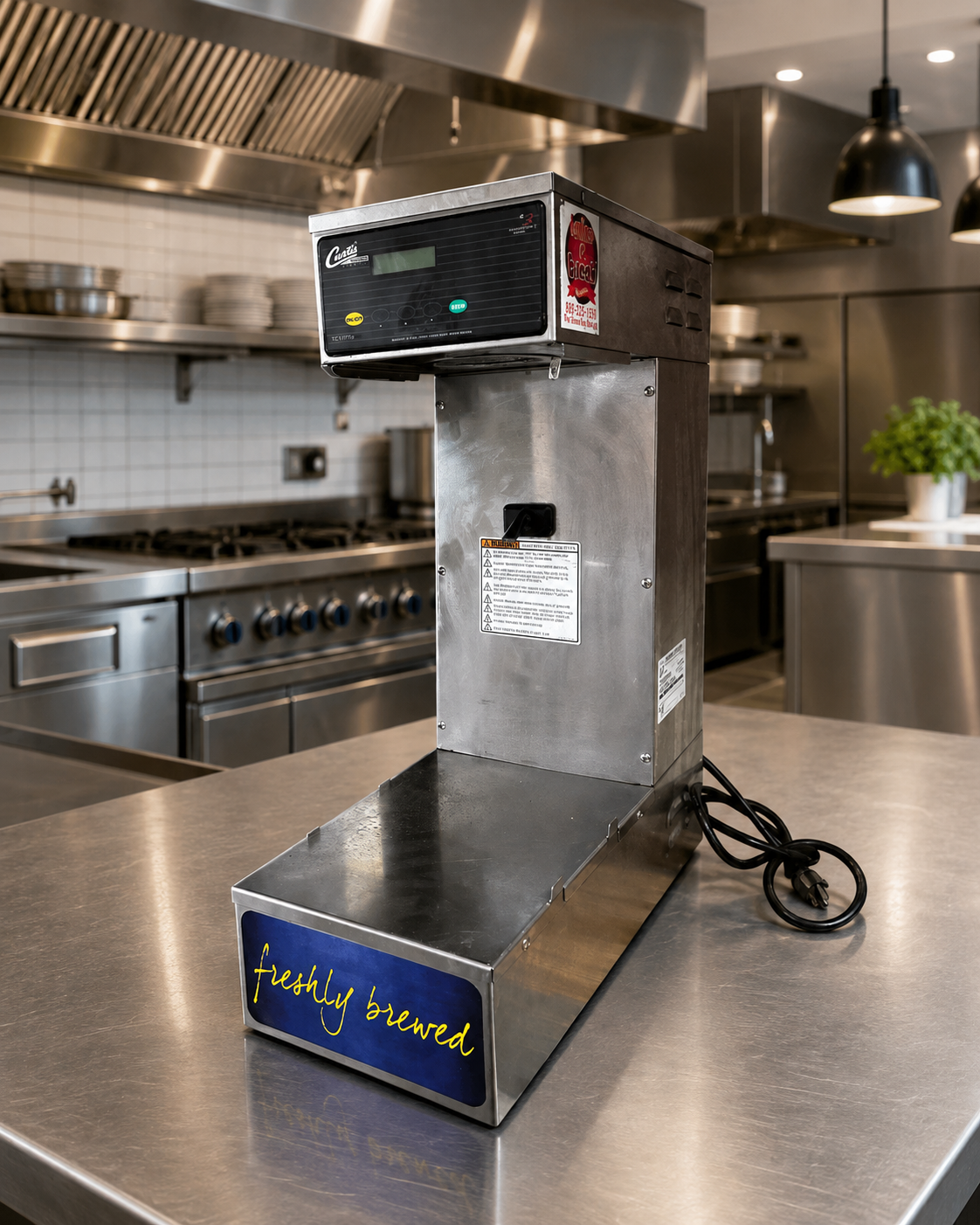

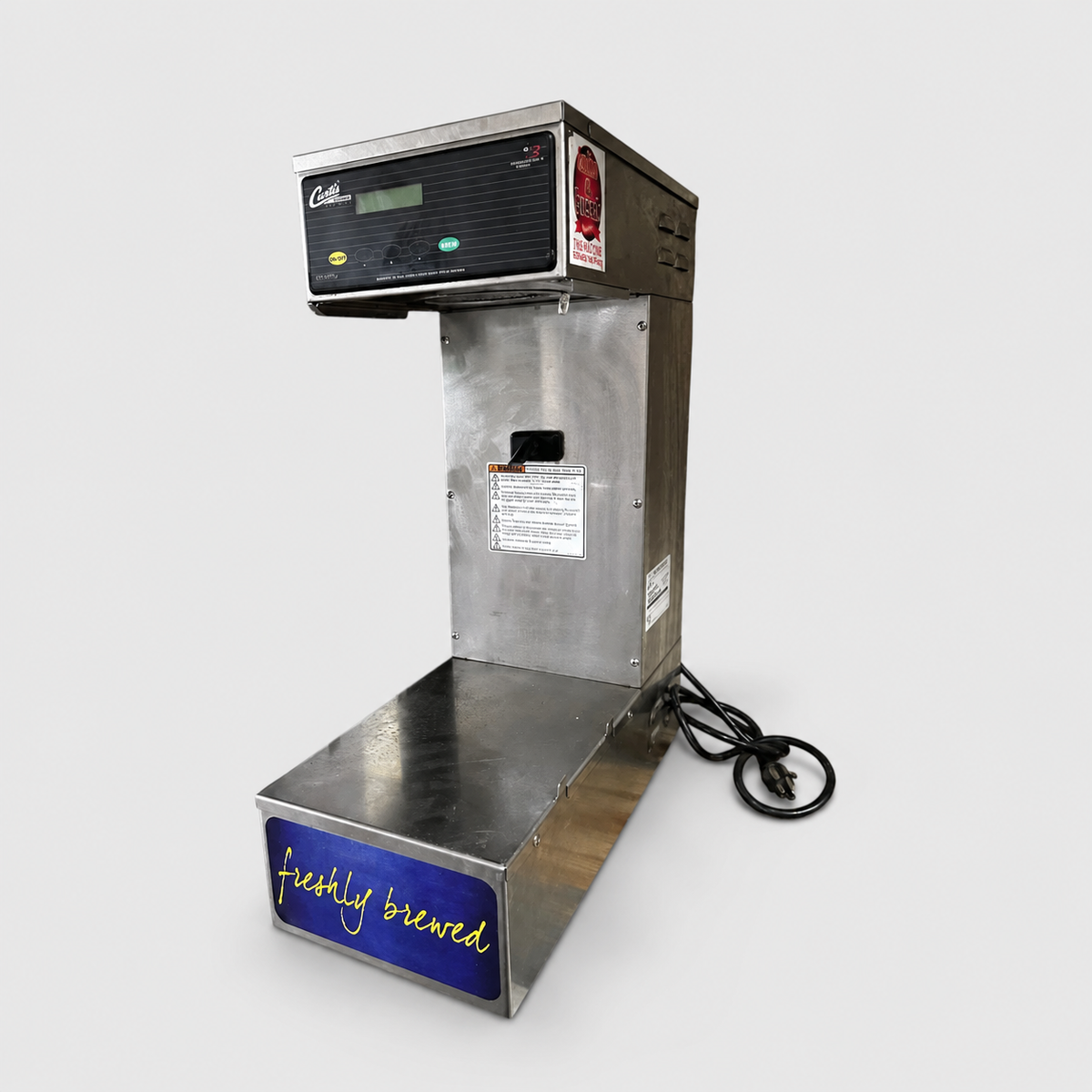

The Wilbur Curtis PTT310000 G3 Polaris Low-Profile Tea Brewer is a commercial automatic iced tea brewing system designed for restaurants, cafés, convenience stores, cafeterias, hotels, catering operations, and high-volume beverage stations.

Its compact low-profile design allows the brewer to fit beneath shelving and other areas where standard-height commercial tea brewers may not fit.

The unit is designed to produce approximately 3 gallons of finished iced tea per brewing cycle and incorporates Curtis' programmable G3 digital control technology for precise control of brewing time, temperature, dilution, and other operating parameters.

The illuminated digital control panel provides simple operation while allowing operators to maintain consistent brew quality. Curtis' G3 system also incorporates energy-saving functions, programmable recipes, cold-water brew lockout, and onboard diagnostic capability.

🔹 Brewing Capacity

Finished Brew Capacity: 3 Gallons

Brewer Style: Low Profile

Beverage Type: Iced Tea

Brewing System: Automatic Commercial Brewing System

Control System: Curtis G3 Digital Controls

Water Supply: Plumbed Water Connection

🔹 Electrical Specifications

Voltage: 120V

Phase: Single Phase

Frequency: 60 Hz

Amperage: 14 Amps shown on this unit's data plate

Wattage: 1700 Watts shown on this unit's data plate

Wiring: 2 Wire + Ground

Power Type: Electric

Plug Configuration: Commercial 120V Plug

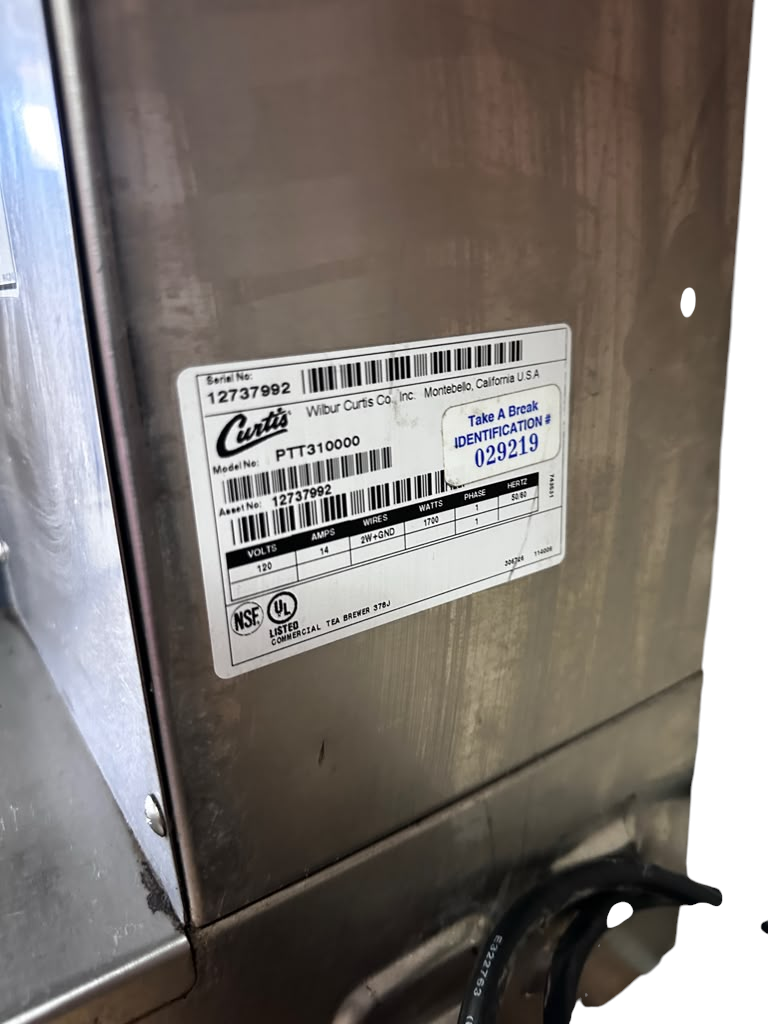

Your exact manufacturer's plate identifies 120V / 14A / 1700W / 1 Phase / 50–60 Hz.

Curtis published specifications for the PTT310000 are very close at 120V, 13.8A, 1650W, 50/60 Hz, reflecting production/specification revisions over the model's life. For this listing, the electrical rating on the actual unit's data plate should take priority.

🔹 Dimensions

Width: 9.13 in

Depth: 22.88 in

Height: 29.38 in

Metric Dimensions: Approximately 23.2 × 58.1 × 74.6 cm

Shipping Weight: Approximately 46 lb

These dimensions are documented specifically for the Curtis PTT310000 Polaris Low Profile brewer.

🔹 Water Connection

Water Inlet: 1/4" Flare

Water Supply: Direct Plumbed Connection

Brewing Method: Automatic Fill / Automatic Brew

Dilution System: Precision Controlled

🔹 Control System

Curtis G3 digital technology

Illuminated LCD display

Programmable brew settings

Programmable brew volume

Programmable temperature settings

Programmable dilution control

Multiple brewing recipes

Cold-water brew lockout

Energy-saving mode

Onboard diagnostics

Programmable display banner

Electronic water-level sensing

🔹 Construction

Heavy-duty stainless steel body

Commercial-grade brewing tank

Stainless steel brewing platform

Digital front control panel

High-volume commercial brew system

Commercial-grade internal components

Integrated heating system

Plumbed water connection

Compact low-profile design

Heavy-duty adjustable feet

🔹 Key Features

3-gallon commercial iced tea brewer

Curtis G3 digital control technology

Compact low-profile configuration

Programmable brewing cycles

Precise temperature control

Precise dilution control

Energy-saving operating mode

Cold-water brew lockout

Electronic water-level sensing

Onboard diagnostic system

Stainless steel construction

Simple ON/OFF operation

Dedicated BREW button

Commercial water-line connection

Designed for consistent beverage quality

Designed for continuous commercial use

Suitable for restaurants

Suitable for cafés

Suitable for delis

Suitable for convenience stores

Suitable for cafeterias

Suitable for hotels

Suitable for catering operations

Suitable for institutional kitchens

🔹 Certifications

NSF Listed

UL Listed

The NSF and UL certification markings are visible directly on your unit's manufacturer's data plate.

🔹 Manufacturing Information

Manufacturer: Wilbur Curtis Co., Inc.

Brand: Curtis

Model: PTT310000

Series: G3 / Polaris

Type: Low-Profile Commercial Iced Tea Brewer

Serial Number: 12737992

Manufacturer Location: Montebello, California, USA

Country of Manufacture: USA

🔹 Included

Wilbur Curtis PTT310000 Commercial Tea Brewer

Integrated G3 Digital Control Module

Stainless Steel Brewer Body

Power Cord / Plug

Integrated Brewing Components

Existing hardware shown in photos

Unit sold exactly as shown in photos

Tea dispenser is included only if physically supplied with this unit.

🔹 Important Notes

Sold as-is, where-is

Fully tested and operational prior to listing

Used commercial equipment with normal cosmetic wear

Requires direct potable-water connection

3-gallon dispenser included only if shown or specifically stated

Brewing basket and other accessories included only as shown

Verify water supply and electrical requirements prior to installation

No manufacturer warranty included unless otherwise stated

Shipping calculated at checkout

Local pickup available
